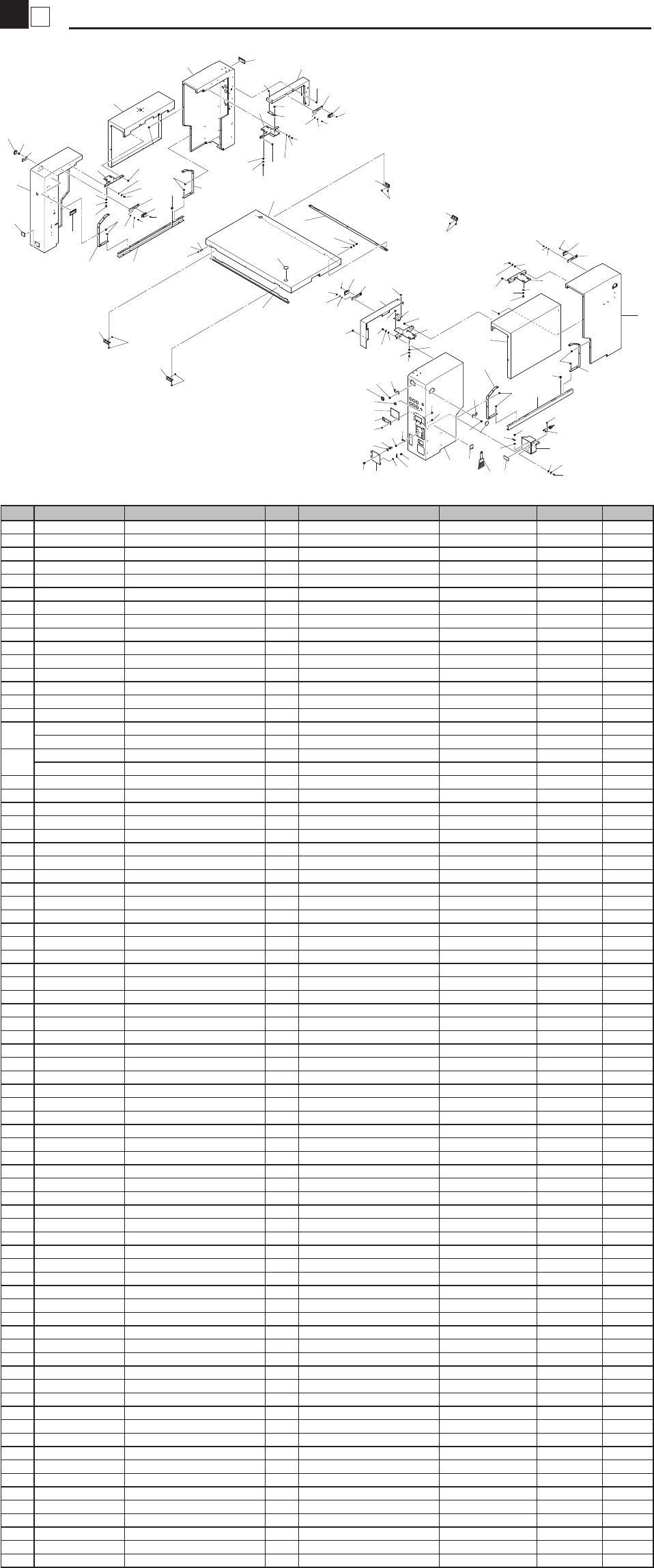

KHW_YG100R_PL - 第5页
2 2 Door Cover Base KHW -11 10 3 26 15 23 18 29 17 1 22 21 2 18 14 13 12 12 12 1 1 12 8 10 31 28 10 31 28 16 8 25 1 1 25 28 31 10 12 12 8 25 24 24 18 17 9 21 20 22 19 18 16 13 26 25 28 28 30 2 27 6 4 5 29 16 1 1 27 24 4 …
1
2
Top Cover
Cover
KHW-1110
35
43
18
16
12
33
19
17
46
31
32
48
51
56
58
58
11
31
32
23
30
30
44
44
23
48
55
35
14
49
57
24
53
54
59
26
41
43
44
44
45
43
35
13
39
42
9
59
371
42
9
58
5
6
7
6
8
47
52
28
29
34
36
43
44
44
51
56
58
19
31
32
17
20
43
24
46
59
54
58
53
40
49
41
48
23
23
18
50
43
18
58
38
4
41
54
2
3
21
21
15
58
58
58
56
51
20
53
27
43
59
54
41
40
44
43
43
25
58
40
58
56
57
55
49
13
48
51
45
32
31
53
59
54
44
44
21
21
33
22
10
41
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHW-M1301-A0X COVER 1 ASSY. 1
1-1 KHW-M1301-00X COVER 1 1 (2008/7/10) ME70043 OK
2 KHW-M130B-00X BASE,USB 1
3 KHM-M1397-00X BRACKET,FDD 3 1
4 90K41-000540 LABEL,ALERT 1
5 KHW-M130E-00X DOOR,USB 1
6 KW3-M1349-00X MINI LATCH 1
7 KGJ-M1350-00X SPACER,MINI LATCH 1
8 KGJ-M1351-01X PLATE,MINI LATCH 1
9 KG2-M536A-22X HNS,PE 150 1
9-1 90K30-244015 HNS,COVER 1 (2008/7/2) ME60248 OK
10 KHW-M1302-A0X COVER 2 ASSY. 1
10-1 KHW-M1302-00X COVER 2 1 (2008/7/10) ME70043 OK
11 KGS-M1303-A2X COVER 3 ASSY. 1
11-1 KGS-M1303-02X COVER 3 1 (2008/7/10) ME70043 OK
12
KGS-M1304-A0X COVER 4 ASSY. 1
KGS-M1304-B0X COVER 4 ASSY. 1 Backward Operation
12-1
KGS-M1304-00X COVER 4 1 (2008/7/10) ME70043 OK
KGS-M1304-50X COVER 4 1 Backward Operation (2008/7/10) ME70043 OK
13 KHW-M1305-00X COVER 5 2
14 KGS-M1306-52X COVER 6 1
15 KGS-M1307-A0X COVER 7 ASSY. 1
15-1 KGS-M1307-00X COVER 7 1 (2008/7/10) ME70043 OK
16 KGS-M1308-A0X COVER 8 ASSY. 1
16-1 KGS-M1308-00X COVER 8 1 (2008/7/10) ME70043 OK
17 K16-90101-06X BOLT:TP-M4X6 9
17-1 90990-46J001 BOLT,THIN HEAD 9 (2008/6/3) ME30136 OK
18 KGA-M1318-00X COVER 18 4
19 KGS-M1321-03X COVER 21 2
20 KGS-M1322-02X BRACKET1,COVER 21 2
21 KM0-M1335-00X BRACKET 1 GATE COVER 4
22 KHW-M8597-00X BRACKET,GAUGE 1
23 K46-M1374-10X HINGE 2 4
23-1 K46-M1374-11X HINGE 2 4 (2009/7/13) MF70096 OK
23-2 K46-M1374-12X HINGE 2 4 (2013/2/13) MK20039 OK
24 KGS-M1356-01X PLATE 1,JOINT 1
25 KGS-M1357-00X PLATE 2,JOINT 1
26 KGS-M1358-00X PLATE 3,JOINT 1
27 KGS-M1359-01X PLATE 4,JOINT 1
28 KL3-M1381-02X PLATE 1,KEYBOARD 1
29 KGT-M1382-00X PLATE 2,KEYBOARD 1
30 KGS-M1329-01X COVER 29 2
31 KM0-M1332-01X BRACKET MAGNET 4
32 KV5-M1130-00X CATCH MG. 4
33 90K41-000350 LABEL,ALERT 2
34 KV7-M1391-10X PLUG 4
35 KGA-M1392-00X PLUG(30) 2
36 KH1-M13A9-00X BUSH 2
37 KGA-M13B9-00X HOOK 1
38 KV7-M8880-20X BRUSH, FEEDER 1
39 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
40 91312-04010 BOLT HEX.SOCKET HEAD 10 M4X10
41 91312-05010 BOLT HEX.SOCKET HEAD 42 M5X10
42 90990-11J003 SCREW,PAN HEAD W/W 2
43 90990-12J001 SCREW BIN.HEAD W/W 62
44 90990-12J002 SCREW BIN.HEAD W/W 64
45 90990-12J004 SCREW BIN.HEAD W/W 8
46 90990-12J005 SCREW BINDING HEAD 8
47 90990-12J006 SCREW BIND HEAD W/W 2
48 98902-03005 SCREW BINDING HEAD 8
49 98902-03008 SCREW BINDING HEAD 6
50 98902-04005 SCREW BINDING HEAD 4
51 98902-04010 SCREW BINDING HEAD 8
52 98702-04008 SCREW BINDING HEAD 8
53 92907-04200 WASHER PLAIN 3
54 92902-05200 WASHER PLAIN 2
55 92990-03200 WASHER PLAIN 50
55-1 92902-03200 WASHER PLAIN 10 (2007/11/1) MD80089 OK
56 92902-04200 WASHER PLAIN 26
57 92990-03400 WASHER EXTL.TOOTHED 50
57-1 92990-03400 WASHER EXTL.TOOTHED 6 (2007/11/1) MD80089 OK
57-2 90172-00J030 WASHER,EXTL.TOOTHED 6 (2008/4/15) ME40115 OK
58 92990-04400 WASHER EXTL.TOOTHED 200
58-1 92990-04400 WASHER EXTL.TOOTHED 26 (2007/11/1) MD80089 OK
58-2 90172-00J040 WASHER,EXTL.TOOTHED 26 (2008/4/15) ME40115 OK
59 92990-05400 WASHER EXTL.TOOTHED 50
59-1 92990-05400 WASHER EXTL.TOOTHED 8 (2007/11/1) MD80089 OK
59-2 90172-00J050 WASHER,EXTL.TOOTHED 8 (2008/4/15) ME40115 OK
2
2
Door Cover
Base
KHW-1110
3
26
15
23
18
29
17
1
22
21
2
18
14
13
12
12
12
11
12
8
10
31
28
10
31
28
16
8
25
11
25
28
31
10
12
12
8
25
24
24
18
17
9
21
20
22
19
18
16
13
26
25
28
28
30
2
27
6
4
5
29
16
11
27
24
4
6
7
16
29
5
9
26
15
32
34
33
50
50
9
26
15
26
15
40
42
17
47
24
24
24
24
29
16
14
13
16
43
27
25
25
11
12
12
12
12
6
44
46
31
31
10
10
11
8
8
18
18
18
41
9
14
49
13
16
39
31
39
31
10
10
8
8
38
24
24
48
48
48
48
24
25
25
24
24
6
37
36
27
4
29
16
17
23
3
29
18
31
12
8
14
11
7
1
35
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHW-M1309-A0X COVER 9 ASSY.(STD) 2
2 KHW-M1309-00X COVER 9-1(STD) 2
3 KGS-M130A-51X COVER 9-2 2
4 KGS-M1340-51X BRACKET 1,COVER 9 2
4-1 KGS-M1340-52X BRKT. 1,COVER 9 2 Bolt Size UP (2008/10/17) ME60115 NG
5 KGS-M1341-50X BRACKET 2,COVER 9 2
5-1 KGS-M1341-51X BRKT. 2,COVER 9 2 Bolt Size UP (2008/10/17) ME60115 NG
6 KGS-M1342-01X BRKT.3 COVER 9 2
6-1 KGS-M1342-02X BRKT.3 COVER 9 2 Bolt Size UP (2008/10/17) ME60115 NG
7 KHW-M1343-00X BRKT.4 COVER 9 2
8 KV7-M1349-00X PLATE 2,NUT 2
9 KH2-M1324-00X GRIP 2
9-1 KH2-M1324-01X GRIP 2 (2008/10/15) ME00034
10 KM0-M1331-01X BRACKET GAS DAMPER 2
11 KGS-M1348-00X GAS SPRING 2
12 KM0-M1346-00X SHOULDER,BOLT 4
12-1 90990-31J006 BOLT,SHOULDER 4 (2008/6/24) ME10118 OK
13 KL0-M1373-01X BRACKET 1 SCHMEASAL 1
14 KL0-M1374-00X PLATE 1 SCHMESAL 1
15 KGS-M1344-00X STOPPER 45 2
16 KGS-M1360-00X BOLT 4
17 K16-90101-06X BOLT:TP-M4X6 9
17-1 90990-46J001 BOLT,THIN HEAD 9 (2008/6/3) ME30136 OK
18 K16-90101-10X BOLT:TP-M4X10 5
18-1 90990-46J003 BOLT,THIN HEAD 5 (2008/6/3) ME30136 OK
19 KHW-M13D6-00X SEAL 1(YG100R) 1
20 KW7-M13D7-01X SEAL 2(YAMAHA) 1
21 90K41-000360 LABEL,ALERT 2
22 90K41-000420 LABEL,ALERT 2
23 KGA-M1392-00X PLUG(30) 2
24 91317-04006 BOLT HEX.SOCKET HEAD 4 M4X6
25 91317-04008 BOLT HEX.SOCKET HEAD 8 M4X8
25-1 91317-06010 BOLT HEX.SOCKET HEAD 8 M6X10 Bolt Size UP (2008/10/17) ME60115 NG
26 91317-04020 BOLT HEX.SOCKET HEAD 2 M4X20
27 91317-05014 BOLT HEX.SOCKET HEAD 2 M5X14
28 90990-12J002 SCREW BIN.HEAD W/W 64
29 92907-04200 WASHER PLAIN 3
30 95307-04600 NUT HEXAGON 1
31 95307-06600 NUT HEXAGON 2
32 KGS-M1309-B0X COVER 9 ASSY.(S-ATS) 1
33 KGS-M1309-11X COVER 9-2(S-ATS) 1
34 KGS-M130A-11X COVER 9-2(S-ATS) 1
35 KGS-M1341-10X BRKT. 2,COVER 9 1
35-1 KGS-M1341-11X BRKT. 2,COVER 9 1 Bolt Size UP (2008/10/17) ME60115 NG
36 KGS-M1343-12X BRKT. 4,COVER 9 1
37 KGS-M1345-02X BRKT. 5,COVER 9 1
38 KGS-M1347-02X BRKT. 6,COVER 9 1
39 KL3-M1348-10X GAS SPRING 4
40 KGS-M1309-D0X COVER 9 ASSY.(S-ATS) 1
41 KGS-M1309-20X COVER 9-1(S-ATS) 1
42 KGS-M130A-20X COVER 9-2(S-ATS) 1
43 KGS-M1340-61X BRKT. 1,COVER 9 1
44 KGS-M1341-21X BRKT. 2,COVER 9 1
45 KGS-M1343-20X BRKT. 4,COVER 9 1
46 KGS-M1345-10X BRKT. 5,COVER 9 1
47 KGS-M1347-10X BRKT. 6,COVER 9 1
48 KM0-M1346-00X SHOULDER,BOLT 4
48-1 90990-31J006 BOLT,SHOULDER 4 (2008/6/24) ME10118 OK
49 K16-90101-06X THIN HEAD 10
49-1 90990-46J001 BOLT,THIN HEAD 10 M4x6 (2008/6/3) ME30136 OK
50 K16-90101-10X THIN HEAD 4
50-1 90990-46J003 BOLT,THIN HEAD 4 M4x10 (2008/6/3) ME30136 OK
3
2
Base Cover
Cover
KHW-1110
14
14
17
3
20
39
40
13
4
3
4
39
10
14
35
10
3
18
23
40
13
14
34
3
39
35
39
12
30
22
9
3
19
11
3
2
6
26
33
38
36
39
31
1
39
3
26
37
14
3
21
14
3
3
34
34
3
39
3
15
39
14
35
29
3
26
39
39
13
25
14
40
28
14
35
26
39
13
39
40
25
14
3
22
34
36
38
4
6
4
4
3
7
11
10
4
10
10
26
7
39
18
10
24
18
3
3
34
20
3
3
39
32
14
41
39
37
26
14
3
3
15
34
3
14
16
1
39
39
25
3
14
33
5
8
19
9
3
21
14
27
12
34
25
3
26
39
2
4
14
7
39
10
18
3
5
8
7
34
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 $TSH8-01 JOINT 2
2 $TSS4-01 JOINT 12
3 90990-12J001 SCREW BIN.HEAD W/W 53
4 91312-05010 BOLT HEX,SOCKET HEAD 16
5 91314-04008 BOLT HEX.SOCKET HEAD 6
6 92902-03200 WASHER,PLAIN 4
7 92902-05200 WASHER,PLAIN 8
8 92903-04200 WASHER PLAIN 6
9 90172-00J040 WASHER,EXTL,TOOTHED 6
10 92990-05400 WASHER,EXTL,TOOTHED 16
11 98902-03006 SCREW BINDING HEAD 4
12 K40-M8598-00X PLUG 1 2
13 K44-M1354-00X MG. CATCH 4 TL-152-2
14 KG2-M1370-00X HINGE ASSY 16
15 KGA-M1328-00X BRACKET 2 2
16 KGS-M1312-10X COVER 12-1 1
17 KGS-M1315-00X COVER 15 1
18 KGS-M1317-00X COVER 17 4
19 KGS-M1325-00X BRACKET 5 2
20 KGS-M1326-00X BRACKET 1-1 2
21 KGS-M1327-00X BRACKET 1-2 2
22 KGS-M1328-00X BRACKET 2 2
23 KGS-M1336-00X BRKT.REAR LEFT 1
24 KGS-M1337-00X BRKT.FL RR 1
25 KGS-M1371-00X BRACKET,FIX 4
26 KH1-M1396-00X WASHER 12
27 KHW-M1310-00X COVER 10 1
28 KHW-M1311-00X COVER 11 1
29 KHW-M1313-00X COVER 13 1
30 KHW-M1314-00X COVER 14-1 1
31 KHW-M1314-10X COVER 14-2 1
32 KHW-M1339-00X BRKT.FL 1
33 KM0-M1141-00X MANUFOLD 2
34 KV7-M1347-00X PLATE BRACKET 8
35 KV7-M1370-00X BRACKET,MAGNET 4
36 KW8-M1323-00X BRACKET,MAGNET 2
37 KW8-M1328-00X BRACKET 9 2
38 KW8-M1330-00X BRACKET 9 2
39 98902-05010 SCREW BINDING HEAD 48
40 98907-03008 SCREW BINDING HEAD 8
41 KGS-M1312-20X COVER 12-2 1
