4-14
JO-109
1005-001
2. Feeder Measurement

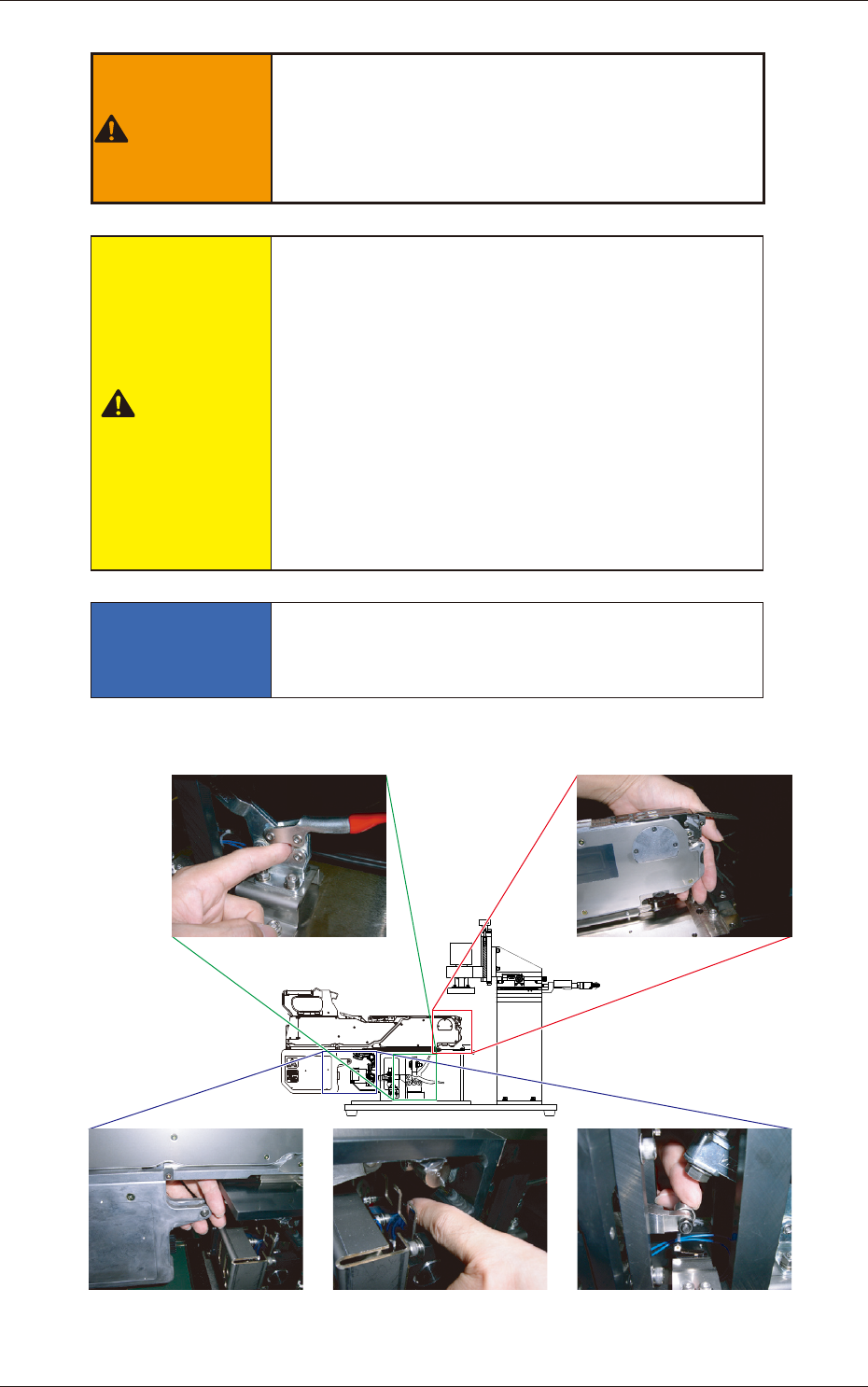

WARNING
If you wear a pacemaker, do not handle the tape
feeders.
The tape feeders use permanent magnets.
The pacemaker may be affected by the magnetism
and a serious accident will result.
CAUTION
•
Be sure not to drop any tape feeder. Otherwise,
your feet will get hurt or the feeder may be
damaged.
Carefully handle each tape feeder and never drop any.
•
When you install a tape feeder on the adjustment
base, avoid getting your ngers caught between
the end of the feeder and the adjustment base
and the connectors.
•
The master tapes are made of a thin metal.
Carefully handle the tapes to avoid cutting your
nger with the tape edges.
NOTICE
Conrm that the hook at the end of the tape feeder
is securely engaged and the suppressor is not set
aoat.
630 128 0127
00-0115-
Feeder Fixing Areas
Toggle Clamp Between End of Feeder and Adjustment Base
Fig. D12
4-15
JO-109
1005-001
2. Feeder Measurement

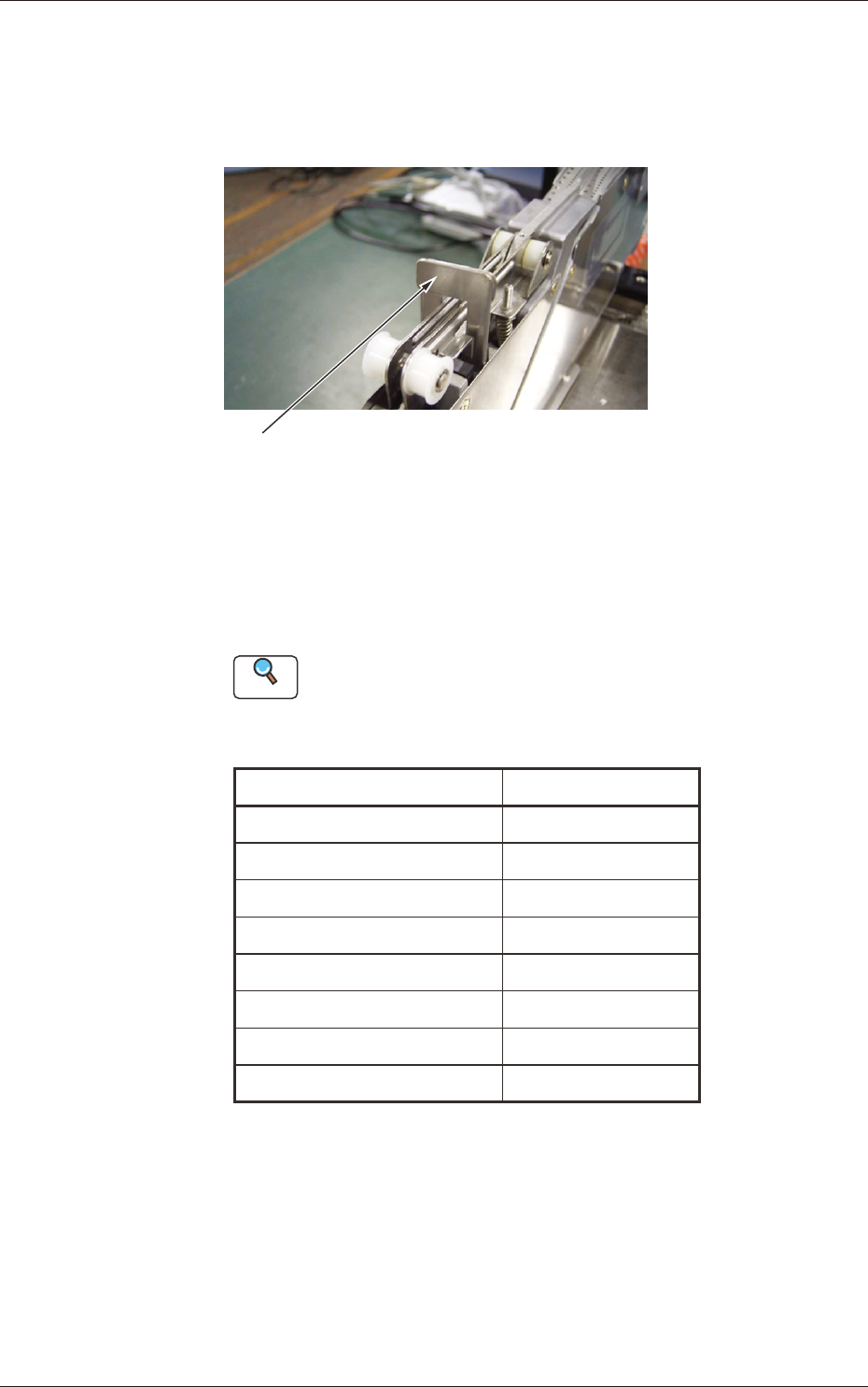

(6) Put the light shielding jig (accessory part) in the cover tape
tension detection photosensor section and set the photosensor in
the "E/NR" mode.
Ref
.: E/NR (Light Emitted and Not Received)
Light Shielding Jig
This may look different from the light shielding jig
(accessory part).
Fig. D13
(7) Set the feeder feeding pitch for the measurement as follows.
Reference
Refer to "4.2.2 Feeding Pitch Setting Operation" in the
instruction manual Tape Feeders for SIGMA-G4/G5 or GXH
Series for how to set the feeding pitch.
Table D3
Models Feeding Pitches
GT-*808*
、
GD-*808* 2 mm
GT-1216*
、
GD-1216* 4 mm
GT-2432*
、
GD-2432* 4 mm
GT-4456*
、
GD-4456* 4 mm
GT-7200*
、
GD-7200* 4 mm
GT-8800*
、
GD-8800* 4 mm
GT-2404* 2 mm
SL-4808* 2 mm
4-16
JO-109
1005-001
2. Feeder Measurement

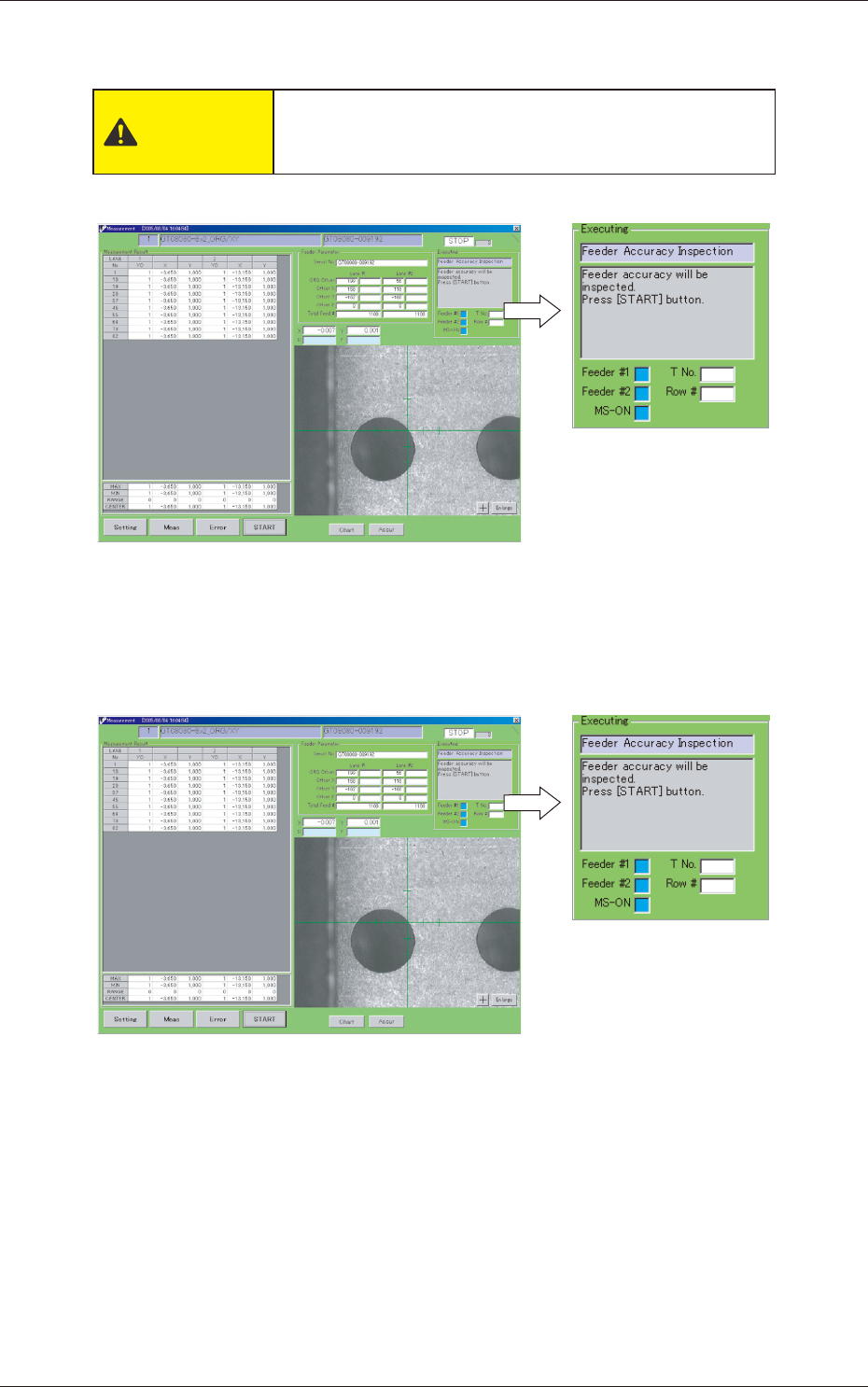

(8) Lower the toggle clamp of the jig to x the tape feeder.
The parameters are read.
CAUTION
Avoid getting your nger caught in the toggle clamp
while fastening the tape feeder to the jig.
Fig. D14
(9) After the reading is completed, the window is changed as follows.
Conrm the following.
Fig. D15
