1-5 JO-109 2. Specications 1 106-002 T able A1-5 Item Description 10. Dimensions • Pickup Position Camera Control Unit (Power Supply for LED Illumination) 76 (W idth) × 154.5 (Depth) × 55 (Height) mm • Micrometer Unit (…
1-4
JO-109
2. Specications
1106-002
Table A1-4
Item Description
7. Environmental
Condition
Temperature : 20
±
10
°
C
Humidity : 30 to 80 % (Avoid dew condensation)
Note
: When the ambient temperature rises more than the surface of the
machine, dew may condense under the condition described below.
Note that dew condensation may cause the machine to break down.
Condition of Dew Condensation
Dew may condense when the differences (based on "Humidity (%)")
between the ambient and the surface temperatures of the machine reach
the values or more in the table below.
Humidity
(%)
Differences between Ambient and Surface
Temperatures of Machine (Ambient
Temperature > Surface Temperature)
80 3
°
C or more
70 6
°
C or more
60 8
°
C or more
50 10
°
C or more
40 14
°
C or more
30 18
°
C or more
8. Power Supply
•
100 V
±
10% AC Single-Phase, 50/60Hz
•
200 V
±
10% AC Single-Phase, 50/60Hz
Note
: When you purchase this jig, designate the power supply to be used
Consu1t the marketing department or sales agency of Hitachi High-
Technologies for details
Ref.
: Because of momentary vo1tage drop due to a power breakdown or
falling of a thundcrbo1t, the PC might be broken down or software
or data might be damaged. The AC uninterruptive power supply is
recommended to prevent momentary vo1tage drop.
9. Power
Consumption
Approx. 200 W
1-5
JO-109
2. Specications
1106-002
Table A1-5
Item Description
10. Dimensions
•
Pickup Position Camera Control Unit (Power Supply for LED Illumination)
76 (Width)
×
154.5 (Depth)
×
55 (Height) mm
•
Micrometer Unit (Measured Data Transfer Unit)
91.4 (Width)
×
92.5 (Depth)
×
50.4 (Height) mm
•
Electrical Box
200 (Width)
×
330 (Depth)
×
160 (Height) mm
•
Measuring Jig
590 (Width)
×
220 (Depth)
×
543.5 (Height) mm
Note
: These are measured without setting the tape feeder and excluding the
micrometer.
11. Mass
•
Pickup Position Camera Control Unit
(Power Supply for LED Illumination) : 0.44 kg
•
Micrometer Unit (Measured Data Transfer Unit) : 0.22 kg
•
Electrical Box : Approx. 4.8 kg
•
Measuring Jig : 25.5 kg
Standard Accessory Parts List
Table A2
No. Product Name Part No. Q'ty Remarks
1 Ferrite Core for Power Cable (2m)
KYD-M804-000
sel.
for 100V
KYF-M86J4-001 for 200V
2 Light Shielding Jig KYD-MD802-000 1
3 Jig Origin Master KYD-M881R-000 1
1-6
JO-109

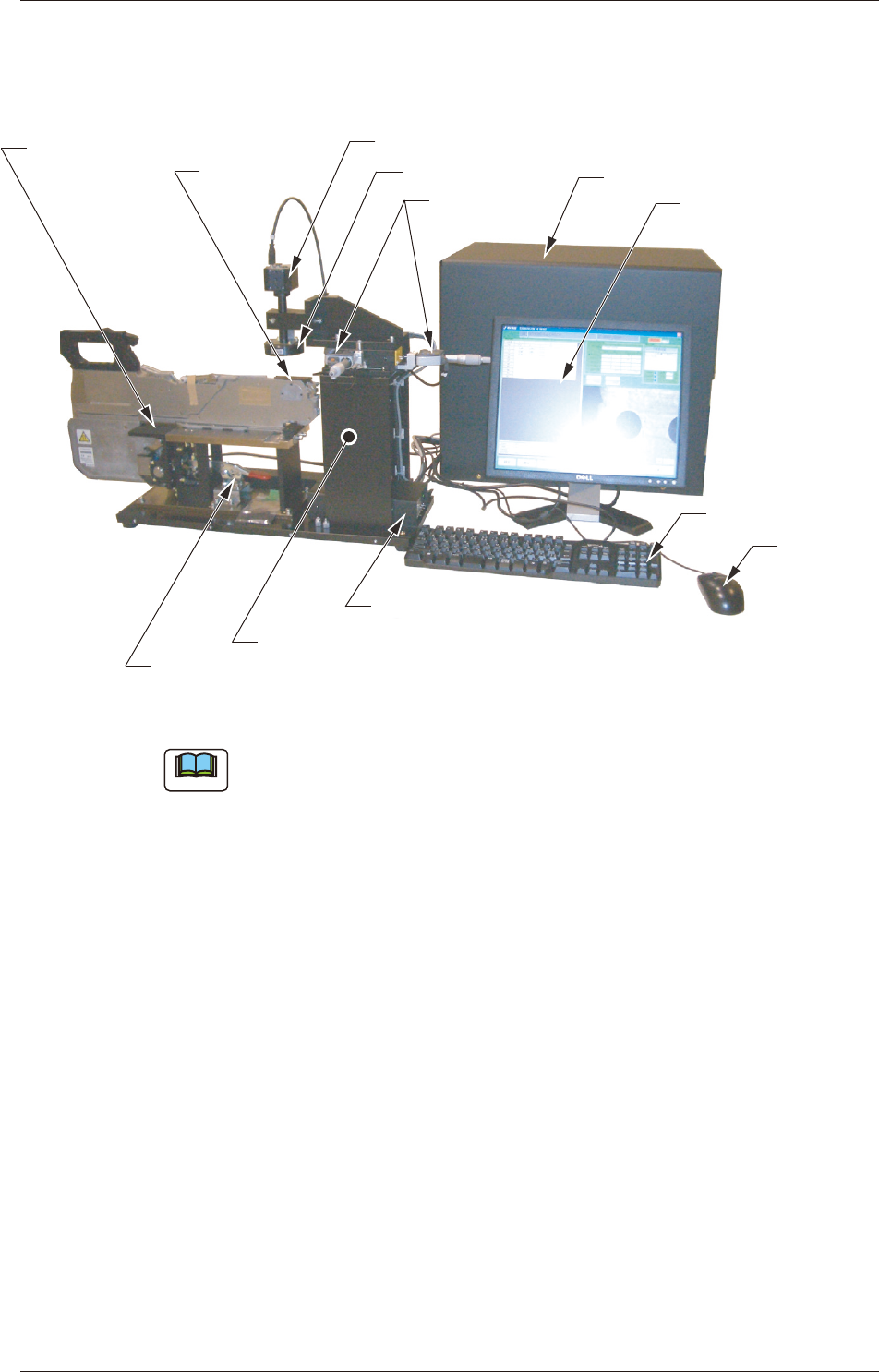

3. Rough View of Device
1106-002
3. Rough View of Device
*Liquid Crystal Display
* : provided by the client.Note
(DELL E176FP)
Micrometer
*Mouse
*Keyboard
Pickup Position
Master
Toggle Clamp
Measuring Jig
Adjustment Base
Pickup Position Camera
*Personal Computer Box
LED Illumination
Micrometer Unit
(Measured Data Transfer Unit)
Fig. A1
Note
The jig in the above inset photo might look different from the actual one.
Personal Computer,
Display, Keyboard, Mouse should be provided by
the client.
