2-1 JO-109 1. Procedure for Jig Installation CAUTION At least two people are needed to carry the feeder adjusting jig for the installation because it is very heavy . Be sure not to drop it. Otherwise, your hands and/or f…

2-B

JO-109

1005-001

2-1

JO-109

1. Procedure for Jig Installation

CAUTION

At least two people are needed to carry the feeder

adjusting jig for the installation because it is very

heavy.

Be sure not to drop it. Otherwise, your hands and/or

feet will get hurt or the jig may be damaged.

Fig. B1 Jig Installation

1. Procedure for Jig Installation

1005-001

2-2

JO-109

1.1 Procedures for Attachment of Camera Unit and Detachment of Fixtures

1005-001

1.1 Procedures for Attachment of Camera Unit and

Detachment of Fixtures

1.1.1 Required Tools

•

Hex-Head Wrenches for M3 and M4

•

Cutting Nipper

1.1.2 Procedure for Attachment of Camera Unit

Procedure

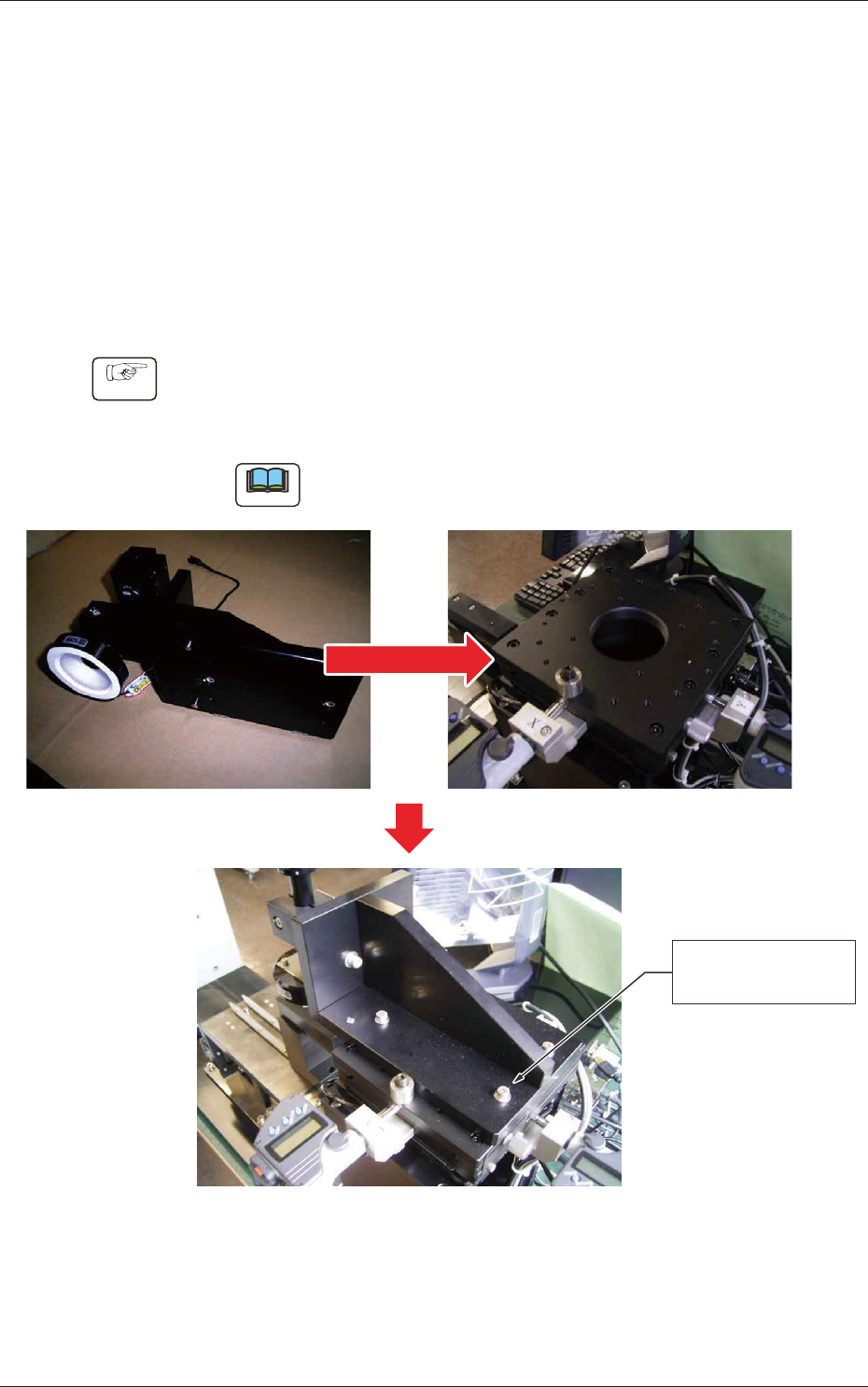

(1) Place the camera unit on the X/Y stage of the jig body and

temporarily x it on the X/Y stage with four bolts (SW + FW)

having M4L20 hexagonal recessed sockets (accessory parts).

Note

Before assembling it on the X/Y stage, make sure that there is

no dust and dirt on the mounting surface.

4-M4L20 (SW + FW)

Temporary Fixing

Fig. B2
