2-4

JO-109

1.1 Procedures for Attachment of Camera Unit and Detachment of Fixtures

1005-001

(4) Fasten the cables with tie wraps.

Adjust the tie wraps to the location of the tie mounts and x them

on the tie mounts after tightening the cable ties.

Tie Mount

Bundle

Fig. B5

The cameral cable should also be bundled and xed on the tie

mounts using the tie wraps.

Camera Cable

Fig. B6

2-5

JO-109

1.1 Procedures for Attachment of Camera Unit and Detachment of Fixtures

1005-001

1.1.3 Procedure for Detachment of Fixtures

Procedure

(1) Detach the xtures for both Y and X axes.

Fixture for Y Axis

Fixture for X Axis

Screw (M4)

Screw (M3)

Fig. B7

(2) Fix the clamp plate (accessory) with the screws (M3) that were

used to fasten the xtures and tighten the clamp screw for rm

attachment.

X Axis

Y Axis

Clamp Screw

Clamp Plate

Screw (M3)

Fig. B8

2-6

JO-109

1.1 Procedures for Attachment of Camera Unit and Detachment of Fixtures

1005-001

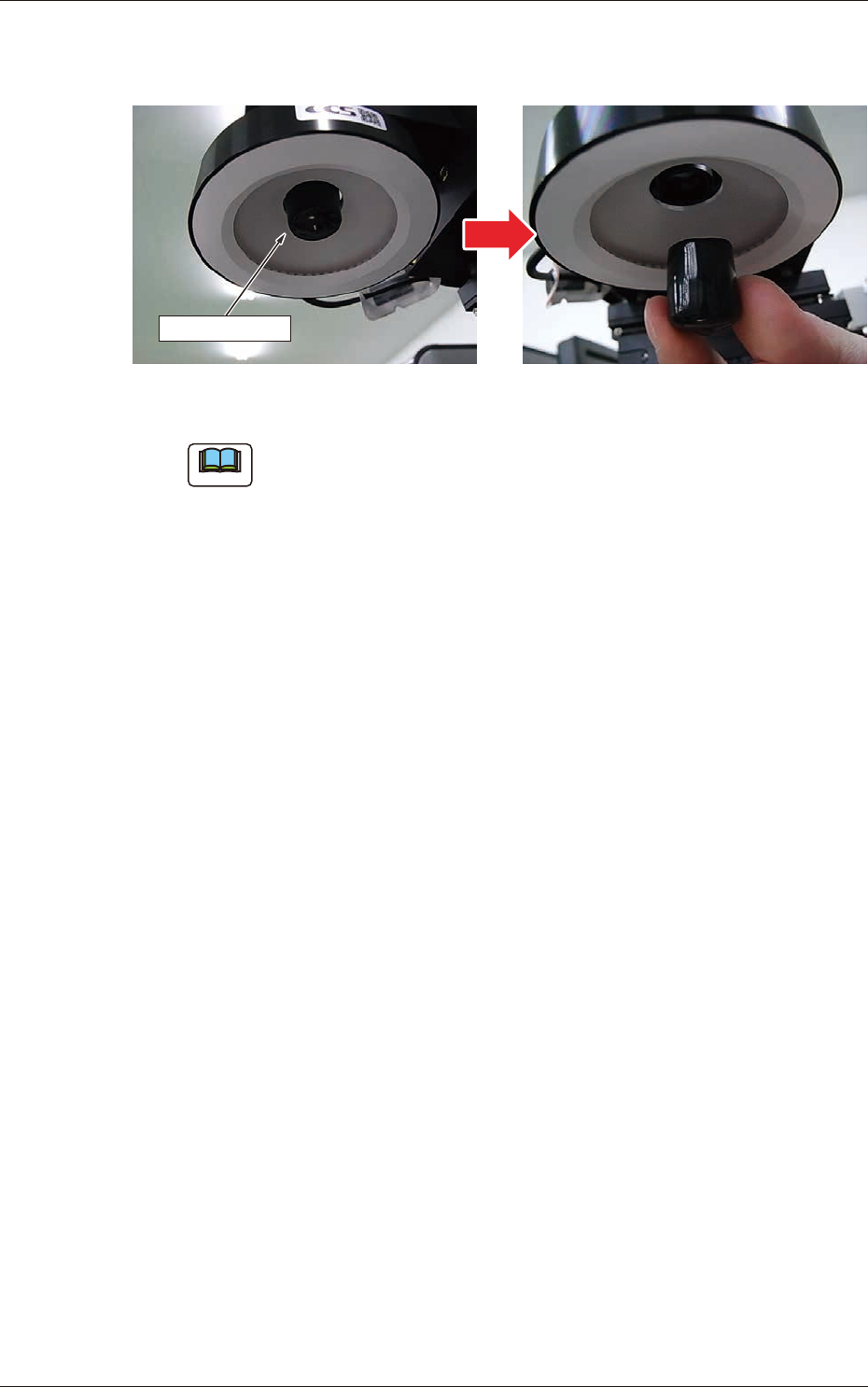

(3) Detach the camera end protection cap located inside the LED

lighting unit.

Protection Cap

Fig. B9

Note

No image can be captured with the protection cap attached.
