4-4 JO-109 1. Registration of Master Position (Jig Origin Adjustment) 1005-001 Note T o enlar ge the image, press the [Enlarge] button in the "Master Setting" window . T o get the original size, press the [Retu…
4-3
JO-109
1. Registration of Master Position (Jig Origin Adjustment)
1005-001
(3) The "Master Setting" window opens. Conrm that a crosshair is
displayed in the window.
When no crosshair is displayed, press the [+] button in the
window to make it appear.
(4) Move the micrometer until the center of the crosshair is aligned
with the pin center of the jig origin master.
NOTICE
Do not give a strong shock to the micrometer by
hitting against human body or an object.
Otherwise, the micrometer may be damaged,
resulting in inaccurate adjustment of the feeder's
component jig origin.
X (-)
Y (-)
X (+)
Y
(+)
Pin of Jig Origin Master
Crosshair
Direction of Tape Feed

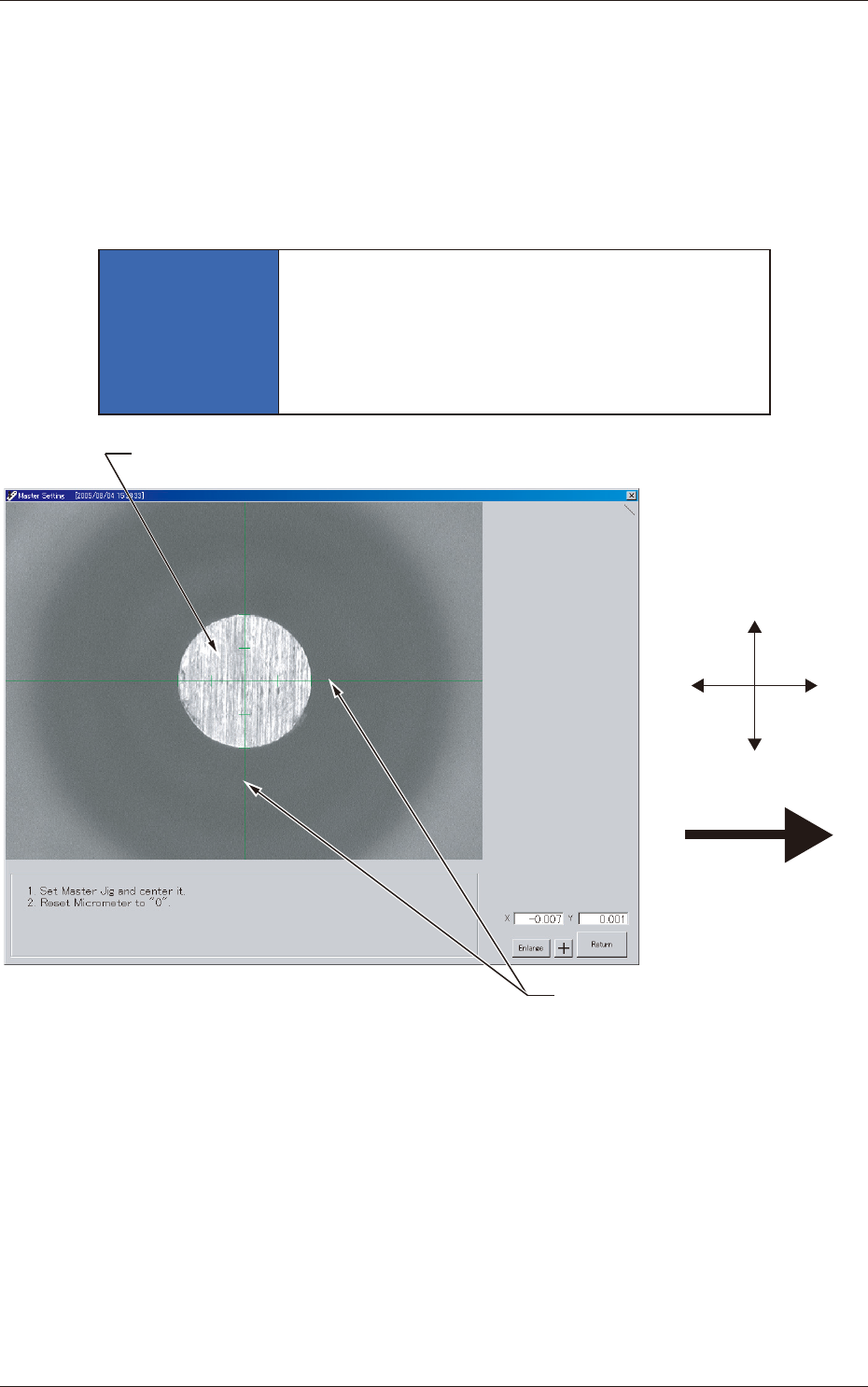

Fig. D4 "Master Setting" Window
4-4
JO-109
1. Registration of Master Position (Jig Origin Adjustment)
1005-001
Note
To enlarge the image, press the [Enlarge] button in the "Master
Setting" window.
To get the original size, press the [Return] button.
Fig. D5
(5) Press the "ZERO/ABS" switch of the micrometer to reset the
indicated value of the micrometer head to "0.000".
"ZERO/ABS" Switch
Fig. D6 Micrometer
4-5
JO-109
1. Registration of Master Position (Jig Origin Adjustment)
1106-002
(6) Press the [Return] button in the "Master Setting" window.
(7) The following message appears in the "Initial Master Setting"
window, indicating that the registration of the master position is
completed.
Detach the jig origin master from the jig.
Fig. D7
NOTICE
Be sure to slowly lift the jig origin master to detach
from the jig.
Otherwise, the jig origin master will come off
abruptly and collide with the camera used to
capture an image of the jig origin. The camera may
be damaged.
