SIPLACE Head Verification
User Manual Edition 01/2015
16
3.5 Overview of Measurements for CP20P
3.5.1 SW708.x up to Image 126 (45 Min)
The following tools are required for measurements:
20x nozzle type 4235 03098748-01 (calibration nozzle)
20x nozzle type 4069 03106244-01 (vacuum nozzle red, closed)
20x nozzle type 4004 03098544-01
20x nozzle type 4105 03102457-01
4x magazine for 4xxx nozzle 03101503-01
1x calibration tool C&P20A/P 03034148-01 (placed in machine)
Figure 9: Overview measurements for CP20P to image 126
The following measurements are performed in order:
1. ZDS sensor values chapter 6.13 (07:26 min)
2. Air & vacuum with head sensors chapter 6.6 (02:09 min)
3. Segment offset up & down (fast) chapter 6.9 (02:32 min)
4. Nozzle spring chapter 6.3 (01:38 min)
5. DP rotation test chapter 6.12 (02:59 min)
6. Holding circuit (sealed nozzle) chapter 6.2 (01:35 min)
7. Component sensor voltage and z-heights chapter 6.1 (01:32 min)
8. Z-axis movement chapter 6.4 (04:36 min)
9. Head endurance run LS chapter 6.8 (02:27 min)
10. Segment offset up & down chapter 6.15 (10:25 min)
11. Component sensor calibration chapter 6.14 (09:13 min)
The specified times may deviate and are only for guidance purposes. If the measurements are
performed as single measurements (not in "Select all" mode), longer script loading times (approx. 1
min) could delay the single measurement!
SIPLACE Head Verification
User Manual Edition 01/2015
17
3.5.2 SW708.x Image 127 and Higher (25 Min)
The following tools are required for measurements:
20x nozzle type 4235 03098748-01 (calibration nozzle)
20x nozzle type 4069 03106244-01 (vacuum nozzle red, closed)
20x nozzle type 4004 03098544-01
20x nozzle type 4105 03102457-01
4x magazine for 4xxx nozzle 03101503-01
1x calibration tool C&P20A/P 03034148-01 (placed in machine)

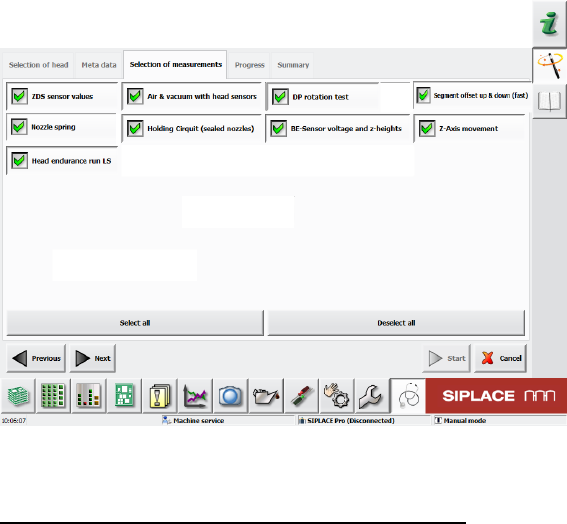

Figure 10 Selection of measurements CP20P from build127
The following measurements are performed in order:
1. ZDS sensor values chapter 6.13 (07:26 min)
2. Air & vacuum with head sensors chapter 6.6 (02:09 min)
3. DP rotation test chapter 6.12 (02:59 min)
4. Segment offset up & down (fast) chapter 6.9 (02:32 min)
5. Nozzle spring chapter 6.3 (01:38 min)
6. Holding circuit (sealed nozzle) chapter 6.2 (01:35 min)
7. Component sensor voltage and z-heights chapter 6.1 (01:32 min)
8. Z-axis movement chapter 6.4 (04:36 min)
9. Head endurance run LS chapter 6.8 (02:27 min)
The specified times may deviate and are only for guidance purposes. If the measurements are
performed as single measurements (not in "Select all" mode), longer script loading times (approx. 1
min) could delay the single measurement!
SIPLACE Head Verification
User Manual Edition 01/2015
18
3.6 Overview of Measurements for CP20A (20 Min)
The following tools are required for measurements:
20x nozzle type 1235 03015222-01 (calibration nozzle)
20x nozzle type 1069 03094112-01 (vacuum nozzle red, closed)
4x magazine for 1xxx nozzle 03016831-05
1x calibration tool C&P20A/P 03034148-01 (placed in machine)

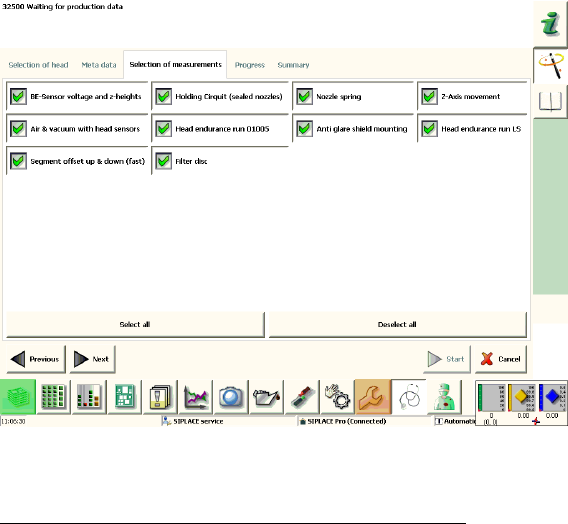

Figure 11: Overview measurements for CP20A
The following measurements are performed in order:
1. Component sensor voltage and z-heights chapter 6.1 (01:16 min)
2. Holding circuit (sealed nozzles) chapter 6.2 (00:20min)
3. Nozzle spring chapter 6.3 (01:10 min)
4. Z-axis movement chapter 6.4 (04:07 min)
5. Air & vacuum with head sensors chapter 6.6 (03:19 min)
6. Head endurance run 01005 chapter 6.7 (01:41 min)
7. Anti glare shield mounting chapter 6.5 (00:22 min)
8. Head endurance run LS chapter 6.8 (03:04 min)
9. Segment offset up & down (fast) chapter 6.9 (02:48 min)
10. Filter disc chapter 6.10 (00:33 min)
The specified times may deviate and are only for guidance purposes. If the measurements are
performed as single measurements (not in "Select all" mode), longer script loading times (approx. 1
min) could delay the single measurement!
