10 Placement heads Nozzle changer Nozzle changer for the SIPLACE S peedS t ar (C&P20 M3) Nozzle changer for the SI PLACE MultiSt ar (CPP M) 4 magazines for 20 nozzles of type 40xx/6xx 3 magazines for 20 nozzles of ty…
9

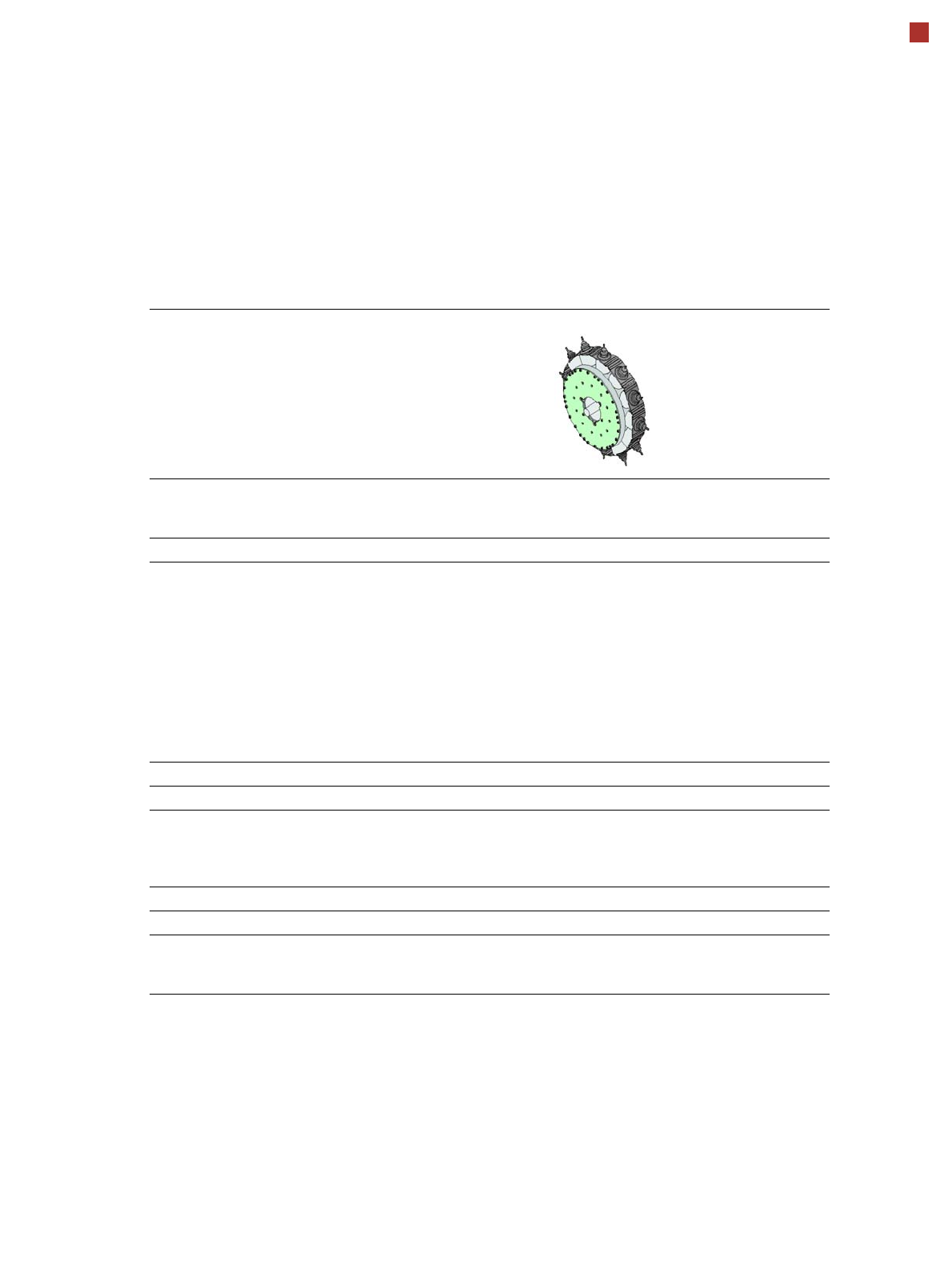

Placement heads
SIPLACE MultiStar (CPP M)
SIPLACE MultiStar (CPP M)
With component camera type 45
(Standard)
with component camera
type 30
(Optional)
Component range
a
a) Please note that the placeable component range is also affected by the pad geometry, the customer-specific
standards, the component packaging tolerances and the component tolerances.
01005 to 15 mm x 15 mm 01005 to 27 mm x 27 mm
Component specifications
Max. height
b
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
b) CPP M head: in low installation position
6.0 mm
250 µm / 120 µm
c
50 µm
140 µm
70 µm
0.11 mm x 0.11 mm
15 mm x 15 mm
4 g
c) Only possible for components which are within the focal range of the camera of ± 1.3 mm.
6.0 mm
250 µm
100 µm
d
/ 200 µm
e
250 µm
e
/ 350 µm
f
140 µm
e
/ 200 µm
f
0.4 mm x 0.2 mm
27 mm x 27 mm
4 g
d) For components < 18 mm x 18 mm.
e) For components ≥ 18 mm x18 mm.
Programmable set-down force 1.0 - 15 N 1.0 - 15 N
Nozzle types 20xx, 28xx 20xx, 28xx
X/Y accuracy
f
With "accuracy class"
g
Without "accuracy class"
f) The benchmark and accuracy values are measured during the machine acceptance tests and correspond
to the conditions set out in the ASM scope of service and supply.
g) Setting the accuracy class in the SIPLACE Pro Component Shape Editor or Placement Position Editor.
± 20 µm/3
± 25 µm/3
± 20 µm/3
± 25 µm/3
Angular accuracy ± 0.18° / 3 ± 0.18° / 3
Illumination levels 5 5
Standard functions High-resolution camera, vacuum sensor, force measurement,
component sensor, integrated turning station per segment, PCB
warpage check, individual image of each component
10
Placement heads
Nozzle changer
Nozzle changer for the SIPLACE SpeedStar (C&P20 M3)
Nozzle changer for the SIPLACE MultiStar (CPP M)
4 magazines for 20 nozzles of
type 40xx/6xx
3 magazines for 20 nozzles of
type 6xx
1 magazine for 9 nozzles of
type 28xx
3 magazines for 20 nozzles of
type 20xx
Description
Nozzle changers increase the flexibility of the placement heads when it comes to processing
different components. The nozzle configuration can be rapidly adjusted to changing place-
ment jobs. Precisely defined positions and perfect nozzle seat in the garage ensure minimum
radial eccentricity on the placement head.
The nozzle changers feature a monitoring circuit.This checks whether the nozzle magazines
are seated correctly on the mount.
11
Placement heads
Nozzle changer
Technical data
Nozzle changer for the SIPLACE SpeedStar (C&P20 M3)
Number of magazines per location
a
SIPLACE TX2 m
SIPLACE TX2i m
SIPLACE TX2i m 4 mm
4
3
3
Number of nozzle garages per location
SIPLACE TX2 m
SIPLACE TX2i m
SIPLACE TX2i m 4 mm
80
60
60
Standard configuration
SIPLACE TX2 m
SIPLACE TX2i m
SIPLACE TX2i m 4 mm
4 magazines with 80 nozzle garages
3 magazines with 60 nozzle garages
3 magazines with 60 nozzle garages
Nozzle types 60xx
a) All magazines in the nozzle changer must be configured.
Nozzle changer for the SIPLACE MultiStar (CPP M)
Number of magazines per location
a
SIPLACE TX2 m 4
Number of nozzle garages per location
SIPLACE TX2 m 80
Standard configuration
SIPLACE TX2 m 3 magazines with 60 x 20xx nozzle garages
1 magazine with 9 x 28xx nozzle garages
Nozzle types 20xx/28xx
a) All magazines in the nozzle changer must be configured.
