11 Placement heads Nozzle changer Technical data Nozzle chan ger for the SIPL ACE SpeedSt ar (C&P20 M3) Number of magazines per location a SIPLACE TX2 m SIPLACE TX2i m SIPLACE TX2i m 4 mm 4 3 3 Number of nozzle garag…
10
Placement heads
Nozzle changer

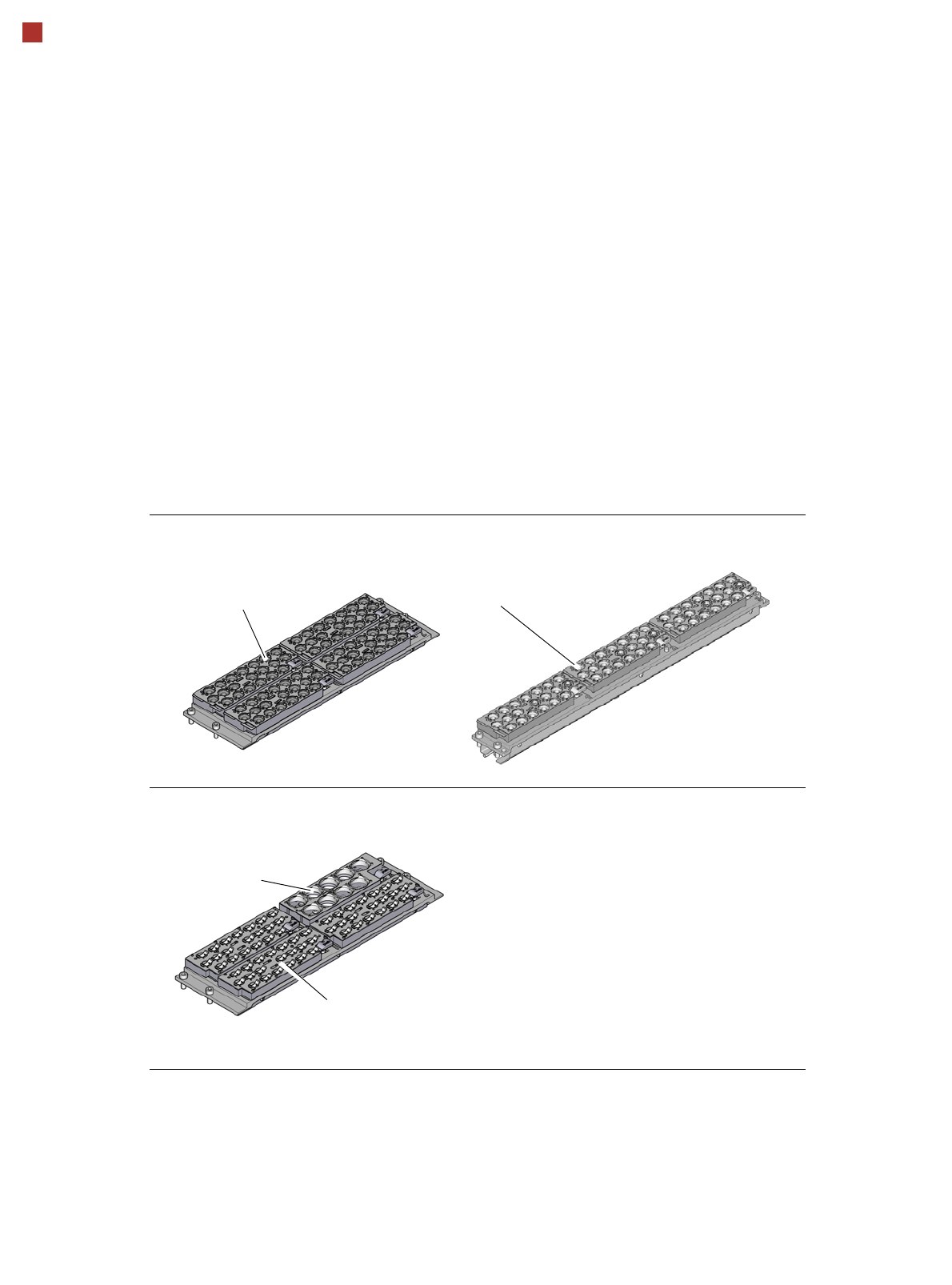

Nozzle changer for the SIPLACE SpeedStar (C&P20 M3)
Nozzle changer for the SIPLACE MultiStar (CPP M)
4 magazines for 20 nozzles of
type 40xx/6xx
3 magazines for 20 nozzles of
type 6xx
1 magazine for 9 nozzles of
type 28xx
3 magazines for 20 nozzles of
type 20xx
Description
Nozzle changers increase the flexibility of the placement heads when it comes to processing
different components. The nozzle configuration can be rapidly adjusted to changing place-
ment jobs. Precisely defined positions and perfect nozzle seat in the garage ensure minimum
radial eccentricity on the placement head.
The nozzle changers feature a monitoring circuit.This checks whether the nozzle magazines
are seated correctly on the mount.
11
Placement heads
Nozzle changer
Technical data
Nozzle changer for the SIPLACE SpeedStar (C&P20 M3)
Number of magazines per location
a
SIPLACE TX2 m
SIPLACE TX2i m
SIPLACE TX2i m 4 mm
4
3
3
Number of nozzle garages per location
SIPLACE TX2 m
SIPLACE TX2i m
SIPLACE TX2i m 4 mm
80
60
60
Standard configuration
SIPLACE TX2 m
SIPLACE TX2i m
SIPLACE TX2i m 4 mm
4 magazines with 80 nozzle garages
3 magazines with 60 nozzle garages
3 magazines with 60 nozzle garages
Nozzle types 60xx
a) All magazines in the nozzle changer must be configured.
Nozzle changer for the SIPLACE MultiStar (CPP M)
Number of magazines per location
a
SIPLACE TX2 m 4
Number of nozzle garages per location
SIPLACE TX2 m 80
Standard configuration
SIPLACE TX2 m 3 magazines with 60 x 20xx nozzle garages
1 magazine with 9 x 28xx nozzle garages
Nozzle types 20xx/28xx
a) All magazines in the nozzle changer must be configured.
12
Board conveyor
Flexible dual conveyor
Flexible dual conveyor
The flexible dual conveyor
has two conveyor lanes that
are electrically and mechani-
cally independent of one
another. The fixed conveyor
sides are both "outside" as a
default. As an option, the
fixed conveyor sides can be
selected as right/right or left/
left. The PCB dual conveyor
can also be operated as a
single conveyor, as an
option. In dual conveyor
mode, two PCBs are moved
into the placement machine
and placed either at the
same time (synchronous
mode) or alternatively (asyn-
chronous mode). This makes
it possible to process the top
and bottom sides of a PCB in
one line.
Synchronous mode
In synchronous mode, two
boards of the same size are
transported into the place-
ment position at the same
time. They are processed as
a common panel. When
using products with greatly
differing placement content,
common optimization
increases the performance of
the whole content on both
boards.
Asynchronous mode
In asynchronous mode, only
one board is processed on
one of the conveyor lanes. At
the same time, another
board on the second con-
veyor lane is moved into the
placement position. This
saves the full conveying time
of one board, thus consider-
ably increasing performance,
particularly for boards with a
short cycle time.
I-Placement
The SIPLACE line achieves
top placement performance
with the use of I-Placement.
In this mode, the two heads
work simultaneously and
populate the PCB on the cor-
responding conveyor side,
totally independently of one
another. Short distances fur-
ther increase the output.
Borrow Performance
By facilitating simultaneous
production of two PCBs with
different contents in one line,
Borrow Performance is the
ideal addition to I-Placement.
In placement machines with
Borrow Performance, both
heads place the same PCB
in alternation The PCB in the
other conveyor lane is simply
transported through the sys-
tem. This makes it possible
to achieve the same cycle
time for both PCBs, despite
the different placement con-
tents.
Convoy Mode
When processing PCBs with
lengths shorter than 175 mm,
Convey Mode moves more
PCBs into the placement
area and input conveyor sec-
tion. While one PCB is being
processed, the second one
waits directly behind it. The
transportation time is there-
fore reduced significantly,
especially in I-Placement
mode.
Flexible dual conveyor
