Board warpage

Board warpage during placement

To avoid impairing the placement quality and

speed, we recommend using a PCB support, so

that the PCB warpage downwards does not

exceed 0.5 mm.

Board warpage up, max. 2 mm

Board support

Board warpage down, max. 2 mm

Changes in the surface position are automatically applied by the functions for learning the height.

Component feeding

Component trolley

SIPLACE TX m

The TX m component trol-

leys are independent and

easily maneuverable mod-

ules. Two component trol-

leys, each with 40 tracks, can

be docked onto SIPLACE TX

m machines. The tape reels

are taken up into the tape

container of the component

trolley. A cutting device on

the machine automatically

cuts up the used tape mate-

rial. The component trolleys

can be set up directly on the

machine or at an external

setup area with feeder mod-

ules. The benefits of offline

setup are that the configura-

tions can be prepared with-

out stopping the line.

This allows the setup change

to be realized very quickly,

using the changeover table

principle, to rapidly change

the component trolleys.

The SIPLACE TX m compo-

nent trolleys also support fast

setting up and tearing down

of feeder modules even

during the placement pro-

cess.

Tapes can be spliced without

stopping the machine.

For safety reasons, unoccu-

pied locations are fitted with

so-called dummy feeder

modules.

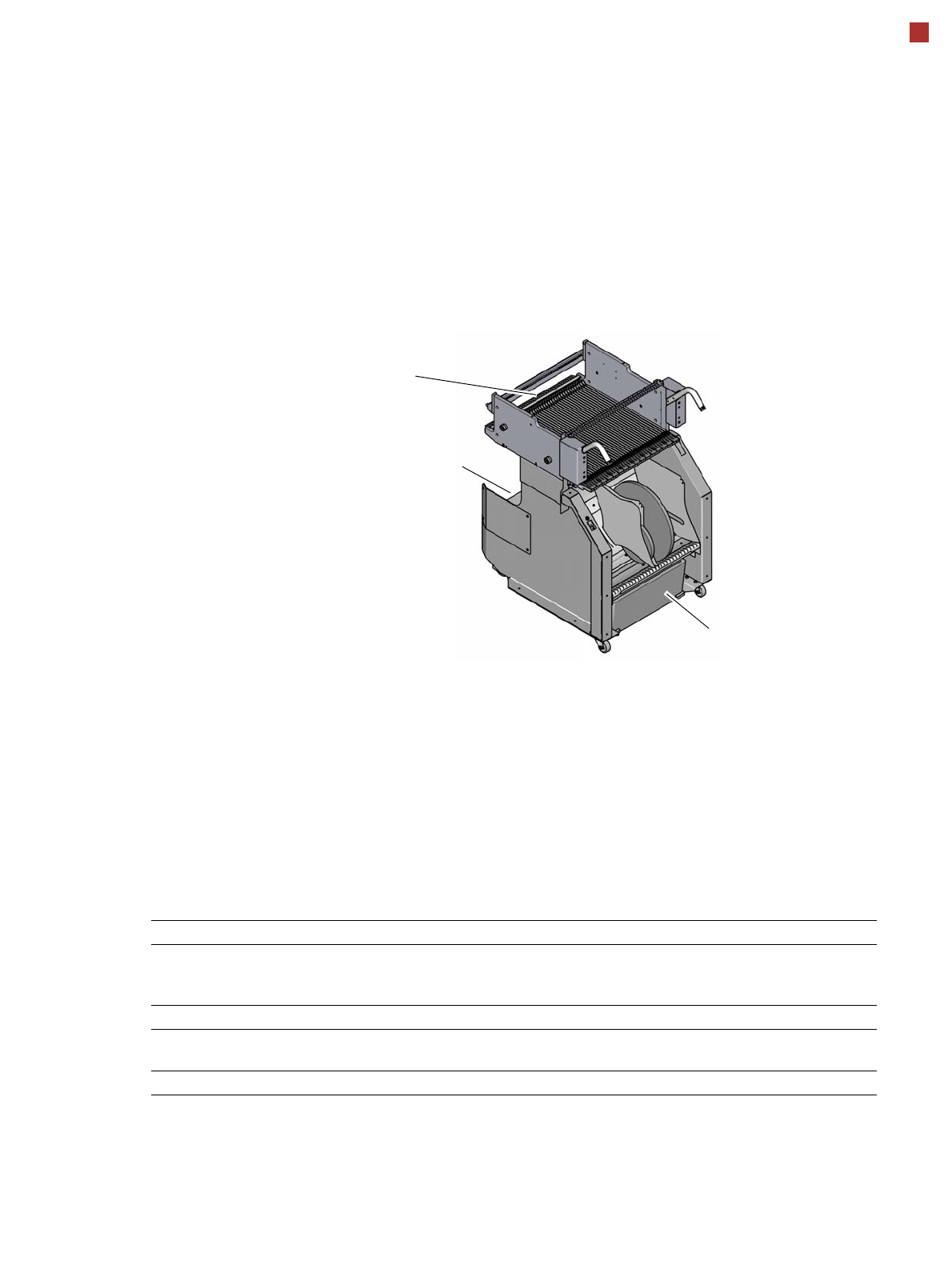

Component trolley SIPLACE TX m

Tape container

Waste container for remaining

empty tape

Changeover table

Component supply Tracks occupied

SIPLACE TX m

With C&P20 M3

With CPP M

38 feeder modules, each with 8mm Xi

40 feeder modules, each with 8mm Xi

Tape reel diameter to 330.2 mm (13")

Component trolley changeover time < 1 minute

Component feeding

SIPLACE SmartFeeder X / Xi

SIPLACE SmartFeeder X/Xi

are intelligent tape feeder

modules for flexible produc-

tion environments, which

simplify upgrading and con-

version tasks considerably.

Since all SIPLACE Smart-

Feeder X/Xi support tape

splicing as a standard, this

prevents machine stoppages

when refilling.

The benefits at a glance:

Conversion-friendly

• Omega profiles on the

tape feeder module and

table facilitate safe and

reliable upgrading and

conversion of tape feeder

modules during ongoing

production.

Robust

• Brushless motors extend

the service life of the

SIPLACE SmartFeeder X/

Xi.

Intelligent

• A unique ID ensures a pre-

cise assignment of the

component to the

SIPLACE SmartFeeder X/

Xi. This makes reliable

setup verification very sim-

ple.

• Component pitch, feeder

speed and other functions

are automatically set

when the setup program is

downloaded.

High feeding accuracy

• Closed loop control path

measurement ensures

highly accurate compo-

nent feeding, even for

0201 (metric) placements

with standard feeders.

Operator-friendly

• Contactless data and

power transmission make

it easier to attach/remove

the SIPLACE SmartFeed-

er X/Xi

• A multicolor status display

signals the operating sta-

tuses of the SIPLACE

SmartFeeder X/Xi.

Technical data

SIPLACE SmartFeeder X / Xi

L x H

[mm]

Width

[mm]

Loca-

tion

Transport

increment

[mm]

Max. tape

height

[mm]

SIPLACE SmartFeeder 4 mm Xi 587x200 10,8 1 1 1,1

SIPLACE SmartFeeder 8 mm Xi 587x200 10,8 1 1/2/4/8 3,5

SIPLACE SmartFeeder 2x8 mm Xi 587x200 22,9 2 1/2/4/8 3,5

SIPLACE SmartFeeder 12 mm X 587x200 22,6 2 4 - 16

SIPLACE SmartFeeder 16 mm X 587x200 22,6 2 4 - 20

SIPLACE SmartFeeder 24 mm X 587x200 34,4 3 4 - 32

SIPLACE SmartFeeder 32 mm X 587x200 46,2 4 4 - 40

SIPLACE SmartFeeder 44 mm X 587x200 58,0 5 4 - 52

SIPLACE SmartFeeder 56 mm X 587x200 69,8 6 4 - 64

SIPLACE SmartFeeder 72 mm X 587x200 81,6 7 4 - 80

SIPLACE SmartFeeder 88 mm X 587x200 105,2 9 4 - 96

SIPLACE SmartFeeder 104 mm X 587x200 128,9 11 4 - 96

Tape reels 178 to 330.2 mm in diameter (7" - 13")

Changeover time 8 s

a) In 4mm steps

b) For 8 mm paper tapes, the paper thickness must not exceed 1.6 mm. The length of a component pocket

in the direction of tape travel may not exceed 51 mm.
