31 Technical data Electrical ratings Electrical rating s Supply vol t age Fuse Main power supply 3/N/PE ~ 380 V / 220 V to 415 V / 240 V ± 10 %; 50/60 Hz 3/N/PE ~ 200 V / 1 15 V to 220 V / 127 V ± 10 %; 50/60 Hz a 3/PE ~…
30

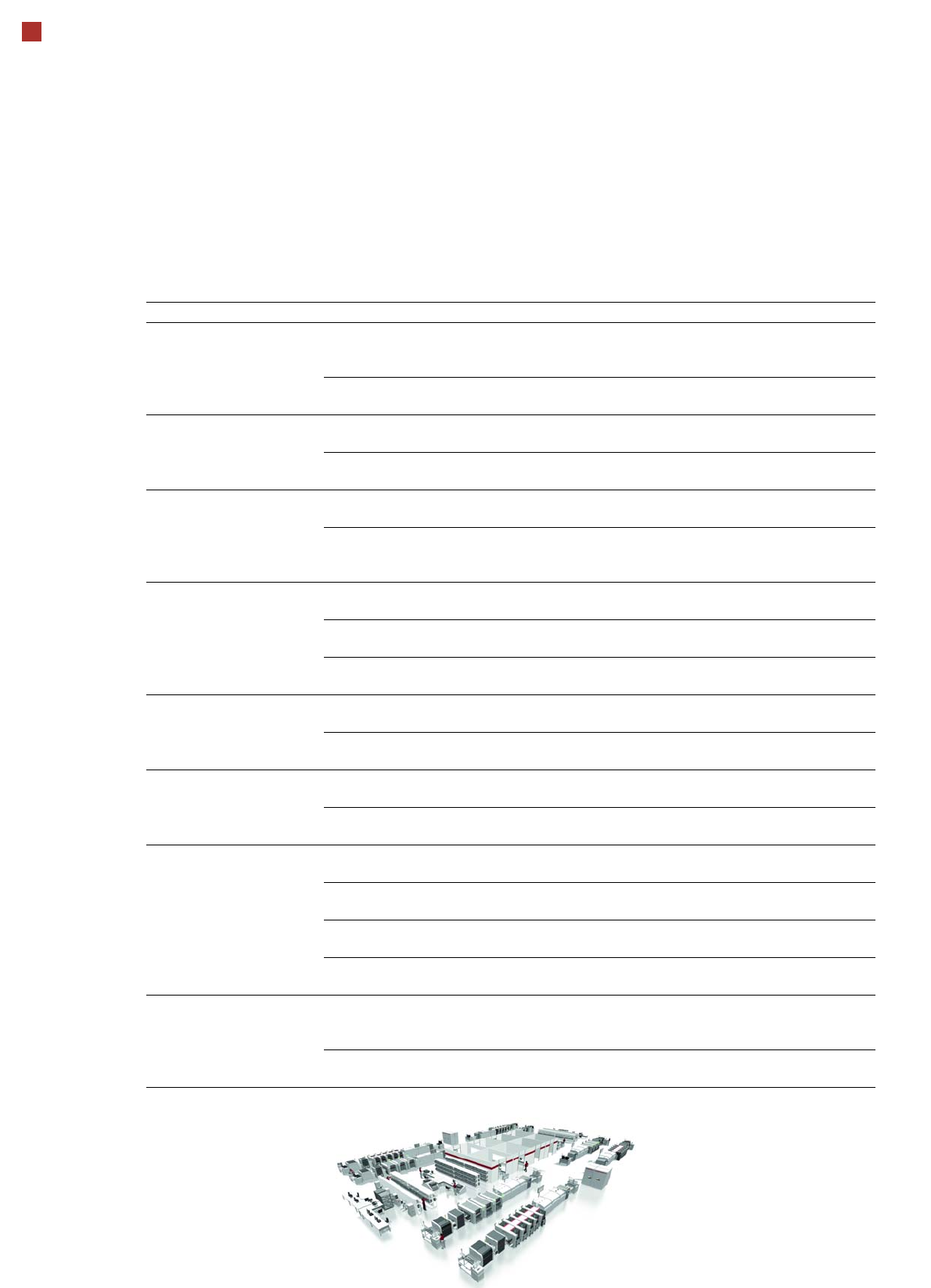

ASM Software Products
Overview
Workflows ASM Software Product Standard Option
Planning
ASM production planner
Fully automatic product grouping and optimization by taking deliv-
ery deadlines into account
X
SIPLACE SiCluster Professional / SiCluster Multiline
Fully automatic product grouping
X
Virtual production
SIPLACE Pro
One application for all programming tasks
X
SIPLACE LED Pairing
Simple placement of LEDs with multiple classes
X
Process optimization ASM DFM HealthCheck
Automatic determination of optimum print parameters
X
ASM ProcessExpert
The first self-learning inline expert system for electronics produc-
tion worldwide
X
Production
SIPLACE station software
Diverse operating system
X
ASM OIS
Operator Information System
X
ASM Command Center
Automatic operator management for all machine assistants
X
Material Management
ASM Material Manager
Control and optimization of SMD material management
X
ASM Line Monitor
Overview of material consumption in the lines.
X
Preparation
ASM Setup Center
Avoid setup errors with reliable setup verification
X
SIPLACE Material Setup Assistant
Optimization of offline setup preparation and of material flow
X
Factory monitoring
ASM EDM
Convenient data management for placement programs
X
ASM Traceability
Traceability of the placement processes
X
SIPLACE Explorer
Line monitoring system
X
ASM Performance Monitor
Live KPI monitoring
X
Factory Integration
ASM OIB
Seamless integration of SIPLACE software solutions with third
party systems
X
ASM Remote Smart Factory
Professional remote service infrastructure
X
31
Technical data
Electrical ratings
Electrical ratings
Supply voltage Fuse
Main power supply 3/N/PE ~ 380 V / 220 V to 415 V / 240 V ± 10 %; 50/60 Hz
3/N/PE ~ 200 V / 115 V to 220 V / 127 V ± 10 %; 50/60 Hz
a
3/PE ~ 200 V to 220 V ± 10 %; 50/60 Hz
a
a) With options package
Mains power connec-
tion
Without cable
Cable 5 x 2.5 mm² WITH CEE plug, red 16 A (in accordance with IEC 60309) (3 x 380 V~
to 3 x 415 V~)
Cable 5 x 2.5 mm² WITHOUT plug (3 x 200 V~ to 3 x 220 V) or
(3 x 380 V~ to 3 x 415 V~
Full load current 3.8 A - 3.3 A / phase
b
6.3 A - 5.8 A / phase
b
6.3 A - 5.8 A / phase
b
b) Selection of customer's supply voltage range.
3 x 16A characteristic C
c
3 x 15 A characteristic C
c
3 x 15 A characteristic C
c
c) For example: Siemens circuit breakers in accordance with UL 489 and IEC (order no.: 5SJ4 316-7HG42)
or
EATON Industries circuit breaker FAZ-C16/3-NA 16A 3p (UL 489, CSA C22.2 no. 5, IEC 60947-2)
Short circuit classification of machine (SCCR)
d
d) With the original mains connection cable. The marked short circuit rating (SCCR) relates to the beginning of the original
mains cable. In the case of customer modifications, the factory-set length of the mains cable to the machine may not
be shortened nor the factory-set conductor cross-section increased, as this would have a negative impact on the short
circuit rating (SCCR).
10 kA
Energy consumption
With a vacuum pump
e
e) Vacuum pump for C&P20 M3 head only.
Without a vacuum pump
Average apparent power 2.6 kVA 2.3 kVA
Average effective power 2.0 kW 1.2 kW
32
Technical data
Compressed air supply
Compressed air supply
Compressed air pressure val-
ues
p
min
p
max
0.5 MPa = 5.0 bar
1.0 MPa = 10 bar
Operating pressure 0.48 MPa ± 0.025 MPa (4.8 bar ± 0.25 bar)
Compressed air connection 1/2" hose connection
Compressed air consumption
a
a) Average consumption values. Under normal atmospheric conditions at 20°C and 1013 hPa.
Placement head configura-
tion
Compressed air
consumptionwith
vacuum pump
b
b) Vacuum pump for C&P20 M3 head only.
Compressed air con-
sumption without vac-
uum pump
c
c) Optional
SIPLACE TX m C&P20 M3/C&P20 M3
CPP M/CPP M
C&P20 M3/ / CPP M
120 Nl/min
No option
190 Nl/min
No option
260 Nl/min
190 Nl/min
Compressed air specification according to ISO 8573
Particle size (ISO class 3) 5 µm
Particle density (ISO class 3) 5 mg/m³
Maximum oil content
(ISO class 1)
Particle density 0.01 mg/
m³
Pressure dewpoint (ISO class 4) Dewpoint + 3°
