38
Technical data

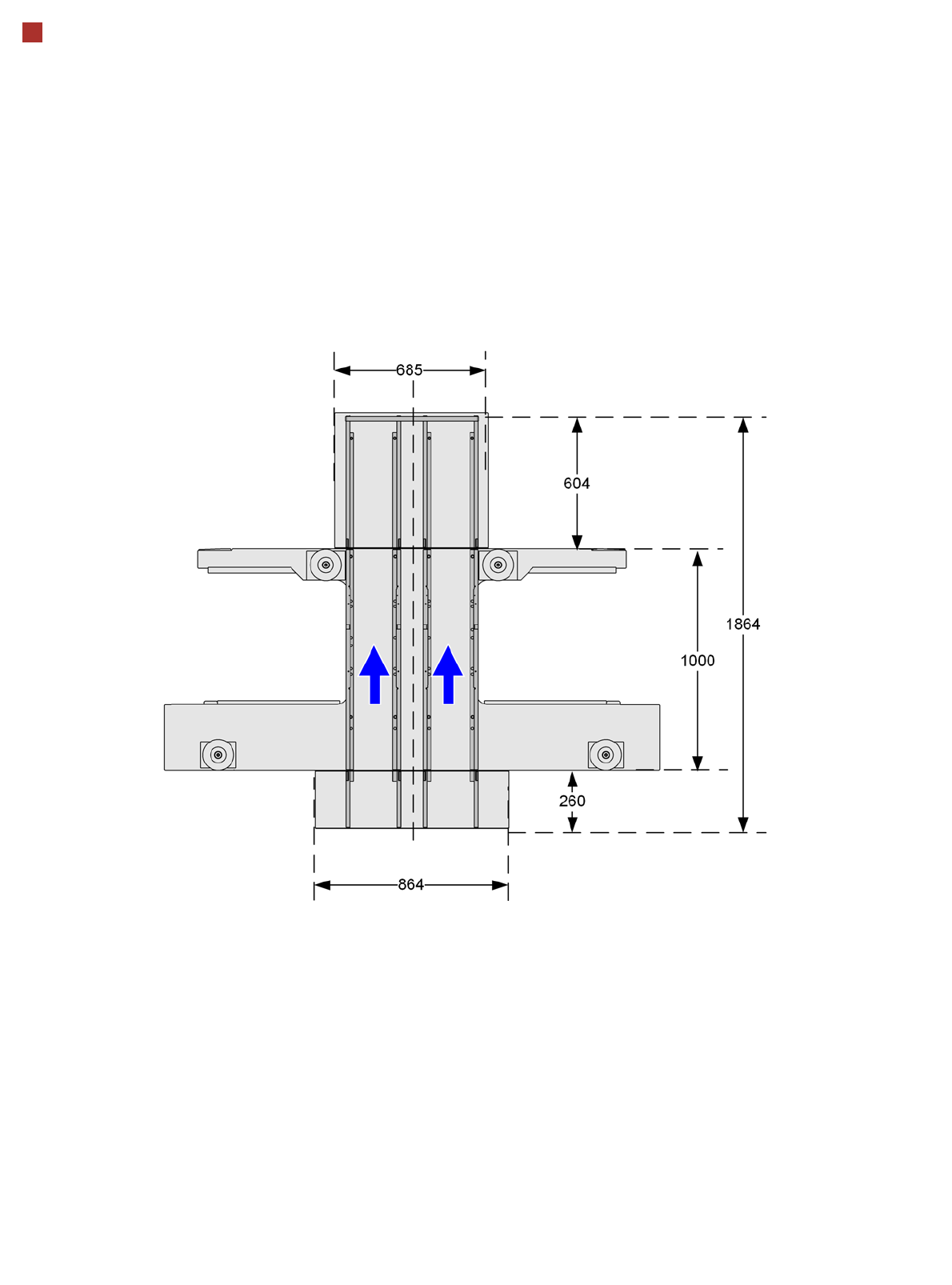

Clearance Values with Input/Output
Conveyor Extension
All dimensions in millimeters.
39
Technical data
Transportation and delivery configuration
Description
Within Europe, the machine
is delivered on a robust
wooden pallet. If sent over-
seas, the machine is pack-
aged in a wooden crate.
Configuration when deliv-
ered
• The lanes of the dual con-
veyor are set to a width of
210 mm.
• Both monitors are disman-
tled.
• Both indicator lamps are
dismantled.
Transport dimensions and weight
Means of transport
A fork-lift with the following specification will be needed to carry
the machine in its crate:
Length
Width
Height
2670 mm
2100 mm
1850 mm
Weight
TX m
Dispatch Dispatch
within Europe overseas
2350 kg 2600 kg
Fork length
Lifting power
Min. 1800 mm
Min. 3000 kg
DANGER
Risk of tilting the transportation crate or the pallet!
If the required specifications for the fork-lift and the attachment points on the transporta-
tion packaging are not observed, there is a risk of tilting!
Before transportation, read chapter 4 of the user guide for the SIPLACE TX and observe
all safety instructions.
40
List of options
Available options TX2 m TX2i m
a
a) Also valid for SIPLACE TX2i m 4 mm.
Notes
Nozzle changer X X
Component camera, type 49 X X
Component trolley SIPLACE TX 40 X X
SIPLACE SmartFeeder X, 12 mm to 104 mm X X
SIPLACE SmartFeeder Xi, 4 mm, 8 mm and 2x8 mm X X
Splice point recognition for X feeder modules X X
SIPLACE MeasuringFeeder X X X
JTF-ML2 X --
SIPLACE LDU 2 X X X With multi cavity and flux level sensor
SIPLACE Glue Feeder X X
SIPLACE PowerConnector X X X
Virtual inkspot handler X X
110/208 V conversion kit X X
Vacuum pump X X
2D PCB barcode readers X X
Dummy feeder module X X
Whispering Down the Line (WDTL) X X
Barcode recognition via PCB camera X X
Interior lighting X X
Component tray X --
Dual conveyor in "single conveyor" mode X X
Dual conveyor, fixed side right, left or outside X X
OSC package X X
Input/output conveyor extension X X
Floor brace X X
Vacuum Tooling SIPLACE TX m_55_67mm X X
Vacuum Tooling SIPLACE TX m_68_100mm X X
