Assembly instructions Nozzle changer SIPLACE X-Series / D3 11/2011 Edition 46 : Screw the contact surfaces on again with the sp acers beneath them. 2 The slots between the fixin g holes/screw s are seated of f-centre on …
Assembly instructions Nozzle changer SIPLACE X-Series / D3
11/2011 Edition
45

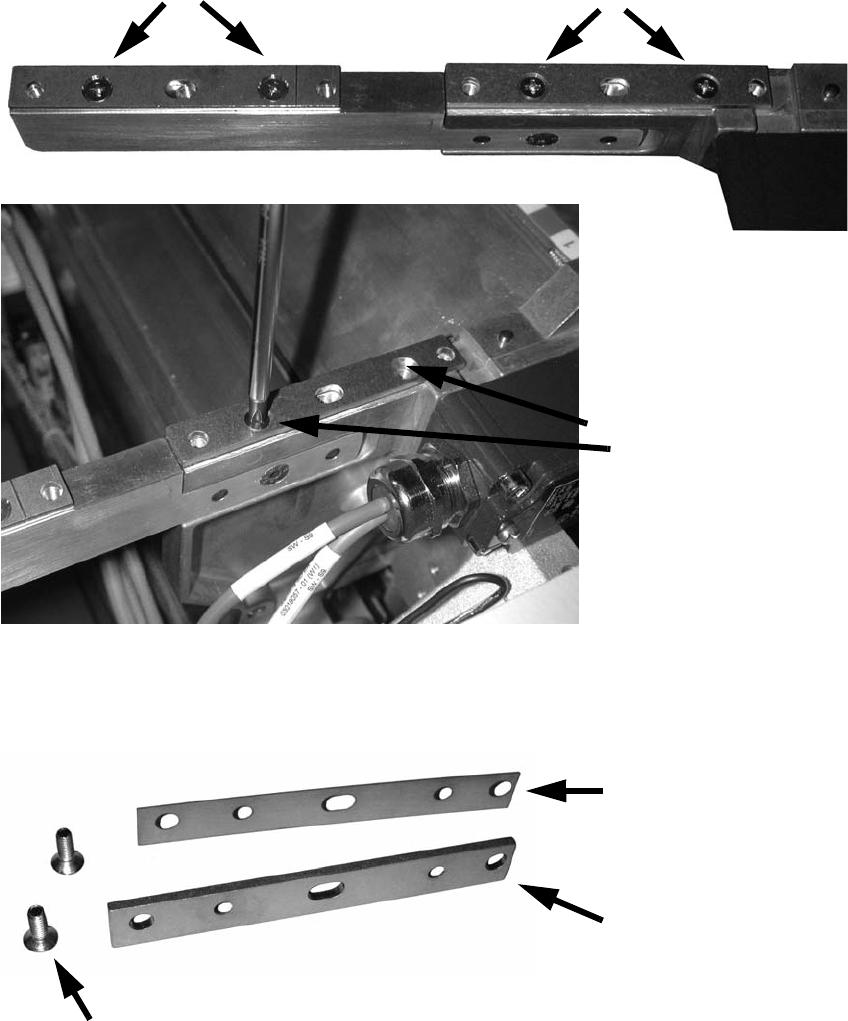

: Unscrew the contact plates at the outer screws.
2
2
: Place as many spacers beneath the contact surface as you need to achieve the correct height.
2
2
Loosen screws
2 screws
2 screws
Nozzle changer 2nd row
Nozzle changer
adjusting plate
(item no.: 03021079-xx)
Nozzle changer
contact surface
(item no.: 03021044-xx)
Screws DIN 965-M4 x 10-4.8 (item no.: 00095312-xx)
Assembly instructions Nozzle changer SIPLACE X-Series / D3
11/2011 Edition
46
: Screw the contact surfaces on again with the spacers beneath them.
2
The slots between the fixing holes/screws are seated off-centre on the holes. 2
2
2
: Check that the distance is now correct (150.0 +/- 0.2 mm).
If it is not, then adjust the distance using the spacers.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Slots
Nozzle changer second row
Assembly instructions Nozzle changer SIPLACE X-Series / D3
11/2011 Edition
47
2.5.2 Setting the height of the nozzle ejector
: Push the placement head outwards for the measurement.
2

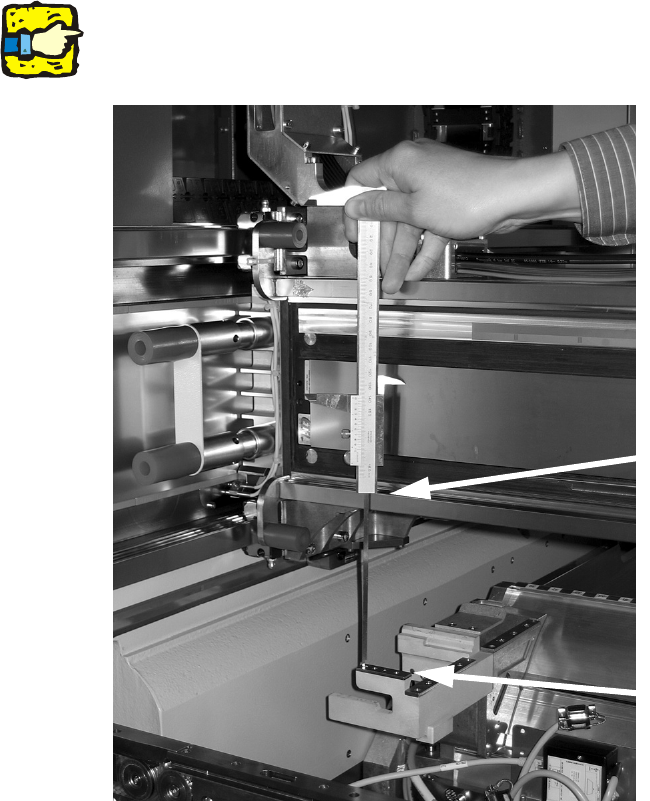

: Place the caliper gauge on the top edge of the nozzle take-off device and measure the distance
to the bottom edge of the lower X-axis linear guide.
2
Hold the caliper gauge vertically 2
2
2
2
: Set the distance for all placement heads to 139.0 mm +/- 0.2 mm.
If the distance is correct, continue by installing the nozzle changer in the placement machine.
2
2
2
Support the bottom edge of the
caliper gauge on the take-off
device
Support the bottom edge of the
caliper gauge on the linear guide
