Assembly instructions Nozzle changer SIPLACE X-Series / D3
11/2011 Edition
48

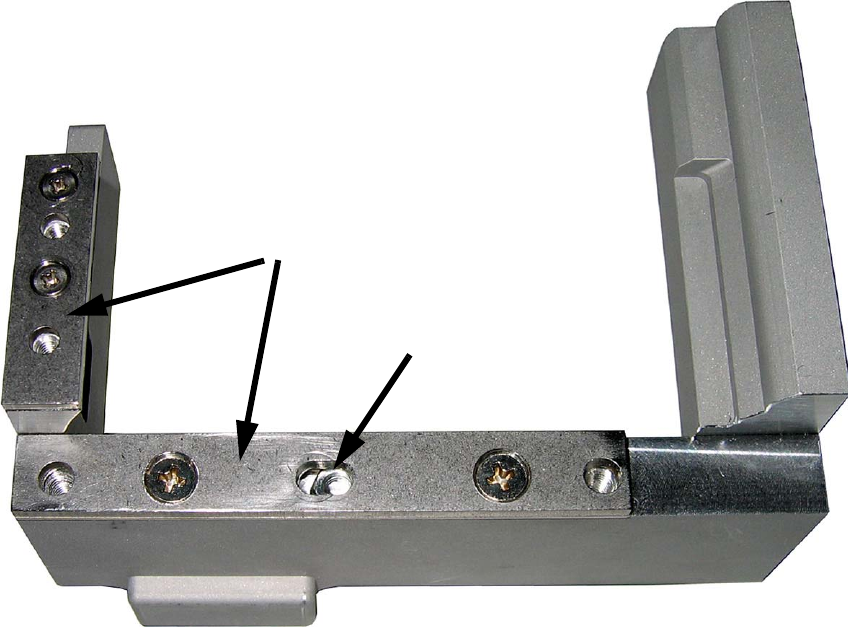

: If the distance is too high, adjust the distance using the spacers for nozzle ejector
(item no: 03039514-xx).
2
2
2
2
Longitudinal hole
Spacers
Assembly instructions Nozzle changer SIPLACE X-Series / D3
11/2011 Edition
49
2.6 Nozzle changer, C&P20 placement head

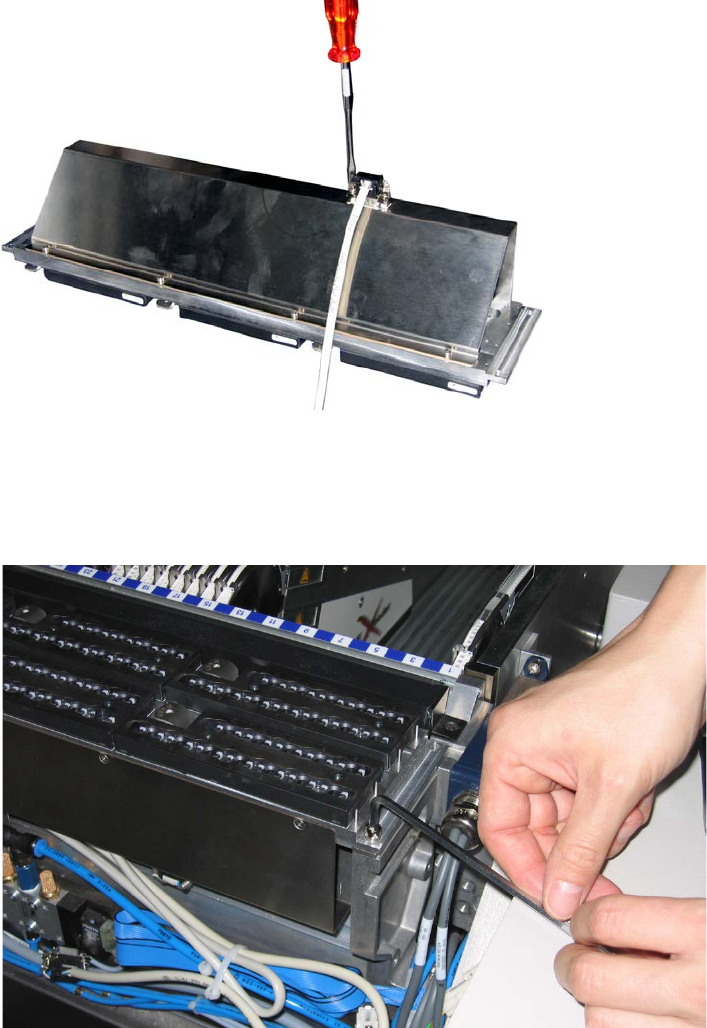

: Plug the connecting cable labelled nozzle changer 1 to the nozzle changer and screw it tight.
2
2
: Screw on the nozzle changer using 4 screws DIN912-M5 x 14-8.8
(item no.: 00306631-xx).
2
2
2
Assembly instructions Nozzle changer SIPLACE X-Series / D3
11/2011 Edition
50
: Attach the compressed air hose with the reducer at the magnet valve of the component trolley
docking unit (pressure: 4.5 bar).
(Reducer for nozzle changer C&P20 consisting of:
03021003-xx Hose connector RTU-PK-3/4
03032029-xx Hose HT PUN-6 L=40 mm).
2
2
: Secure all the cables and hoses using cable ties.
2
2
2
2
2
2
2
2
2
2
2
Compressed air hose
Reducer
Magnet valve
