Assembly instructions Nozzle changer SIPLACE X-Series / D3 11/2011 Edition 61 2.8 Settings : Switch the placement machine on at the main switch. 2 SIPLACE Pro 2 : Configure the nozzle changer in the ma chine configuratio…
Assembly instructions Nozzle changer SIPLACE X-Series / D3
11/2011 Edition
60
Fitting the third row of nozzle changers 2
The third row can only be used on machines in the single gantry placement area. 2
This nozzle changer is installed in the same way as the first row but without a nozzle ejector.
Use the HF nozzle changer 2, 12-segment C&P head (00119661-01) or
HF nozzle changer 2, 6-nozzle C&P head (0011962-01) package.
In this case the extension is not needed. 2
2
: Secure all the cables with cable ties.
2
Assembly instructions Nozzle changer SIPLACE X-Series / D3
11/2011 Edition
61
2.8 Settings
: Switch the placement machine on at the main switch.
2
SIPLACE Pro 2

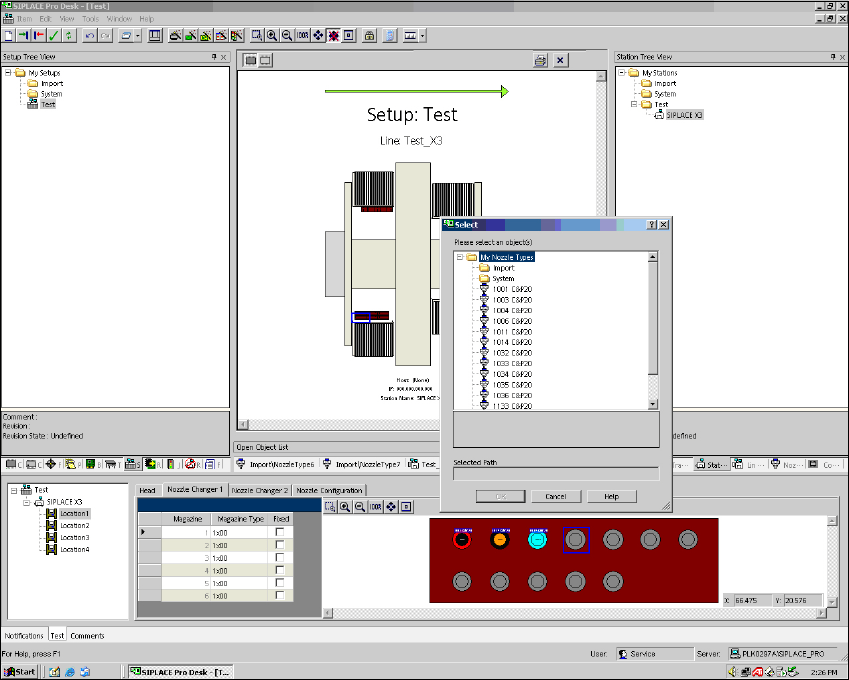

: Configure the nozzle changer in the machine configuration in SIPLACE Pro.
2
2
2
2
2
2
2
2
Assembly instructions Nozzle changer SIPLACE X-Series / D3
11/2011 Edition
62
