1 - 26 001 19627-0103 01LD 3 PCB dual co nveyor wiring (sh . 2 of 6 ) 00360901-xx 00369014-xx 00369015-xx 00369016-xx 00369018-xx 00365573-xx 00365571-xx Stand. Check. Aut hor Date Stat us M odifi ed Date 00119627-010301…
1 - 25
00119627-010301LD3 PCB dual conveyor wiring (sh. 1 of 6)
00370397-xx 00370398-xx
(kv)
00359424-xx
(kw)
(kt)
(ao)
(ap)
00359424-xx
(ky)
00359424-xx
(kz)
(lv)
00362766-xx
(lw)
00362766-xx
(ly)
00362766-xx
(lz)
00362766-xx
00359425-xx
(ku)
Stand.
Check.
Author
Date
Status
Modified Date
00119627-010301LD3
6
1
Conveyor control TSP-301
Upstream station
00359424-xx
00359425-xx
Machine interface, track 1 (SMEMA)
Downstream station
Distributor, PCB barcode reader
(option)
CAN bus
Machine interface, track 2 (SMEMA)
Upstream station
Downstream station
From power supply
Conveyor control TSP-301E, extension board
Conversion board, assembly trough (track 2)
Sensors/actors in assembly troughSensors/actors in assembly trough
Conversion board, assembly trough (track 1)
Placement sector 2, track 1
Conversion board, lifting table
Placement sector 1, track 1
Conversion board, lifting table
Conversion board, side panel BConversion board, side panel A
Sensors/actors f. lifting table
Sensors/actors
on side panel A
Sensors/actors f. lifting table
Placement sector 1 track 1
Sensors/actors
on side panel B
Placement sector 2 track 1
Placement sector 2, track 2
Conversion board, lifting table
Sensors/actors f. lifting table
Placement sector 2 track 2
Sensors/actors f. lifting table
Placement sector 1 track 2
Sensors/actors
on side panel C
Sensors/actors
on side panel D
Placement sector 1, track 2
Conversion board, lifting table
Conversion board, side panel DConversion board, side panel C
A&D
Copyright reserved
SIEMENS AG
See page 5-17
See page 5-17
See page 5-20
See page 5-20
See page 5-17 See page 5-17
See page 5-20 See page 5-20
See page 5-18 See page 5-18
See page 5-24
See page 5-26
1 - 26

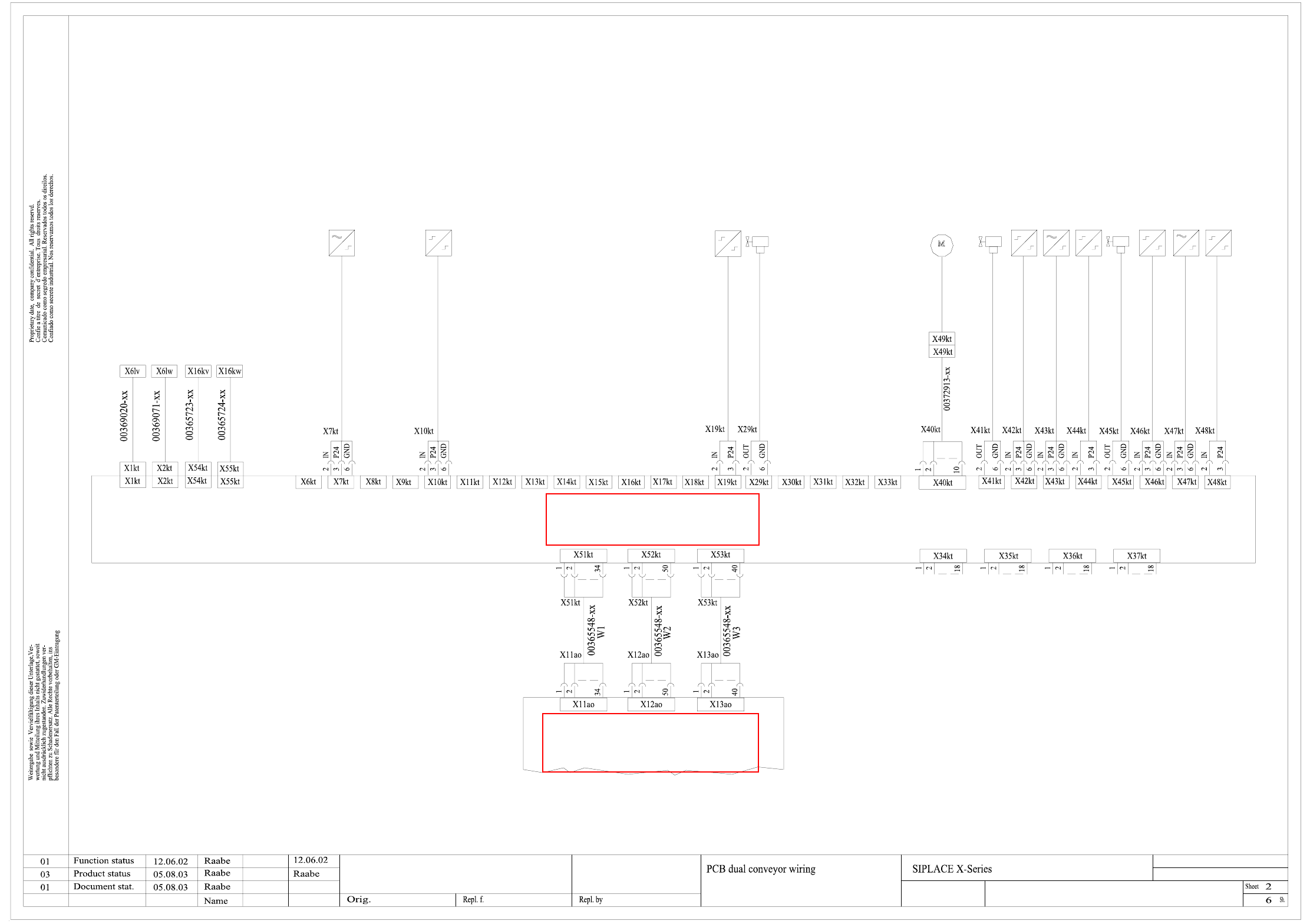

00119627-010301LD3 PCB dual conveyor wiring (sh. 2 of 6)
00360901-xx
00369014-xx
00369015-xx
00369016-xx
00369018-xx
00365573-xx
00365571-xx
Stand.
Check.
Author
Date
Status Modified Date
00119627-010301LD3
Conversion board, assembly trough (track 1)
Conveyor control TSP-301
Options, placement sector 1 (spare)
Options, placement sector 2 (spare)
Options, placement sector 2
Options, placement sector 1
Adjustment drive 3, valve
Limit switch, width adjustment, right-h. side
Adjustment drive 1, valve
Width adjustment, limit switch, spindle, left-h. side
Width adjustment, limit switch, spindle, right-h. side
Adjustment drive 2, cylinder switch
Adjustment drive 2, sensor, side panel
Adjustment drive 2, valve
Adjustment drive 1, sensor, side panel
Adjustment drive 1, cylinder switch
Step motor, width adjustment
Adjustment drive 3, cylinder switch
Adjustment drive 3, sensor, side panel
Conversion board, side panel B
Conversion board, side panel A
Conversion board, lifting table, placement sector 1
Conversion board, lifting table, placement sector 2
A&D
Copyright reserved
SIEMENS AG
00365775-xx
00369017-xx
00369019-xx
00365776-xx
00359425-xx
(kt)
00365777-xx
00370397-xx
(ao)
00365572-xx
See page 5-24
See page 5-18
1 - 27

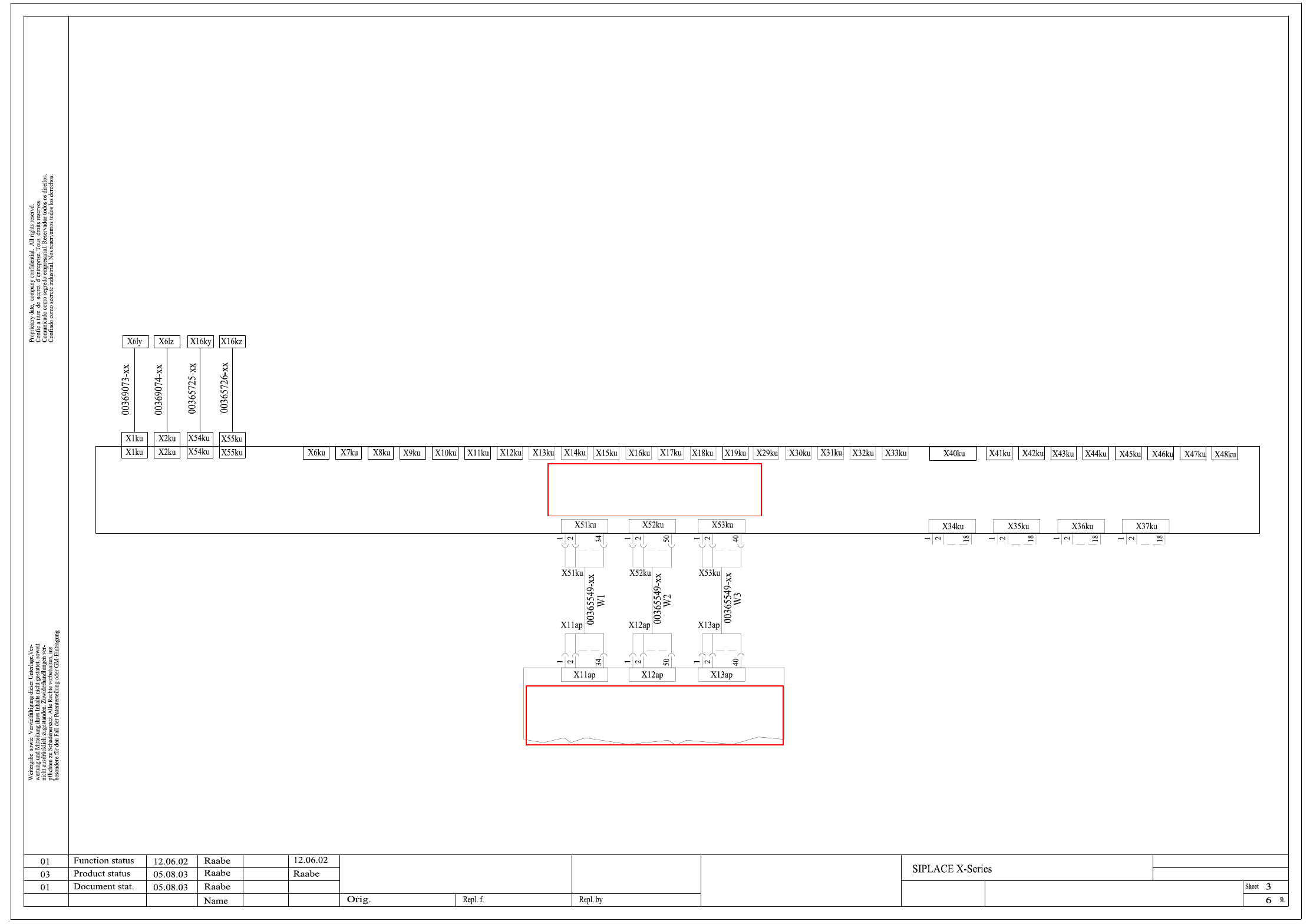

00119627-010301LD3 PCB dual conveyor wiring (sh. 3 of 6)
Stand.
Check.
Author
Date
Status Modified Date
00119627-010301LD3
Conversion board, assembly trough (track 2)
Conveyor control TSP-301E, extension board
Options, placement sector 1 (spare)
Options, placement sector 2 (spare)
Options, placement sector 2
Options, placement sector 1
Conversion board, lifting table track 2, placement sector 1
Conversion board, lifting table track 2, placement sector 2
Conversion board, side panel C
Conversion board, side panel D
PCB dual conveyor wiring
A&D
Copyright reserved
SIEMENS AG
00370398-xx
(ap)
00359425-xx
(ku)
See page 5-18
See page 5-26
