1 - 35
03021249-010201FD3 Cable harness, CO trolley
X110
PE connection:
Open end 1 from 03001288 power
+
Open end 3 from 03020671 grounding
Male ODU-MAC connector, cpl.
X3
03001297-xx Power
03001304 Compressed air line (bulk case)
M25 blind plug
Screwed cable with sealing insert
X2
03007009 CAN & signaling
03007010 Safety
X1
03007011 Splice detection
03020671 Grounding
To table plate
To chassis
X110
PE
Splice detection 03007011
Safety 03007010
Bulk case 03001304
Power 03001297
Signaling
Spare
03007009
CAN
6H7
5.5mm
5.5mm
Attention ! ! !
Run the compressed air line (03001304 bulk case) in the center as shown (due to RISK OF CRUSHING).
Gap dimension: 2 mm
Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.
Weitergabe sowie Vervielfältigung dieser Unterlage,Ver-
insbesondere für den Fall der Patenterteilung oder GM-Eintragung.
Zuwiderhandlungen verpflichten zu Schadenersatz. Alle Rechte vorbehalten,
Proprietary data, company confidential. All rights reserved.
Confie a titre de secret d'entreprise. Tous droits reserves.
Comunicado como segredo empresarial. Reservados todos os direitos.
Confiado como secrete industrial. Nos reservamos todos los derechos.
SIEMENS AG
Status Stand.Date NameModified
Date
Author
Check.
Orig.
A&D
11.02.2004
Bichler Th.
Repl. byRepl. f.
03021249-010201FD3
Cable harness, CO trolley
Designer 7.1
Sheet
1
Sh.
1
SIPLACE X-Series
Langer D.
34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
JHGF DCEBAK
Copyright reserved
1 - 36

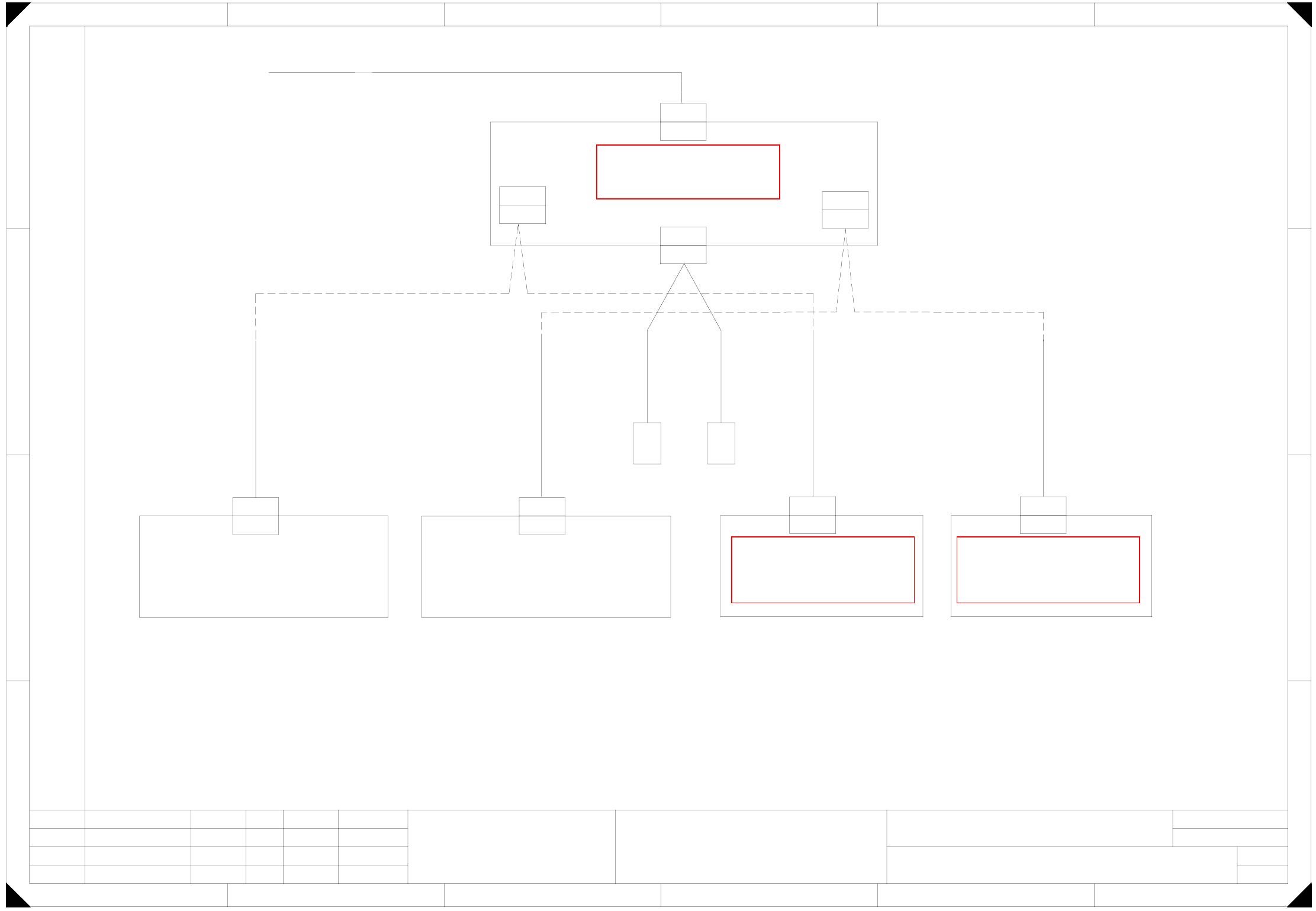

03041473-010102LD4 1-wire hub CAT5
Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und
Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden.
Zuwiderhandlungen verpflichten zu Schadenersatz. Alle Rechte vorbehalten,
insbesondere für den Fall der Patenterteilung oder GM-Eintragung.
Comunicado como segredo empresarial. Reservados todos os direitos.
Confiado como secrete industrial. Nos reservamos todos los derechos.
Confie a titre de secret d'entreprise. Tous droits reserves.
Proprietary data, company confidential. All rights reserved.
Copyright reserved
SIEMENS AG
US02 402609 04.07.06 TB
A&D
21 6543
A
B
C
D
21 6543
A
B
C
D
Date
Designer 9
SIPLACE X-Series
Document number:
Item name:
1
Module /1-wire hub, CAT 5
03041473-xx
X7
Board /1-wire, C+P NC
03015388-xx
X1
X1*a
X7
03039226-xx
W1
X1
X1*b
X6
X6
X1
X1*q
X2*q
X2
Board /1-wire, C+P NC
03015388-xx
03039226-xx
W2
Nozzle changer control board
00317353-xx
X1
X1*a
03039226-xx
W1
X1
X1*b
03039226-xx
W2
Nozzle changer control board
00317353-xx
Patch cable to 1-wire CAT5 distributor
Item name *
= f location 1
= g location 2
= h location 3
= k location 4
03041627-xx cable: 1-wire distributor - 1-wire hub, nozzle changer
S1 S2
Reject bin sensors
W2
W1
03022078-xx
03022078-xx
1-wire hub CAT5
03041473-010102LD4
Sh.
11.07.2005
Bichler Th.
Timm Ch.
Date
Author
Check.
Stand.NameModifiedStatus
Sheet
1
See page 5-44See page 5-44
See page 5-60
1 - 37

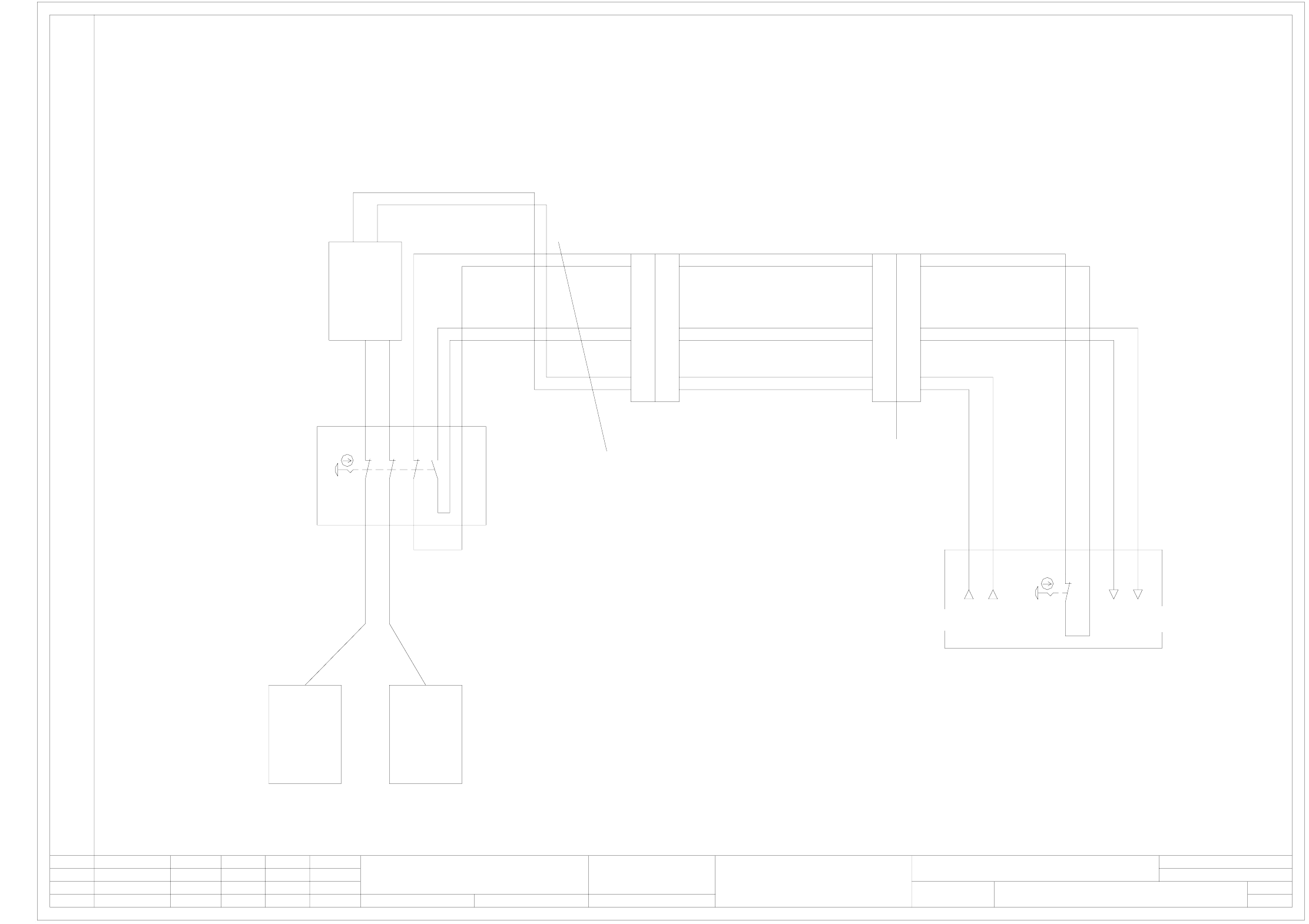

MTC2-NH Block diagram, EMERGENCY STOP
Check.
Author
Date
Stand. Orig.
A&D
17.02.2003
JH
Repl. f. Repl. by
MTC2_NH
Block diagram - EMERG.STOP
Sheet
1
Sh.
1
MTC2
Cable, safety loop
Block diagram: MTC2-SIPLACE-EMERG.STOP loop
EMERG.STOP button
Safety combination 1
Safety combination 2
2
4
6
8
MTC2
1
3
5
7
ODU plug, MTC2
EMERG.STOP from Siplace
EMERG.STOP signal from SIPLACE
Degree of protection 3
12 11
EMERG.STOP signal from MTC2
WAGO 12-pole, to SIPLACE
SocketPin
Safety combinations
connected in series
