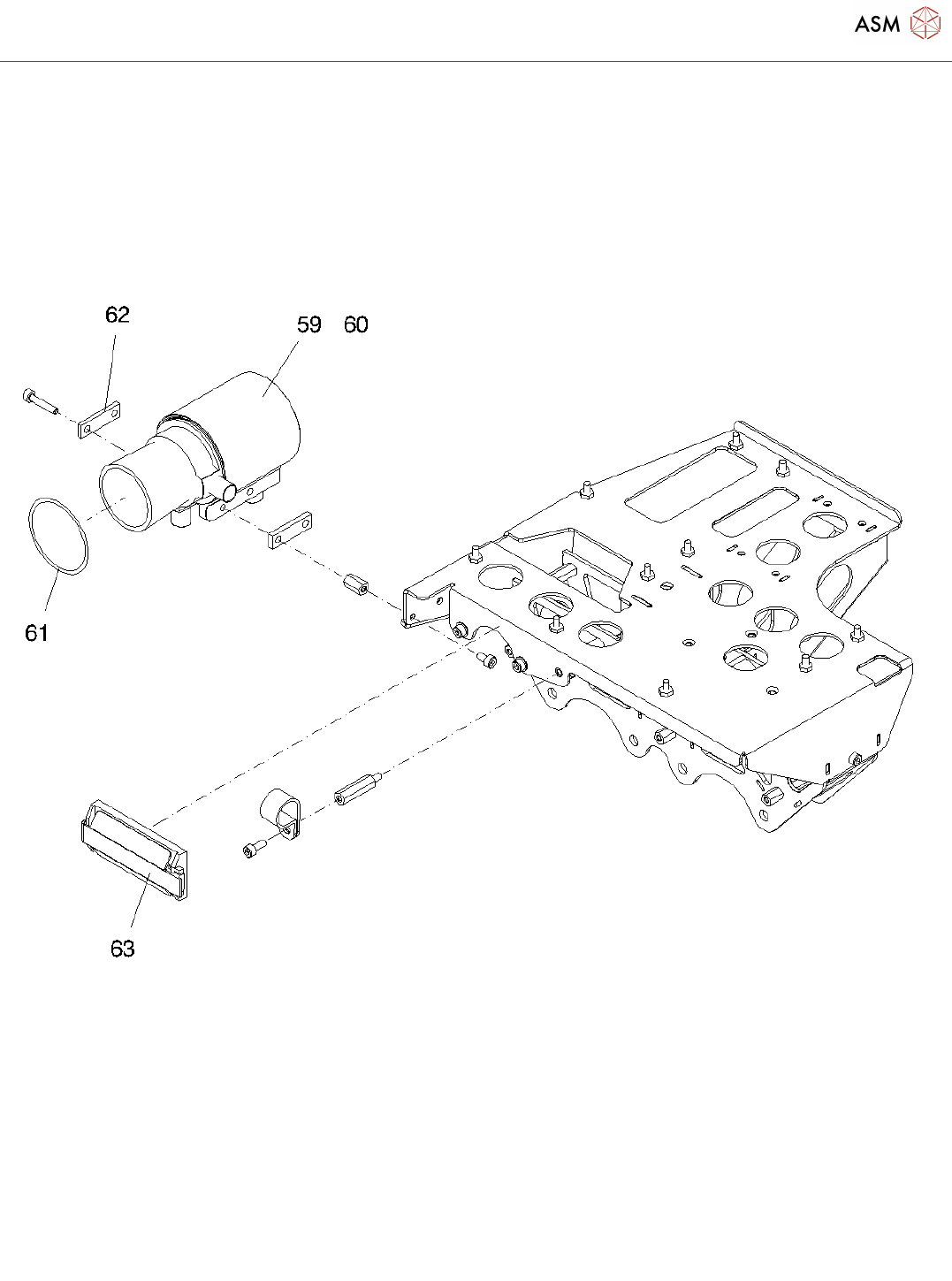

Gantry system
Page 8 / 12 23.11.2021

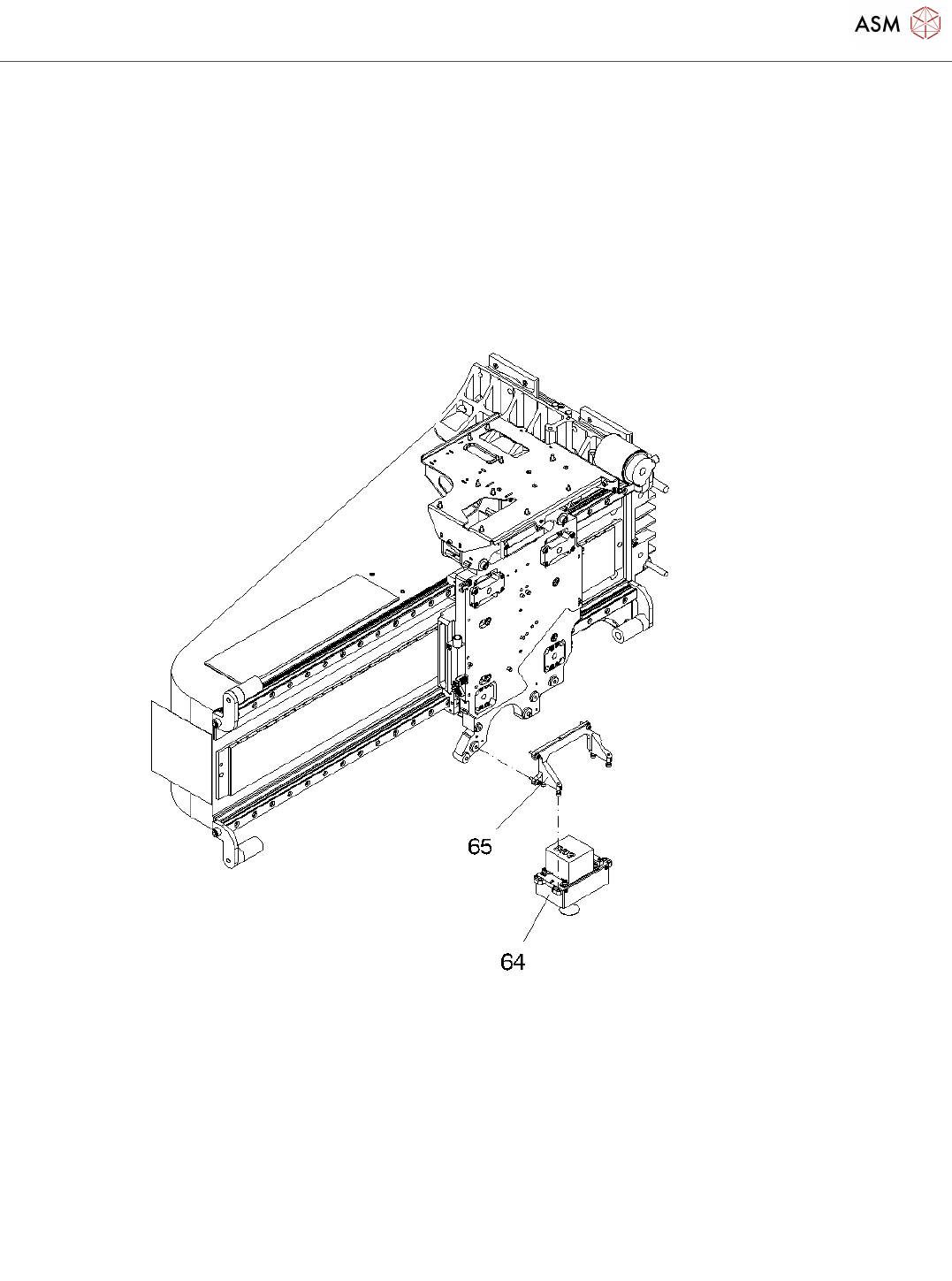

Gantry system
Page 9 / 12 23.11.2021
Gantry system
Page 10 / 12 23.11.2021
Pos. Item no. Description Part marking
03049124-01 UPGRADE KIT GANTRY / R2 TURNED
1 03027255S03 GANTRY SYSTEM / CPL. R2 TURNED *
2 03027256-01 GANTRY PRE-ASSEMBLED / R2
TURNED
3 03027257-01 GANTRY / PROCESSED R2 TURNED
4 03000689S02 FUEHRUNGSSCHIENE X-ACHSE
GR.15 (2PCS)
*
5 03020300-01 GUIDE TROLLEY BOSCH-REXROTH
SIZE 15 LLD
6 03020301-01 GUIDE TROLLEY BOSCH-REXROTH
SIZE 15 LG LLD
7 03003089-02 BUFFER MOUNT TOP
8 03003097-03 BUFFER MOUNT BOTTOM
9 03004173-01 SLEEVE 8X6X8
10 00845060-01 HEXAGON SOCKET HEAD CAP
SCREW M6 X 25-8.8
11 00200525-01 ELASTOMER SPRING D20X8,5 90
SHORE A
SPARE PART
12 00346226-01 DIN912-M6 X 12-12.9 DACROMET
500
13 03050730-01 DISTANCE PIECE
14 03013459S03 Y-DRIVE COMPL. (PRIMARY) *
03003046-01 PROXIMITY SWITCH MOUNT Y-AXIS
CLAMPING PIECE
03003508-02 AIR DISTRIBUTOR Y-AXIS
03003529-01 TUBE 8X0.3X20
03013462-01 BERO HOLDER, Y-AXIS, BASE LEFT SPARE PART
03006767-03 LINEAR-MOTOR Y-AXIS
03016782-01 INSULATION FOR SCREW-ON PART
03014281-02 Y-MOTOR HOUSING
15 03003745S02 SCALE X-AXIS SIPLACE HF *
16 03013331-01 DAMPER RUBBER, TRAILING CABLE SPARE PART
17 03020588S05 READ HEAD SIPLACE X-AXIS SPARE PART
18 00377437-02 SPARE PARTS KIT FOR X- AND HF >
A220
*
03039726S03 X-DRIVE COMPL. (PRIMARY) *
19 03050658-01 X-MOUNT (X4I) TURNED
20 03012701-01 COOLING AIR FILTER
