- - 1. XY ASSY

CONTENTS

1.XYASSY ..............................................................................................................................................................................1

2.CAMERUNITASSY ............................................................................................................................................................3

3.COVERASSY ......................................................................................................................................................................5

4.SYSTEMDIAGRAM(1) .......................................................................................................................................................7

5.SYSTEMDIAGRAM(2) .......................................................................................................................................................9

- -

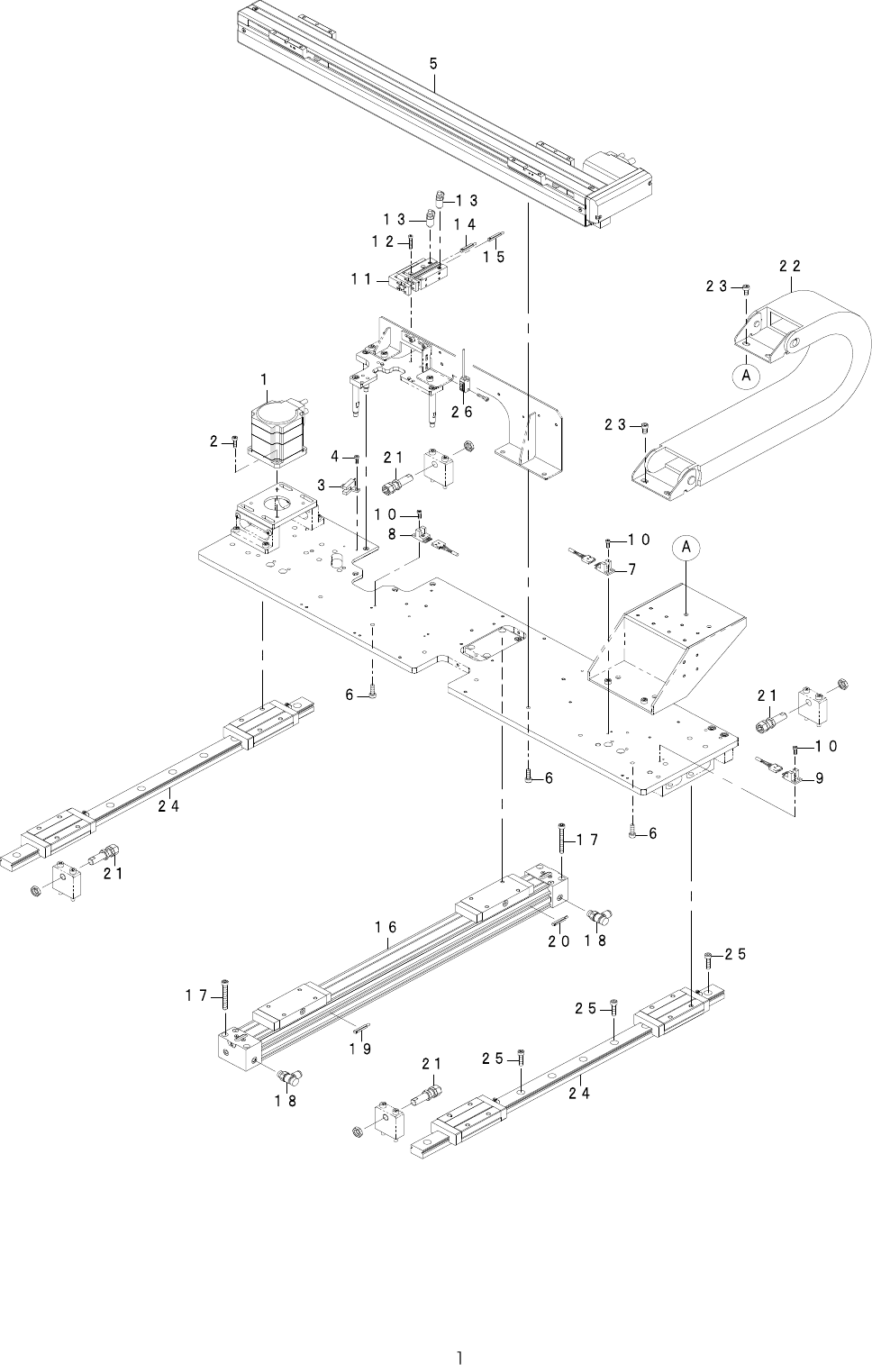

1. XYASSY

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-39104 MOTOR 1

2 SM-6041402-TT SCREWM4L=14 4

3 402-46812 SENSOR_02_ASM 1

4 SM-6031002-TT SCREWM3L=10 2

5 402-39105 ACTUATOR 1

6 SM-6051602-TT SCREWM5L=16 8

7 402-46811 SENSOR_01_ASM 1

8 402-46813 SENSOR_03_ASM 1

9 402-46814 SENSOR_04_ASM 1

10 SM-6031002-TT SCREWM3L=10 6

11 PA-0602009-A0 AIRCYLINDER 1

12 SM-6032002-TT SCREWM3L=20 3

13 PC-0105080-00 SPEEDCONTROLLER 1

14 402-46840 DC_CHAIN_INSPECTION_02_WIRE_ASM 1

15 402-46841 DC_CHAIN_INSPECTION_03_WIRE_ASM 1

16 402-39085 RODLESS_CYLINDER 1

17 SM-6054502-TT SCREWM5L=45 4

18 PC-0151030-00 SPEEDCONTROLLER 2

19 402-46846 DC_CHAIN_INSPECTION_08_WIRE_ASM 1

20 402-46847 DC_CHAIN_INSPECTION_09_WIRE_ASM 1

21 402-39113 SHOCK_ABSORBER 4

22 402-39115 CABLEVEYOR 1

23 SM-6051002-TT SCREWM5L=10 4

24 402-39087 LINEAR_WAY 2

25 SM-6052002-TT SCREWM5L=20 10

26 402-46839 DC_CHAIN_INSPECTION_01_WIRE_ASM 1
