XD7800NT Ruby XL X-ray Inspection System
www.nordson.com/TestInspect
Advantages
NT500 Maintenance-Free, Sealed-Transmissive
X-ray Tube
< 0.5 μm Feature Recognition
160 kV Tube with Up to 10 W Target Power - Always Retains
Sub-Micron Ability
3 Mpixel @ 25fps Long Lifetime CMOS Flat Panel Detector
with Real Time Image Enhancements
Geometric Magnification 1,800 X, System 7,800 X
for Total 23,400 X with Digital Zoom
Nordson Test & Inspection, the only x-ray company
whose focus is on x-ray electronics inspection, oers
the XD7800NT Ruby XL x-ray inspection system as the
NT maintenance-free, sealed-transmissive x-ray tube,
providing 0.5 μm feature recognition and up to 10 W of
target power, together with the 3 Mpixel long lifetime
CMOS flat panel detector makes this jewel of a system
cover all the failure analysis and manufacturing tasks
required in the production environment.
The vertical system configuration, with the X-ray tube
sitting below the isocentric ‘move and tilt’ of the detector,
The Solution for Large
Board Applications
all controlled through simple, joystick-free, ‘point
and click’ operation, provides the safe, collision-
free and high magnification inspection required
for production applications. All these tasks can
be simply and quickly automated from within the
Nordson Image Wizard soware without the need
for programming skills. Optional upgrades include
X-Plane™ and joystick control.
Crystal Clear X-ray Inspection.
33” x 24.2” (840 x 615mm) Tray Size
47” x 26.4” (1205 x 672 mm) Maximum Board Size with
reduced Magnification
70° Oblique Views without Loss of Magnification
Two 24” TFT LCD Monitors
AXiS - Active X-ray Image Stabilization
No Programming Skills Required for Automated
Inspection Tasks
Options: X-Plane®; Joysticks

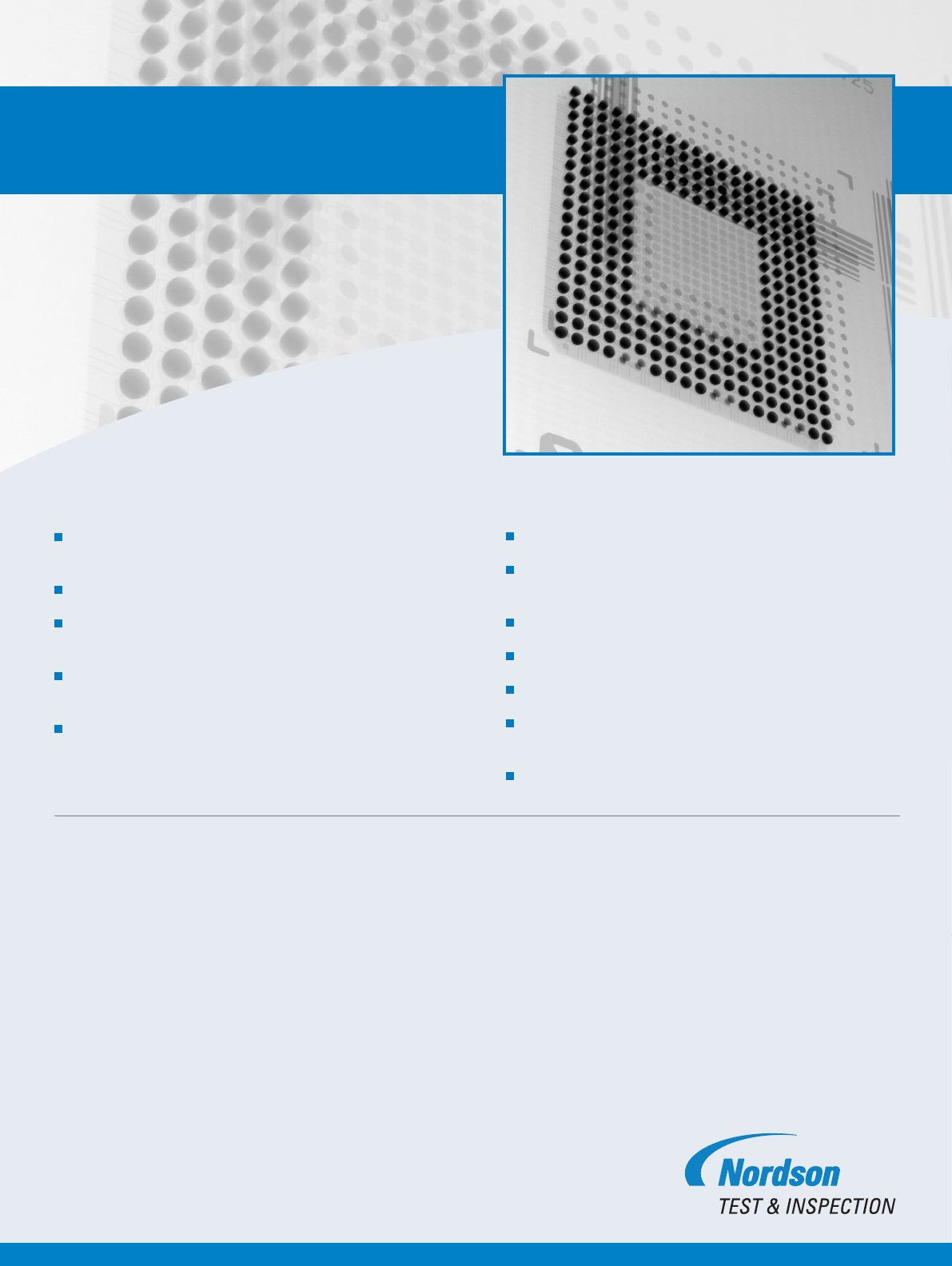

BGA with Open Joints
For more information,
speak with your Nordson
representative or contact
your Nordson regional oice
Nordson Test & Inspection
Europe, SEA, Africa
ti-sales-eu@nordson.com
Nordson Test & Inspection
Americas
ti-sales-us@nordson.com
Nordson Test & Inspection
China
ti-sales-cn@nordson.com
Nordson Test & Inspection
Japan
ti-sales-jp@nordson.com
Nordson Test & Inspection
Singapore
ti-sales-eu@nordson.com
Nordson Test & Inspection
Taiwan
ti-sales-tw@nordson.com
Nordson Test & Inspection
Korea
ti-sales-korea@nordson.com
www.nordson.com/TestInspect
1 EP 2063261 2 US 9129427DS-RXL-271022
XD7800NT Ruby XL X-ray Inspection System
Specifications
• NT500 sealed-transmissive, filament-free x-ray tube:
– < 0.5 μm feature recognition 30 - 160 kV for < 4 W target power
– < 0.95 μm feature recognition when above 4 W target power
– 10 W max. target power above 110 kV
– automated tube stabilisation
• 1,800 X geometric magnification (7,800 X system magnification)
• 23,400 X total magnification including digital zoom
• Easy, collision-free, high magnification inspection:
– even at oblique angle views
– joystick-free, ‘point and click’ operation
• Tray size: 33” x 24.2” (840 x 615mm)
• Maximum board size: 47” x 26.4” (1205 x 672 mm) with reduced magnification
*Please refer to Dage for clarification for larger boards
• Maximum inspection area: 33” x 24.2” (840 x 615mm)
• 70° oblique angle views (over 30” x 24”, 762 x 610 mm):
– for 360° around a point of interest
– isocentric manipulator configuration keeps features in field of view
•
Long Lifetime CMOS digital detector with 1940 x 1530 pixels (3 Mpixels)
– 25 fps full-frame ‘real time’ image acquisition
– real time image enhancements
• 16-bit digital image processing
• AXiS - Active X-ray Image Stabilisation - anti-vibration control
• Two o 24” TFT LCD operator display monitors
• Image Wizard operating soware including:
– automated and manual component fault analysis including BGA & QFN
– simple to create and use robust automated inspection routines
– plated through hole (PTH) fill percentage calculation
– accurate measurement functions
– automated and manual die attach / area void calculation
– patented
1
X-ray navigation map for easy fault location
– simple to use, no complicated joysticks required
• Fully lead-shielded system safety cabinet
– providing < 1 μSv/hr x-ray leakage
– meets all international standards
• 1 years system warranty
Options
• Patented X-Plane®
2
• Joystick control (X,Y or X,Y & Z)
• Barcode reader
• 2nd Year warranty
System
• Approximate Size: 94.5” x 98.5” x 81.5” (w x d x h)
• Approximate Size: 2400 x 2500 x 2070 mm (w x d x h)
• Approximate System Weight: 3000 kg (6600 lbs)
• Maximum Sample Weight: 10 kg (22 lbs)
• Power: Single Phase 200 - 230Vac, 16A
• Max. Power Consumption: 1000 W Max.
• Air: 4-6 bar of clean dry air for anti-vibration
• Operating Temp. Range: 10 - 30
º
C
• Humidity: < 85% (non-condensing)
