Page
SAMSUNG TECHWIN
15
SM411

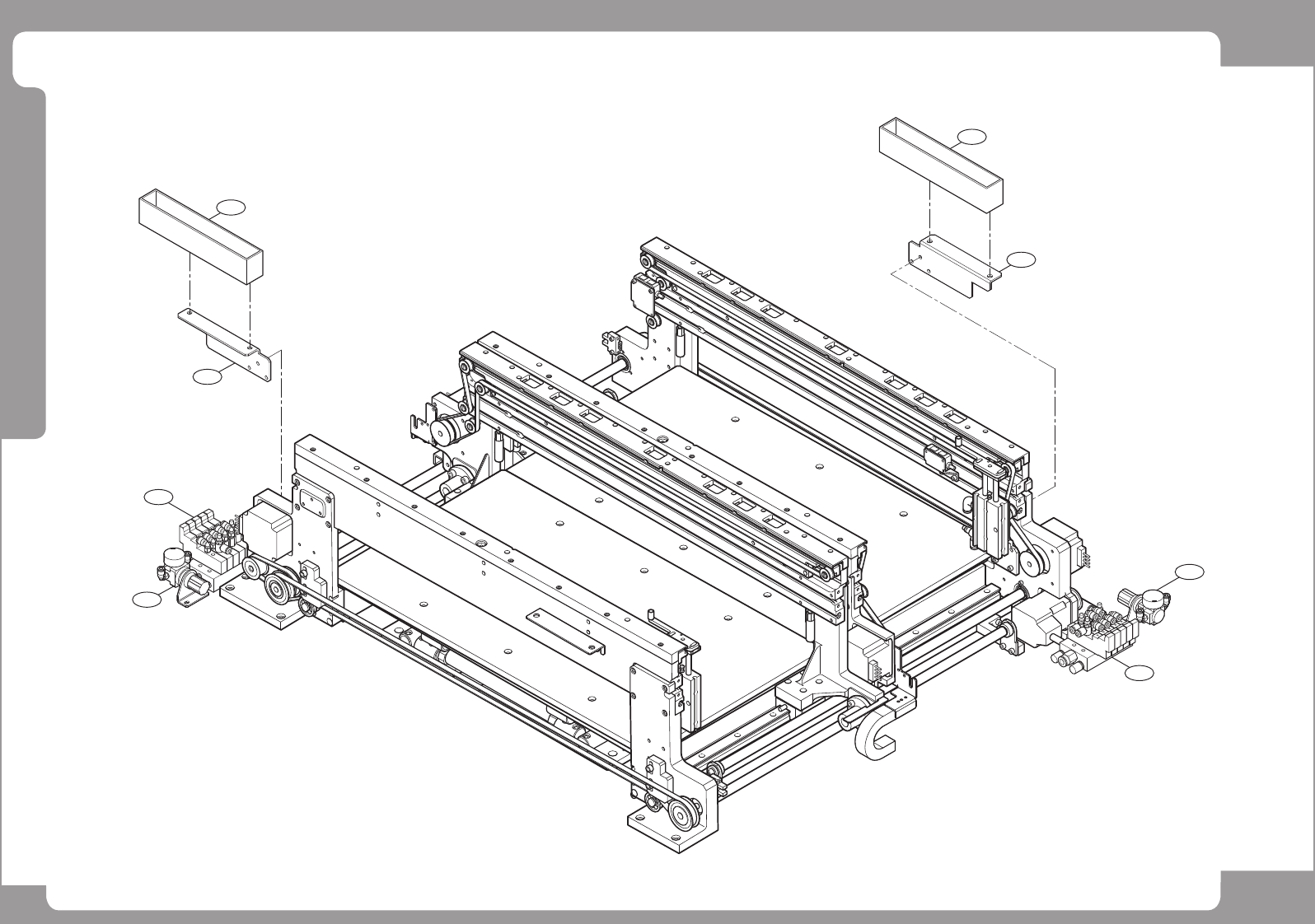

Conveyor Ass’y (6/6)
56
56
57
57
107
107
109
109
Page
SAMSUNG TECHWIN
16
SM411
Conveyor Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock Apply
Reference
A-1
0.1 J90531068A SM420_LR_CONVEYOR_ASSY J90531068A 1 J90531068A
○
1
...3 J66021005A BELT_WIDTH_SYNC 025-XL-1457 2 025-XL-1457
COMMON
2
...3 J70531024A BRACKET_TAIL J70531024A 4 J70531024A
COMMON
3
...3 J70531022A BRACKET_WORK_SENSOR_2 J70531022A 2 J70531022A
COMMON
4
...3 J70531023A BRACKET_WORK_SENSOR_1 J70531023A 2 J70531023A
5
...3 J72531002A BUSH_TAIL J72531002A 4 J72531002A
COMMON
6
...3 J71531011A CLAMP_FRONT_FRAME J71531011A 2 J71531011A
COMMON
7
...3 J71531012A CLAMP_REAR_FRAME J71531012A 2 J71531012A
COMMON
8
...3 J66141001A LEAD_SCREW DCM12+566L 4 DCM12+566L
COMMON
9
...3 J67011007B CYLINDER CQ2B6-2-CJK2341 2 CQ2B6-2-CJK2341
COMMON
10
...3 J72531001A IDLER_2 J72531001A 20 J72531001A
COMMON
11
...3 J70531021A IDLER_SHAFT_M J70531021A 16 J70531021A
COMMON
12
...3 J3212002A PHOTO SENSOR 4 EE-SX670A
○ COMMON
13
...3 J3212004A PHOTO SENSOR 2 EE-SX672A
○ COMMON
14
...3 J6601008A BALL BEARING 4 6000ZZ
○ COMMON
15
...3 J66011035A BALL_BUSH LMU5 16 LMU5
COMMON
16
...3 J6601109A BALL BEARING[608ZZ] 4 608ZZ
○ COMMON
17
...3 J6607016A LM SLIDE 4 BSP 1025
○ COMMON
18
...3 J6703007A THROTTLE VALVE(ELBOW) 2 JNC4-M5
○ COMMON
19
...3 J6711001A ELBOW FITTING 4 KQ2L04-M5/PL4-M5M/SQL04-M5
○ COMMON
20
...3 J7053047A IDLER SPACER-S 4 0135-641103
○ COMMON
21
...3 J7053048A IDLER SPACER-M 2 0135-641104
○ COMMON
22
...3 J2101818 IDLER SHAFT-S [0135-641105] 4 0135-641105
○ COMMON
23
...3 J7053184A SQUARE NUT M4 8 0131-641702
COMMON
24
...3 J7153010B ADJUST SHAFT [J7153010B] 8 J7153010B
○ COMMON
25
...3 J7153033A BUSH SPACER 8 0135-641110
○ COMMON
26
...3 J7153034A CLAMP SHAFT 8 0135-641111
○ COMMON
P art L is t
Page
SAMSUNG TECHWIN
17
SM411
Conveyor Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock Apply
Reference
27
...3 J7153036A SLIDE GUIDE 2 0135-641125
COMMON
28
...3 J7153373A FIDUCIAL DISK[J7153373A] 12 J7153373A
COMMON
29
...3 J7253008A STOPPER 8 0135-641129
○ COMMON
30
...3 J7253009B STOPPER 2 [J7253009B] 8 J7253009B
COMMON
31
...3 J71531010A LM_BASE J71531010A 2 J71531010A
COMMON
32
...3 J66071015A LM_GUIDE SR15W2UU+570LY-II 2 SR15W2UU+570LY-II
COMMON
33
...3 J70531017B PCB_GUIDE_FC J70531017A 2 J70531017B
COMMON
34
...3 J70531016B PCB_GUIDE_RC J70531016A 2 J70531016B
COMMON
35
...3 J71531007A PULLEY_WIDTH_MOTOR J71531007A 2 J71531007A
COMMON
36
...3 J70531015A STOPPER_BRACKET_WORK J70531015A 2 J70531015A
37
...3 J70531050A STOPPER_TOP_PLATE J70531050A 2 J70531050A
38
...3 J70531029A STOPPER_POST J70531029A 2 J70531029A
39
...3 J71531006A SUPPORT_BRACKET_L J71531006A 2 J71531006A
COMMON
40
...3 J71531005A SUPPORT_BRACKET_S J71531005A 2 J71531005A
COMMON
41
...3 J70531014A SUPPORT_FIX_RAIL_LEFT J70531014A 2 J70531014A
COMMON
42
...3 J70531013A SUPPORT_FIX_RAIL_RIGHT J70531013A 2 J70531013A
COMMON
43
...3 J70531012B SUPPORT_MOVE_RAIL_TL J70531012A 2 J70531012B
COMMON
44
...3 J70531011A SUPPORT_MOVE_RAIL_TR J70531011A 2 J70531011A
COMMON
45
...3 J70531028A TENSION_BEARING_PIN J70531028A 4 J70531028A
COMMON
46
...3 J70531027A TENSION_BRACKET J70531027A 4 J70531027A
COMMON
47
...3 J66021007A TIMMING_BELT_WIDTH 180-3GT-9 2 180-3GT-9
COMMON
48
...3 J71531008A PULLEY_W_MOTOR J71531008A 2 J71531008A
COMMON
49
...3 J71531024A WIDTH_PULLEY J71531024A 2 J71531024A
COMMON
50
...3 J70531066A WORK_WIDTH_SENSOR_DOG J70531066A 2 J70531066A
COMMON
51
...3 J66021006A BELT_WORK MAM-5P-1550-6W 4 MAM-5P-1550-6W
COMMON
52
...3 J71531013B WORK_FRONT_FRAME J71531013A 2 J71531013B
COMMON
53
...3 J71531004B WORK_REAR_FRAME J71531004A 2 J71531004B
COMMON
P art L is t
