Page SAMSUNG TECHWIN 20 SM411 C on ve yor Ass ’y NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference 108 ....4 J6701018B STOPPER CYLINDER 1 [WTS10*30-RS2] 2 WTS10*30-RS2 ○ COMMON 109 ....4 J67021005…

100%1 / 112
Page
SAMSUNG TECHWIN
19
SM411
Conveyor Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock Apply
Reference
81
...3 J70531047A W_TENSION_SCREW J70531047A 1 J70531047A
COMMON
82
...3 J70531048A W_TENSION_PLATE J70531048A 1 J70531048A
COMMON
83
...3 J70531055A SM_R_DOG J70531055A 1 J70531055A
COMMON
84
...3 J70531071A CNT_COVER J70531071A 2 J70531071A
COMMON
85
...3 J70531072A CNT_PANEL_FRONT J70531072A 1 J70531072A
COMMON
86
...3 J70531073A CNT_PANEL_REAR J70531073A 1 J70531073A
COMMON
87
...3 J71531015A SUPPORT_UNIT_ST_TAIL J71531015A 1 J71531015A
COMMON
88
...3 J71531016A PULLEY_SHUTTLE_WIDTH J71531016A 1 J71531016A
COMMON
89
...3 J71531017A PULLEY_S_W_NUT J71531017A 1 J71531017A
COMMON
90
...3 J71531018A ENTRY_PCB_GUIDE_1650 J71531018A 2 J71531018A
91
...3 J71531020A ENTRY_FRAME_00_1650 J71531020A 1 J71531020A
COMMON
92
...3 J71531019A ENTRY_FRAME_01_1650 J71531019A 1 J71531019A
COMMON
93
...3 J71531021A BLOCK_SHUTTLE_REAR_LEFT J71531021A 1 J71531021A
COMMON
94
...3 J71531022A BLOCK_SHUTTLE_FRONT J71531022A 1 J71531022A
COMMON
95
...3 J71531025A PULLEY_SHUTTLE_MOTOR J71531025A 1 J71531025A
COMMON
96
...3 J72531003A SM_S_BUMPER J72531003A 1 J72531003A
COMMON
97
...3 J72531006A SM_M_BUMPER J72531006A 1 J72531006A
COMMON
98
...3 J72531004A SM_WR_BUMPER J72531004A 2 J72531004A
COMMON
99
...3 J70531062A SUPPORT_ST_MOTOR_2 J70531062A 1 J70531062A
COMMON
100
...3 J70531076A BRACKET_BD_OUT_SENSOR J70531076A 1 J70531076A
COMMON
101
....4 J31081005A SERVO_MOTOR_PB PBM565DXC26 1 PBM565DXC26
○ COMMON
102
....4 J31081004A SERVO_MOTOR_PB PBM423DXC24 1 PBM423DXC24
○ COMMON
103
....4 J31041014A STEP_MOTOR 2S56Q-01842SR2 1 2S56Q-01842SR2
COMMON
104
...3 J65041002A CABLE_VEYOR HSP0180_2B_28R_21LINK 2 HSP0180_2B_28R_21LINK
COMMON
105
....4 J3211032A PHOTOELECTRIC SENSOR [BYD30-DDT] 5 BYD30-DDT
○ COMMON
106
....4 J3211048A PHOTO SENSOR[E3S-LS3N] 4 E3S-LS3N
○ COMMON
107
...3 J6709004A REGULATOR [AR1000-M5BG] 2 AR1000-M5BG
○ COMMON
P art L is t
Page
SAMSUNG TECHWIN
20
SM411
Conveyor Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock Apply
Reference
108
....4 J6701018B STOPPER CYLINDER 1 [WTS10*30-RS2] 2 WTS10*30-RS2
○ COMMON
109
....4 J67021005A SOLENOID_VALVE DV1120-00-R3642-3 2 DV1120-00-R3642-3
○ COMMON
110
...3 J66061004A BALL_SCREW 2BTK1405-2.6ZZ+721.5LC7T 1 2BTK1405-2.6ZZ+721.5LC7T
COMMON
111
...3 J71531009A PULLEY_B_M J71531009A 2 J71531009A
COMMON
112
...3
J90831199A_A
S
MS1 SERVO MOTOR CABLE ASSY
1
SM33-CS012 COMMON [15] at 97 page
113
...3
J90831200A_A
S
WS1 SERVO MOTOR CABLE ASSY
1
SM33-CS013 ○ COMMON [16] at 97 page
114
...3
J90831201A_A
S
WW1 SERVO MOTOR CABLE ASSY
1
SM33-CS014 COMMON [17] at 97 page
115
...3
J90831202A_A
S
WW2 SERVO MOTOR CABLE ASSY
1
SM33-CS015 COMMON [18] at 98 page
116
...3
J90831203A_A
S
MS2 SERVO MOTOR CABLE ASSY
1
SM33-CS016 COMMON [19] at 98 page
117
...3
J90831204A_A
S
WS2 SERVO MOTOR CABLE ASSY
1
SM33-CS017 COMMON [20] at 98 page
118
...3 J90831256A ANC_SENSOR_FRONT_EXT_CABLE_ASSY SM33-CV0 1 SM33-CV009-1
COMMON [21] at 87 page
119
...3 J90831257A ANC_SENSOR_REAR_EXT_CABLE_ASSY SM33-CV00 1 SM33-CV009-2
COMMON [22] at 87 page

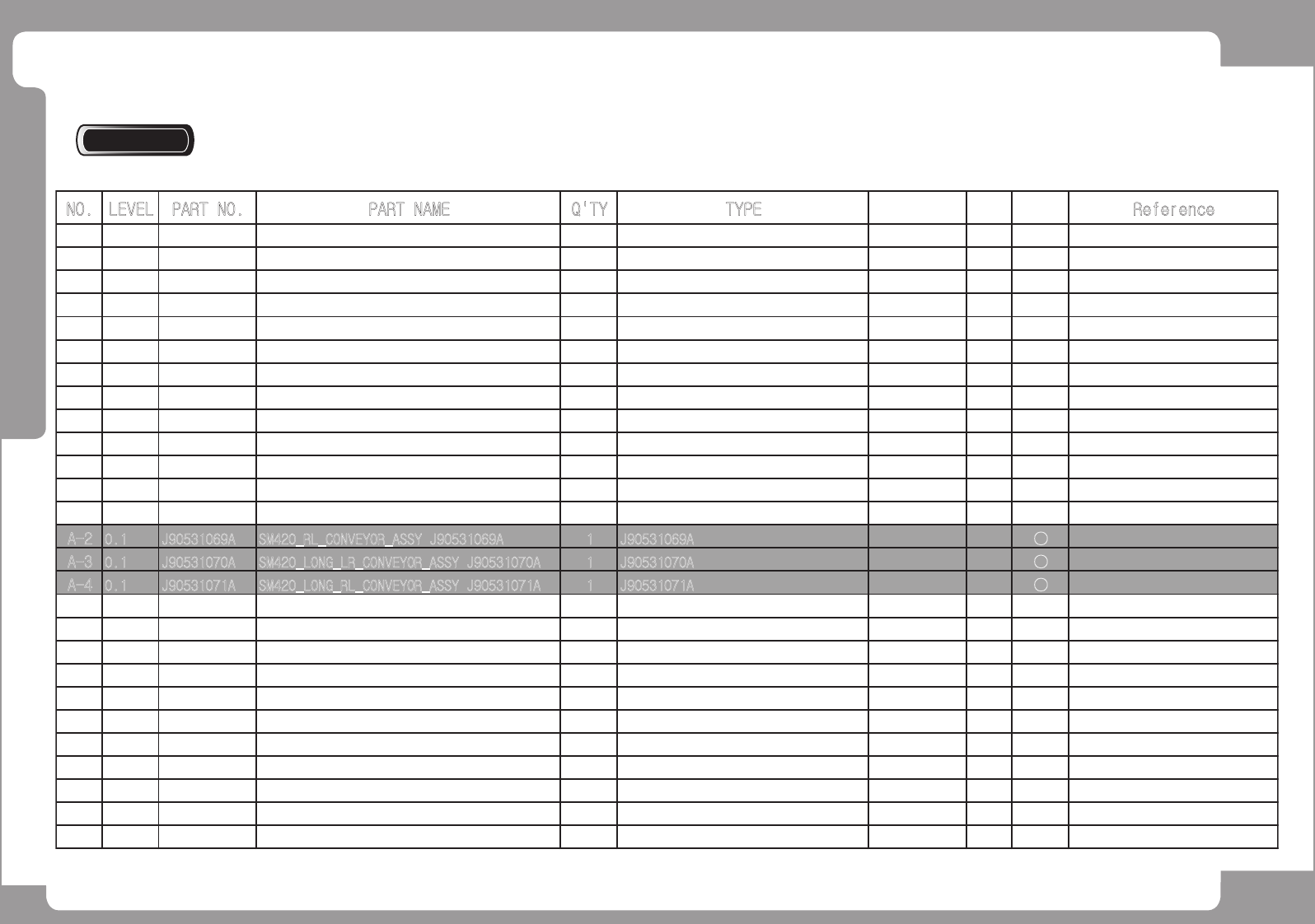

A-2 0.1 J90531069A SM420_RL_CONVEYOR_ASSY J90531069A 1 J90531069A ○
A-3 0.1 J90531070A SM420_LONG_LR_CONVEYOR_ASSY J90531070A 1 J90531070A ○
A-4 0.1 J90531071A SM420_LONG_RL_CONVEYOR_ASSY J90531071A 1 J90531071A ○
P art L is t
Page
SAMSUNG TECHWIN
21
SM411
Backup Table Ass’y
8
7
17
10
24
22
2
22
23
24
22
24
22
24
1
3
4
5
6
8
6
9
11
11
1
2
1
3
1
5
14
1
6
1
8
1
8
1
9
1
9
1
9
2
0
2
1
1
2
2
3
1
5
2
5
1
5
1
5
2
5
1
5
