Page SAMSUNG TECHWIN 41 SM411 A ir Ass’ y NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference A-1 0.1 J90581002A AIR_ASSY J90581002A 1 J90581002A 1 ..2 J67071009A VACUUM_GENERATOR VKMH07A-S448S2-B06…
Page
SAMSUNG TECHWIN
40
SM411

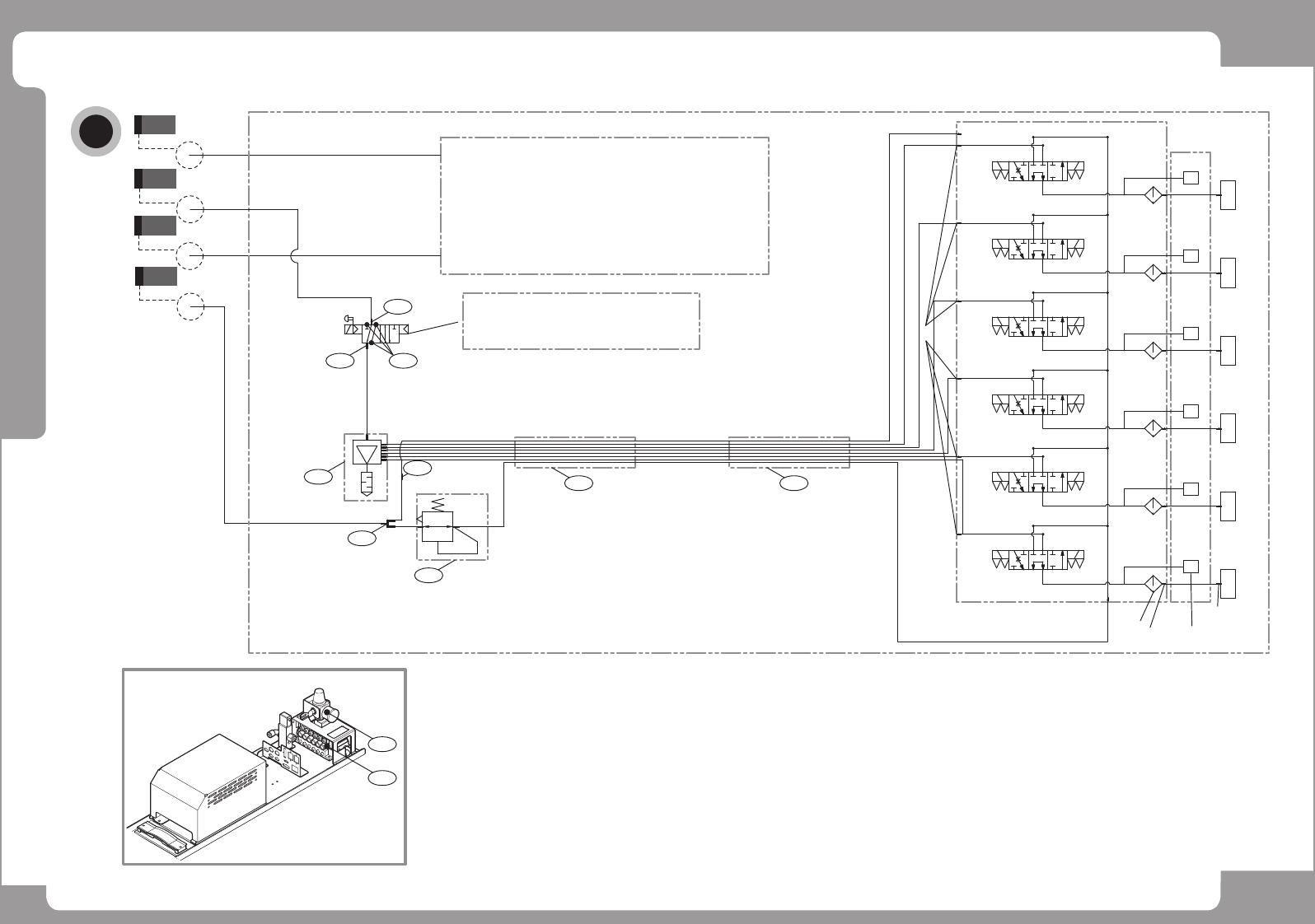

Air Ass’y (5/5)
D
D1
D3
D2
D4
F ront G antry Air Module
HEAD ASSY
U2-4-8*5
J9060412A
HEAD VACUUM
6-J6711180B
RC3-M5M-STN
8
J6702021A
K180-4E1-21-DC24V
U2-4-8*5
1
J90551067A AIR MODULE
6-VA01PEP
34-1U-F
6-BC-03-M5
6-J3204002A
MPX5100AP
6-LF-M5-60-ZK
FSC04-M5C
HEAD1 HEAD2
FSE04-M5C
HEAD5HEAD3 HEAD4 HEAD6
No use
HARNESS ASSY
J9080795A MAIN AIR SOL PWR CABLE ASSY
A2
31
3
A
1
2
A2
31
A2
31
1 3
A2
A2
31
Rear Gantry Air Module
1
2
3
4
5
6 6
1
7
7
25
Page
SAMSUNG TECHWIN
41
SM411
Air Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock Apply
Reference
A-1 0.1
J90581002A AIR_ASSY J90581002A 1 J90581002A
1
..2 J67071009A VACUUM_GENERATOR VKMH07A-S448S2-B06 2 VKMH07A-S448S2-B06
○
2
..2 J6711140A STRAIGHT FITTING [SS8-1/8] 2 SS8-1/8
○
3
..2 J6711157A ELBOW FITTING [KQ2L08-01S] 2 KQ2L08-01S
○
4
..2 J6711119A UNION Y FITTING [KQ2U04-06] 2 KQ2U04-06
○
5
..2 J6712008A PLUG [PT 1/8] 6 PT 1/8
○
6
..2 J6713048A MULTI TUBE[UML-408 (BL-BK6-BL)] 7 UML-408 (BL-BK6-BL)
○
7
..2 J67091007A REGULATOR J67091007A 2 AR08-T2-D0M0-J267A
○
8
..2 J90581001A SM330_MANIFOLD_ASSY J90581001A 1 J90581001A
○
9
...3 J67111017A DOUBLE_UNIVERSAL_ELBOW_06 KQ2VD06-02S 1 KQ2VD06-02S
10
...3 J67111018A DOUBLE_UNIVERSAL_ELBOW_08 KQ2VD08-02S 2 KQ2VD08-02S
11
...3 J1301189 ELBOW FITTING [KQ2L06-02/PL6-02] 2 KQ2L06-02/PL6-02
○
12
...3 J1301213 PLUG [PT 3/8] 1 PT 3/8
○
13
...3 J6711244A MALE ELBOW[KQ2L12-03] 1 KQ2L12-03
○
14
...3 J2100009 MANIFOLD [0131-611008] 1 0131-611008
○
15
...3 J6712013A PLUG[PT 1/4 (SUS)](bio) 1 PT 1/4 (SUS)
○
16
...3 J6711147A STRAIGHT FITTING KQ2H04-M5 1 KQ2H04-M5
17
...3 J6709012A REGULATOR [TAR4000-04] 1 TAR4000-04
○
18
....4 J67101002A DIGITAL_GAGE PS30-103R-N 1 PS30-103R-N
19
...3 J1301187 ELBOW FITTING [KQ2L12/PL12-04] 2 KQ2L12/PL12-04 J6711170A
○
20
...3 J6711028A ELBOW FITTING [KQ2L04-01] 1 KQ2L04-01
○
21
...3 J67081006A MIST_SEPARATOR_ASSY TAC4020-04D-R3643 1 TAC4020-04D-R3643
22
....4 J67111032A MIST_FITTING SQV12-04S 2 SQV12-04S
23 ....4
J67081003A ELEMENT_AIR TAF4000-05-6000 1 TAF4000-05-6000
24 ....4
J67081002A ELEMENT_SEPARATOR PFH4000-0005A-6083 1 PFH4000-0005A-6083
25
..2 J6711104A STRAIGHT FITTING[KQ2H04-00/PU4] 2 KQ2H04-00/PU4
○
P art L is t
Page
SAMSUNG TECHWIN
42
SM411

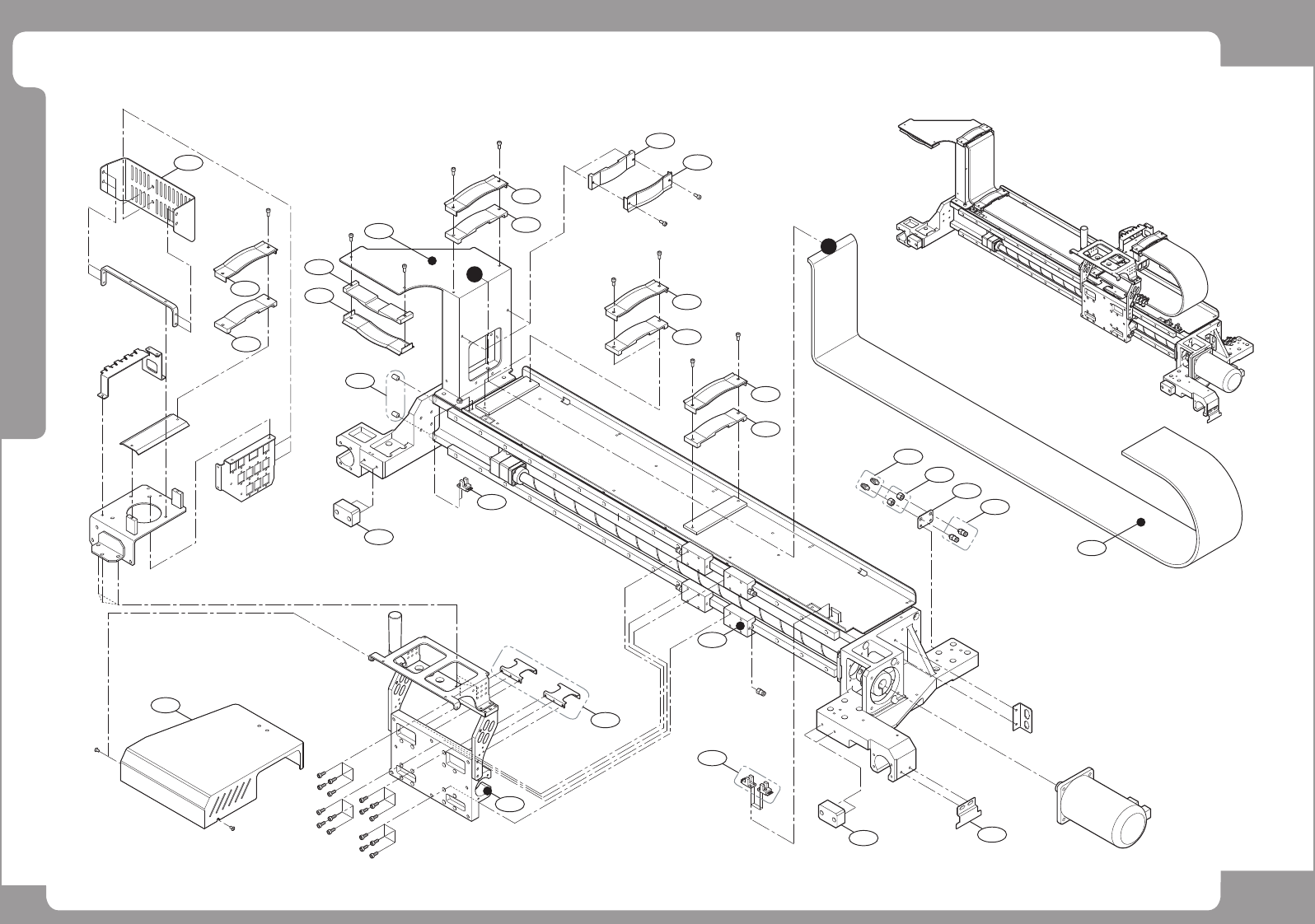

X-Y Frame Ass’y (1/5)
9
9
31
14
17
31
7
10
7
10
7
10
7
10
15
9
6
12
13
40
7
10
42
16
11
8
18
39
38
