Page
SAMSUNG TECHWIN
46
SM411

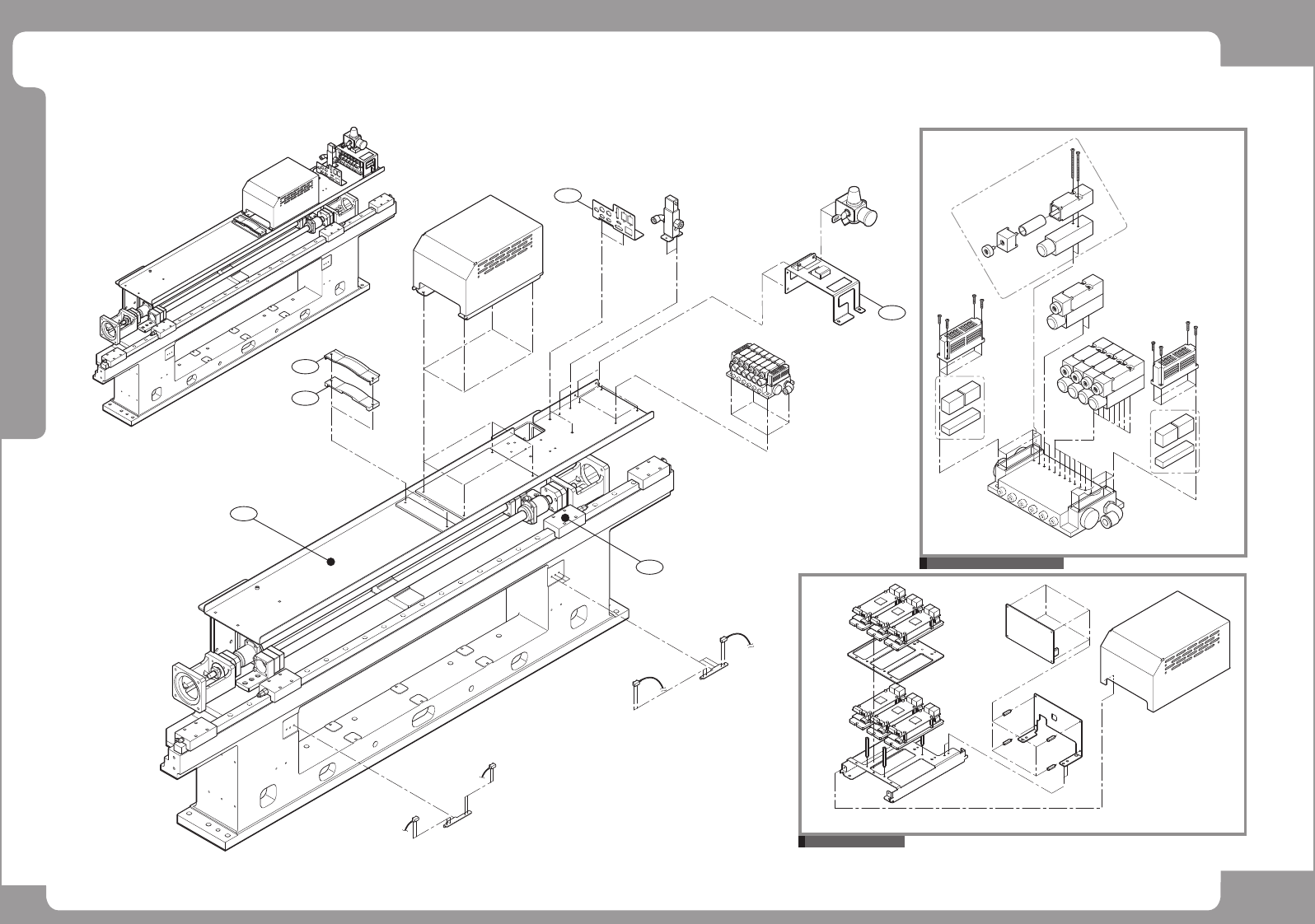

X-Y Frame Ass’y (5/5)
34
6
9
33
29
32
Vac uum Generator As s 'y
Driver B OX A s s 'y
Page
SAMSUNG TECHWIN
47
SM411
X-Y Frame Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock Apply
Reference
A-1 0.1
J90541011A X-Y_ASSY J90541011A 1 J90541011A
1
....4 J66061003A X-BALL_SCREW HG1632QS-HEZR-0874*0801-C5F 1 HG1632QS-HEZR-0874*0801-C5F
○
2
....4 J6601008A BALL BEARING 1 6000ZZ
○
3
....4 J71541009A BRG_SUPPORT-X J71541009A 1 J71541009A
4
....4 J71541010A BRG_HOUSING-X J71541010A 1 J71541010A
5
....4 J1300517 C-RING [10mm (SHAFT)] 1 10MM (SHAFT)
○
6
...3 J7354024A CABLE CUSHION Y[J7354024A] 1 J7354024A
○
7
...3 J7354023A CABLE CUSHION X[J7354023A] 4 J7354023A
○
8
...3 J71541020A HEAD_BASE J71541020A 1 J71541020A
9
...3 J7054256A CUSHION BRACKET Y[J7054256A] 1 J7054256A
10
...3 J7054255A CUSHION BRACKET X[J7054255A] 4 J7054255A
11
...3 J70541105A GREASE_NIPPLE_NUT J70541105A 4 J70541105A
12
...3 J70541099A Y_NIPPLE_PLATE J70541099A 2 J70541099A
13
...3 J70541038A SENSOR_DOG_X J70541038A 2 J70541038A
14
...3 J70541008A SENSOR_DOG-Y J70541008A 1 J70541008A
15
...3 J70541007A BRACKET_CABLE_CHAIN-Y J70541007A 1 J70541007A
16
...3 J6719025A GREASE NIPPLE [M6*1.0-STRAIGHT] 4 M6*1.0-STRAIGHT
17
...3 J66071014A LM_GUIDE-X SSR15XW2UUC1+940LHY-2 2 SSR15XW2UUC1+940LHY-2
18
...3 J6061601000 DOWEL PIN [MS6-10] 4 MS6-10
○
19
...3 J3212022A LIMIT SENSOR [EE-SX674] 3 EE-SX674
○
20
...3 J1300502 PIN DOWEL [MS5-10] 4 MS5-10 J6061501036
○
21
....4 J70541005B Y_MOTOR_BLOCK J70541005A 1 J70541005B
22
....4 J6601124A SUPPORT UNIT[FK-15] 1 FK-15
○
23
....4 J72541006A STOPPER_Y_BALL_SCREW_FRONT J72541006A 1 J72541006A
○
24
....4 J66061002A Y-BALL_SCREW J66061002A 1 J66061002A
25
....4 J72541004A STOPPER_Y_BALL_SCREW J72541004A 1 J72541004A
○
26
....4 J70541006A BS_REAR_SUPPORT J70541006A 1 J70541006A
P art L is t
Page
SAMSUNG TECHWIN
48
SM411
X-Y Frame Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock Apply
Reference
27
....4 J70541030A BRG_HOUSING_Y J70541030A 1 J70541030A
28
....4 J6601020A BALL BEARING 1 6002ZZ
○
29
...3 J66071013A LM_GUIDE-Y SSR25XWY4UUE+1530LYH-2 1 SSR25XWY4UUE+1530LYH-2
30
....4 J66011017A SUPPORT_UNIT FK12-MP5 1 FK12-MP5
○
31
...3 J72541002A CUSHION_CRASH J72541002A 2 J72541002A
○
32
...3 J70541104A VACUMM_GEN_BKT J70541104A 1 J70541104A
33
...3 J70541101A CONNECTOR_PANEL-Y J70541101A 1 J70541101A
34
...3 J70541012A Y_CABLE_DUCT_SUPPORT J70541012A 1 J70541012A
35
..2 J3108064A SERVO MOTOR[MSMA102P1C01] 4 MSMA102P1C01
○
36
..2 J66121007A COUPLING SFC 050DA2 12B-19B(TYPE A) 4 SFC 050DA2 12B-19B(TYPE A) J6612036A
○
37
..2 J66121006A COUPLING SFC 040DA2 10B-19B(TYPE B) 2 SFC 040DA2 10B-19B(TYPE B) J6612035A
○
38
..2 J7254016D INNER GUIDE-MAT[J7254016D] 6 J7254016D
○
39
..2 J71541079A HEAD_TOP_COVER J71541079A 2 J71541079A
○
40
..2 J71541078A HEAD_FRONT_COVER J71541078A 2 J71541078A
○
41
..2 J3108063A SERVO MOTOR[MSMA082P1A01] 2 MSMA082P1A01
○
42
...3 J67111016A STRAIGHT_FITTING KQ2H04-M6 1 KQ2H04-M6
43
....4 J72541005B CUSHION_X_REAR 1 J72541005B
44
....4 J72541003A CUSHION_X_FRONT J72541003A 1 J72541003A
P art L is t
