Page
SAMSUNG TECHWIN
64
SM411
Electric Panel Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock Apply
Reference
27
...3 J90831272A WW1_SERVO_MTR_ENC_EXT_CABLE_ASSY SM33-CS 1 SM33-CS019-2
[63] at 97 page
28
...3 J90831273A WS1_SERVO_MTR_ENC_EXT_CABLE_ASSY SM33-CS 1 SM33-CS019-3
[64] at 97 page
29
...3 J90831274A MS2_SERVO_MTR_ENC_EXT_CABLE_ASSY SM33-CS 1 SM33-CS019-4
[65] at 98 page
30
...3 J90831275A WW2_SERVO_MTR_ENC_EXT_CABLE_ASSY SM33-CS 1 SM33-CS019-5
[66] at 98 page
31
...3 J90831276A WS2_SERVO_MTR_ENC_EXT_CABLE_ASSY SM33-CS 1 SM33-CS019-6
[67] at 98 page
32
...3 J90831130A CONV_I-F_BD_POWER_CABLE_ASSY SM33-CV001 1 SM33-CV001
[68] at 83, 104 page
33
...3 J90831042A KVMS_BD_POWER_CABLE_ASSY SM33-KV001 1 SM33-KV001
[69] at 102, 104 page
34
...3 J90831157A FX_MOTOR_PWR_CABLE_ASSY SM33-MD001 1 SM33-MD001
[70] at 94 page
35
...3 J90831158A FX_MOTOR_ENC_EXT_CABLE_ASSY SM33-MD002 1 SM33-MD002
[71] at 94 page
36
...3 J90831159A RX_MOTOR_PWR_CABLE_ASSY SM33-MD003 1 SM33-MD003
[72] at 94 page
37
...3 J90831160A RX_MOTOR_ENC_EXT_CABLE_ASSY SM33-MD004 1 SM33-MD004
[73] at 94 page
38
...3 J90831162A FY1_MOTOR_ENC_CABLE_ASSY SM33-MD006 1 SM33-MD006
[74] at 93 page
39
...3 J90831164A FY2_MOTOR_ENC_CABLE_ASSY SM33-MD008 1 SM33-MD008
[75] at 93 page
40
...3 J90831166A RY1_MOTOR_ENC_CABLE_ASSY SM33-MD010 1 SM33-MD010
[76] at 93 page
41
...3 J90831168A RY2_MOTOR_ENC_CABLE_ASSY SM33-MD012 1 SM33-MD012
[77] at 93 page
42
...3 J90831169A FS_MOTOR_PWR_CABLE_ASSY SM33-MD013 1 SM33-MD013
[78] at 94 page
43
...3 J90831170A FS_MOTOR_ENC_CABLE_ASSY SM33-MD014 1 SM33-MD014
[79] at 94 page
44
...3 J90831171A RS_MOTOR_PWR_CABLE_ASSY SM33-MD015 1 SM33-MD015
[80] at 94 page
45
...3 J90831172A RS_MOTOR_ENC_CABLE_ASSY SM33-MD016 1 SM33-MD016
[81] at 94 page
46
...3 J90831067A MAIN_SWITCH_TB2_CABLE_ASSY SM33-PW005 1 SM33-PW005
[82] at 107 page
47
...3 J90831068A TRANS_CP1_2_CABLE_ASSY SM33-PW006 1 SM33-PW006
[83] at 107 page
48
...3 J90831069A CP1_TB1_MC1_CABLE_ASSY SM33-PW007 1 SM33-PW007
[84] at 107, 109 page
49
...3 J90831070A CP2_TB1_MC2_CABLE_ASSY SM33-PW008 1 SM33-PW008
[85] at 107 page
50
...3 J90831071B MC1_PS3_PS4_CABLE_ASSY SM33-PW009 1 SM33-PW009
[86] at 109 page
51
...3 J90831072A CONTROL_RACK_POWER_CABLE_ASSY SM33-PW010 1 SM33-PW010
[87] at 108 page
52
...3 J90831073A TB1_PS1_PS2_POWER_CABLE_ASSY SM33-PW011 1 SM33-PW011
[88] at 108 page
53
...3 J90831074A FAN_POWER_CABLE_ASSY SM33-PW012 1 SM33-PW012
[89] at 108 page
P art L is t
Page
SAMSUNG TECHWIN
65
SM411
Electric Panel Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock Apply
Reference
54
...3 J90831075A SERVO_FAN_POWER_CABLE_ASSY SM33-PW013 1 SM33-PW013
[90] at 108 page
55
...3 J90831077A MC2_TB1_CABLE_ASSY SM33-PW015 1 SM33-PW015
[91] at 110 page
56
...3 J90831078A FX_FS_SERVO_POWER_CABLE_ASSY SM33-PW016 1 SM33-PW016
[92] at 94, 110 page
57
...3 J90831079A RX_RS_SERVO_POWER_CABLE_ASSY SM33-PW017 1 SM33-PW017
[93] at 94, 110 page
58
...3 J90831080A FY1_FY2_SERVO_POWER_CABLE_ASSY SM33-PW01 1 SM33-PW018
[94] at 93, 110 page
59
...3 J90831081A RY1_RY2_SERVO_POWER_CABLE_ASSY SM33-PW01 1 SM33-PW019
[95] at 93, 110 page
60
...3 J90831082A PS1_1_DC_POWER_BD_CABLE_ASSY SM33-PW020 1 SM33-PW020
[96] at 109 page
61
...3 J90831083A PS1_2_DC_POWER_BD_CABLE_ASSY SM33-PW021 1 SM33-PW021
[97] at 109 page
62
...3 J90831458A FRONT_MONITOR_POWER_CABLE_ASSY SM33_PW02 1 SM33-PW025-1
[98] at 108 page
63
...3 J90831088A SERVO_FAN_CABLE_ASSY SM33-PW026 1 SM33-PW026
[99] at 108 page
64
...3 J90831089A PS1_PS2_SAFETY_CTRL_CABLE_ASSY SM33-PW02 1 SM33-PW027
[100] at 103, 108 page
65
...3 J90831092A TRANSFORMER_INPUT_EXT_CABLE_ASSY SM33-PW 1 SM33-PW030
[101] at 107 page
66
...3 J90831231A SEDES_BD_POWER_CABLE_ASSY SM33-PW032 1 SM33-PW032
[102] at 104 page
67
...3 J90831052A FRONT_EM_DOOR_RDY_SW_CABLE_ASSY SM33-SC0 1 SM33-SC001
[103] at 103 page
68
...3 J90831053A REAR_EM_DOOR_RDY_SW_CABLE_ASSY SM33-SC00 1 SM33-SC002
[104] at 103 page
69
...3 J90831250A SEDES_SLAVE_HEAD1_BD_POWER_CABLE SM33-SC 1 SM33-SC003-1
[105] at 104 page
70
...3 J90831251A SEDES_SLAVE_HEAD2_BD_POWER_CABLE SM33-SC 1 SM33-SC003-2
[106] at 104 page
71
...3 J90831056A CONVEYOR_SUB_CONN_CABLE_ASSY SM33-SC005 1 SM33-SC005
[107] at 104 page
72
...3 J90831057A MC1_ENABLE_CABLE_ASSY SM33-SC006 1 SM33-SC006
[108] at 105 page
73
...3 J90831058A MC2_ENABLE_CABLE_ASSY SM33-SC007 1 SM33-SC007
[109] at 105 page
74
...3 J90831060A F_OVERRIDE_KEY_EXT_CABLE_ASSY SM33-SC009 1 SM33-SC009
[110] at 105 page
75
...3 J90831062A FR_RR_STEP_DRV_PW_CABLE_ASSY SM33-SC011 1 SM33-SC011
[111] at 99, 105 page
76
...3 J90831093A VME_IO_BD_POWER_CABLE_ASSY SM33-VI001 1 SM33-VI001
[112] at 80, 104 page
77
...3 J90831120A FR1_FR3_FR5_DRV_CMD_CABLE_ASSY SM33-VM01 1 SM33-VM011
[113] at 99 page
78
...3 J90831121A RR1_RR3_RR5_DRV_CMD_CABLE_ASSY SM33-VM01 1 SM33-VM012
[114] at 99 page
79
...3 J90831122A MS1_WS1_DRV_COMMAND_CABLE_ASSY SM33-VM01 1 SM33-VM013
[115] at 97, 98 page
80
...3 J90831123A WW1_DRV_COMMAND_CABLE_ASSY SM33-VM014 1 SM33-VM014
[116] at 97, 98 page
P art L is t
Page
SAMSUNG TECHWIN
66
SM411

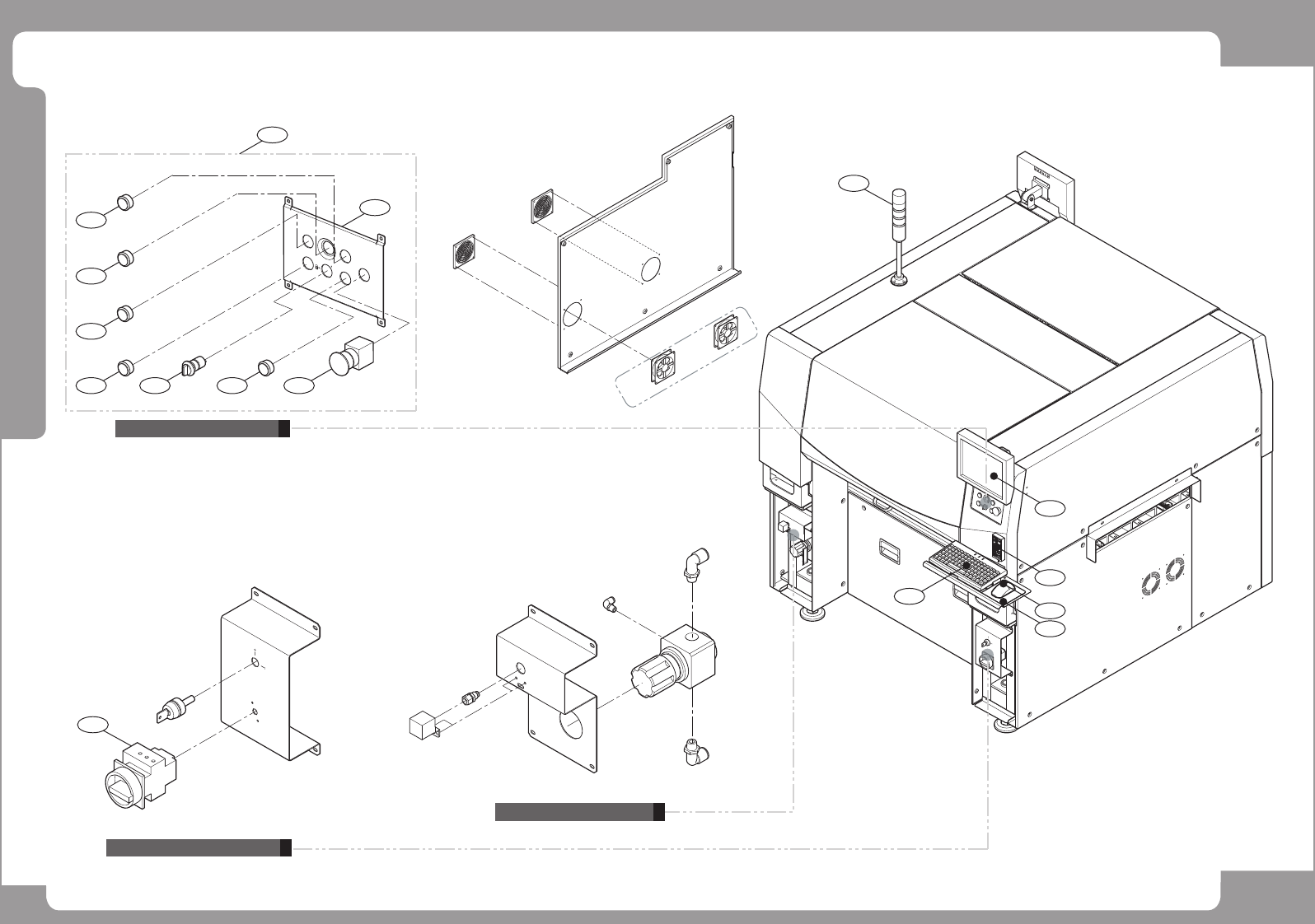

Electric Device Ass’y (1/4)
27
28 2930 31
A
I
R
P
R
E
S
S
U
R
E
S
A
F
E
G
U
A
R
D
O
V
E
R
R
I
D
E
M
A
I
N
S
W
I
T
C
H
S
TO
P
R
E
S
E
T
S
E
L
E
C
T
F
E
E
D
E
R
C
H
A
N
G
E
S
T
A
R
T
R
E
A
D
Y
F ront P ower P anel A s s 'y
S
A
F
E
G
U
A
R
D
O
V
E
R
R
I
D
E
M
A
I
N
S
W
I
T
C
H
S
T
O
P
R
E
S
E
T
S
E
L
E
C
T
F
E
E
D
E
R
C
H
A
N
G
E
S
T
A
R
T
R
E
A
D
Y
A
I
R
P
R
E
S
S
U
R
E
F ront O/P P anel As s 'y
5
F ront A ir P anel As s 'y
24
25
26
32
35
36
39
38
37
40
