Page
SAMSUNG TECHWIN
69
SM411

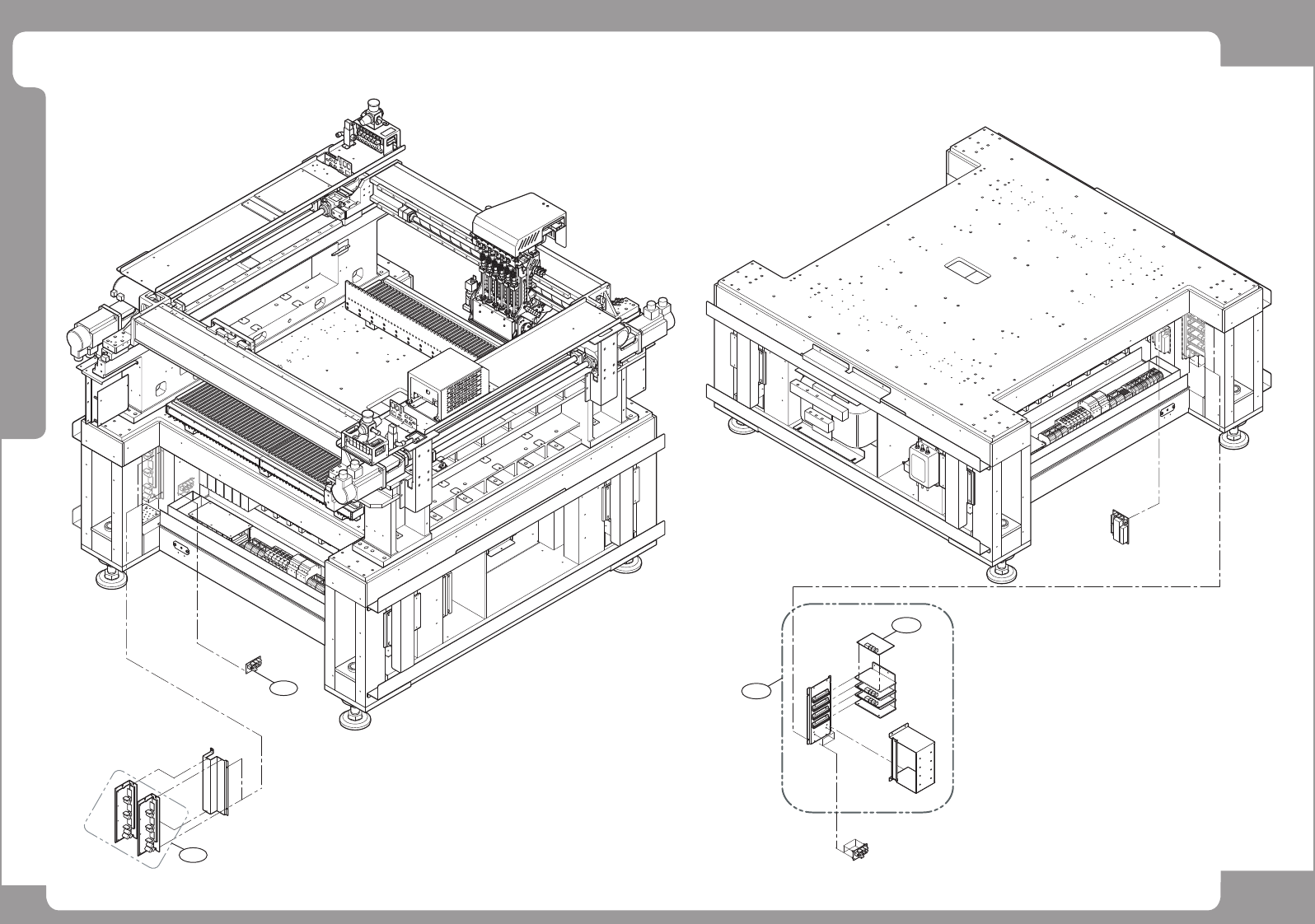

Electric Device Ass’y (4/4)
L
C
1
D
0
9
6
B
D
L
C
1
D
0
9
6
B
D
F
.
R
R
.
L
UF20TBH
NOISE FILTER
RATING: 450V20A
1
2
4
14
Page
SAMSUNG TECHWIN
70
SM411
Electric Device Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock Apply
Reference
A-1 0.1
J91681007A ELECTRIC_DEVICE_ASSY J91681007A
1
J91681007A
1
..2 J90511012A CONVEYOR_STEP_MOTOR_DRIVER_ASSY J9051101 1 J90511012A
○
2
...3 J31521002B STEP_MOTOR_DRIVER LB340-2AXIS 4 LB340-2AXIS
○
3
...3 J44011001A POWER_SUPPLY UP400S24 4 UP400S24
○
4
...3 J3152016A MOTOR DRIVER[KR-55ME-2Z-3Z] 2 KR-55ME-2Z-3Z
5
...3 J3406005A LOAD SWITCH[PI-25] 1 PI-25
6
...3 J7152027A GROUND TERMINAL [J7152027A] 1 J7152027A
7
...3 J36031004A MAIN_CIRCUIT_BREAKER GV2ME22 1 GV2ME22
8
...3 J3716070A PANEL[GV2-AF02] 1 GV2-AF02
○
9
...3 J3713061A CONNECTOR[555376-1] 1 555376-1
10
...3 J70521091A TRAY_CABLE_COVER J70521091A 1 J70521091A
11
...3 J91741026A SM411_AXIS_SENSOR_BOARD 1 VER1.0
○
12
...3 J9060346A CONV SUB I/F BOARD[Rev 1.0] 1 REV 1.0
○
13
...3 J9060063E CAN CONVEYOR BOARD ASSY[CAN CONVEYOR (RE 1 CAN CONVEYOR (REV1.4)
○
14
...3 J91741023A SM411_CONVEYOR_PWR_BOARD 2 VER1.0
○
15
...3 J31531003A SERVO MOTOR DRIVER 6 MMDDT2C09
16
...3 J90541010A DRIVER_BOX_ASSY J90541010A 1 J90541010A
17
....4 J70541034A DRIVER_BOX_BASE J70541034A 1 J70541034A
18
....4 J70541035A DRIVER_BOX_COVER J70541035A 1 J70541035A
19
....4 J70541036A DRIVER_BOX_PLATE J70541036A 1 J70541036A
20
....4 J70541037A SEDES_SLAVE_BOARD_BK J70541037A 1 J70541037A
21
....4 J6103013A HEX SUPPORT[M3*50 (BOLT-NUT)] 4 M3*50 (BOLT-NUT)
22
....4 J6103023A HEX SUPPORT [M3*20 (BOLT-NUT)] 4 M3*20 (BOLT-NUT)
○
23
...3 J91741017B X7043_SEDES_SLAVE_BOARD VER1.0 1 VER1.0
24
..2 J90831048B OP_PANEL_ASSY 2 SM411-OP001
25 START SWITCH ASS'Y
1
61-1100.0(GREEN)
FRONT, REAR COMMON
...3
J0601042A LED(DC24V,GRN) 1 10-5312.3135
○
FRONT, REAR COMMON
P art L is t
Page
SAMSUNG TECHWIN
71
SM411
Electric Device Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock Apply
Reference
...3
J3403049A SWITCHING ELEMENT 1 61-8410.12
○
FRONT, REAR COMMON
...3
J3403050A ILLUMINATED PUSHBUTTON ACTUATOR 1 61-1100.0
○
FRONT, REAR COMMON
...3
J3403051A FRONT BEZEL-SET 1 61-9933.0
○
FRONT, REAR COMMON
...3
J6739090A LENS PLASTIC,GREEN 1 61-9642.5
○
FRONT, REAR COMMON
26
STOP SWITCH ASS'Y
1 61-1100.0(RED) FRONT, REAR COMMON
...3
J0601041A LED(DC24V,RED) 1 10-5312.3132
○
FRONT, REAR COMMON
...3
J3403049A SWITCHING ELEMENT 1
61-8410.12 ○
FRONT, REAR COMMON
...3
J3403050A ILLUMINATED PUSHBUTTON ACTUATOR 1 61-1100.0
○
FRONT, REAR COMMON
...3
J3403051A FRONT BEZEL-SET 1
61-9933.0 ○
FRONT, REAR COMMON
...3
J6739088A LENS PLASTIC,RED 1 61-9642.2
○
FRONT, REAR COMMON
27
RESET SWITCH ASS'Y
1
61-1100.0(YEL)
FRONT, REAR COMMON
...3
J0601040A LED(DC24V,YEL) 1 10-5312.3134
○
FRONT, REAR COMMON
...3
J3403049A SWITCHING ELEMENT 1
61-8410.12 ○
FRONT, REAR COMMON
...3
J3403050A ILLUMINATED PUSHBUTTON ACTUATOR 1
61-1100.0 ○
FRONT, REAR COMMON
...3
J3403051A FRONT BEZEL-SET 1
61-9933.0 ○
FRONT, REAR COMMON
...3
J3403064A LENS PLASTIC,YELLOW 1 61-9642.4
○
FRONT, REAR COMMON
28
SELECT SWITCH ASS'Y
1
61-8520.12(SELECT)
FRONT, REAR COMMON
...3
J3403052A FRONT BEZEL-SET 1 61-9932.0
○
FRONT, REAR COMMON
...3
J3403073A SWITCHING ELEMENT(2A) 1 61-8520.12 FRONT, REAR COMMON
...3
J3403074A SELECT SWITCH(3-POSITION) 1 61-4810.0
○
FRONT, REAR COMMON
...3
J3403075A SWITCH LEVER 1 61-9028.50
○
FRONT, REAR COMMON
29
...3
J3403082A EMERGENCY SWITCH ASSY 1 704.075.2(EM) FRONT, REAR COMMON
....4
J3409020A EMERGENCY S/W 1
704.075.2 ○
FRONT, REAR COMMON
....4
J3409021A
EM S/W (2B)
1
704.900.4 ○
FRONT, REAR COMMON
30
READY SWITCH ASS'Y
1
61-1100.0(CLEAR)
FRONT, REAR COMMON
...3
J0601040A LED(DC24V,YEL) 1 10-5312.3134
○
FRONT, REAR COMMON
...3
J3403050A ILLUMINATED PUSHBUTTON ACTUATOR 1 61-1100.0
○
FRONT, REAR COMMON
P art L is t
