Page
SAMSUNG TECHWIN
73
SM411
Electric Device Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock Apply
Reference
50
...3 J90831185A FY2_REGEN_RESISTOR_CABLE_ASSY SM33-MD029 1 SM33-MD029
[121] at 93 page
51
...3 J90831186A RX_REGEN_RESISTOR_CABLE_ASSY SM33-MD030 1 SM33-MD030
[122] at 94 page
52
...3 J90831187A RY1_REGEN_RESISTOR_CABLE_ASSY SM33-MD031 1 SM33-MD031
[123] at 93 page
53
...3 J90831188A RY2_REGEN_RESISTOR_CABLE_ASSY SM33-MD032 1 SM33-MD032
[124] at 93 page
54
...3 J90831252A REAR_ELEC_PANEL_EARTH_CABLE_ASSY SM33-PW 1 SM33-PW003-1
[125] at 107 page
55
...3 J90831254A EARTH_HEAD1_CABLE_ASSY SM33-PW003-3 1 SM33-PW003-3
[126] at 107 page
56
...3 J90831255A EARTH_HEAD2_CABLE_ASSY SM33-PW003-4 1 SM33-PW003-4
[127] at 107 page
57
...3 J90831059A SAFEGUARD_OV_SW_KEY_CABLE_ASSY SM33-SC00 1 SM33-SC008
[128] at 105 page
P art L is t
Page
SAMSUNG TECHWIN
74
SM411

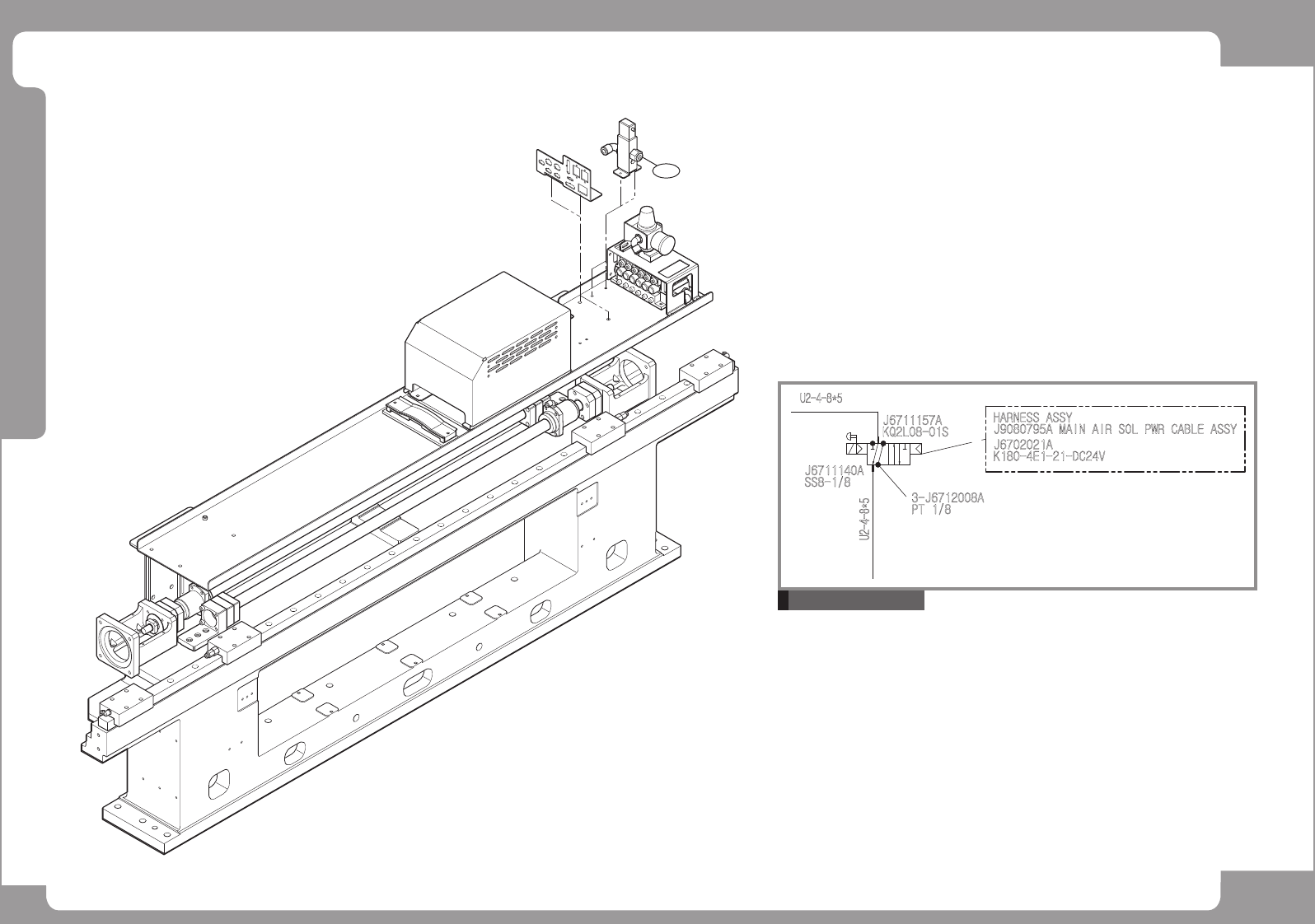

Cable Ass’y (1/2)
S olenoid V alve
U2-4-8*5
J6702021A
K180-4E1-21-DC24V
J6711157A
KQ2L08-01S
3-J6712008A
PT 1/8
U2-4-8*5
J6711140A
SS8-1/8
HARNESS ASSY
J9080795A MAIN AIR SOL PWR CABLE ASSY
1
Page
SAMSUNG TECHWIN
75
SM411
Cable Ass’y (2/2)
3
4
3
3
3
5
F
.
R
R
.
L
3
3
3 3
4
5
2
2
