Page
SAMSUNG TECHWIN
75
SM411

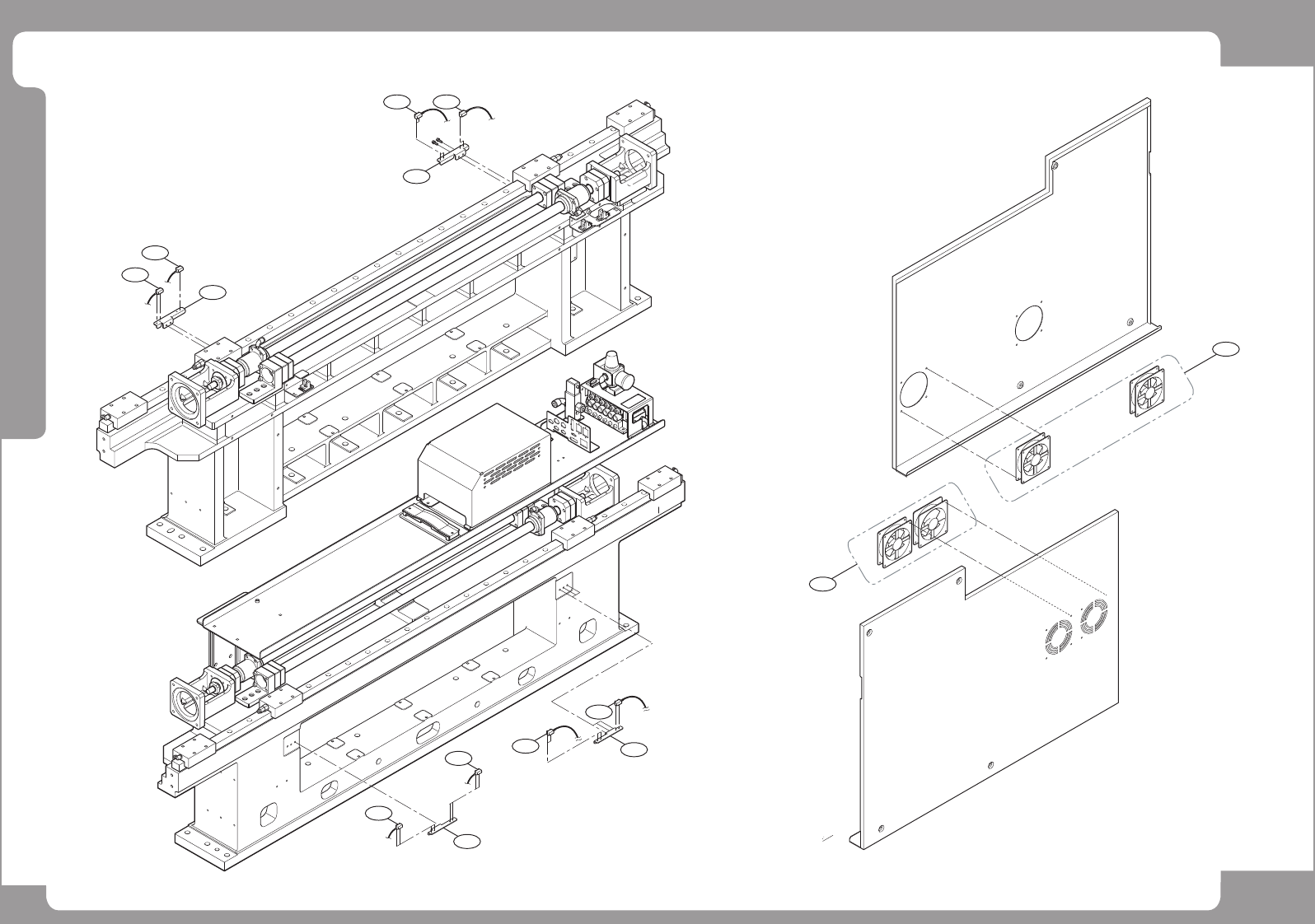

Cable Ass’y (2/2)
3
4
3
3
3
5
F
.
R
R
.
L
3
3
3 3
4
5
2
2
Page
SAMSUNG TECHWIN
76
SM411
Cable Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock Apply
Reference
A-1 0.1
J91671120A SM411_CABLE_ASSY J91671120A
1
J91671120A
○
1
....4 J6702021A SOLENOID VALVE [K180-4E1-21-DC24V] 1 K180-4E1-21-DC24V
○
3
....4 J3105010A COOLING FAN[4715MS-22T-B50] 4 4715MS-22T-B50
○
4
....4 J32110015B Photoelectric Switch 2 E3T-ST11 2M
5
....4 J70541103A FRONT_SENSOR_BKT2 J70541103A 2 J70541103A
6
....4 J70541102A FRONT_SENSOR_BKT1 J70541102A 2 J70541102A
7
...3 J90831155A FY_AXIS_SENSOR_CABLE_ASSY SM33-AX003 1 SM33-AX003
[129] at 91 page
8
...3 J90831156A RY_AXIS_SENSOR_CABLE_ASSY SM33-AX004 1 SM33-AX004
[130] at 91 page
9
...3 J90831026A .ASTER_CPU1-FFDR_CAN_CABLE_ASSY SM33-CA0 1 SM33-CA001
[131] at 81 page
10
...3 J90831027A FFDR-CVIF_CAN_CABLE_ASSY SM33-CA002 1 SM33-CA002
[132] at 81 page
11
...3 J90831028A MASTER_CPU2-RFDR_CAN_CABLE_ASSY SM33-CA0 1 SM33-CA003
[133] at 82, 83 page
12
...3 J90831029A CVIF-FRONT_FLAT_CAN_CABLE_ASSY SM33-CA00 1 SM33-CA004
[134] at 83 page
13
...3 J90831030A RFDR-REAR_FLAT_CAN_CABLE_ASSY SM33-CA005 1 SM33-CA005
[135] at 82 page
14
...3 J90831285A FDR_UNLOCK_LEFT_CABLE_ASSY SM33-CS034-1 1 SM33-CS034-1
[136] at 92 page
15
...3 J90831286A FDR_UNLOCK_RIGHT_CABLE_ASSY SM33-CS034-2 1 SM33-CS034-2
[137] at 92 page
16
...3 J90831287A FEEDER_UNLOCK_SENSOR_CABLE_ASSY SM33-CS0 1 SM33-CS034-3
[138] at 92 page
17
...3 J90831288A AXIS_SENSOR_BD_DATA_CABLE_ASSY SM33-CS03 1 SM33-CS035-1
[139] at 80, 84, 91, 92
p
a
g
e
18
...3 J90831289A AXIS_SENSOR_BD_STP-BUT_CABLE SM33-CS035- 1 SM33-CS035-2
[140] at 80, 84, 91 page
19
...3 J90831290B CONVEYOR_LEFT_IF_BD_CABLE_ASSY 1 SM411-CS036-1
[141] at 91 page
20
...3 J90831291A CONVEYOR_RIGHT_IF_BD_CABLE_ASSY SM33-CS0 1 SM33-CS036-2
[142] at 91 page
21
...3 J90831131A .ONV_SW_OUTPUT_CABLE_ASSY SM33-CV003 1 SM33-CV003
[143] at 83 page
22
...3 J90831132A TOWER_LAMP_EXT_CABLE_ASSY SM33-CV004 1 SM33-CV004
[144] at 84 page
23
...3 J90831136A CONV_SW_INPUT1_CABLE_ASSY SM33-CV013 1 SM33-CV013
[145] at 85 page
24
...3 J90831137A CONV_SW_INPUT2_CABLE_ASSY SM33-CV014 1 SM33-CV014
[146] at 85 page
25
...3 J90831144A SERIAL_COMM_CABLE_ASSY SM33-CV021 1 SM33-CV021
[147] at 86 page
26
...3 J90831258A KVMS-CONV_IF_BD_CABLE_ASSY SM33-CV023-1 1 SM33-CV023-1
[148] at 86, 102 page
27
...3 J90831259A KVMS-FRONT_TEACHING_BOX_CABLE SM33-CV023 1 SM33-CV023-2
[149] at 102 page
P art L is t
Page
SAMSUNG TECHWIN
77
SM411
Cable Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE
Old No. Stock Apply
Reference
28
...3 J90831260A KVMS-REAR_TEACHING_BOX_CABLE SM33-CV023- 1 SM33-CV023-3
[150] at 102 page
29
...3 J90831146A SMEMA_CABLE_ASSY SM33-CV024 1 SM33-CV024
[151] at 84, 86 page
30
...3 J90831152A CRASH_SENSOR_I-F_CABLE_ASSY SM33-CV031 1 SM33-CV031
[152] at 85 page
31
...3 J90831244A KVMS_MONITOR_MAIN_CABLE_ASSY SM33-KV003- 1 SM33-KV003-1
[153] at 102 page
32
...3 J90831245A KVMS_MONITOR_FRONT_CABLE_ASSY SM33-KV003 1 SM33-KV003-2
[154] at 102 page
33
...3 J90831246A KVMS_MONITOR_REAR_CABLE_ASSY SM33-KV003- 1 SM33-KV003-3
[155] at 102 page
34
...3 J90831247A KVMS_USB_MAIN_CABLE_ASSY SM33-KV005-1 1 SM33-KV005-1
[156] at 102 page
35
...3 J90831248A KVMS_USB_FRONT_CABLE_ASSY SM33-KV005-2 1 SM33-KV005-2
[157] at 102 page
36
...3 J90831249A KVMS_USB_REAR_CABLE_ASSY SM33-KV005-3 1 SM33-KV005-3
[158] at 102 page
37
...3 J90831045A KVMS_FRONT_OP_I-F_CABLE_ASSY SM33-KV006 1 SM33-KV006
[159] at 102 page
38
...3 J90831046A KVMS_REAR_OP_I-F_CABLE_ASSY SM33-KV007 1 SM33-KV007
[160] at 102 page
39
...3 J90831047A KVMS-CONV_I-F_CABLE_ASSY SM33-KV008 1 SM33-KV008
[161] at 102 page
40
...3 J90831173A FR_STEP_MOTOR_POWER_CABLE_ASSY SM33-MD01 1 SM33-MD017
[162] at 99 page
41
...3 J90831174A RR_STEP_MOTOR_POWER_CABLE_ASSY SM33-MD01 1 SM33-MD018
[163] at 99 page
42
...3 J90831063A MAIN_POWER_CABLE_ASSY SM33-PW001 1 SM33-PW001
[164] at 107 page
43
...3 J90831456A X_AXIS_HEAD_EARTH_CABLE_ASSY SM33-PW003- 2 SM33-PW003-5
[165] at 107 page
44
...3 J90831076A FAN_CABLE_ASSY SM33-PW014 1 SM33-PW014
[166] at 108 page
45
...3 J90831085A FZ1-FZ6_DC24V_POWER_CABLE_ASSY SM33-PW02 1 SM33-PW023
[167] at 109 page
46
...3 J90831086A RZ1-RZ6_DC24V_POWER_CABLE_ASSY SM33-PW02 1 SM33-PW024
[168] at 109 page
47
...3 J90831090A CONV_BELT_STEP_PW_CABLE_ASSY SM33-PW028 1 SM33-PW028
[169] at 100 page
48
...3 J90831096A HEAD1_VAC-BLOW_CTRL_CABLE_ASSY SM33-VI00 1 SM33-VI004
[170] at 80 page
49
...3 J90831097A HEAD2_VAC-BLOW_CTRL_CABLE_ASSY SM33-VI00 1 SM33-VI005
[171] at 80 page
50
...3 J90831098A HEAD1_FIDUCIAL_CAMERA_CABLE_ASSY SM33-VI 1 SM33-VIS001
[172] at 101 page
51
...3 J90831100A HEAD2_FIDUCIAL_CAMERA_CABLE_ASSY SM33-VI 1 SM33-VIS003
[173] at 101 page
52
...3 J90831104A HD2_FLY_CAM_PW-SYNC_CABLE_ASSY SM33-VIS0 1 SM33-VIS007
[174] at 101 page
53
...3 J90831105A HEAD1_FLY_CAM_SIG_CABLE_ASSY SM33-VIS008 1 SM33-VIS008
[175] at 101 page
54
...3 J90831107A HEAD2_FLY_CAM_SIG_CABLE_ASSY SM33-VIS010 1 SM33-VIS010
[176] at 101 page
P art L is t
