4-5
4.密閉スキージ(フィーダ)(BSFS)
4.Hermetic squeegee(Feeder)(BSFS)
4.密閉スキージ(フィーダ) Hermetic squeegee(Feeder)(BSFS)
GP-641E PARTS LIST ver09
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg. No. & Code No.QTY Description Rating Remarks
154BSFS8260 1 BLOCK ﾌﾞﾛｯｸ W=450
155BSFS8270 1 BLOCK ﾌﾞﾛｯｸ W=480
156BSFS8281 1 PLATE ﾌﾟﾚｰﾄ W=480

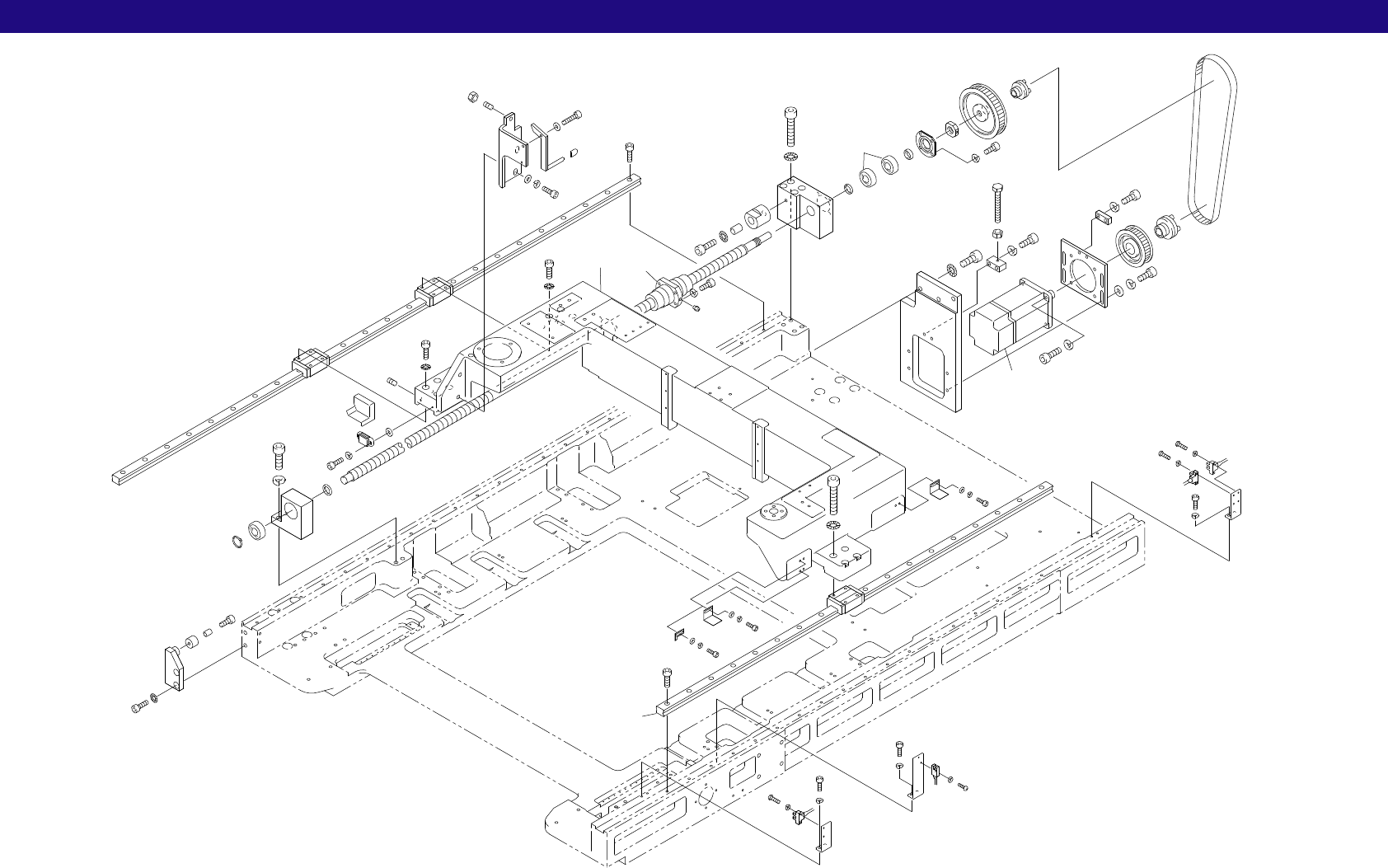

5.スキージ軸駆動部 Squeegee axis mechanism(BSFS)
GP-641E PARTS LIST ver09
5.スキージ軸駆動部(BSFS)
5.Squeegee axis mechanism(BSFS)
5-1
x9
28
13
42
57
9
26
10
2
35
24
32
41
51
37
18
45
42
58
12
33
57
42
63
8
42
58
36
17
48
60
48
62
19
14
15
47
59
41
53
52
20
46
55
46
55
38
22
1
16
67
66
11
21
27
34
43
61
44
39
49
7
44
39
49
6
52
23
56
46
39
49
44
7
29
39
64
30
39
64
50
40
4
40
50
3
29
39
64
31
39
64
5
40
50
25
41
51
65
41
52
69
71
68
70
74
73
43
72
39
77
76
44
75
5.スキージ軸駆動部 Squeegee axis mechanism(BSFS)
GP-641E PARTS LIST ver09
5-2
5.スキージ軸駆動部(BSFS)
5.Squeegee axis mechanism(BSFS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg. No. & Code No.QTY Description Rating Remarks
1BSFS0186 1 BKT, SLIDE BKT ｽﾗｲﾄﾞ
2BSFS0041 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ
3BSFS0210 1 BKT, SENSOR BKT ｾﾝｻ
4BSFS0220 1 BKT, SENSOR BKT ｾﾝｻ
5BSFS0230 1 BKT, SENSOR BKT ｾﾝｻ
6BSFS0250 1 DOG, SW ﾄﾞｯｸﾞ SW
7BSFS0260 2 DOG, SW ﾄﾞｯｸﾞ SW
8BSFS0280 1 BKT, ADJUSTING BKT 調整
9TFS4100 1 COLLAR ｶﾗｰ
10TFS4110 1 COLLAR ｶﾗｰ
11TFS4210 1 COLLAR ｶﾗｰ
12TFS4270 1 PULLEY, TIMING ﾌﾟｰﾘ ﾀｲﾐﾝｸﾞ
13TFS4760 1 PLATE ﾌﾟﾚｰﾄ
14MPT1271 1 STOPPER ｽﾄｯﾊﾟ
15MPT1280 1 COLLAR ｶﾗｰ
16TFS4430 1 COLLAR ｶﾗｰ
17BSFS0271 1 BKT BKT
18BSFS0061 1 PLATE ﾌﾟﾚｰﾄ
19BSFS0023 1 CASE, BEARING ｹｰｽ ﾍﾞｱﾘﾝｸﾞ 注1 Note1.
20BSFS0580 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ 注1 Note1.
21BSFS0031 1 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ
22BSFS0590 1 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ 注2 Note2.
23BSFS0093 1 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ 注2 Note2.
24TFS4340 1 PULLEY, TIMING ﾌﾟｰﾘ ﾀｲﾐﾝｸﾞ
25TFS4440 1 STOPPER ｽﾄｯﾊﾟ
26H4219G 1 BEARING ﾍﾞｱﾘﾝｸﾞ 7202ADBC8P5
27H4257A 1 BEARING ﾍﾞｱﾘﾝｸﾞ 6202ZZ
28H4514M 1 BELT, TIMING ﾍﾞﾙﾄ ﾀｲﾐﾝｸﾞ 920SP8M15
29S4040Y 2 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX405-W2A
30S4040W 1 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX305-W2A
31S4046H 1 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX304-W2A
32H3076T 1 BUSHING ﾌﾞｯｼｭ ETP-K-12
33H30760 1 BUSHING ﾌﾞｯｼｭ ETP-K-16
34S1034A 1 CIR-CLIP ｻｰｸﾘｯﾌﾟ STW15
35N1040T 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ RN15
36SAM1611 1 MOTOR, AC SERVO ﾓｰﾀ ACｻｰﾎﾞ SGM-08A3FJ43
37N1082A NUT, HEX ﾅｯﾄ 六角 M5 P=0.8
38. SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M5X6L
39W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
40W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
41W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
42W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
43W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M
44W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
