8.Y軸ロボット Y axis robot(BSGC)
GP-641E PARTS LIST ver09
8-3
8.Y軸ロボット(BSGC)
8.Y axis robot(BSGC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg. No. & Code No.QTY Description Rating Remarks
48. BOLT, HEX ﾎﾞﾙﾄ 六角 M5X28L
49H5319H BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X8L
50. BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X14L
51. BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X16L
53W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
54W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
55W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
56W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
57W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
58W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
59W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
60W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L
61W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L
62W1013A WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
63N1080A NUT, HEX ﾅｯﾄ 六角 M4 P=0.7
64N1082A NUT, HEX ﾅｯﾄ 六角 M5 P=0.8
65N1085A NUT, HEX ﾅｯﾄ 六角 M6 P=1.0
66N1089A NUT, HEX ﾅｯﾄ 六角 M8 P=1.25
67N4044A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M5X25L
68BSGC1540 1 BKT, STOPPER BKT ｽﾄｯﾊﾟ
69BSGC1550 1 BKT, SW BKT SW
70. BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X16L
71H5294A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X30L ･

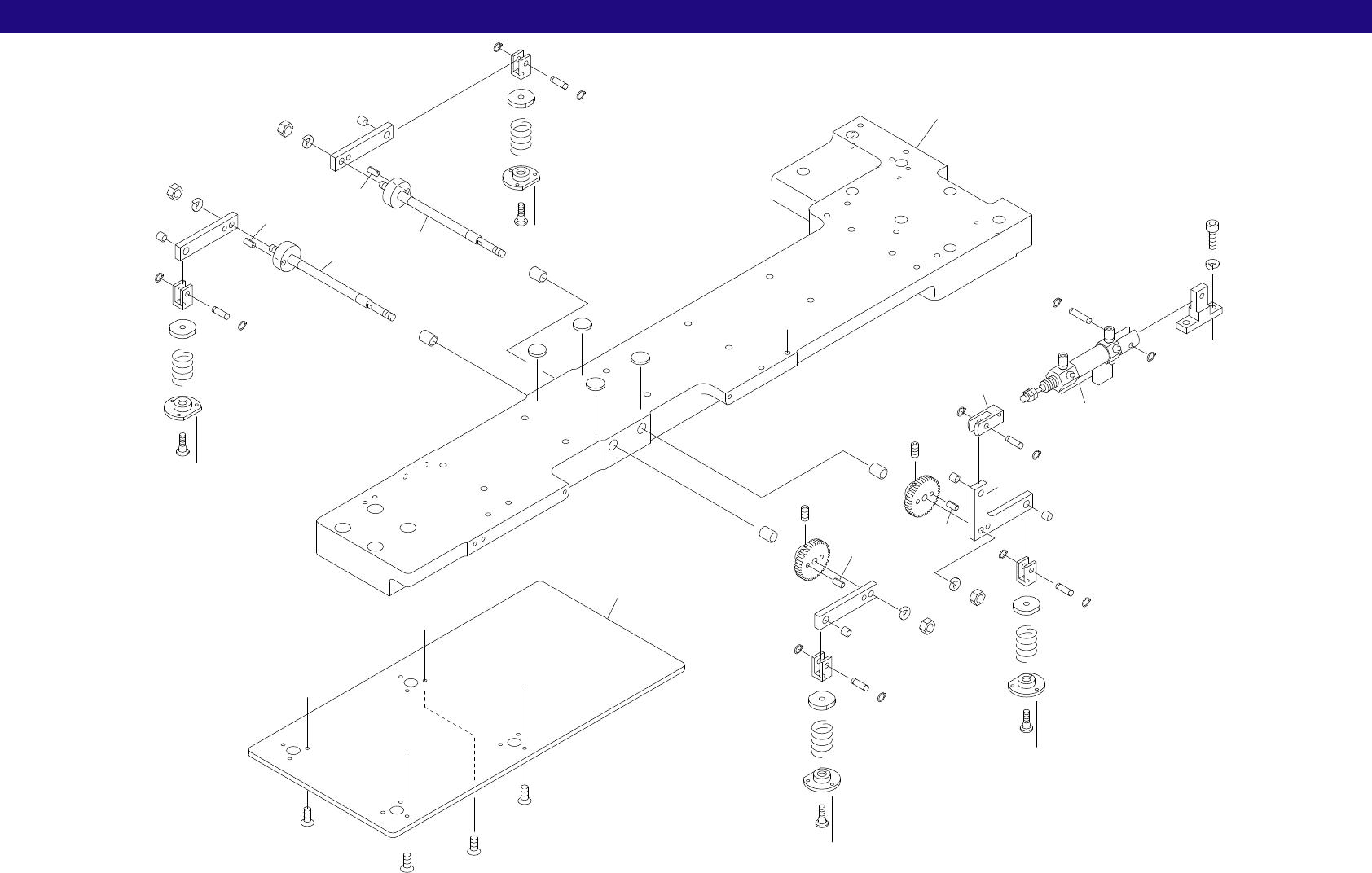

9.基板押え Board pusher(BSGC)
GP-641E PARTS LIST ver09
9.基板押え(BSGC)
9.Board pusher(BSGC)
9-1
x4
A
A
B
C
D
E
C
E
B
D
26
15
3
16
23
24
17
4
20
18
20
8
9
10
11
12
20
8
9
27
11
12
18
20
23
24
17
16
3
15
26
17
5
20
18
20
13
14
20
20
19
21
22
7
6
25
25
25
25
8
9
10
11
12
18
20
20
4
17
16
23
24
20
8
9
27
11
12
20
18
15
15
2
2
16
4
23
24
17
1
28
28
28
28
9.基板押え Board pusher(BSGC)
GP-641E PARTS LIST ver09
9-2
9.基板押え(BSGC)
9.Board pusher(BSGC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg. No. & Code No.QTY Description Rating Remarks
1BSGC1022 1 ANGLE REST ｲｹｰﾙ
2BSGC1232 2 SHAFT ｼｬﾌﾄ
3BSGC1241 2 GEAR ｷﾞﾔ
4BSGC1251 3 ARM ｱｰﾑ
5BSGC1261 1 ARM ｱｰﾑ
6BSGC1220 1 PLATE, RETAINING ﾌﾟﾚｰﾄ 押え
7BSGC0561 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ
8BSGC1490 4 JOINT ｼﾞｮｲﾝﾄ
9BSGC1470 4 HOLDER 受け
10BSGC1480 2 SPRING ｽﾌﾟﾘﾝｸﾞ
11BSGC1460 4 PLATE ﾌﾟﾚｰﾄ
12BSGC1450 4 BOLT ﾎﾞﾙﾄ
13S2183A 1 JOINT, KNUCKLE ｼﾞｮｲﾝﾄ ﾅｯｸﾙ Y-Z015A
14S21151 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CDZ1D15-15-H7A1
15H4328A 4 BEARING, DRY ﾍﾞｱﾘﾝｸﾞ ﾄﾞﾗｲ MB0812DU
16H2062T 4 PIN, SPRING ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ ﾟ5X10L
17H4319A 5 BEARING, DRY ﾍﾞｱﾘﾝｸﾞ ﾄﾞﾗｲ MB0506DU
18H2014H 5 PIN ﾋﾟﾝ IY-J015
19H2013T 1 PIN ﾋﾟﾝ CD-Z015
20S1027A 12 CIR-CLIP ｻｰｸﾘｯﾌﾟ STW-5
21H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
22W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
23W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
24N1085A NUT, HEX ﾅｯﾄ 六角 M6 P=1.0
25K5357T SCREW,HEX SOCKET COUNTERSUNK小ﾈｼﾞ 六角穴皿 M3X8L
26N4015A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X4L
27BSGC1520 2 SPRING ｽﾌﾟﾘﾝｸﾞ
28A1009H 4 LEG, RUBBER 脚 ｺﾞﾑ TM180-302 ･
