1 0 . インコンベア I n c o n v e y o r ( B S Q C ) GP-641E P ARTS LIST ver09 1 0 - 2 1 0 . インコンベア( B S Q C ) 1 0 . I n c o n v e y o r ( B S Q C ) 番号 図番 & ｺ ｰ ﾄ ﾞ 番号 個数 品名 規格 備考 N o . D r g . N o . & C o d e N o . Q T …

100%1 / 113

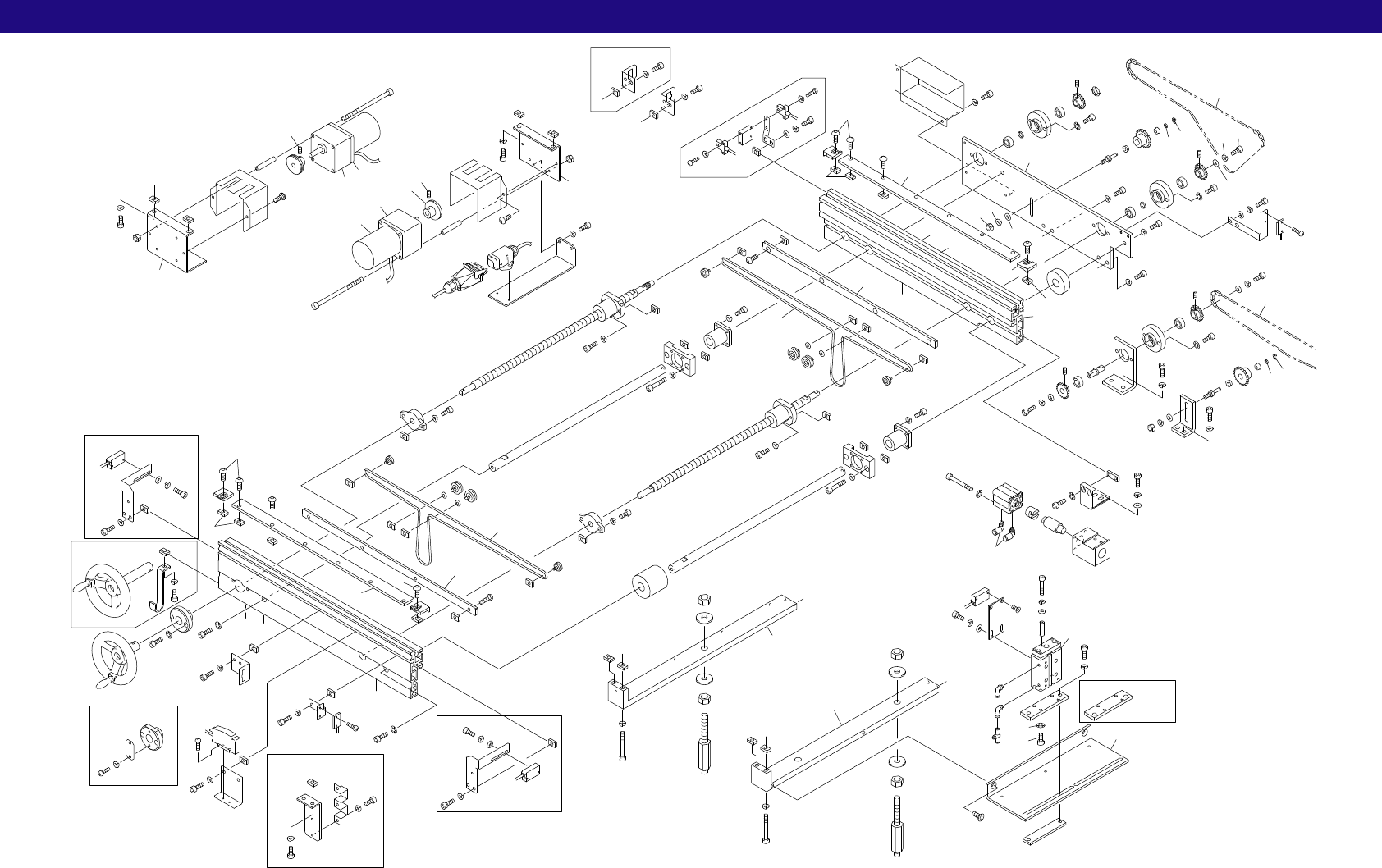

10.インコンベア In conveyor(BSQC)
GP-641E PARTS LIST ver09
10.インコンベア(BSQC)
10.In conveyor(BSQC)
10-1
x8.3
G
H
I
A
B
I
33
23
25
3
34
29
34
29
100
1
25
129
111
96
84
109
71
84
109
71
67
66
25
115
111
97
37
27
100
100
25
81
110
88
53
46
28
53
48
95
61
119
102
17
42
54
51
54
47
123
50
112
105
53
46
28
53
48
95
119
102
116
112
104
112
105
112
105
2
64
121
112
116
16
82
110
90
95
49
48
53
28
12
101
119
103
112
11
53
48
82
110
90
95
121
112
116
13
103
112
42
54
51
54
47
123
25
A
25
76
111
96
HELPS
HELPS
38
27
100
133
84
96
110
114
130
B
C
F
E
G
H
112
106
18
26
24
122
41
41
122
63
24
24
112
106
122
41
41
122
63
108
6
4
57
8
85
91
110
114
7
87
109
113
10
104
112
60
5
117
92
99
118
58
59
31
21
20
102
119
98
111
115
14
19
30
120
24
26
112
104
36
94
44
95
43
93
56
62
93
56
62
95
43
36
104
112
26
24
120
40
44
94
110
89
73
9
60
126
135
R→L
HELPS
D
C
E
F
D
69
70
109
83
136
80
118
97
24
125
112
103
104
119
32
132
110
91
112
103
74
24
75
110
89
104
119
15
2
25
27
25
100
1
29
34
33
23
29
34
25
3
96
111
72
113
109
86
38
100
100
52
112
103
52
112
103
39
65
35
45
39
107
110
32
107
110
32
104
112
22
24
24
55
110
90
104
112
22
26
24
55
110
90
24
24
HELPS
R→L HELPS
HELPS
100
27
37
32
110
91
133
84
32
78
110
91
131
134
84
79
25
96
111
68
72
113
109
86
HELPS
25
137
※R→L=Right to Left Board Flow
10.インコンベア In conveyor(BSQC)
GP-641E PARTS LIST ver09
10-2
10.インコンベア(BSQC)
10.In conveyor(BSQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg. No. & Code No.QTY Description Rating Remarks
1BSQC1051 2 GUIDE, BELT ｶﾞｲﾄﾞ ﾍﾞﾙﾄ
2BSQC1060 2 PLATE ﾌﾟﾚｰﾄ
3BSQC1091 2 CONVEYOR, BELT ｺﾝﾍﾞｱ ﾍﾞﾙﾄ
4BSQC1593 1 BKT BKT
5BSQC1600 1 PLATE, CYLINDER ﾌﾟﾚｰﾄ ｼﾘﾝﾀﾞ
6BSQC1610 1 PLATE, TIGHTENING ﾌﾟﾚｰﾄ 締付け
7BSQC1620 1 PIN, STOPPER ﾋﾟﾝ ｽﾄｯﾊﾟ
8BSQC1630 1 BKT, SENSOR BKT ｾﾝｻ
9BSQC1641 1 PLATE ﾌﾟﾚｰﾄ
10BSQC1650 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ
11BSQC1281 1 SHAFT ｼｬﾌﾄ
12BSQC1331 1 BKT BKT
13BSQC1341 1 BKT BKT
14BSQC1350 1 NUT ﾅｯﾄ
15BSQC1501 1 PLATE, SIDE ﾌﾟﾚｰﾄ ｻｲﾄﾞ
16BSQC1511 1 PLATE, SIDE ﾌﾟﾚｰﾄ ｻｲﾄﾞ
17BSQC1524 1 PLATE, SIDE ﾌﾟﾚｰﾄ ｻｲﾄﾞ
18BSQC1532 1 PLATE ﾌﾟﾚｰﾄ
19BSQC1551 1 BKT BKT
20BSQC1561 1 HOLDER ﾎﾙﾀﾞ
21BSQC1571 1 PIN ﾋﾟﾝ
22IQC5791 2 PLATE ﾌﾟﾚｰﾄ
23IQC6041 4 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ
24IQC6062 15 NUT ﾅｯﾄ M6
25IQC6072 34 NUT ﾅｯﾄ M5
26IQC6291 4 NUT ﾅｯﾄ M6 (Earth)
27IQC6301 4 NUT ﾅｯﾄ M5 (Earth)
28CLC9051 3 HOLDER ﾎﾙﾀﾞ
29CLC9191 4 NUT ﾅｯﾄ M4
30CLC9440 1 BKT, CONVEYOR BKT ｺﾝﾍﾞｱ
31NQC0320 1 KNUCKLE ﾅｯｸﾙ
32NQC0431 6 NUT ﾅｯﾄ M4
33MQC1061 4 PULLEY ﾌﾟｰﾘ
34MQC1292 4 PULLEY ﾌﾟｰﾘ
35MQC3112 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ
36MQC3293 2 COVER ｶﾊﾞｰ
37MQC3313 2 GUIDE ｶﾞｲﾄﾞ
38MQC3323 2 GUIDE ｶﾞｲﾄﾞ
39MQC3393 2 SHAFT ｼｬﾌﾄ
40BSQC1660 1 BKT BKT
41MQC3441 6 WASHER ﾜｯｼｬ
42MQC3461 2 SHAFT ｼｬﾌﾄ
43MQC3501 2 PULLEY ﾌﾟｰﾘ
44MQC3901 8 SPACER ｽﾍﾟｰｻ
10.インコンベア In conveyor(BSQC)
GP-641E PARTS LIST ver09
10-3
10.インコンベア(BSQC)
10.In conveyor(BSQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg. No. & Code No.QTY Description Rating Remarks
45MQC3941 1 STOPPER ｽﾄｯﾊﾟ
46GVC0141 2 COLLAR ｶﾗｰ
47GVC0350 2 COLLAR ｶﾗｰ
48GVC2262 4 SPROCKET ｽﾌﾟﾛｹｯﾄ
49T2035T 1 CHAIN, ROLLER ﾁｪｰﾝ RS25NP-320Link
50T20235 1 CHAIN ﾁｪｰﾝ RS25NP-120Link
51S3034A 2 SPROCKET ｽﾌﾟﾛｹｯﾄ RS25-13T 2Type
52H4123A 2 BEARING ﾍﾞｱﾘﾝｸﾞ UFL000
53H4440A 6 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ L-1910ZZ
54H4445A 4 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ LF-1050ZZ
55H4429H 2 BEARING, BALL ﾍﾞｱﾘﾝｸﾞ ﾎﾞｰﾙ LMK16UU
56H4001T 2 HEAD, GEAR ﾍｯﾄﾞ ｷﾞﾔ 6GHA7.5A-Y-1
57S3122A 1 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D
58S2088K 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CDQSB20-10D-F9NV
59Y3049Z 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQL04-M5
60Y3049E 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KJL04-M5
61N1014A 1 NUT, FINE U ﾅｯﾄ ﾌｧｲﾝU AN00
62M5063H 2 MOTOR, REVERSIBLE ﾓｰﾀ ﾘﾊﾞｰｼﾌﾞﾙ RM-H6A06ZMR244
63MQC3410 3 BOLT, STUD ﾎﾞﾙﾄ ｽﾀｯﾄﾞ
64MQC3754 1 STOPPER ｽﾄｯﾊﾟ
65MQC3122 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ
66GVC4070 1 SPACER ｽﾍﾟｰｻ HELPS
67GVC4112 1 BKT, SENSOR BKT ｾﾝｻ HELPS
68PQC0610 1 BKT BKT HELPS
69BSQC1840 1 BKT BKT HELPS
70CLC9560 1 COVER ｶﾊﾞｰ HELPS
71S4040X 2 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX306-W2A HELPS
72S3122A 1 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D HELPS
73BSQC1670 1 BKT BKT
74BSQC1680 1 BKT BKT HELPS
75MQC1470 1 PLATE, RETAINING ﾌﾟﾚｰﾄ 押え HELPS
76BSQC1710 1 BKT BKT
78BSQC1720 1 BKT BKT
79AJQC3940 1 HANDLE ﾊﾝﾄﾞﾙ
80CLC9031 1 BKT BKT
81BSQC1421 1 COVER, CHAIN ｶﾊﾞｰ ﾁｪｰﾝ
82NRG0290 2 WASHER ﾜｯｼｬ
83M3X4L SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X4L
84K5173A SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X10L
85K5358A SCREW,HEX SOCKET COUNTERSUNK小ﾈｼﾞ 六角穴皿 M3X10L
86H5276A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X10L
87. BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X32L
88H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X5L
89H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X6L
