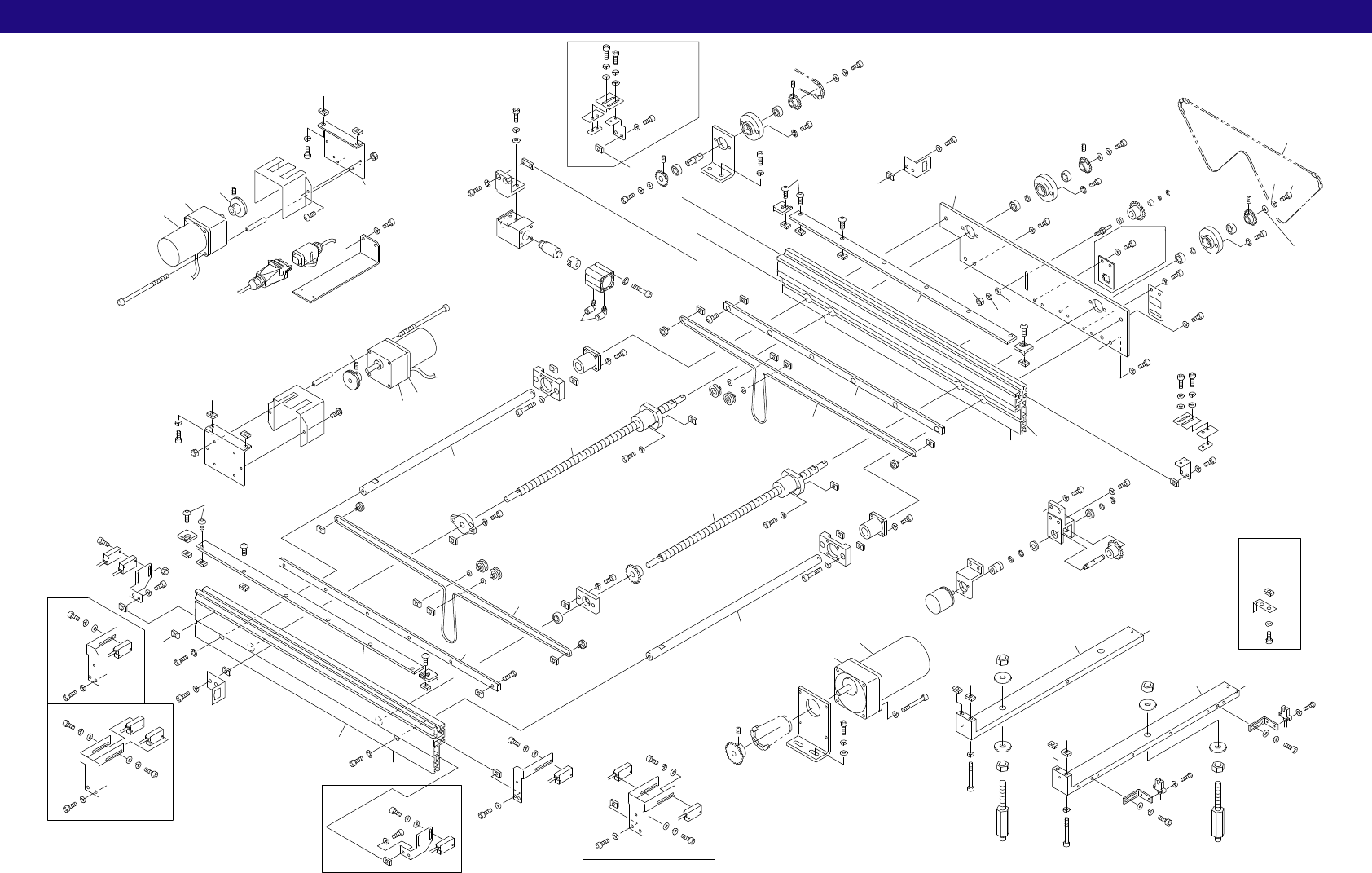

12.アウトコンベア Out conveyor(BSQC)
GP-641E PARTS LIST ver09
12.アウトコンベア(BSQC)
12.Out conveyor(BSQC)
12-1
x8.3
F
C
E
HELPS
75
97
78
107
113
117
58
112
102
77
76
90
110
114
9
100
112
87
38
9
104
9
50
46
119
107
107
119
131
45
125
111
93
11
11
21
104
104
49
9
7
16
13
17
8
33
113
106
13
17
56
34
8
54
113
106
79
107
113
6
22
10
8
36
111
92
18
94
111
15
18
94
111
15
22
107
113
6
8
36
111
92
8
9
20
11
104
114
110
90
114
110
100
112
67
129
90
124
126
127
39
112
100
114
110
90
132
133
9
100
112
130
129
114
110
90
133
114
110
90
R→L HELPS
J
J
J
R→L
128
39
114
110
90
15
93
111
R→L
112
100
135
9
※R→L=Right to Left Board Flow
F
E
G
H
D
C
B
95
44
37
96
26
19
107
113
8
10
120
23
98
27
81
111
91
113
107
120
123
8
10
19
98
27
96
26
95
37
44
101
112
116
3
119
106
52
53
5
14
40
118
103
43
8
8
113
109
24
121
55
24
121
8
10
113
109
68
116
112
100
69
110
89
24
121
55
24
121
116
112
100
68
69
110
89
4
51
8
57
113
106
HELPS
D
A
A
H
G
B
I
I
16
7
56
17
13
17
13
104
9
50
9
47
49
9
11
11
104
20
104
9
82
112
100
86
30
96
34
1
2
113
106
119
105
12
34
30
31
96
86
111
92
48
34
28
12
34
96
30
119
105
117
113
107
113
108
25
35
32
35
29
41
99
112
99
112
85
84
108
113
34
28
12
119
105
34
30
96
117
113
107
42.80
108
113
117
113
122
100
112
70
63
71
73
59
72
64
112
100
112
100
72
59
73
65
74
HELPS
104
21
11
93
111
115
60
61
62
100
112
66
9
111
92
134
60
62
61
93
111
115
R→L HELPS
9
12.アウトコンベア Out conveyor(BSQC)
GP-641E PARTS LIST ver09
12-2
12.アウトコンベア(BSQC)
12.Out conveyor(BSQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg. No. & Code No.QTY Description Rating Remarks
1BSQC1281 1 SHAFT ｼｬﾌﾄ
2BSQC1331 1 BKT BKT
3BSQC1350 1 NUT ﾅｯﾄ
4BSQC1540 1 PLATE ﾌﾟﾚｰﾄ
5BSQC1571 1 PIN ﾋﾟﾝ
6IQC5791 2 PLATE ﾌﾟﾚｰﾄ
7IQC6041 4 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ
8IQC6062 16 NUT ﾅｯﾄ M6
9IQC6072 36 NUT ﾅｯﾄ M5
10IQC6291 4 NUT ﾅｯﾄ M6 (Earth)
11IQC6301 6 NUT ﾅｯﾄ M5 (Earth)
12CLC9051 3 HOLDER ﾎﾙﾀﾞ
13CLC9191 6 NUT ﾅｯﾄ M4
14NQC0320 1 KNUCKLE ﾅｯｸﾙ
15NQC0431 6 NUT ﾅｯﾄ
16MQC1061 4 PULLEY ﾌﾟｰﾘ
17MQC1292 4 PULLEY ﾌﾟｰﾘ
18MQC3112 2 BALL SCREW ﾎﾞｰﾙﾈｼﾞ
19MQC3293 2 COVER ｶﾊﾞｰ
20MQC3313 2 GUIDE ｶﾞｲﾄﾞ
21MQC3323 2 GUIDE ｶﾞｲﾄﾞ
22MQC3393 2 SHAFT ｼｬﾌﾄ
23BSQC1660 1 BKT BKT
24MQC3441 6 WASHER ﾜｯｼｬ
25MQC3461 1 SHAFT ｼｬﾌﾄ
26MQC3501 2 PULLEY ﾌﾟｰﾘ
27MQC3901 8 SPACER ｽﾍﾟｰｻ
28GVC0141 2 COLLAR ｶﾗｰ
29GVC0350 1 COLLAR ｶﾗｰ
30GVC2262 4 SPROCKET ｽﾌﾟﾛｹｯﾄ
31T2035T 1 CHAIN, ROLLER ﾁｪｰﾝ RS25NP-320Link
32S3034A 1 SPROCKET ｽﾌﾟﾛｹｯﾄ RS25-13T 2Type
33H4123A 1 BEARING ﾍﾞｱﾘﾝｸﾞ UFL000
34H4440A 7 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ L-1910ZZ
35H4445A 2 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ LF-1050ZZ
36H4429H 2 BEARING, BALL ﾍﾞｱﾘﾝｸﾞ ﾎﾞｰﾙ LMK16UU
37H4001A 2 HEAD, GEAR ﾍｯﾄﾞ ｷﾞﾔ 6GHA7.5A-Y-1
38S3142T 1 SW, PHOTOELECTRIC SW 光電 FE5R-LMA6D-L5
39S3142T 2 SW, PHOTOELECTRIC SW 光電 FE5R-LMA6D-L5 HELPS
40S2088K 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CDQSB20-10D-F9NV
41S1022A 1 CIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-4
42T2024C 1 CHAIN ﾁｪｰﾝ RS25NP129Link
43Y3049Z 2 ELBOW ｴﾙﾎﾞ KQL04-M5
44M5063H 2 MOTOR, REVERSIBLE ﾓｰﾀ ﾘﾊﾞｰｼﾌﾞﾙ RM-H6A06ZMR244
12.アウトコンベア Out conveyor(BSQC)
GP-641E PARTS LIST ver09
12-3
12.アウトコンベア(BSQC)
12.Out conveyor(BSQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg. No. & Code No.QTY Description Rating Remarks
45BSQC1831 1 BKT, SENSOR BKT ｾﾝｻ
46BSQC2200 1 PLATE, SIDE ﾌﾟﾚｰﾄ ｻｲﾄﾞ
47BSQC2210 1 PLATE, SIDE ﾌﾟﾚｰﾄ ｻｲﾄﾞ
48BSQC2221 1 PLATE, SIDE ﾌﾟﾚｰﾄ ｻｲﾄﾞ
49BSQC2230 2 PLATE ﾌﾟﾚｰﾄ
50BSQC2240 2 GUIDE, BELT ｶﾞｲﾄﾞ ﾍﾞﾙﾄ
51BSQC2252 1 PLATE ﾌﾟﾚｰﾄ
52BSQC2281 1 BKT BKT
53BSQC2291 1 HOLDER ﾎﾙﾀﾞ
54MQC3451 1 HOLDER ﾎﾙﾀﾞ
55MQC3410 3 BOLT, STUD ﾎﾞﾙﾄ ｽﾀｯﾄﾞ
56NQC3204 2 BELT ﾍﾞﾙﾄ
57BSQC2091 1 DOG ﾄﾞｯｸﾞ HELPS
58BSQC2270 1 BKT, MOTOR BKT ﾓｰﾀ HELPS
59GVC0320 2 COLLAR ｶﾗｰ HELPS
60GVC1141 1 DOG ﾄﾞｯｸﾞ HELPS
61GVC1151 1 DOG ﾄﾞｯｸﾞ HELPS
62GVC1160 1 NUT ﾅｯﾄ HELPS
63GVC4031 1 BKT BKT HELPS
64GVC4041 1 HOUSING ﾊｳｼﾞﾝｸﾞ HELPS
65GVC4051 1 SHAFT ｼｬﾌﾄ
66IQC8090 1 BKT BKT
67TQC0560 1 BKT, SENSOR BKT ｾﾝｻ HELPS
68GQC7072 2 BKT, SW BKT SW HELPS
69S4040Z 2 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX406-W2A HELPS
70A4095A 1 ENCODER ｴﾝｺｰﾀﾞ LBJ-007-2000 HELPS
71K1012T 1 COUPLING, HELICAL ｶｯﾌﾟﾘﾝｸﾞ ﾍﾘｶﾙ ARM-075-6-6 HELPS
72H4451A 2 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ LF-1680ZZ HELPS
73S1025A 2 CIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-7 HELPS
74S3033A 1 SPROCKET ｽﾌﾟﾛｹｯﾄ RS25-13T 1Type HELPS
75S3037A 1 SPROCKET ｽﾌﾟﾛｹｯﾄ RS25-20T 2Type HELPS
76M5058H 1 MOTOR, REVERSIBLE ﾓｰﾀ ﾘﾊﾞｰｼﾌﾞﾙ PB425-401-E3 HELPS
77H4012A 1 HEAD, GEAR ﾍｯﾄﾞ ｷﾞﾔ 4GN-15K HELPS
78T2009T 1 CHAIN ﾁｪｰﾝ RS25NP42Link HELPS
79S3034A 1 SPROCKET ｽﾌﾟﾛｹｯﾄ RS25-13T 2Type HELPS
80T2024T 1 CHAIN ﾁｪｰﾝ RS25NP144Link HELPS
81BSQC1670 1 BKT BKT
82BSQC1710 2 BKT BKT HELPS
84BSQC1450 1 PLATE ﾌﾟﾚｰﾄ HELPS
85BSQC1440 1 PLATE ﾌﾟﾚｰﾄ HELPS
86NRG0290 2 WASHER ﾜｯｼｬ
87PQC0240 1 BKT, SENSOR BKT ｾﾝｻ
89K5173A SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X10L
90H5276A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X10L
