12.アウトコンベア Out conveyor(BSQC)
GP-641E PARTS LIST ver09
12-5
12.アウトコンベア(BSQC)
12.Out conveyor(BSQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg. No. & Code No.QTY Description Rating Remarks
135QQC0850 1 BKT BKT ･

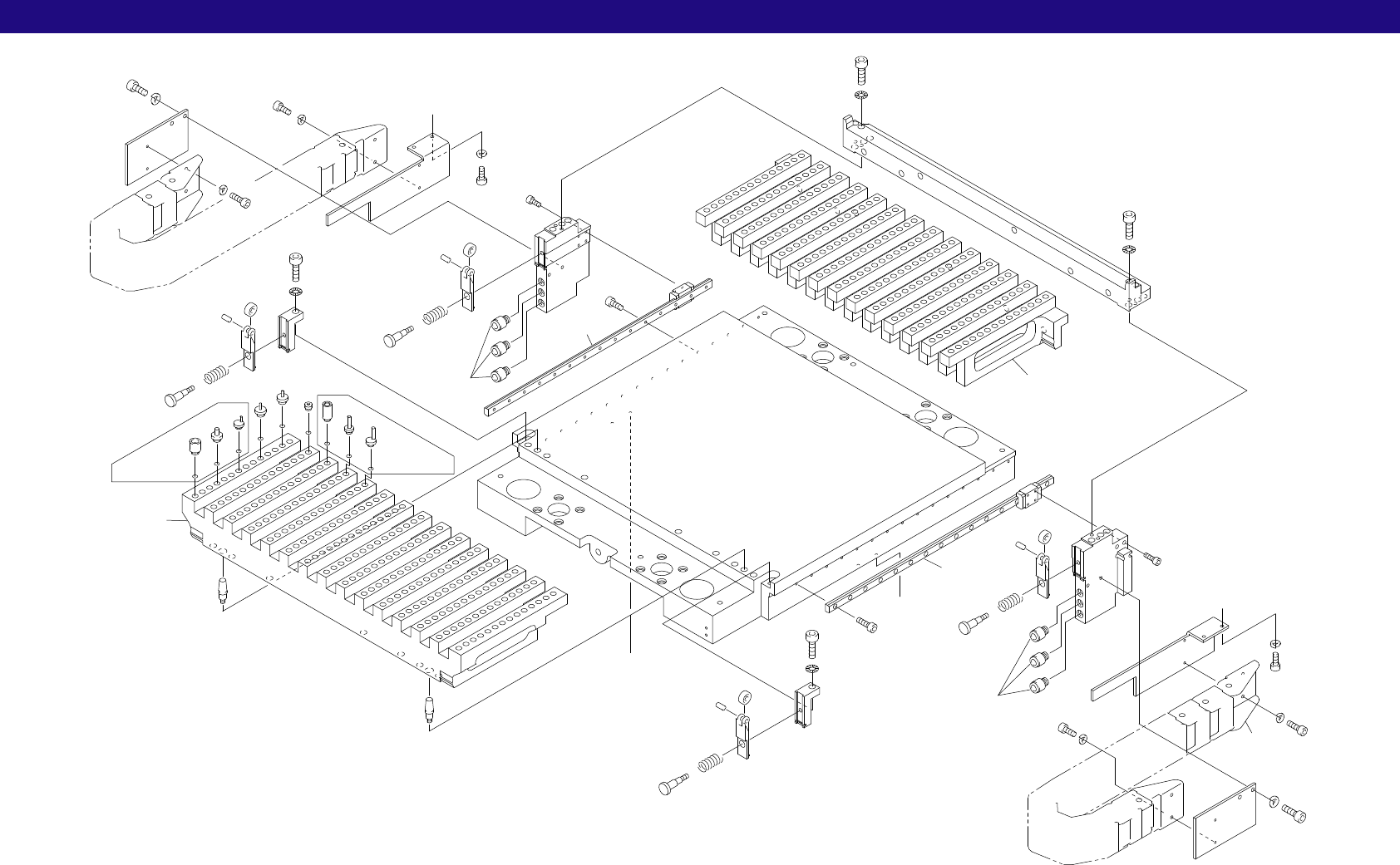

13.1.基板ホルダ Board holder(BSPL)
GP-641E PARTS LIST ver09
13.1.基板ホルダ(BSPL)
13.1.Board holder(BSPL)
13-1
x5.5
A
B
B
A
7
19
25
25
19
23
18
14
4
19
24
17
17
16
16
22
20
3
9
11
10
9
11
10
24
13
26
21
20
21
20
27
45
5
5
42
6
6
17
16
9
11
10
3
22
20
24
17
16
9
11
10
26
12
8
19
24
19
25
19
25
18
23
7
14
15
15
28
34
30
29
31
32
33
33
33
33
33
33
Option
35
33
33
Option
33
36
37
43
44
46
47
13.1.基板ホルダ Board holder(BSPL)
GP-641E PARTS LIST ver09
13-2
13.1.基板ホルダ(BSPL)
13.1.Board holder(BSPL)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg. No. & Code No.QTY Description Rating Remarks
3BSPL0022 2 GUIDE, HOLDER ｶﾞｲﾄﾞ 受け
4BSPL0034 1 BKT BKT
5BSPL0040 2 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ
6BSPL0052 2 PIN, REFERENCE ﾋﾟﾝ 基準
7BSPL0090 2 PLATE ﾌﾟﾚｰﾄ
8BSPL0104 1 BKT BKT
9WSD0013 4 CLAMPER ｸﾗﾝﾊﾟ
10WSD0641 4 BOLT ﾎﾞﾙﾄ
11WSD0651 4 SPRING ｽﾌﾟﾘﾝｸﾞ
12BSPL0302 1 GUIDE, HOLDER ｶﾞｲﾄﾞ 受け
13BSPL0312 1 GUIDE, HOLDER ｶﾞｲﾄﾞ 受け
14K41375 2 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ 07.40-018-14-640P
15S2177M 6 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ POC06-01
16H4435T 4 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ L-1150ZZ
17R5025T 4 ROLLER, NEEDLE ﾛｰﾗ ﾆｰﾄﾞﾙ ﾟ5X10
18W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
19W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
20W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L
21H5294A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X30L
22H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L
23H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
24H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L
25H5274A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X6L
26H5269A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M2.6X5L
27BSPL0080 1 MANIFOLD, AIR ﾏﾆﾎｰﾙﾄﾞ ｴｱｰ
28GSP5011 PIN, BACKUP ﾋﾟﾝ ﾊﾞｯｸｱｯﾌﾟ Option
29GSP5021 PIN, BACKUP ﾋﾟﾝ ﾊﾞｯｸｱｯﾌﾟ Option
30BSPL0290 PIN, BACKUP ﾋﾟﾝ ﾊﾞｯｸｱｯﾌﾟ Option
31BSPL0320 PIN, BACKUP ﾋﾟﾝ ﾊﾞｯｸｱｯﾌﾟ 2ﾟ
32BSPL0330 PIN, BACKUP ﾋﾟﾝ ﾊﾞｯｸｱｯﾌﾟ Vacuum-up pin2ﾟ
33A5129T 406 O RING O ﾘﾝｸﾞ S-5
34BRPL0080 406 PLUG 埋栓
35BSPL0260 PIN, BACKUP ﾋﾟﾝ ﾊﾞｯｸｱｯﾌﾟ Option
36BSPL0270 PIN, BACKUP ﾋﾟﾝ ﾊﾞｯｸｱｯﾌﾟ Option
37BSPL0280 PIN, BACKUP ﾋﾟﾝ ﾊﾞｯｸｱｯﾌﾟ Option
42BSPL0201 1 MOUNTING BASE 取付台 185∼360用 For 185∼360 注1. Note.1
43BSPL0221 1 MOUNTING BASE 取付台 97∼194用 For 97∼194 注1. Note.1
44BSPL0241 1 MOUNTING BASE 取付台 50∼100用 For 50∼100 注1. Note.1
45BSPL0212 1 MOUNTING BASE 取付台 185∼360用 For 185∼360 注2. Note.2
46BSPL0232 1 MOUNTING BASE 取付台 97∼194用 For 97∼194 注2. Note.2
47BSPL0252 1 MOUNTING BASE 取付台 50∼100用 For 50∼100 注2. Note.2
注1.仕様選択部品 (基準側)
注2.仕様選択部品 (従動側)
