1 9 - 3 1 9 . クリーナ連結部( ダブルスキージ用) ( オプション) ( B S F C ) 1 9 . C l e a n e r c o u p l i n g u n i t ( F o r d o u b l e s q u e e g e e ) ( O p t i o n ) ( B S F C ) 1 9 . クリーナ連結部( ダブルスキージ用) ( オプション) C l e a n e r c o u p …

19-2

19.クリーナ連結部(ダブルスキージ用)(オプション)(BSFC)

19.Cleaner coupling unit(For double squeegee)(Option)(BSFC)

19.クリーナ連結部(ダブルスキージ用)(オプション) Cleaner coupling unit(For double squeegee)(Option)(BSFC)

GP-641E PARTS LIST ver09

番号図番 & ｺｰﾄﾞ番号個数品名規格備考

No. Drg. No. & Code No.QTY Description Rating Remarks

1BSFC0330 1 STOPPER ｽﾄｯﾊﾟ

2BSFC0340 1 PIN ﾋﾟﾝ

3BSFC0350 1 CYLINDER, AIR ｼﾘﾝﾀﾞｴｱｰ

4BSFC0400 1 PLATE, SW ﾌﾟﾚｰﾄ SW

5BSFC0360 1 DOG, SW ﾄﾞｯｸﾞ SW

6BSFC0940 1 PLATE ﾌﾟﾚｰﾄ

7BSFC0434 1 BKT BKT

8BSFC0910 1 GUIDE, RAIL ｶﾞｲﾄﾞﾚｰﾙ

9BSFC0920 1 GUIDE, RAIL ｶﾞｲﾄﾞﾚｰﾙ

10BSFC0481 1 LEVER ﾚﾊﾞｰ

11BSFC0490 1 PIN ﾋﾟﾝ

12BSFC0500 1 BKT BKT

13BSFC0930 1 BKT BKT

14BSFC0530 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ

15BSFC0580 3 RETAINER, PIPE 押えﾊﾟｲﾌﾟ

16BSFC6532 1 HOLDER ﾎﾙﾀﾞ

17BSFC6541 1 PLATE ﾌﾟﾚｰﾄ

18BSFC6551 1 BKT BKT

19BSFC0300 1 COVER ｶﾊﾞｰ

20BSFC4100 1 TANK ﾀﾝｸ

2183421BSFC7012 1 BKT BKT

22S4046E 2 SENSOR, PHOTO ｾﾝｻﾌｫﾄ EE-SPX302-W2A

23S3097T 1 SW, PROXIMITY SW 近接 E2K-X8ME1

24K5030T 5 CONNECTOR ｺﾈｸﾀ PN1/8-PT1/8-BS

25S2118T 1 CYLINDER, AIR ｼﾘﾝﾀﾞｴｱｰ CJPB15-30D

26. 1 JOINT ｼﾞｮｲﾝﾄ JA15-5-30D

27BSFC0820 1 SYRINGE ｼﾘﾝｼﾞ

28H1050T 1 VALVE, CHECK ﾊﾞﾙﾌﾞﾁｪｯｸ Dual Check Valve

29H1033T 1 VALVE, THREE-WAY ﾊﾞﾙﾌﾞ三方 USG3-6-2-B-DC24V

30K4145X 1 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ 15.3-110-34-13B

31K5030H 1 TEE ﾃｨｰ PTA-1/8-PT1/8-BS

33K5337H 3 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗｽﾋﾟｰﾄﾞ AS1201F-M5-04

34Y30558 9 UNION, HALF ﾕﾆｵﾝﾊｰﾌ KQH04-M6

35Y3042H 2 TEE ﾃｨｰ KQY04-M6

36S3018M 1 STOPPER ｽﾄｯﾊﾟ Rubber Leg(K Type)7027

37W1021A WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 3M/M

38W1022A WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 4M/M

39W1024A WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 6M/M

40W1040A WASHER, FLAT ﾜｯｼｬ平 3M/MX0.5X7

41W1010A WASHER, CONICAL ﾜｯｼｬ皿 M-3-L

42W1011A WASHER, CONICAL ﾜｯｼｬ皿 M-4-L

43W1012A WASHER, CONICAL ﾜｯｼｬ皿 M-5-L

44W1013A WASHER, CONICAL ﾜｯｼｬ皿 M-6-H

45W1014A WASHER, CONICAL ﾜｯｼｬ皿 M-8-H

19-3

19.クリーナ連結部(ダブルスキージ用)(オプション)(BSFC)

19.Cleaner coupling unit(For double squeegee)(Option)(BSFC)

19.クリーナ連結部(ダブルスキージ用)(オプション) Cleaner coupling unit(For double squeegee)(Option)(BSFC)

GP-641E PARTS LIST ver09

番号図番 & ｺｰﾄﾞ番号個数品名規格備考

No. Drg. No. & Code No.QTY Description Rating Remarks

46. SCREW, C/R PAN 小ﾈｼﾞ十穴鍋 M3X8L

47H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M3X8L

48H5278A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M3X15L

49H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X6L

50H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X8L

51H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X10L

52H5290A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X15L

54H5293A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X25L

55H5311A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M5X60L

56H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M6X12L

57H5324A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M6X20L

58H5342A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M8X25L

59H5307A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M5X40L

60BSFC2151 1 BKT BKT

61BSFC7320 1 PIN ﾋﾟﾝ

62BSFC7050 1 BKT, SENSOR BKT ｾﾝｻ

63BSFC7060 1 BLOCK ﾌﾞﾛｯｸ

64BSFC7021 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ

65BSFC7030 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ

66NPT0750 1 BKT BKT

67S2115E 1 CYLINDER, AIR ｼﾘﾝﾀﾞｴｱｰ CDY1S15H-K6878-500

68S3099M 1 SW, PROXIMATE SW 近接 TL-W1R5MC1

69H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M5X10L

70Y3051A 1 UNION, ELBOW ﾕﾆｵﾝｴﾙﾎﾞ KQL06-01S

71K5342A 1 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗｽﾋﾟｰﾄﾞ AS2201F-01-06S

72BSFC0830 1 DOG ﾄﾞｯｸﾞ

73BSFC0720 1 BKT, SENSOR BKT ｾﾝｻ

74H1051F 1 VALVE, CHECK ﾊﾞﾙﾌﾞﾁｪｯｸ CV01-01-BF-1.0

75Y3032T 1 UNION ﾕﾆｵﾝ PTV-1/8-BS

76A40305 6 ELBOW ｴﾙﾎﾞ PL1/8-PT1/8-BS

77MCA0760 1 CAP ｷｬｯﾌﾟ

78Y30490 1 UNION, ELBOW ﾕﾆｵﾝｴﾙﾎﾞ KQL04-6M

79N4024A SCREW, HEX SOCKET SET ﾈｼﾞ六角穴止め M3X12L

80N1076A NUT, HEX ﾅｯﾄ六角 M3P=0.5

81H5120R 8 BOLT ﾎﾞﾙﾄﾌｼﾞﾛｯｸﾎﾞﾙﾄ N型BﾀｲﾌﾟM4X15L

83BSFC7420 2 BLOCK ﾌﾞﾛｯｸ･

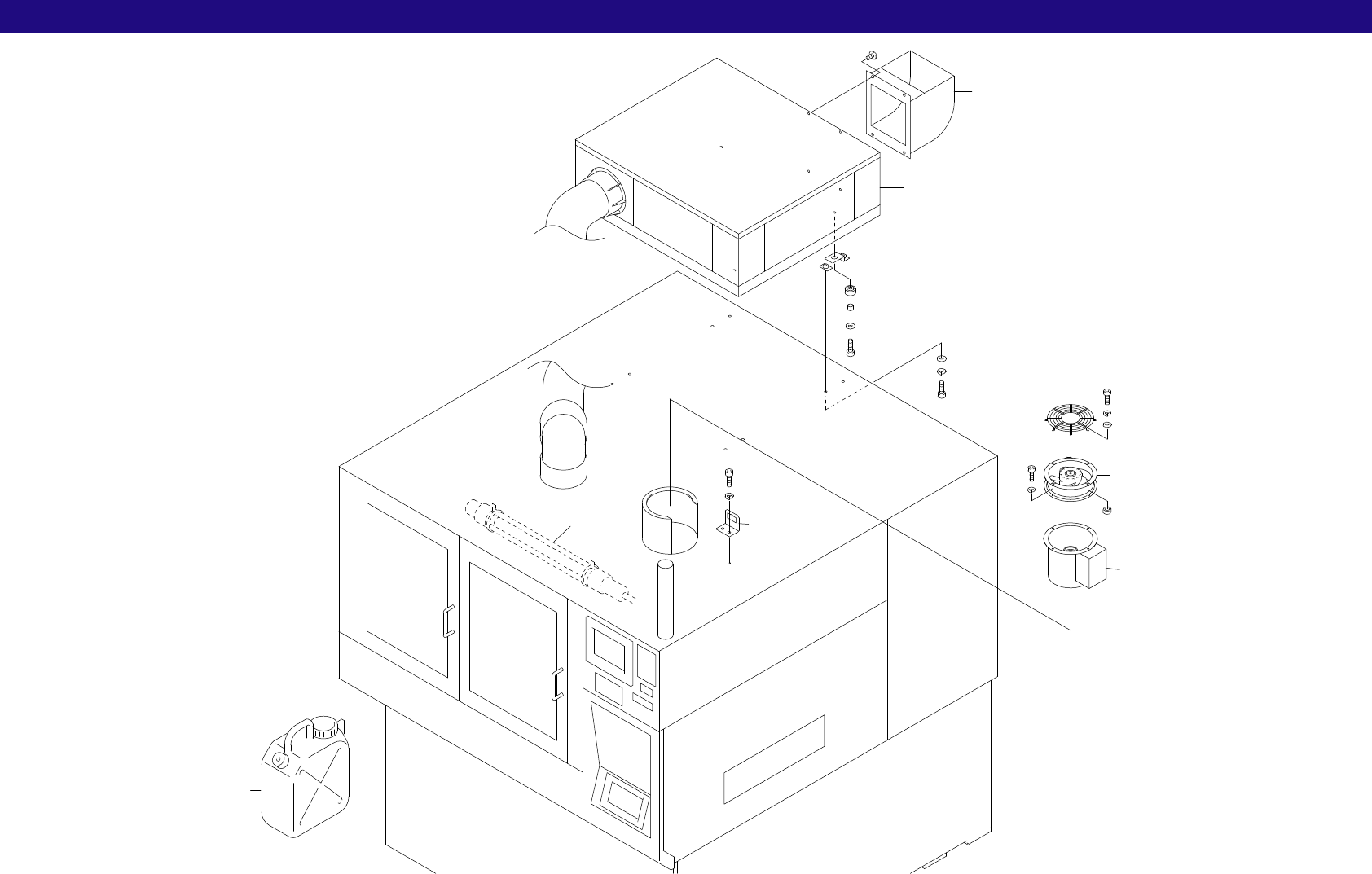

20.温調ユニット、照明 Heater,Cooler,Lamp(BSFS)
