20.温調ユニット、照明 Heater,Cooler,Lamp(BSFS)
GP-641E PARTS LIST ver09
20-2
20.温調ユニット、照明(BSFS)
20.Heater,Cooler,Lamp(BSFS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg. No. & Code No.QTY Description Rating Remarks
1BSFS1510 1 BKT BKT
2TWH0070 4 BKT BKT
3TWH0080 4 COLLAR ｶﾗｰ
4JPA0030 1 HEATER ﾋｰﾀ
5K3001Z 1 COOLER ｸｰﾗ INSPAC-12HC.100W
6H5359T 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M10X20L P=1.25
7T1013T 1 TANK ﾀﾝｸ 5-037-02 10L
8H3012T 1 FAN ﾌｧﾝ 109E1724F5H01
9K1082D 1 COVER, FAN ｶﾊﾞｰ ﾌｧﾝ 109-319
10H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X6L
11H5290A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X15L
12. BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X16L
13W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
14W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M
15W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
16W1046A WASHER, FLAT ﾜｯｼｬ 平 4W-8
17W1047A WASHER, FLAT ﾜｯｼｬ 平 4W-10
18N1080A NUT, HEX ﾅｯﾄ 六角 M4P=0.7
19S2008A 1 ILLUMINATION LAMP 照明灯 HF1071
20T1064H 1 DUCT ﾀﾞｸﾄ 12HC-3-BSWH
21K5216A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M6X10L ･

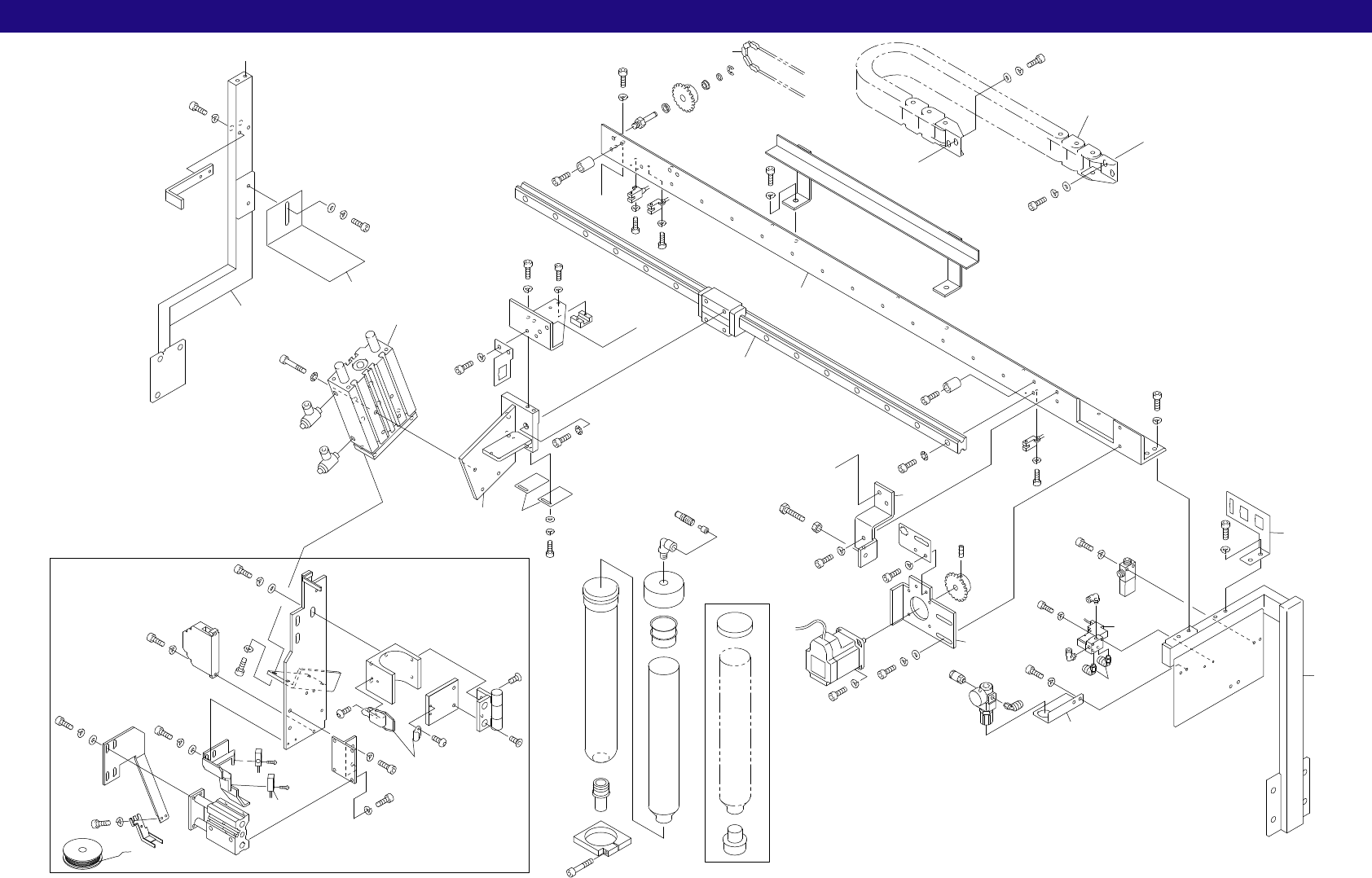

21.クリーム半田自動供給装置 Automatic solder-paste dispenser(BSRD)
GP-641E PARTS LIST ver09
21.クリーム半田自動供給装置(BSRD)
21.Automatic solder-paste dispenser(BSRD)
21-1
x6.5
68
82
1
9
52
46
50
19
64
81
51
51
63
80
54
50
66
81
47
65
81
31
71
82
86
7
33
67
79
89
78
83
72
88
73
4
30
71
82
77
83
87
18
87
83
77
43
3
20
37
34
37
58
56
35
78
83
4
73
95
80
61
36
80
61
C
B
B
64
81
28
86
82
69
17
10
48
80
61
D
D
81
64
29
105
77
83
C
2
68
82
61
80
71
82
21
5
71
88
6
84
80
60
25
75
88
49
49
41
77
83
87
44
45
53
32
23
92
91
90
94
91
93
40
24
39
59
59
11
12
38
76
76
83
78
55
65
81
81
70
82
85
81
103
84
80
102
80
60
103
104
104
42
42
101
97
99
100
96
65
106
21.クリーム半田自動供給装置 Automatic solder-paste dispenser(BSRD)
GP-641E PARTS LIST ver09
21-2
21.クリーム半田自動供給装置(BSRD)
21.Automatic solder-paste dispenser(BSRD)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1BSRD0531 1 BKT BKT
2BSRD0540 1 BKT BKT
3BSRD0110 1 BKT, RAIL BKT ﾚｰﾙ
4BSRD0620 2 STOPPER ｽﾄｯﾊﾟ
5BSRD1030 1 PLATE ﾌﾟﾚｰﾄ
6BSRD0650 2 DOG, SW ﾄﾞｯｸﾞ SW
7BSRD1020 1 BKT, MOTOR BKT ﾓｰﾀ
9BSRD0683 1 BKT BKT
10BSRD0697 1 BKT BKT
11BSRD0710 1 HOLDER ﾎﾙﾀﾞ
12BSRD0720 1 PLATE ﾌﾟﾚｰﾄ
17BSRD0811 1 HOLDER 受け
18BSRD1040 1 BKT BKT
19BSRD0830 1 BKT BKT
20BSRD0840 1 PIN, PIVOT ﾋﾟﾝ 支点
21BSRD1050 1 RETAINER 押え
23BSRD1311 1 HOLDER ﾎﾙﾀﾞ
24BSRD1291 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ
25BSRD0910 1 BKT BKT
28BSRD1000 1 STOPPER ｽﾄｯﾊﾟ
29BSRD0580 1 BKT BKT
30BSRD0100 1 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ
31SAM3050 1 MOTOR ﾓｰﾀ BR2566CT204
32K2001S 1 CAP ｷｬｯﾌﾟ AC01
33S30367 1 SPROCKET ｽﾌﾟﾛｹｯﾄ RS25-20T 1Type
34S3037A 1 SPROCKET ｽﾌﾟﾛｹｯﾄ RS25-20T 2Type
35T2035X 1 CHAIN ﾁｪｰﾝ RS25NP322Link Joint
36S4046H 1 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX304-W2A
37H4445A 2 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ LF-1050ZZ
38H20084 1 HINGE ﾋﾝｼﾞ TH-95(NO.2)
39H3035H 1 HOOK ﾌｯｸ TL-58
40S21261 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ MGQM12-25
41S2126S 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ MGPM25-92-Y59A
42S3131A 1 SW, PHOTOELECTRIC SW 光電 PS-55
43K4143T 1 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ 15.2-038-31-10A
44H3126Z 1 PLUG ﾌﾟﾗｸﾞ CPPE3-4
45S5025Z 1 SOCKET ｿｹｯﾄ CPSE3-4
46H1028E 1 VALVE, PRESSURE REDUCING ﾊﾞﾙﾌﾞ 減圧 AR1000-M5G-N
47A4002T 1 EJECTOR, VACUUM ｴｼﾞｪｸﾀ ﾊﾞｷｭｰﾑ VBL10-66P
48S4046M 1 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX404-W2A
49K5342A 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS2201F-01-06S
50Y3049H 3 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KJL06-M5
51Y3049E 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQH04-M5
52Y3049A 1 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KQH06-M5
