1 - 4 1 . ダブルスキージ( 固定部) ( B S F S ) 1 . D o u b l e s q u e e g e e ( F i x e d ) ( B S F S ) 1 . ダブルスキージ( 固定部) D o u b l e s q u e e g e e ( F i x e d ) ( B S F S ) GP-641E P ARTS LIST ver09 番号図番 & ｺｰﾄﾞ番号個数品名…

1-3

1.ダブルスキージ(固定部)(BSFS)

1.Double squeegee(Fixed)(BSFS)

1.ダブルスキージ(固定部) Double squeegee(Fixed)(BSFS)

GP-641E PARTS LIST ver09

番号図番 & ｺｰﾄﾞ番号個数品名規格備考

No. Drg. No. & Code No.QTY Description Rating Remarks

46N1113A 1 NUT, DOMED CAP ﾅｯﾄ六角袋 KKN16-000CE

47N1086A NUT, HEX ﾅｯﾄ六角 M6 P=1.0 Third Type

48N1089A NUT, HEX ﾅｯﾄ六角 M8 P=1.25

49N1092A NUT, HEX ﾅｯﾄ六角 M10 P=1.5

50W1022A WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 4M/M

51W1023A WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 5M/M

52W1024A WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 6M/M

53W1026A WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 10M/M

54W1029A WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 16M/M

55W1045A WASHER, FLAT ﾜｯｼｬ平 4W-6

56W1059A WASHER, FLAT ﾜｯｼｬ平 16M/MX3.0X30(1W-16)

57W1010A WASHER, CONICAL ﾜｯｼｬ皿 M-3-L

58W1011A WASHER, CONICAL ﾜｯｼｬ皿 M-4-L

59W1012A WASHER, CONICAL ﾜｯｼｬ皿 M-5-L

60W1013A WASHER, CONICAL ﾜｯｼｬ皿 M-6-H

61H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M3X8L

62H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X10L

63H5290A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X15L

64H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M5X12L

65H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M5X15L

66H5305A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M5X30L

67H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M6X12L

68H5324A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M6X20L

69H5329A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M6X35L

70H5330A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M6X40L

73S2114H 2 CYLINDER, AIR ｼﾘﾝﾀﾞｴｱｰ CDQ2D32-45DM-F79L

74S1057A 1 SILENCER ｻｲﾚﾝｻ AN110-01

75K5345A 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗｽﾋﾟｰﾄﾞ AS2211F-01-06S

76BSFS4400 1 BKT BKT

77H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X8L

79TFS2170 2 COLLAR ｶﾗｰ

81BSFS4230 2 BKT, WIRING BKT 配線

82BSFS3111 2 PIN ﾋﾟﾝ

83S1022A 2 CIR-CLIP ｻｰｸﾘｯﾌﾟ STEW-4

84H31915 2 PLATE, END ﾌﾟﾚｰﾄｴﾝﾄﾞ NOS 5T

85N1082A NUT, HEX ﾅｯﾄ六角 M5 P=0.8

86BSFS7141 2 SPRING ｽﾌﾟﾘﾝｸﾞ

87BSFS3535 2 CYLINDER, AIR ｼﾘﾝﾀﾞｴｱｰ

88BSFS3542 2 PISTON ﾋﾟｽﾄﾝ

89BSFS1201 2 SHAFT ｼｬﾌﾄ

90BSFS1222 2 ROD, JOINT ﾛｯﾄﾞｼﾟｮｲﾝﾄ

91BSFS7171 2 GUIDE, SPRING ｶﾞｲﾄﾞｽﾌﾟﾘﾝｸﾞ

92BSFS3510 1 COVER, WIRING ｶﾊﾞｰ配線

1-4

1.ダブルスキージ(固定部)(BSFS)

1.Double squeegee(Fixed)(BSFS)

1.ダブルスキージ(固定部) Double squeegee(Fixed)(BSFS)

GP-641E PARTS LIST ver09

番号図番 & ｺｰﾄﾞ番号個数品名規格備考

No. Drg. No. & Code No.QTY Description Rating Remarks

注1.№36 S4060A(ｾﾝｻ)は､取り付け位置により接続するﾊｰﾈｽが異なります｡

･ｽｷｰｼﾞﾍｯﾄﾞ右側のｾﾝｻはCLEN6692(ﾊｰﾈｽ)に接続します｡

･ｽｷｰｼﾞﾍｯﾄﾞ左側のｾﾝｻはCLEN6712(ﾊｰﾈｽ)に接続します｡

Note 1:The harness connector to sensor No.36(S4060A) differs depending on

which side of the squeegee it is sttached.

If the sensor is connected to the right of the squeegee head, use harness CLEN6692.

If the sensor is connected to the left of the squeegee head, use harness CLEN6712. ･

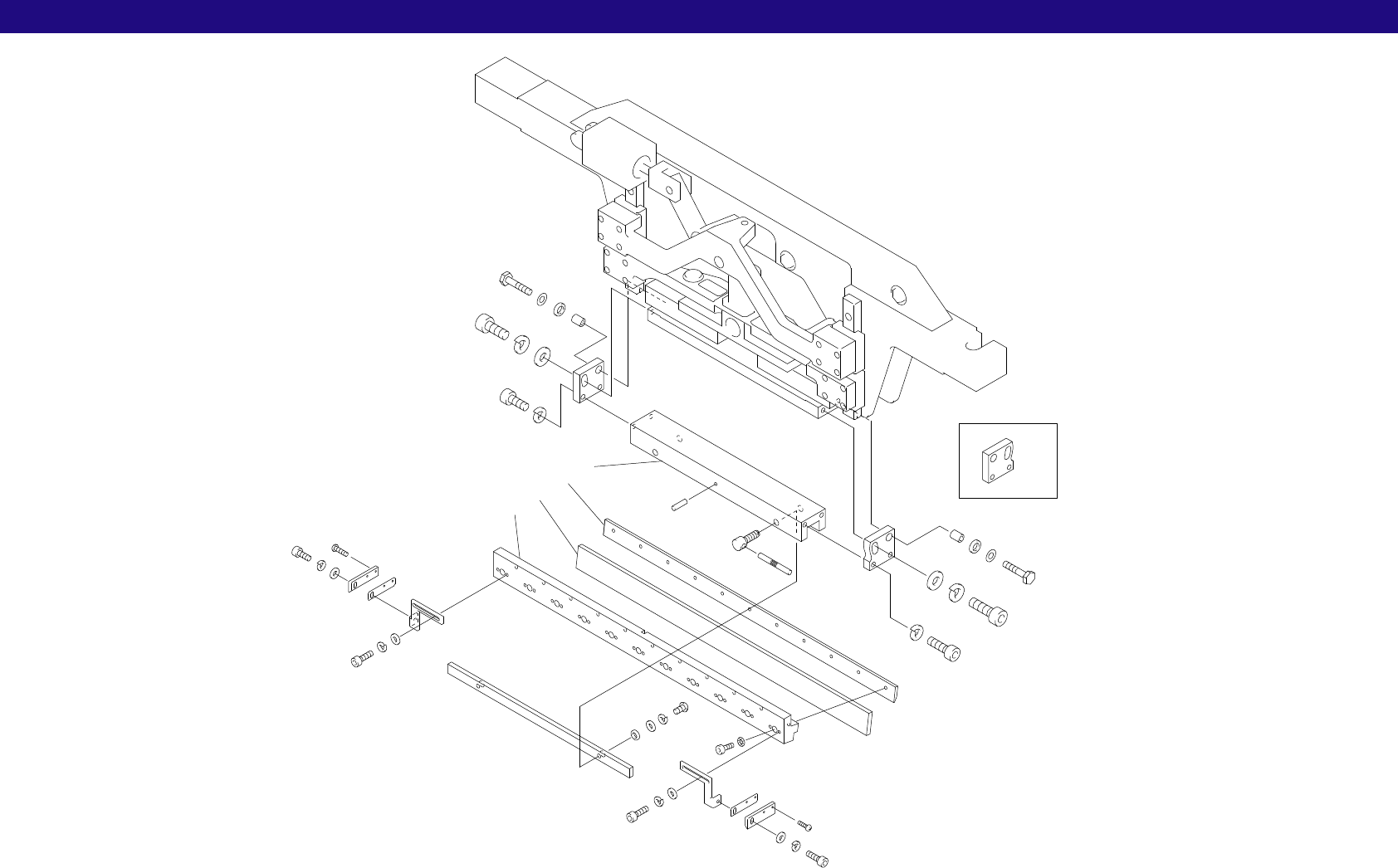

2.ダブルスキージ(ヘッド) Double squeegee(Head)(BSFS)

GP-641E PARTS LIST ver09

2.ダブルスキージ(ヘッド)(BSFS)

2.Double squeegee(Head)(BSFS)

2-1

x5.5
