2 3 . エアー機器 1 A i r d e v i c e 1 ( B S P I ) GP-641E P ARTS LIST ver09 2 3 - 2 2 3 . エアー機器 1 ( B S P I ) 2 3 . A i r d e v i c e 1 ( B S P I ) 番号 図番 & ｺ ｰ ﾄ ﾞ 番号 個数 品名 規格 備考 N o . D r g . N o . & C o d e N o . Q…

100%1 / 113

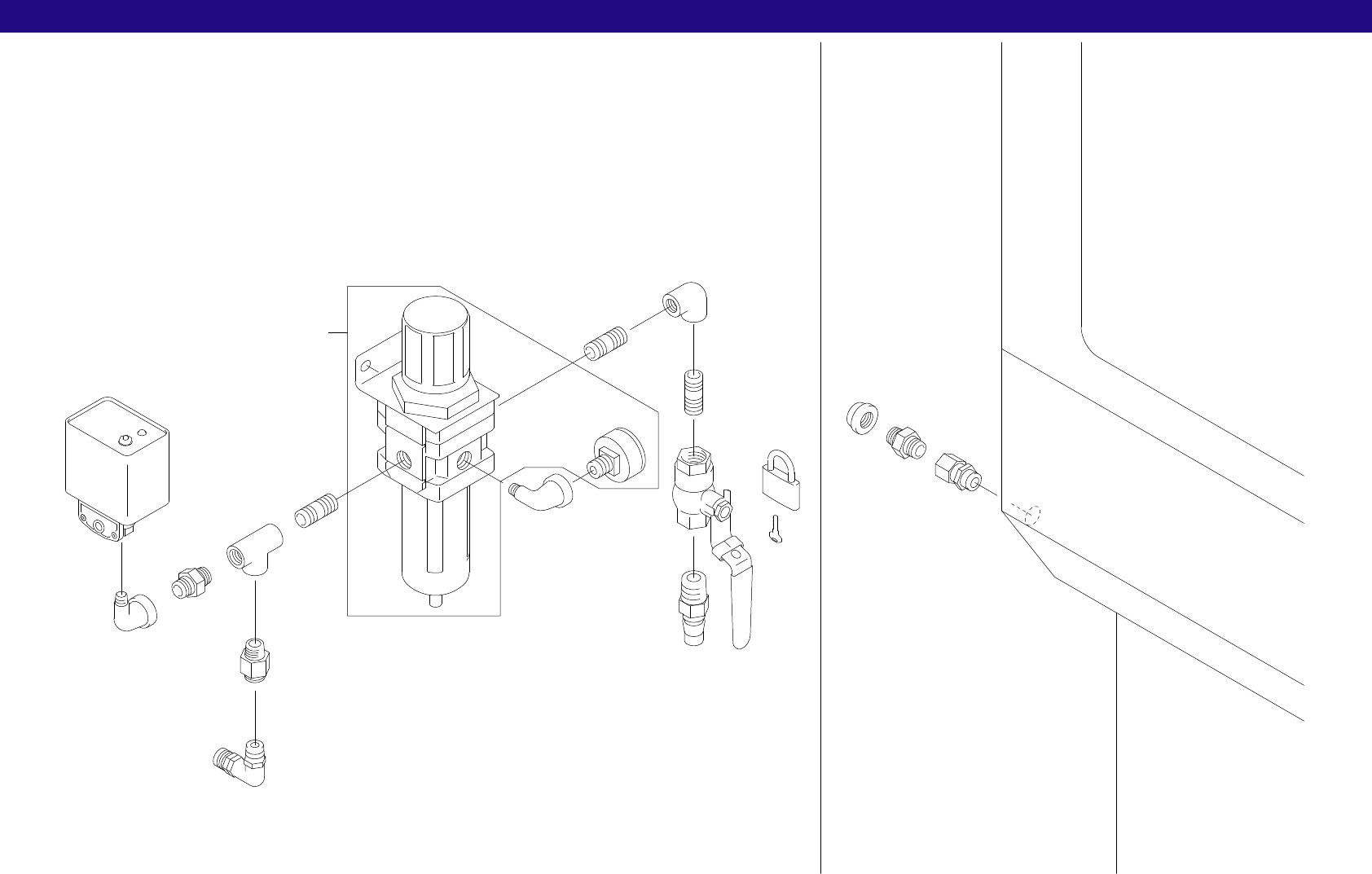

23.エアー機器 1 Air device 1(BSPI)
GP-641E PARTS LIST ver09
23.エアー機器 1(BSPI)
23.Air device 1(BSPI)
23-1
x5.5
B
D
G
F
E
I
J
H
B
D
E
F
G
I
H
J
2
4
3
5
32
29
29
32
31
33
31
33
31
33
31
33
33
30
31
33
11
11
10
22
23
6
1
7
17
14
15
16
20
19
18
20
19
18
31
33
21
33
30
25
24
25
28
34
35
36
37
K
K
K
21
ダブルスキ−ジ
For Double Squeegee
密閉スキ−ジ
For Hermetic Squeegee
27
25
23.エアー機器 1 Air device 1(BSPI)
GP-641E PARTS LIST ver09
23-2
23.エアー機器 1(BSPI)
23.Air device 1(BSPI)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg. No. & Code No.QTY Description Rating Remarks
1BSPI0111 1 VALVE UNIT ﾊﾞﾙﾌﾞ ﾕﾆｯﾄ
2H1057T 1 VALVE, ELEC/AIR PROPORTIONAL ﾊﾞﾙﾌﾞ 電空比例    VY1100-01-BN
3Y30557 1 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KQH04-01S
4Y30493 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQL04-01S
5S1057A 1 SILENCER ｻｲﾚﾝｻ AN110-01
6BSPI0103 1 VALVE UNIT ﾊﾞﾙﾌﾞ ﾕﾆｯﾄ
7H3145F 1 PLUG ﾌﾟﾗｸﾞ KQP-08
10H1056H 1 VALVE, ELEC/AIR PROPORTIONAL ﾊﾞﾙﾌﾞ ﾃﾞﾝｸｳﾋﾚｲ EV2500-108-E2B4-FL259965
11Y3052A 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQL06-02S
14M1037T 1 MANIFOLD, AIR ﾏﾆﾎｰﾙﾄﾞ ｴｱｰ KM11-08-12-10
15Y3040X 1 UNION ﾕﾆｵﾝ KQR04-08
16Y3040Z 1 UNION ﾕﾆｵﾝ KQR06-08
17H3145G 1 PLUG ﾌﾟﾗｸﾞ KQP12
18BSPI0240 2 VALVE UNIT ﾊﾞﾙﾌﾞ ﾕﾆｯﾄ
19H1130H 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL VXD2130-02-5DZ-B
20Y3054A 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQL08-02S
21Y30495 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQL04-02S
22BSPI0124 1 VALVE UNIT ﾊﾞﾙﾌﾞ ﾕﾆｯﾄ For hermetic squeegee
23BSPI0133 1 VALVE UNIT ﾊﾞﾙﾌﾞ ﾕﾆｯﾄ For double squeegee
24BSPZ0010 1 NAMEPLATE 銘板
25BSPZ0020 1 NAMEPLATE 銘板
27BSPZ0120 1 NAMEPLATE 銘板 For hermetic squeegee
28BSPZ0041 1 NAMEPLATE 銘板 For double squeegee
29H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴        M4X8L
30. BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴        M5X5L
31H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴        M5X10L
32W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ     4M/M
33W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ     5M/M
34S1058A 1 SILENCER ｻｲﾚﾝｻ AN120-M5
35K5075D 1 CONNECTOR ｺﾈｸﾀ KQU06-02S For hermetic squeegee
36Y3040T 1 UNION ﾕﾆｵﾝ KQR04-06 For hermetic squeegee
37Y30408 1 TEE ﾃｨｰ KQT04-06 For hermetic squeegee
･

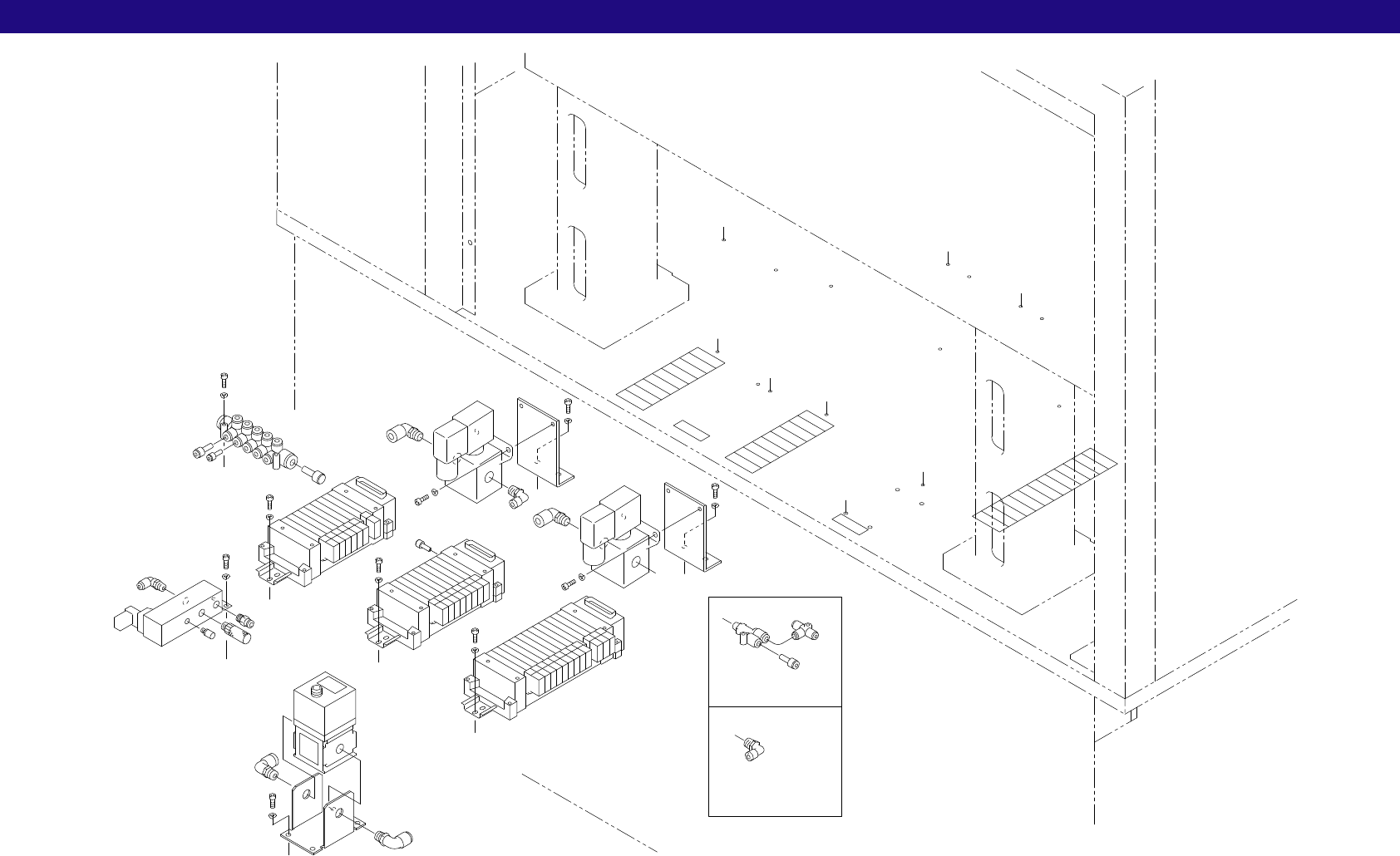

24.エアー機器 2 Air device 2(BSPI)
GP-641E PARTS LIST ver09
24.エアー機器 2(BSPI)
24.Air device 2(BSPI)
24-1
x3.7
4
3
7
8
10
10
1
2
5
5
5
6
11
13
14
15
16
17
18
12
