26.エアー配管図 2 Pneumatic circuit diagram 2(BSPI)
GP-641E PARTS LIST ver09
26-2
26.エアー配管図 2(BSPI)
26.Pneumatic circuit diagram 2(BSPI)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg. No. & Code No.QTY Description Rating Remarks
1H1331A 5 VALVE, SOL ﾊﾞﾙﾌﾞ SOL VQ1101-5
2H1332A 6 VALVE, SOL ﾊﾞﾙﾌﾞ SOL VQ1201-5
3H13331 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL VQ1401-5
4H3051E 1 COVER, BLIND 蓋 盲 VVQ1000-10A-1
5. 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ VV5Q11-13CMFU0-DKS
6H1057T 1
VALVE, ELEC/AIR PROPORTIONAL
ﾊﾞﾙﾌﾞ 電空比例 VY1100-01-BN
7S1058A SILENCER ｻｲﾚﾝｻ AN120-M5
9H1051E 1 VALVE, CHECK ﾊﾞﾙﾌﾞ ﾁｪｯｸ CVF01-01BF-1.0
10H1033T 1 VALVE, THREE-WAY ﾊﾞﾙﾌﾞ 三方 USG3-6-2-B-DC24V
11H1130H 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL VXD2130-02-5DZ-B
14H1130L 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL VZS2250-5G-01
15H1128T 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL VT307-5DZ-01-F
16A4002T 1 EJECTOR ｴｼﾞｪｸﾀ VBL10-66-P
17H11212 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL VJ314R-5G-M5
25. 1 VALVE, PRESSURE REDUCING ﾊﾞﾙﾌﾞ 減圧 AR100-M5G-N
26. PRESSURE GAUGE 圧力計 G27-10-R1
27H1050T 1 VALVE, CHECK ﾊﾞﾙﾌﾞ ﾁｪｯｸ Dual Check Valve
28BSFC0821 1 SYRINGE ｼﾘﾝｼﾞ Lock Type 10cc
29S2088S 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ SCM-LB-32D-40-T3H-D
30BSFC0350 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ
31. 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ STR-B-16-40-K3HD
32S2126W 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ MGPM25-95-Y59A
33S2114Y 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CDQ2D40-75DM-F79L
34BSFC3100 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ
35S2100Y 2 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CDQSB25-22DM-F79NL
36S2118T 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CJPB15-30D
37S2121C 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CJ2D10D-E6555-3
38S2126E 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CXSL25-15-Y59A
39K5337H 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS1201F-M5-04
40K5337M 6 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS1201F-M5-06
41K5342A 8 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS2201F-01-06S
42K5345A 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS2211F-01-06S
43K5340T 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS2001F-06
44K5337T 1 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS1211F-M5-04
45S1057A 1 SILENCER ｻｲﾚﾝｻ AN110-01
47BSP10124 1 VALVE UNIT ﾊﾞﾙﾌﾞ ﾕﾆｯﾄ
48BSFS0360 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
49BSFS1300 1 BKT BKT
50BSFC3160 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
51BSFC0530 2 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
52BSFC0510 2 BKT BKT
53Y30558 9 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KQH04-M6
55Y3056E 23 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KQH06-01S
56Y3061D 4 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KJS04-M5
26.エアー配管図 2 Pneumatic circuit diagram 2(BSPI)
GP-641E PARTS LIST ver09
26-3
26.エアー配管図 2(BSPI)
26.Pneumatic circuit diagram 2(BSPI)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg. No. & Code No.QTY Description Rating Remarks
57Y3049Z 4 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQL04-M5
58Y30490 4 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQL04-M6
59Y30495 3 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQL04-02S
61Y3051A 13 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQL06-01S
62Y3052A 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQL06-02S
63Y3054A 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQL08-02S
64Y3049E 4 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KJL04-M5
65Y3049H 5 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KJL06-M5
67A3034A 1 PLUG 埋栓 TP-1/8
69Y3042H 2 UNION ﾕﾆｵﾝ KQY04-M6
70K5075A 2 CONNECTOR ｺﾈｸﾀ KQU06-00
72K5030T 12 CONNECTOR ｺﾈｸﾀ PN-1/8-PT1/8-BS
73K5030H 2 CONNECTOR ｺﾈｸﾀ PTA-1/8-PT1/8-BS
74H3126Z 1 PLUG ﾌﾟﾗｸﾞ CPPE3-4
75S5025Z 1 SOCKET ｿｹｯﾄ CPSE3-4
76Y3048E 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQK04-M6
77Y3048H 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQK06-01S
79A40305 4 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ PL-1/8-PT-1/8-BS
80Y3032T 1 TEE ﾃｨｰ PTU-1/8-BS
81K5075D 1 CONNECTOR ｺﾈｸﾀ KQU06-02S
82Y30408 1 TEE ﾃｨｰ KQT04-06
83Y3040T 1 UNION ﾕﾆｵﾝ KQR04-06
84Y3049T 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KJL06-01S
85H1056H 1 VALVE, ELEC/AIR PROPORTIONALﾊﾞﾙﾌﾞ 電空比例 EV2500-108-E2B4-FL259965
86. 1 VALVE, ELEC/AIR PROPORTIONALﾊﾞﾙﾌﾞ 電空比例 EV2500-108-FL218300
87. 1 SILENCER ｻｲﾚﾝｻ EV2000-E2
88S2158T 1 JOINT ｼﾞｮｲﾝﾄ PF01-01 ･

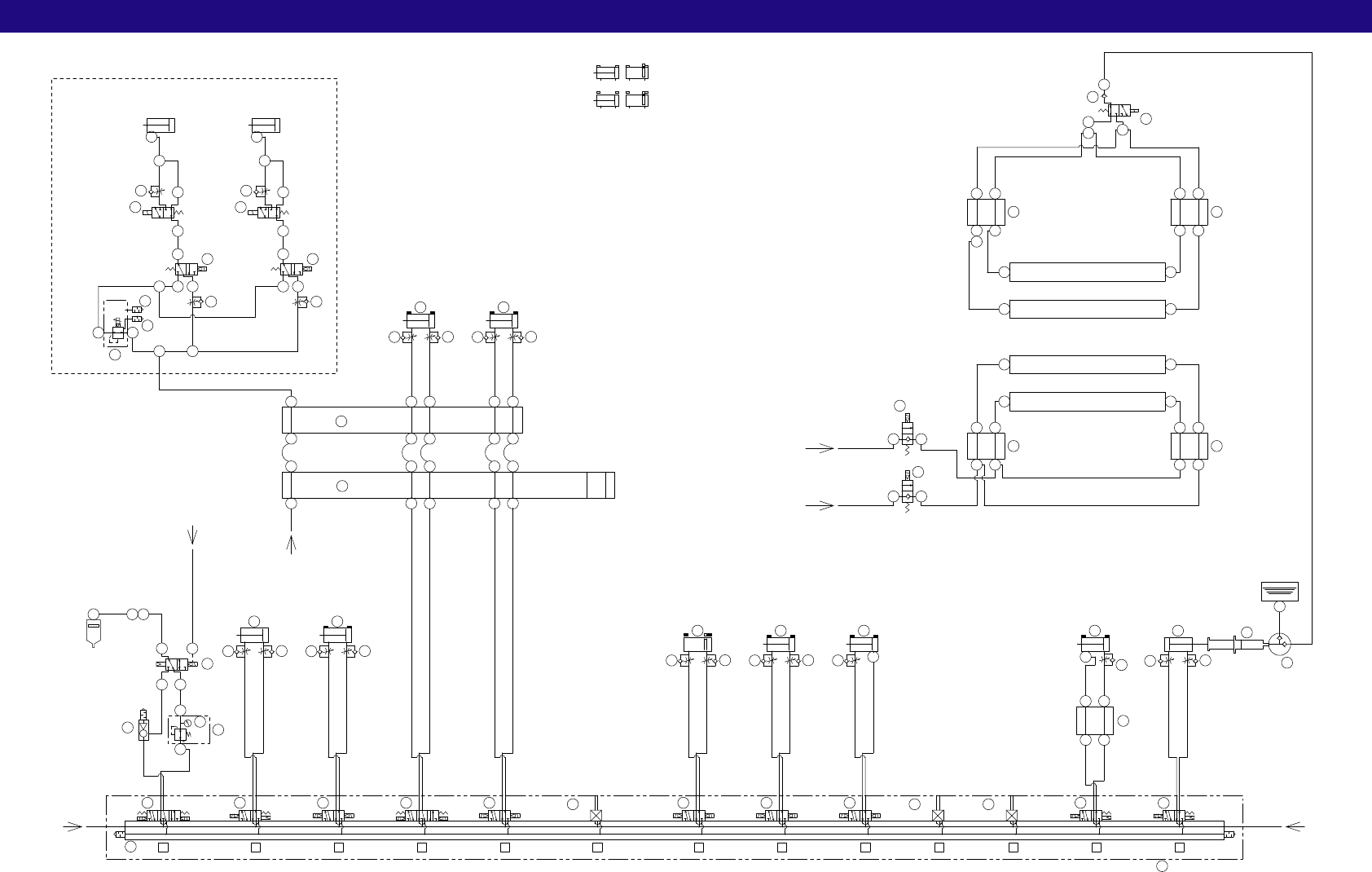

27.エアー配管図 3 Pneumatic circuit diagram 3(BSPI)
