3 Replacing spare parts Se rv ic e Ma nu al P ro ce ss L en s PL - 0 3/ 20 25 11 3 Fig.152: TSP420 overview
3 Replacing spare parts
112 Service Manual Process Lens PL - 03/2025
Fig.151: 03087641-02
3 Replacing spare parts
Service Manual Process Lens PL - 03/2025 113
Fig.152: TSP420 overview
3 Replacing spare parts
114 Service Manual Process Lens PL - 03/2025
Spare fuses:
●
F1: Fuse T5A 5x20mm SPT series (0001.2511 Schurter)
●
F2: Fuse T2A 5x20mm (0034.3120 Schurter / 0239 002 XP Littelfuse)
eSW Download

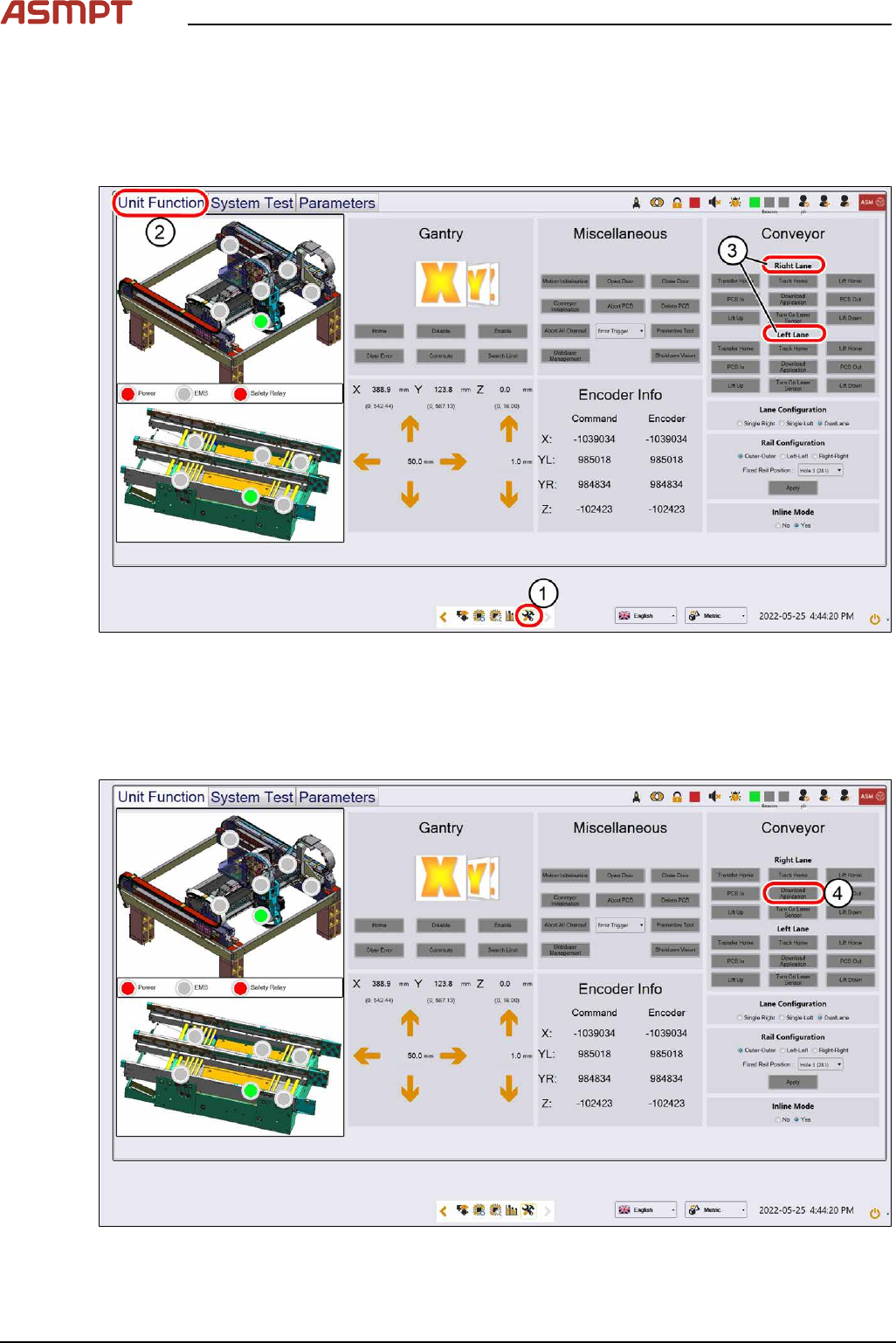

Fig.153: Selecting the lanes
► Click on this icon(1) to enter the settings menu.
► Click on Unit Function(2) to enter the settings user menu.
► Select the Right Lane or the Left Lane(3).
► Switch to operator level Machine service.
Fig.154: Downloading the eSW
► Click on Download Apllication(4) to proceed the download of the eSW.
