1 Introduction
Service Manual Process Lens PL - 03/2025 15
1.5 Abbreviations
DLP Digital Light Processor
EMC Electromagnetic compatibility
ESD Electrostatic sensitive device
PA Placement area
PCB Board
SC Single conveyor
1 Introduction
16 Service Manual Process Lens PL - 03/2025
2 General
Service Manual Process Lens PL - 03/2025 17
2 General

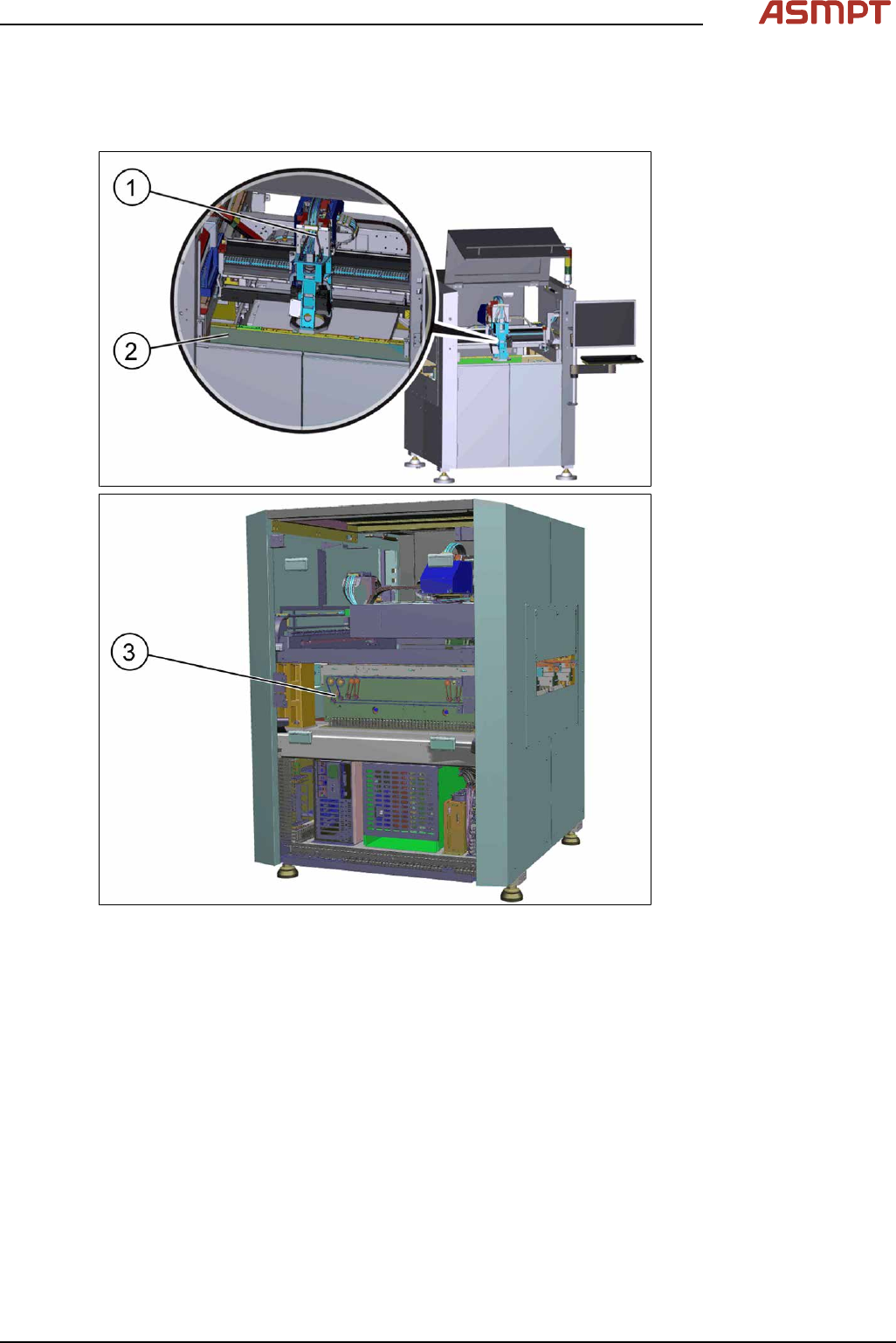

Machine overview (Dual-lane)
1. Optical head
2. Front Conveyor
3. Motor for the width ad-
justment
