4 Machine - Calibrations

160 Service Manual Process Lens PL - 03/2025

Step 8

Fig.250: Text file

► Open the file with a text editor or MS Ex-

cel.

ð At the bottom rows, the calculated Cg

and Cgk values are listed (2).

Example of a GoldenUnitInspect

***timestamp***.csv output file using a

target of height 123µm.

4.6 Calibrations - Lighting Calibration (Pseudocolor)

Fig.251: Kodak card

► Open the machine cover.

► Place the Kodak Card(1)[03234864‑xx] /

[03254631‑xx] on the conveyor.

4 Machine - Calibrations

Service Manual Process Lens PL - 03/2025 161

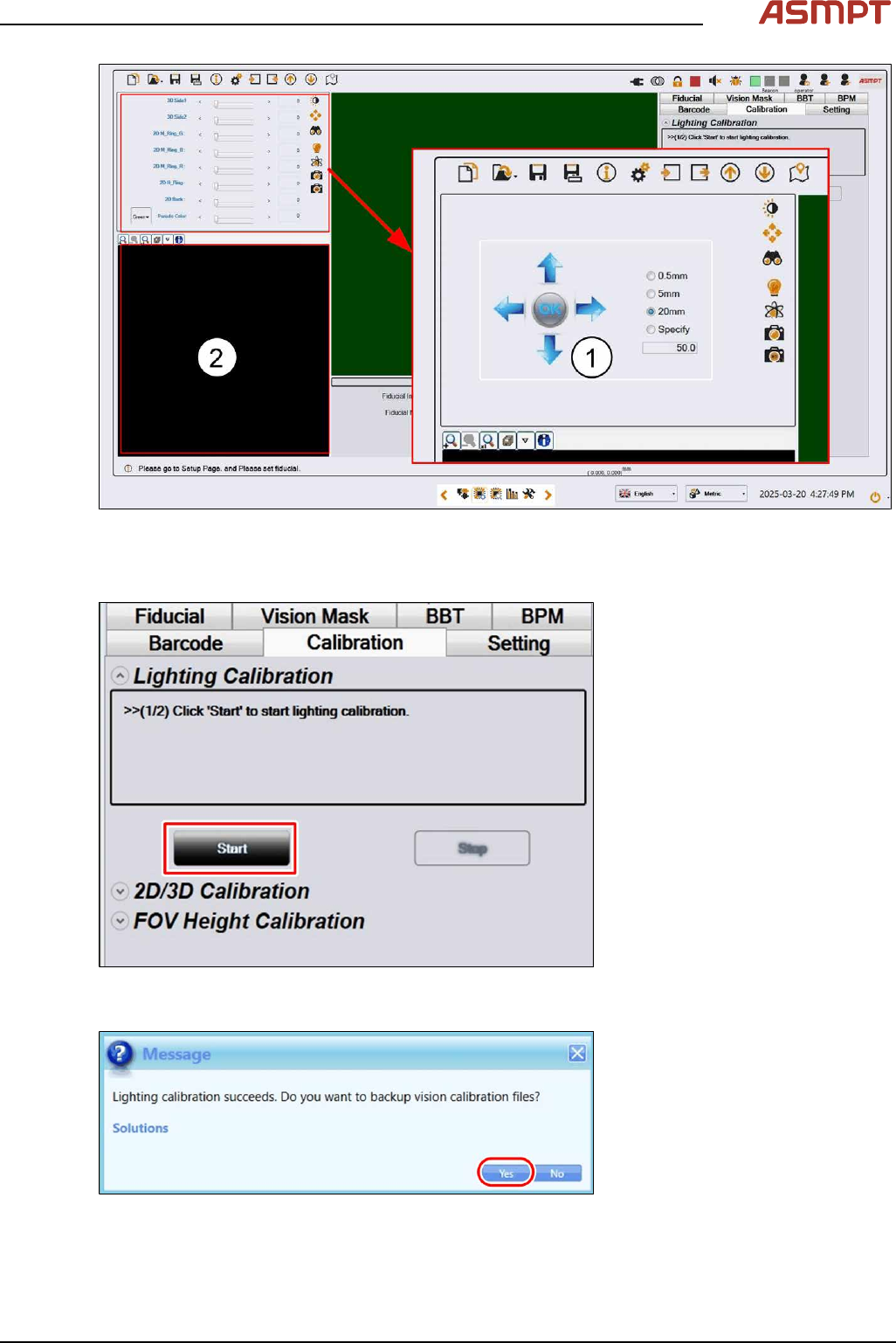

Fig.252: SC Adjust Light 01 0325

► Adjust the lighting(1) till some images show on the LIVE image window(2)

► Jog the camera till LIVE image window(2) shows grey color.

Fig.253: "Start" button

► Click Start to start the calibration.

Fig.254: "Yes" button

► Click Yes to proceed.

4 Machine - Calibrations

162 Service Manual Process Lens PL - 03/2025

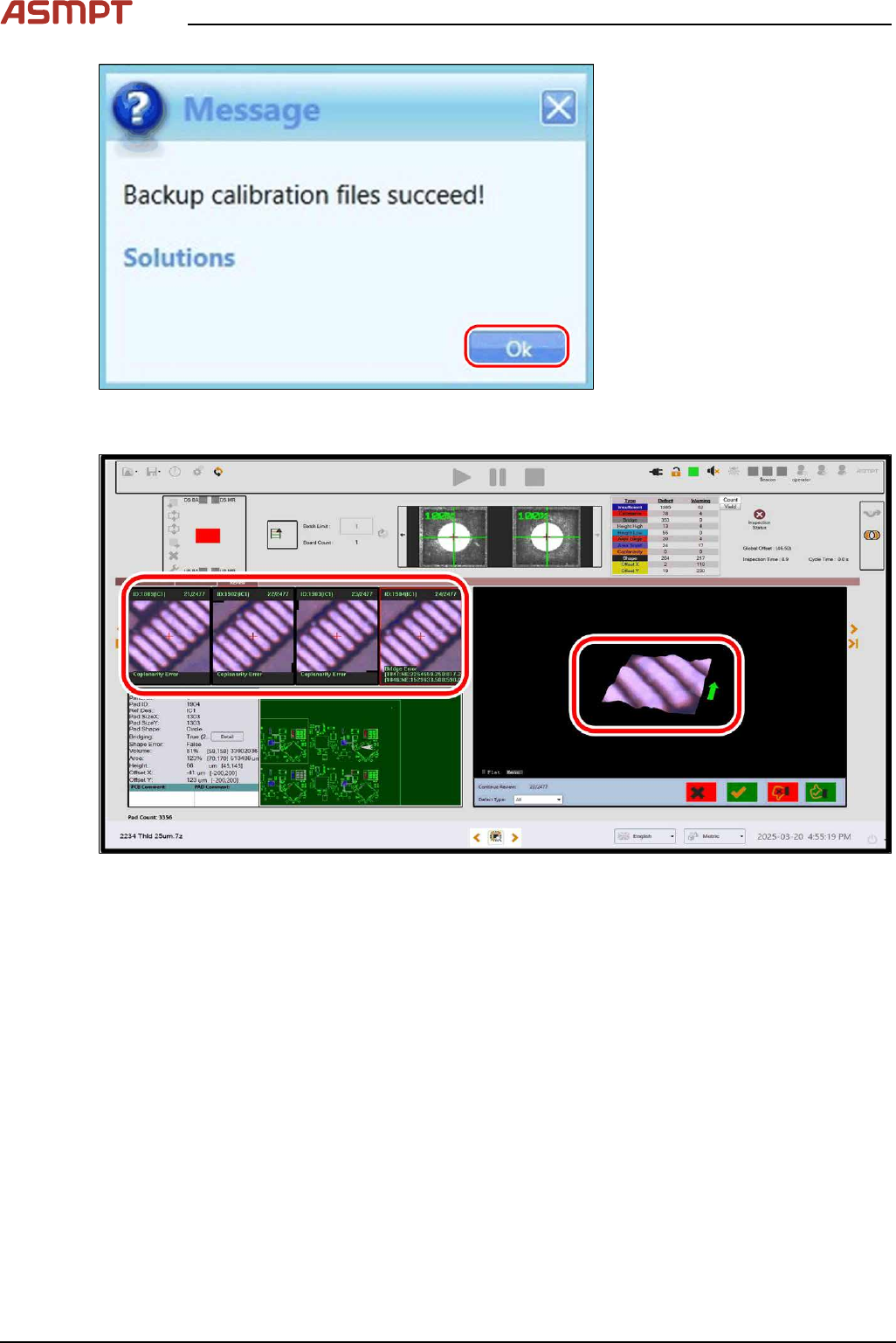

Fig.255: "OK" button

► Click OK to end the calibration.

Fig.256: Checking with PCB

► Use a PCB to check if the pad / solder displays the actual color of the PCB.
