3 Replacing spare parts
Service Manual Process Lens PL - 03/2025 39
Fig.38: “Finished” Message
► Click on OK.
The DLP module is now running the latest version.
3.2 Vision module HD
3.2.1 Optical head
3.2.1.1 Replacing the optical head
Parts
03251058-xx HD Vision Module Kit
Equipment and tools
●
Allen key size 2.5
Requirements
●
Machine is switched off.
Removal
Fig.39: Moving the optical head to the middle of the
machine
► Move the optical head carefully to the
middle of the machine.
 CAUTION!
Sensitive camera system
The camera system is very sensitive and
must therefore not be touched.
Make sure you don’t touch the camera
when moving the gantry.
.
3 Replacing spare parts
40 Service Manual Process Lens PL - 03/2025
Remove cover
Fig.40: Removing the cover
► Remove the cover(2) that protects the
connection spots for the cables by remov-
ing the six screws(1) by using an Allen
key size 2.5.
► Place the dismantled cover on a service
table.
Remove cables
Fig.41: Removing cable clamps and connectors
► Remove the cable clamp(1) that fixes the
cables by unscrewing the two screws
using an Allen key size 2.5.
► Remove the cable clamp (2) that fixes the
cables by unscrewing the two screws
using an Allen key size 2.5.
► Unscrew 5x cables (3) and unplug 2xrib-
bon cable connectors (4)
 CAUTION!
Sensitive camera system
The camera system (3) is very sensitive.
Therefore do not touch the camera sys-
tem to avoid damage to it.
.
► Carefully put the cables aside.
3 Replacing spare parts
Service Manual Process Lens PL - 03/2025 41

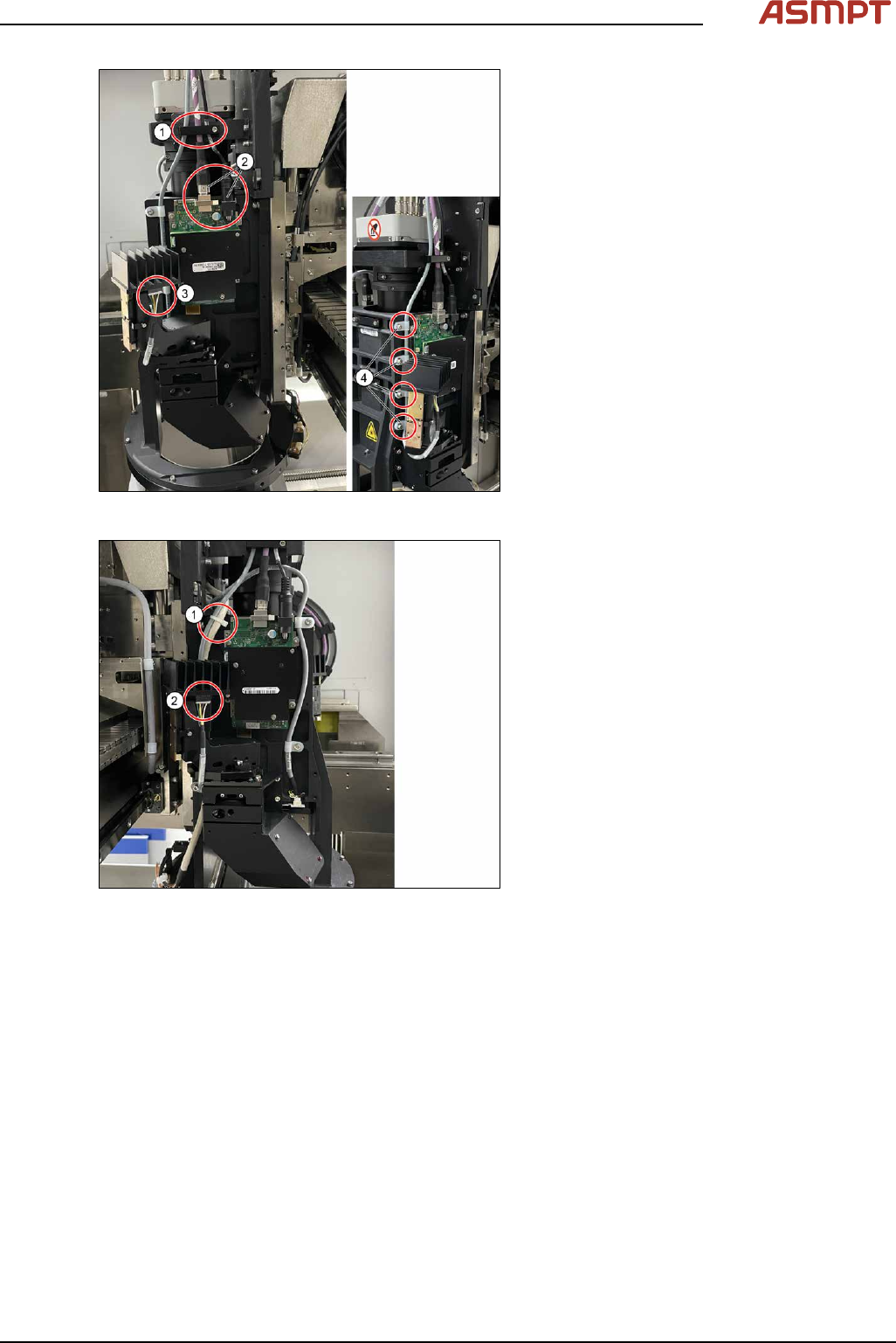

Fig.42: Removing cable clamps and connector
► Remove the cable clamp (1) that fixes the
cables by unscrewing the screws using an
Allen key size 2.5.
► Unplug connector (3) from AnHua lighting
Right
► Remove 4x cable holders (4).
► Remove 2x cables (2) from DLP Controller
Fig.43: Unplugging connector
► Cut cable tie (1).
► Unplug connector (2) from AnHua lighting
Left
