3 Replacing spare parts
42 Service Manual Process Lens PL - 03/2025
Remove Vision Module

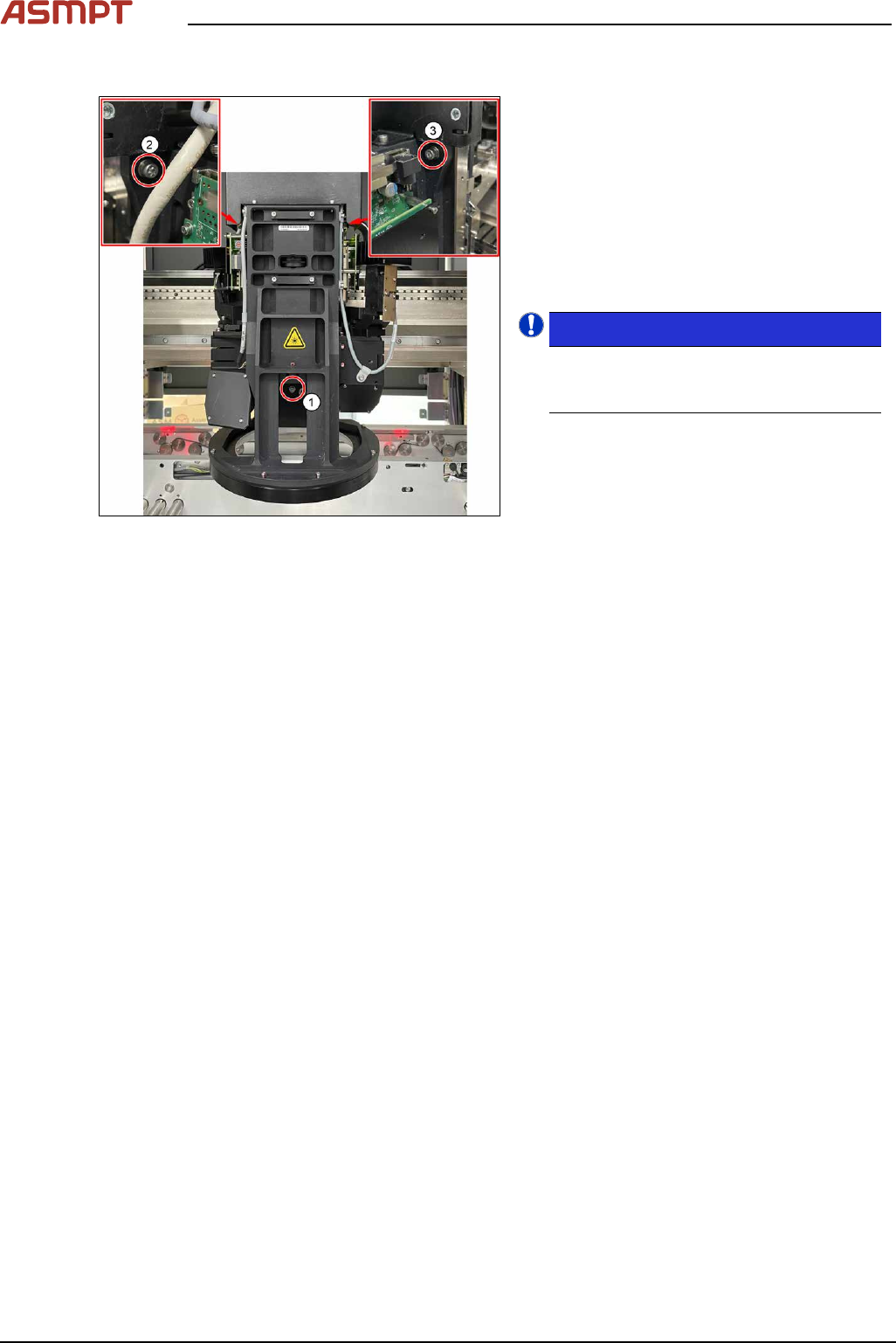

Fig.44: Removing screws
► Prepare a work station with ESD cushion/
mate to place vision module.
► Remove screws (1) as shown with TAllen
key size 3.
► Remove screws (2) as shown with LAllen
key size 3.
► Hold Vision Module with 1 hand, slowly
remove screw (3) with special LAllen Key
(shorter).
 NOTICE!
Highly recommend to have an assist-
ant to hold the Vision Module while re-
moving 3rd screw.
.
► Place Vision Module gently on Workstation
with ESD cushion/mate.
Installation
Follow the removal instructions in reverse order for installation.
Check the calibration of the optical head
When the optical head is removed from the machine the optical head needs to be calibrated again.
Refer to chapter 4 "Machine - Calibrations" [}135].
Check the calibration of the optical head
When the optical head is removed from the machine the optical head needs to be calibrated again.
See also 4 "Machine - Calibrations" [}135].
3 Replacing spare parts
Service Manual Process Lens PL - 03/2025 43
3.2.1.2 Replacing the low ring light board
Parts
03254622-01 Low RingLight HD
Equipment and tools
●
Allen key size 2.5
●
Philips screwdriver
Requirements
●
Machine is switched off.
●
Use a T shaped Allen key to carry out this job.
Removal

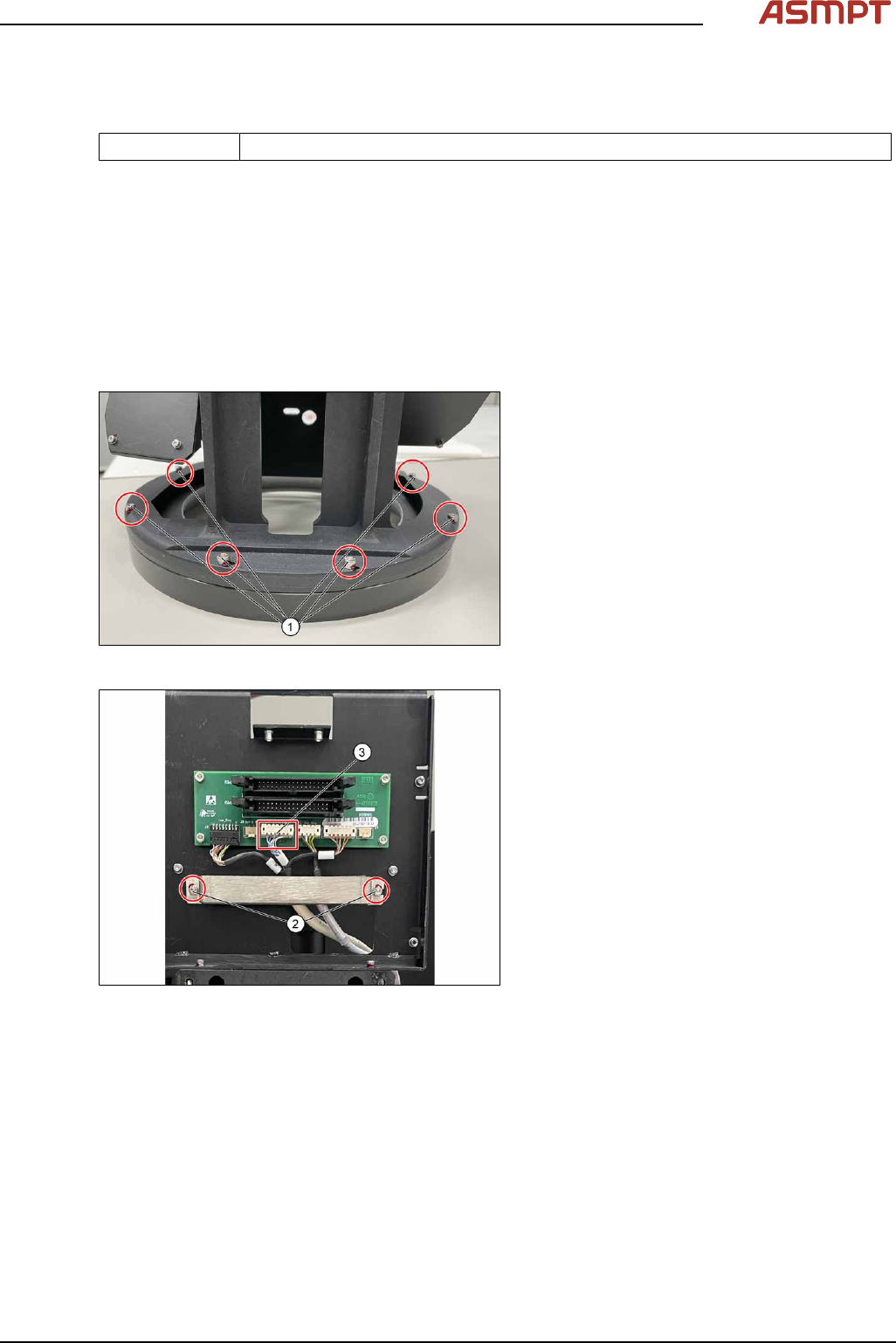

Fig.45: Removing the six screws
► Remove the six screws(1)
Fig.46: Unplugging the cable
► Remove the two screws(2) and remove
the cable clamp.
► Unplug the cable(3).
► Remove the low ring light board.
Installation
Follow the removal instructions in reverse order for installation.
3 Replacing spare parts
44 Service Manual Process Lens PL - 03/2025
3.2.1.3 Replacing the high ring light board
Parts
03254621-xx High Ringlight HD
Equipment and tools
●
Allen key size 1.5
●
Allen key size 2.5 (T shaped)
●
Philips screwdriver
Requirements
●
Machine is switched off.
●
It is advisable to dismantle the low ring light assembly as well for better access.
●
Use a T shaped Allen key to carry out this task.
Removal
Fig.47: Removing the four screws
► Remove the four screws(1).
Fig.48: Unplugging the cable
► Remove the able connector as shown(2).
► Loosen the two screws(3), remove the
cable clamp.
► Unplug the cable(4).
