5OM-1610 1-20 Pneumatic and Mounting Diagrams 101 1-002-(08303) Multi Function Nozzle Stocker (Pneumatic Diagram) No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty 1 Tube φ 4 1 2 Solenoid V alve 1 3 Speed Controlle…

100%1 / 215
5OM-1610
1-19
Pneumatic and Mounting Diagrams
1011-002-(03G00)
Multi Function Head Unit (Mounting Diagram)
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
7 Regulater 1
10 Solenoid Valve Unit 3
11 Vacuum Sensor 3
12 Vacuum Filter 3
NOZZLE1 NOZZLE2 NOZZLE3
7
10
11
12
5OM-1610
1-20
Pneumatic and Mounting Diagrams
1011-002-(08303)

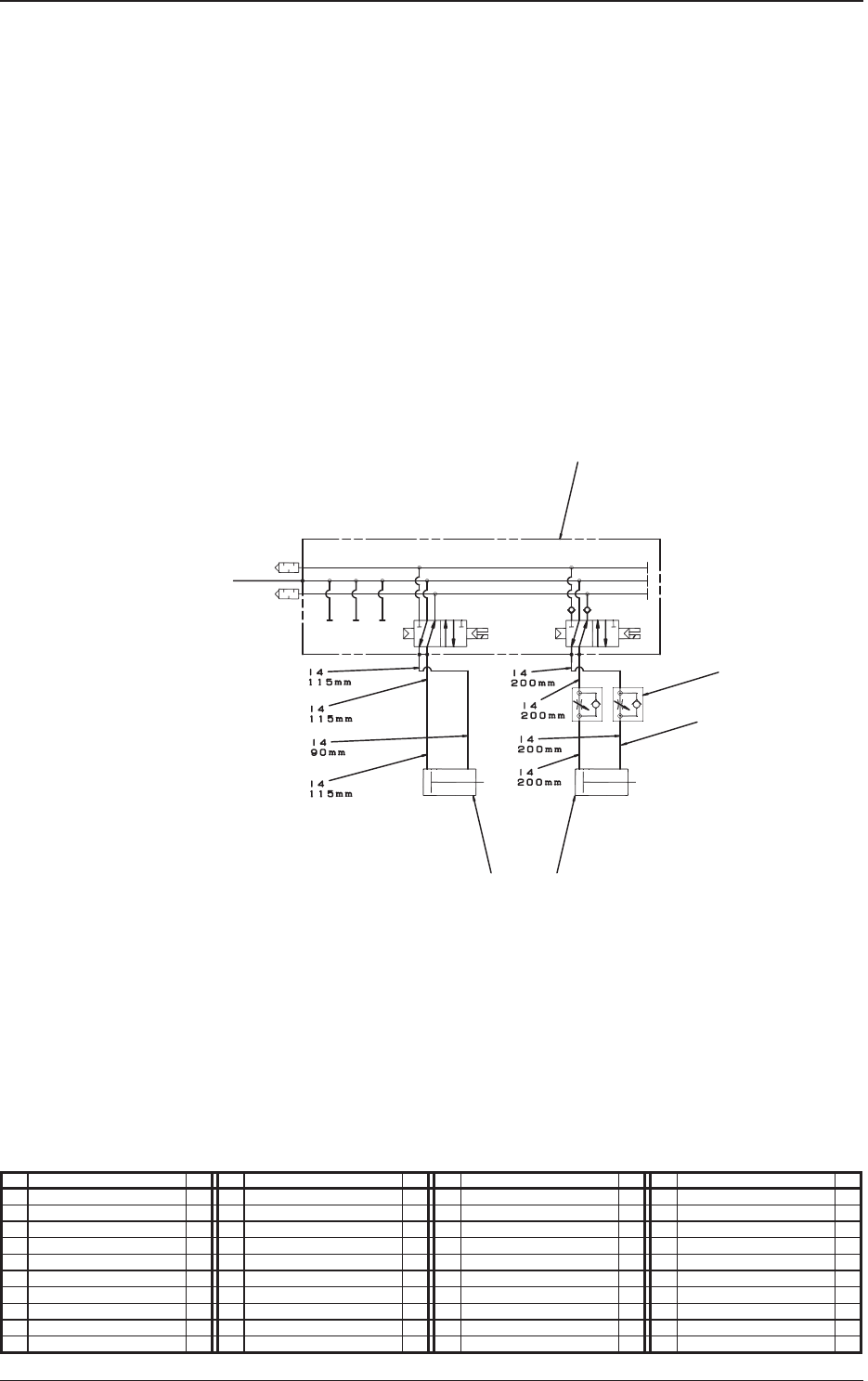

Multi Function Nozzle Stocker (Pneumatic Diagram)
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
1 Tube
φ
4 1
2 Solenoid Valve 1
3 Speed Controller 2
4 Cylinder 1
5 Cylinder 1
4
5
2
3
1
Shutter 1 Open / Close
Stocker 1 U/O
From the Inside of Whole Base
5OM-1610
1-21
Pneumatic and Mounting Diagrams
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
2 Solenoid Valve 1
4 Cylinder 1
5 Cylinder 1
Multi Function Nozzle Stocker (Mounting Diagram)
4
2
5
1011-002-(08303)
