Page +$1:+$ 11 4 SM482 PLUS Electric Device Ass’y(4/4) 2 6 5 4 3 1
Page
+$1:+$
113
Electric Device Ass’y(3/4)
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-015154B ASSY,BOARD-CAN CONVEYOR IF_V3.0(WITH ILL) 1 AM03-000900A
2 J91741076A CONV_SUB_IF_BOARD VER 1.0 1
3 EP07-002062 FILTER,ELECTRIC-NOISE 1 EP07-901542 / J91671267A / AM03-019057A
4 EP23-001003A TRANSFORMER 1 EP23-000012A/ EP23-000028A
5 J91741042A AXIS_SENSOR_BOARD_ASSY VER1.0 1
6 EP06-901169 MONITOR_DISTRIBUTOR 1
7 AM06-000359A ASSY,PCB SMD-SM400_VISION_IF_BD 1
10 FC09-002234B BRACKET-VAC_GEN_BKT 1 FC09-002234A
11 HP11-000074 INJECTOR 1
12 HP06-900041 JOINT 1
13 HP14-000978 SOL-VAVLE 1
14 HP06-000277 FITTING 1 OPTION
15 HP04-900011 FINGER_GUARD 1 OPTION
16 HP11-001019 VACUUM PUMP 1 OPTION
17 HP06-900104 NIPPLE-STRAIGHT 1 OPTION
18 HP06-900046 JOINT 1 OPTION
19 HP06-001070 FITTING-ELBOW 1 OPTION
20 HP06-000234 FITTING-STRAIGHT 1 OPTION
21 J90833316A FAN_CABLE_ASSY SM-FAN00 1 OPTION
22 AM03-007648A ASSY,AIR-PUMP_SUB_ASSY 1
23 EP07-901338 CONTACTOR 1
24 EP07-901339 CONTACTOR 1
25 HP13-900086 AIR TUBE(POLYYRETHANE) .32
26 HP13-900084 AIR TUBE(POLYURETHANE) 2.3
27 AM03-021568A VACUUM PUMP_PUMP SECTION 1 OPTION
28 AM03-021575A VACUUM PUMP_MOTOR SECTION 1 OPTION
29 FC28-001349 PAD-RUBBER-RUB-B2;RUBBER 3
30 FC28-001350 PAD-RUBBER-RUB-C2;RUBBER 1
31 AM03-019057A CABLE ASSY-NOISE_FILTER_MODULE 1
Page
+$1:+$
114
SM482
PLUS

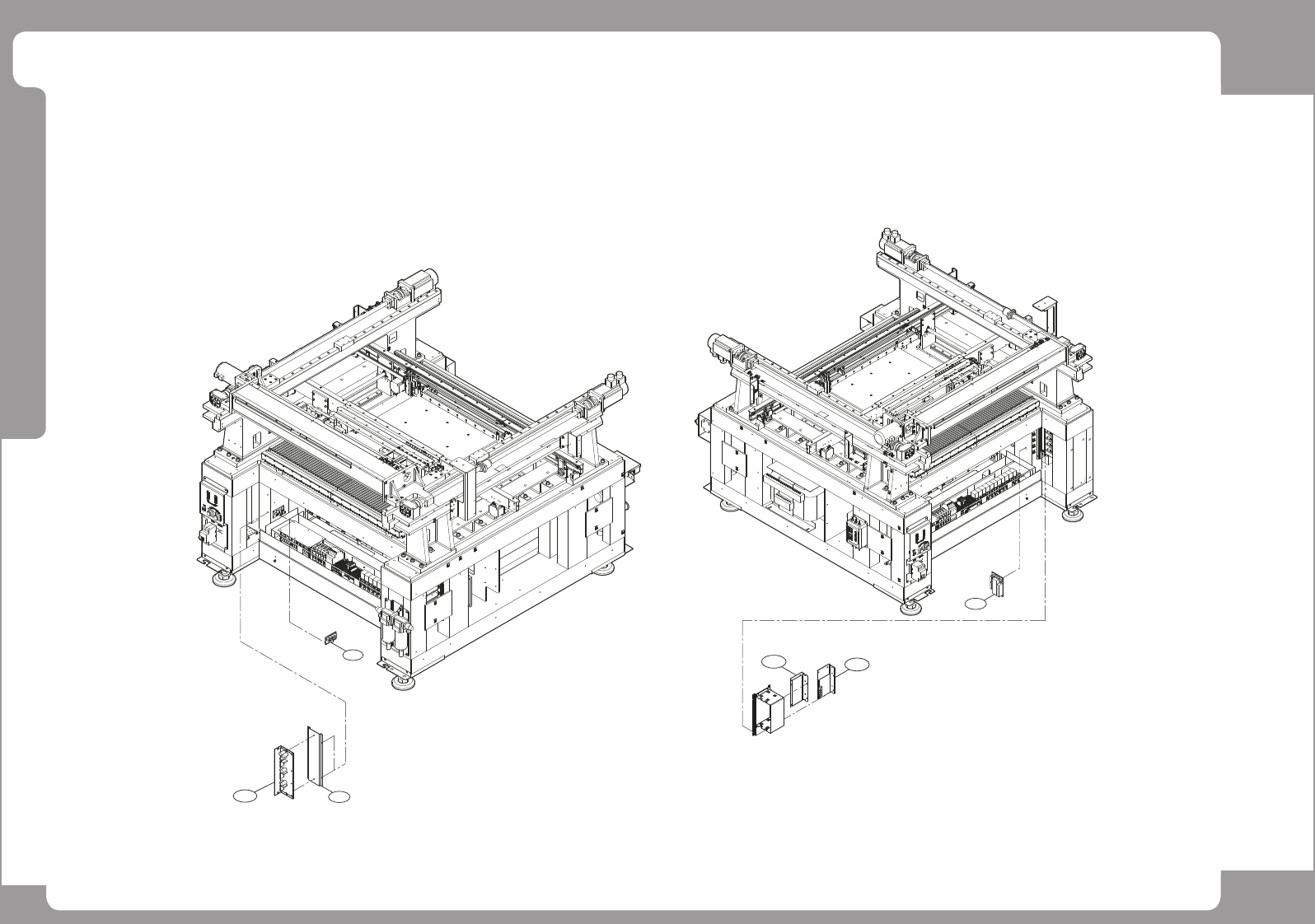

Electric Device Ass’y(4/4)
2
6
5
4
3
1
Page
+$1:+$
115
Electric Device Ass’y(4/4)
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP06-000282 SERVO CONTROL-DRIVE-BELT STEP DRIVER 1
2 EP06-000283 SERVO CONTROL-DRIVE-BELT STEP DRIVER 1 EP06-000219
3 J91741023A CONVEYOR_PWR_BOARD 1
4 EP08-001055 MOTOR,DRIVE EP06-900107
5 J90511022A HEAD_R_MOTOR_DRIVER_ASSY 1
6 FC09-007132A BRACKET-R_STEP_DRIVER_BKT 1 J70511025A
