ASM Mobile Device Manager 1.1 / Installation Manual 05/2019 Edition
12
5.3 Selecting Packages and Features

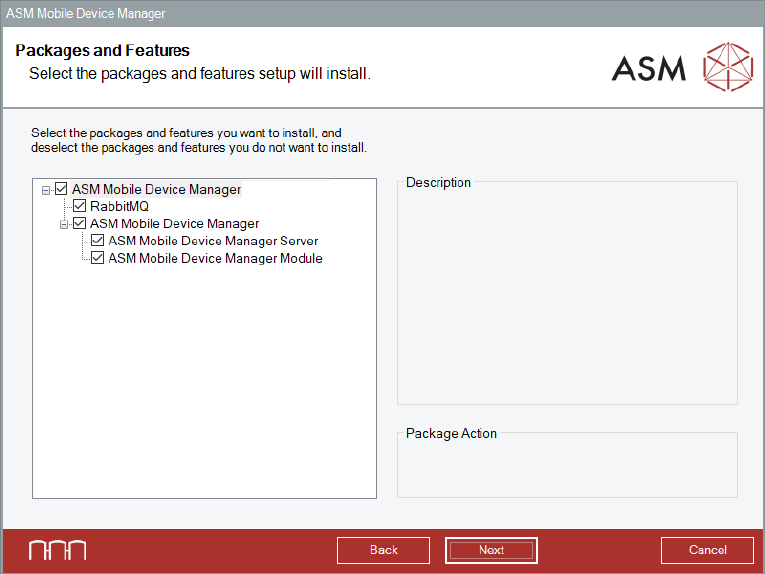

Figure 5-3: Packages and Features dialog
All software components are enabled by default.
► Select the features you want to install and deselect the features you want to remove.
► In default case, click the Next button.
The ASM OIB Core connection dialog is displayed.
ASM Mobile Device Manager 1.1 / Installation Manual 05/2019 Edition
13
5.4 Specifying ASM OIB Core Connection

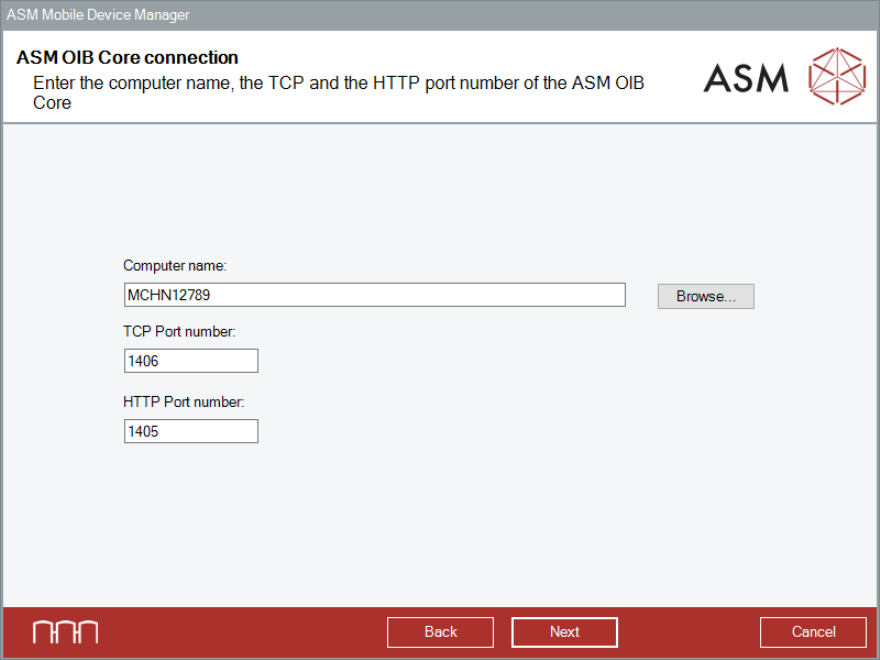

Figure 5-4: ASM OIB Core connection dialog
► Enter the computer name and port number of the computer on which the ASM OIB Server
component is installed.
► Click the Next button.
The Select network IP address dialog is displayed.
ASM Mobile Device Manager 1.1 / Installation Manual 05/2019 Edition
14
5.5 Selecting network IP address

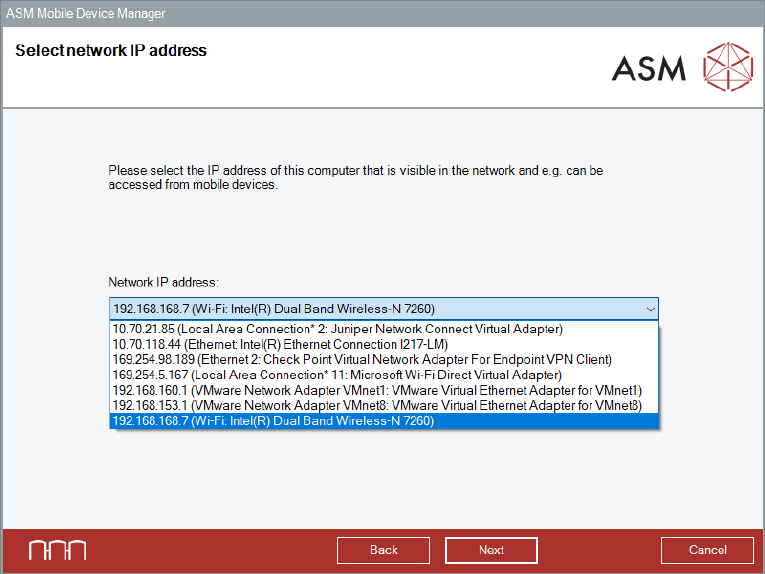

Figure 5-5: Select network IP address dialog
► Select the network IP address. If several addresses are available, select the address that can
be reached via Wi-Fi.
► Click the Next button to continue the installation procedure.
The Ready to install ASM Mobile Device Manager dialog is displayed.
