DECAN_F2_TRM(Ver5.4_CS15.49) - 第139页
Page HANWHA TECHWIN 135 DECAN F2
Page
HANWHA TECHWIN
134
DECAN
F2
Head (6/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
30 FC29-001047B Z_ROD_HOUSING 10 ONLY FOR HS HEAD
31 J90551225A_AS 431_NOZZLE_HOLDER_ASSY 10
32 FC30-000927A PLATE-BEARING_P_PLATE;SPCC 10
33 FC09-001494A S_PULLEY_CLAMP 10
34 MC19-000339A SPINDLE_PULLEY 10
35 J70551874A Z_IDLE_SHAFT 10
36
Page
HANWHA TECHWIN
135
DECAN
F2
Page
HANWHA TECHWIN
136
DECAN
F2

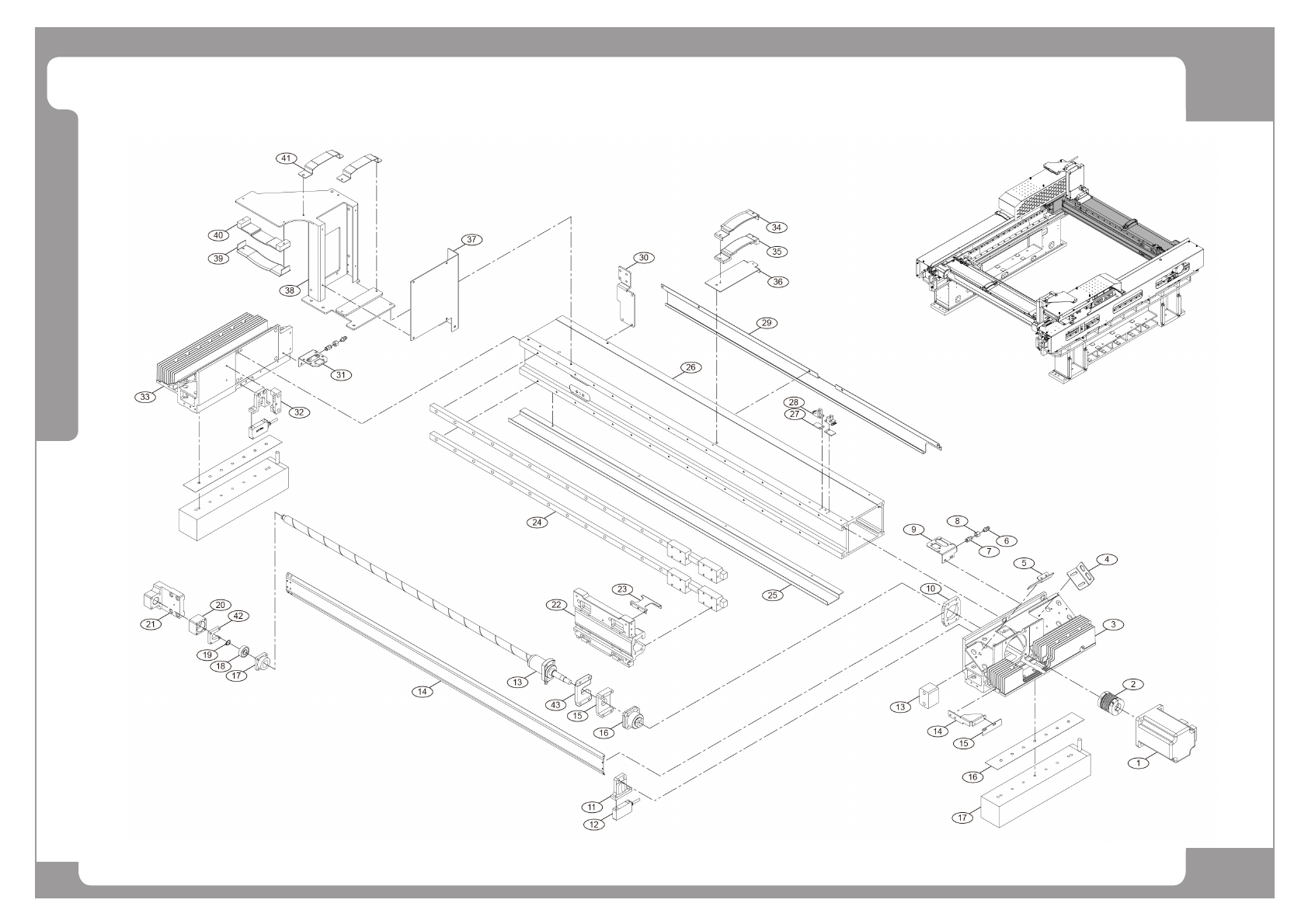

X Frame (1/2)
