DECAN_F2_TRM(Ver5.4_CS15.49) - 第269页
Page HANWHA TECHWIN 265 DECAN F2 Head IF Board (2/5) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-013438 A CABLE ASSY -SM51 1 FLA T 1 1 AM03-010515C/ AM03-0105 15D 2 AM03-013439 A CABLE A…
Page
HANWHA TECHWIN
264
DECAN
F2

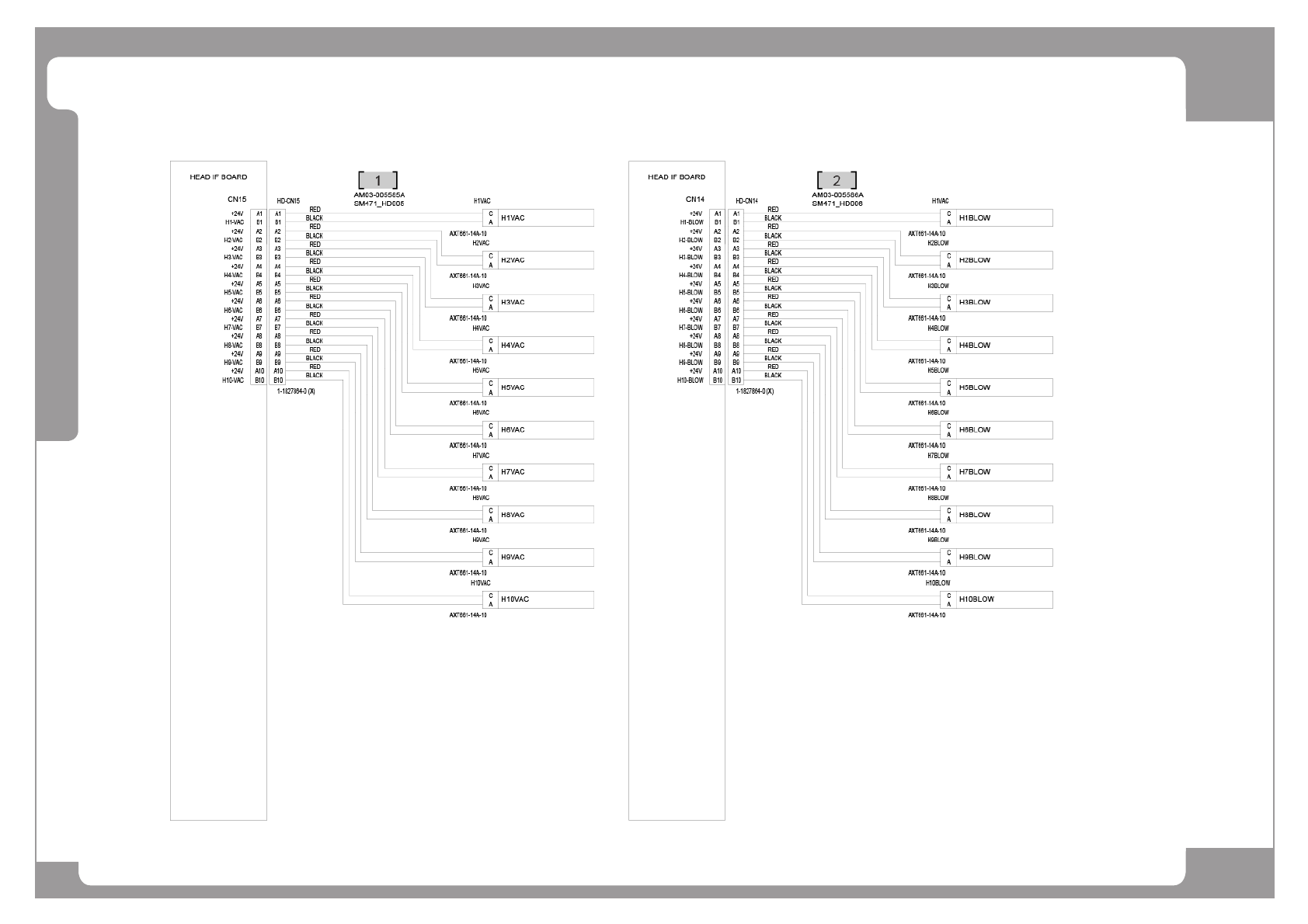

Head IF Board (2/5)
Page
HANWHA TECHWIN
265
DECAN
F2

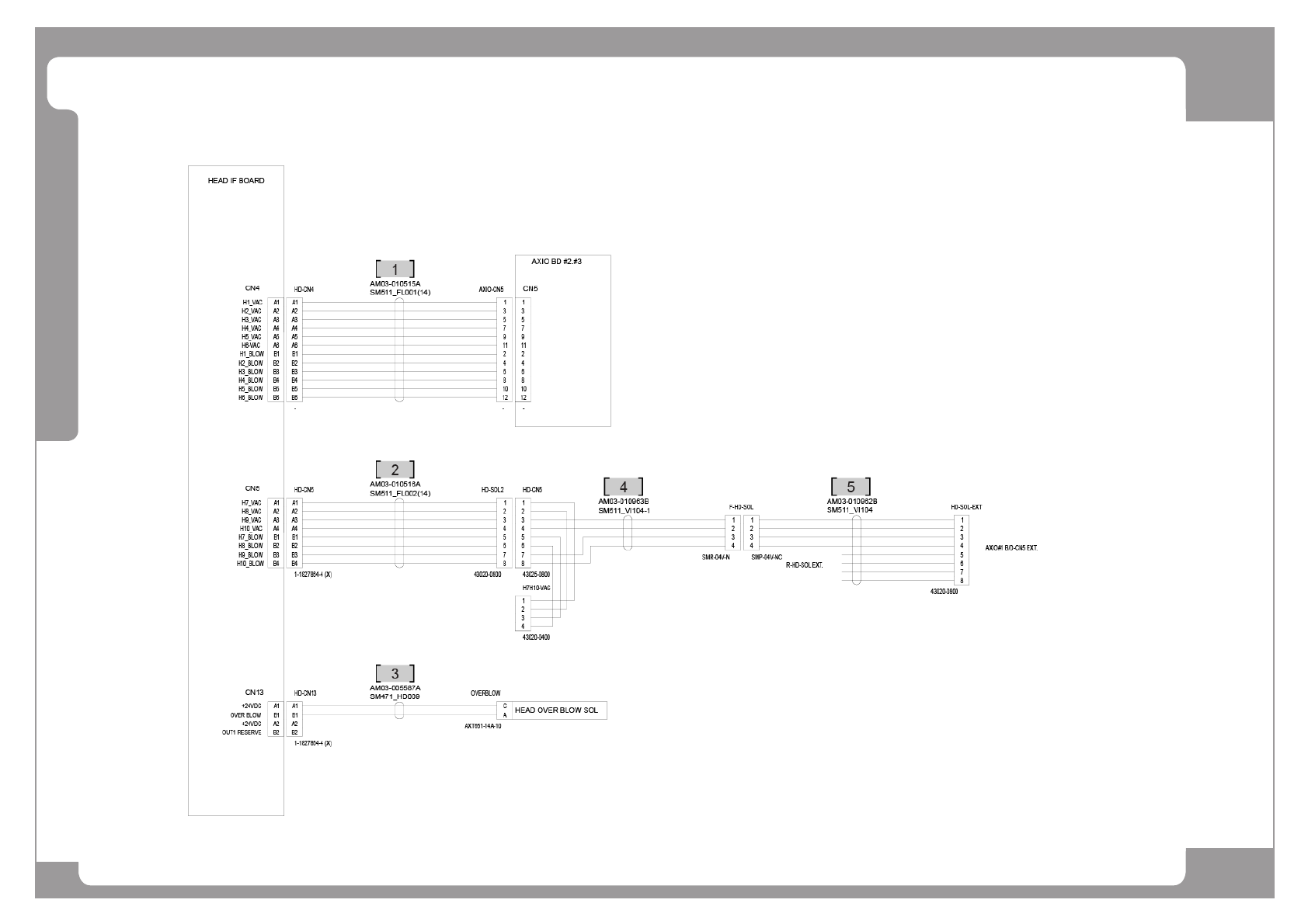

Head IF Board (2/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-013438A CABLE ASSY-SM511 FLAT 1 1 AM03-010515C/ AM03-010515D
2 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
3 AM03-005587B CABLE ASSY-HEAD_OVER_BLOW_SOL 1 AM03-005587A
4 AM03-010963B CABLE ASSY-HD1_VAC-BLOW_CTRL 1
5 AM03-010962B CABLE ASSY-HD_VAC-BLOW_CTRL 1
Page
HANWHA TECHWIN
266
DECAN
F2
Head IF Board (3/5)
