Chapter 5 The T welve Stations 5.1 Station 1 The nozzle at Station 1 picks up parts from the tape set in the feeder . The feeders, nozzles, and the twelve heads all combine to make pick-up possible with the following ope…

5 – 1

Version 6.0

Chapter 5 The Twelve Stations

5. The Twelve Stations

The role of each station is briefly described in figure 5-1. A more detailed

explanation of each station's role is presented in the rest of this chapter.

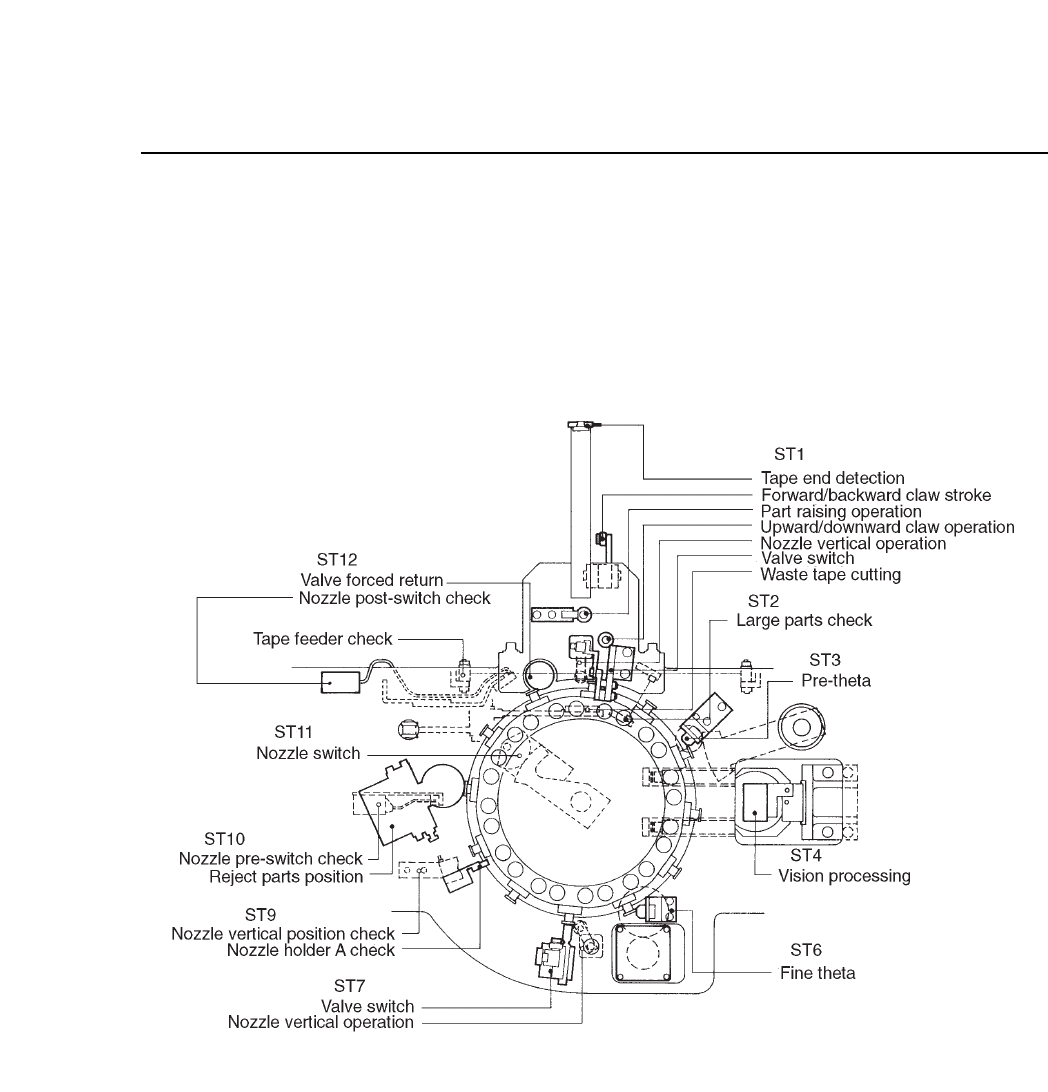

Fig. 5-1 The Twelve Stations and Their Roles

CP IV-3 Maintenance

Chapter 5 The Twelve Stations

5.1 Station 1

The nozzle at Station 1 picks up parts from the tape set in the feeder. The

feeders, nozzles, and the twelve heads all combine to make pick-up

possible with the following operations.

• Tape feed-lever forward and backward

• Tape positioning claw up and down

• Push-up pin lever movement

• Tape-end detection

• Waste tape cutting

• Tape leaf sensor

• Nozzle up and down movement

• Nozzle valve movement

5 – 2

Version 6.0

CP IV-3 Maintenance

5 – 3

Version 6.0

Chapter 5 The Twelve Stations

5.1.1 Tape Feed Lever Forward/Backward Stroke

The tape feed advance and retract stroke sends the tape forward.

The feeder moves the component to the pick-up position with the

forward stroke.

Square-motion type feeders however, advance the tape with the up

and down movement of the tape positioning claw, along with the

forward and backward motion of the tape feed lever.

• Drive Mechanism

The cam starts the tape feed cycle by advancing the lever on the

feeder. The stroke (fixed) depends on the cam curvature.

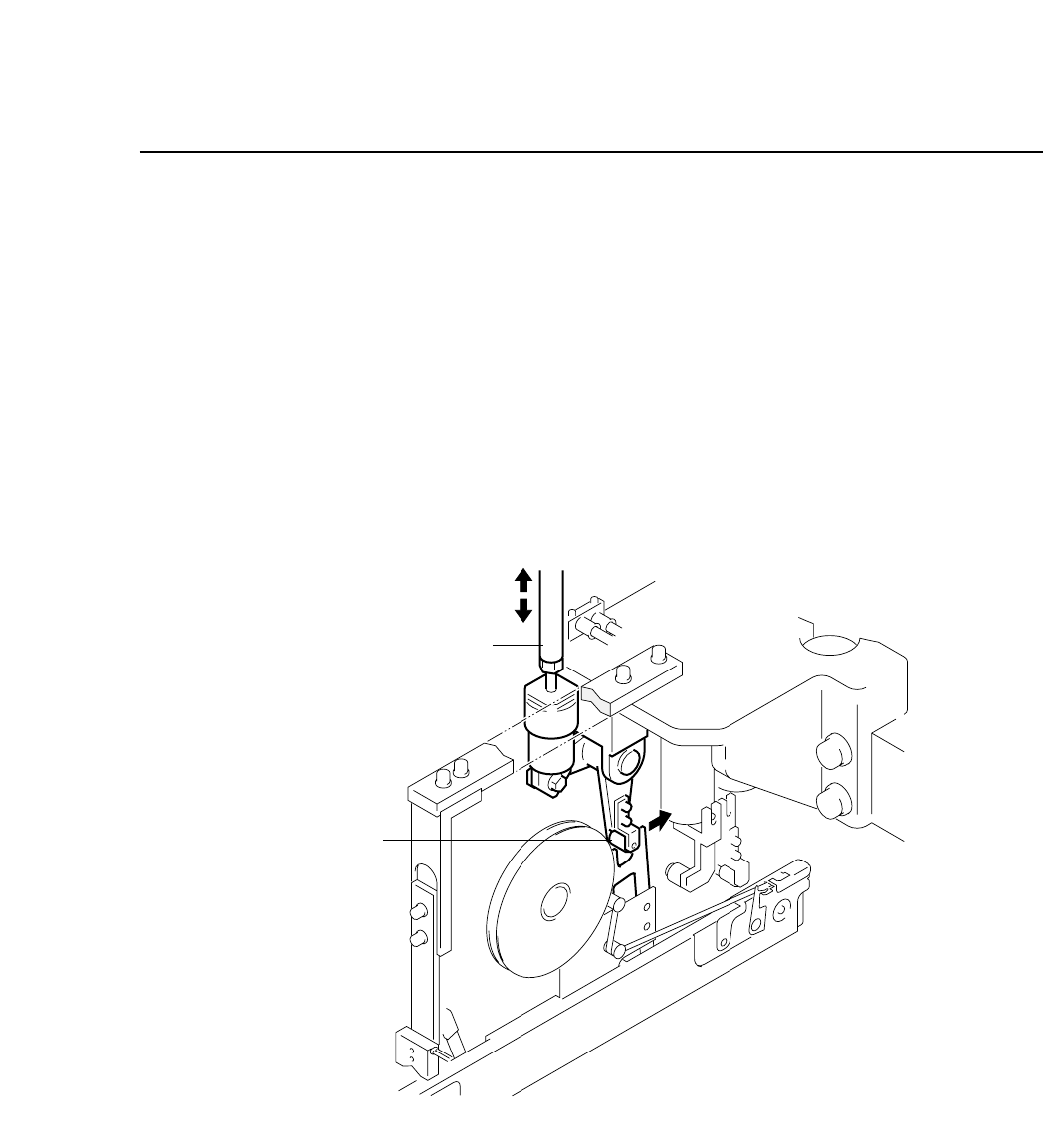

Fig. 5-2 Station 1 Tape Feed Lever

Adjustment rod

Roller
