PN 141-400 www.formfactor.com Positioners and Positioner Accessories • 86
Revision 57, February, 2023 Probe Station Accessories
• Optimized for CM300xi and Elite 300 Station Platforms
• Micrometer set planarity ad justment
• High temperature stability (HTS)
• Rec ommended for testing at high temperatures or multiple
temperatures
Specifications
• Feature resolution: 3 μm ( 0.12 mils)
• Travel range:
– X/Y: 150 mm (5.9 in)
– Z: 12.5 mm (0.5 in) (z-axis control: cw=down, ccw=up)
• Micrometer set planarity ad just: ±5°
• 2-port probe tip separation
• Adjustable for MicroChamber TopHat: 40 mm (1.6 in for Elite) and
43 mm (1.7 in for CM300xi)
• Without MicroChamber TopHat: TBD mm (y in)
• Mount: bolt-down
• Footprint: 204 x 204 mm (8 in)
• Weight = approx. 11 kg (23 pounds)
Configurations
• Use on platen left loc ation as West positioner (2-port)
Compatibility
• CM300xi with TopHat, Elite 300

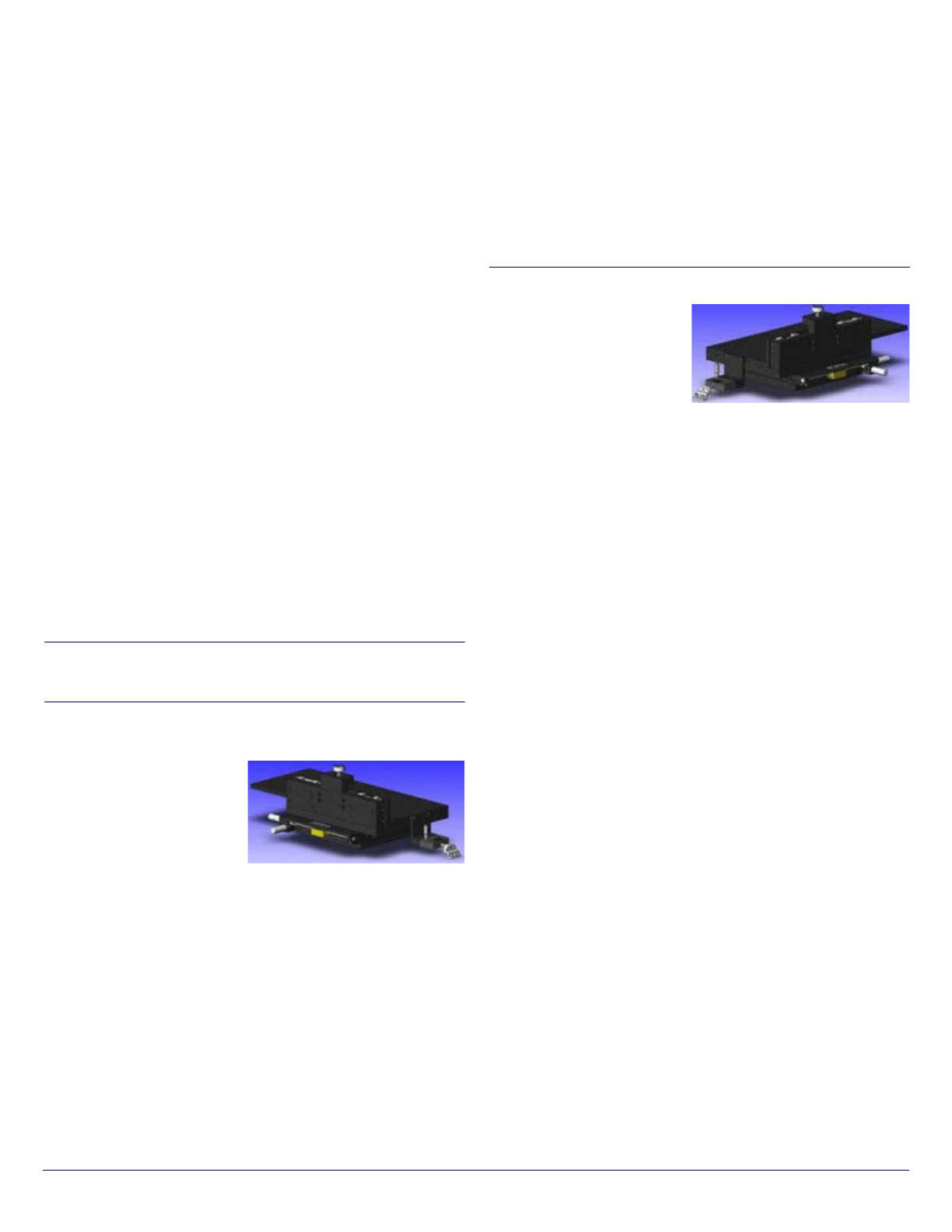

SUMMIT 11000/12000 RF AND MICROWAVE
POSITIONERS
133-525 — mmW Positioner, Manual, West Positioner
Features
• Precision 3 axis large area
positioner for Waveguide and
1.0 mm coaxial probes
• True vertical Z-axis avoids
probe damage when probes
are in close proximity to each other (thru measurements) and ea sy
to view initial contact for accurate pr obe placement
• Quick release mechanism on X and Y axes for rapid test set-up
• Micrometer set planarity ad justment
• Industry standard RF probe mount
• Includes brackets to secure common test heads
Specifications
• X travel: 132 mm (5.2 in)
• Y travel: 143 mm (5.6 in)
• Z travel: 12.5 mm (0.5 in) (z-axis control: c w=down, ccw=up)
• Micrometer set planarity ad just: ±5°
• Probe mount interface: 3 hole FormFactor standard design, with
locating pin
Configurations
• Use on platen right location as West positioner
Compatibility
• Summit 11000/12000, S300
133-528 — mmW Positioner, Manual, East Position
Features
• Precision 3 axis l arge area
positioner for Waveguide and
1.0 mm coaxial probes
• True vertical Z-axis avoids
probe damage when probes
are in close proximity to each other (thru measurements) and easy
to view initial co ntact for accurate probe placement
• Quick release mechanism on X and Y axes for rapid test set-up
• Micrometer set planarity adjustment
• Industry standard RF probe mount
• Includes brackets to secure common test heads
Specifications
• X travel: 132 mm (5.2 in)
• Y travel: 143 mm (5.6 in)
• Z travel: 12.5 mm (0.5 in) (z-axis control: cw=down, c cw=up)
• Micrometer set planarity adjust: ±5°
• Probe mount interface: 3 hole FormFactor standard design, with
locating pin
Configurations
• Use on platen left location as East positioner
Compatibility
• Summit 11000/12000, S300
PN 141-400 www.formfactor.com Positioners and Positioner Accessories • 87
Revision 57, February, 2023 Probe Station Accessories

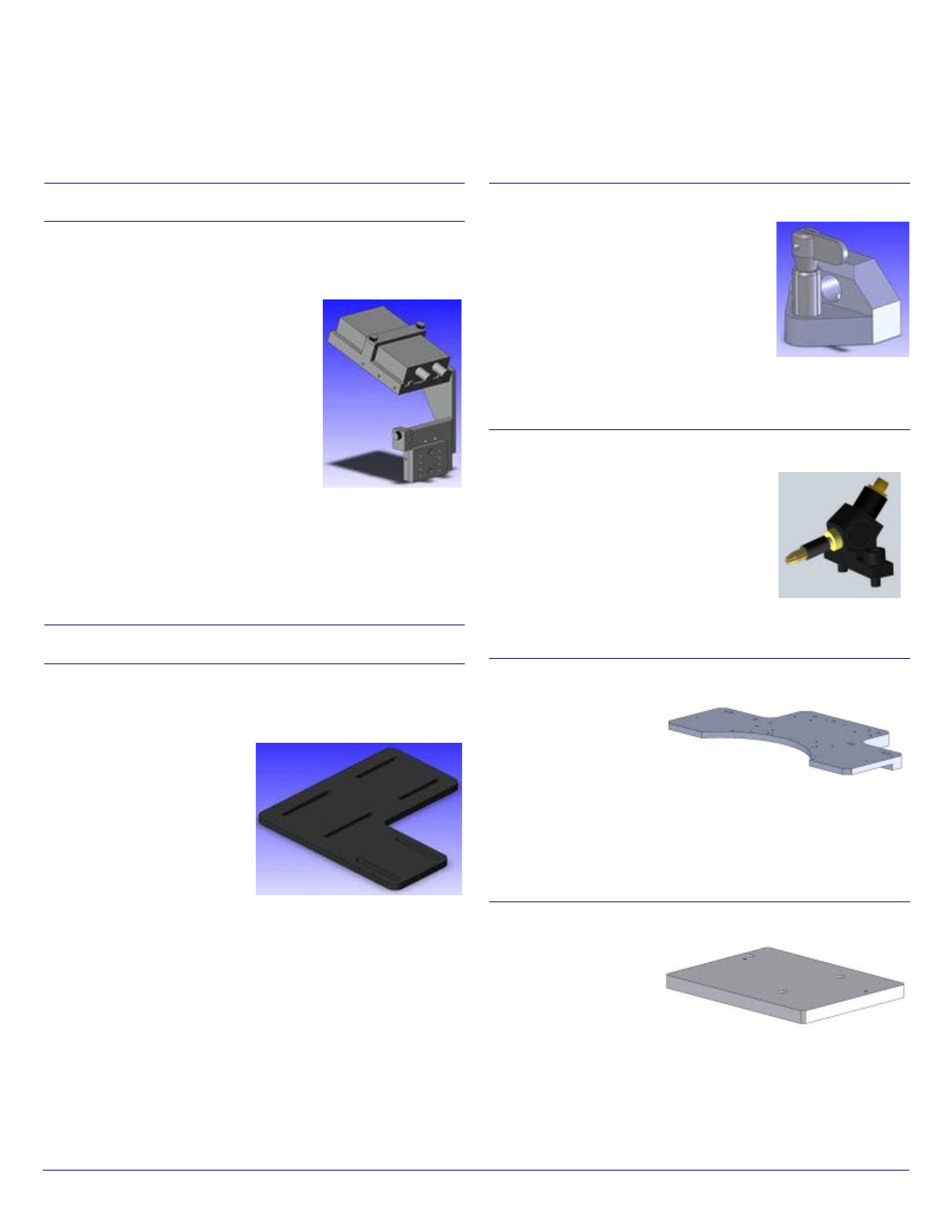

Positioner Accessories
DCM POSITIONER ACCESSORIES
138-023 — Bracket for Keithley 4200-PA-1 for DPP2xx
Positioner
Features
• Positions the Preamp close to the wafer/
device under test
• Isolated from the thermal environment of
the wafer and station platen for highly
stable measurements
• Mounts to Z axis to minimize cable flexure
between the Amp and probe
Kit Contents
• Mounting bracket
• Mounting hardware
Compatibility
• Elite 300, Summit 11000/12000, S300, M150, Alessi
RF POSITIONER ACCESSORIES
107-088 — Bracket Mount for Bias Tee/Keysight E4991A
Module, for RF Positioners
Features
• Accessory mounting kit for RF
positioners
• Use d for bias tees
• Use d for test head modules
such as Keysight E4991 test
heads
• Slotted mounting holes for
easy multiple use adaptation
Kit Contents
• Mounting plate
• Plate mounting h ardware
Compatibility
• Elite 300, Summit 11000/12000, S300, M150, Alessi
141-858 — FPC Mount for RF Positioners
Features
• Adapts from standard FormFactor 3-hole
mount to FPC style mount
• Enables the FPC probe to swing to reach
probing target
Specifications
• Compatible with standard 40 mm chuck
below platen configurations
• Compatible with POS-RF positioners
157-451 — DC Tip Holder
Features
• Mounts a DC needle to any RF probe
mount
• Requires 100805 (50 cm / 20 in] or 100751
(150 cm / 60 in) coaxial cable a rm
Specifications
• Leakage: < 5fA
• Capacitance: <4pF
174-889 — Summit 11000/12000 Platen Adapter
Features
• Adapts the Summit
11000/12000 station
platen to enable
mounting of RPP404/
RPP504 positioners
• Requires one adapter per side
Compatibility
• Summit 11000/12000
174-973 — EPS Platen Adapter
Features
• Adapts the EPS station
platen to enable
mounting of RPP404/
RPP504 positioners
• Requires one adapter per positioner
Compatibility
• EPS150, EPS200
PN 141-400 www.formfactor.com Positioners and Positioner Accessories • 88
Revision 57, February, 2023 Probe Station Accessories

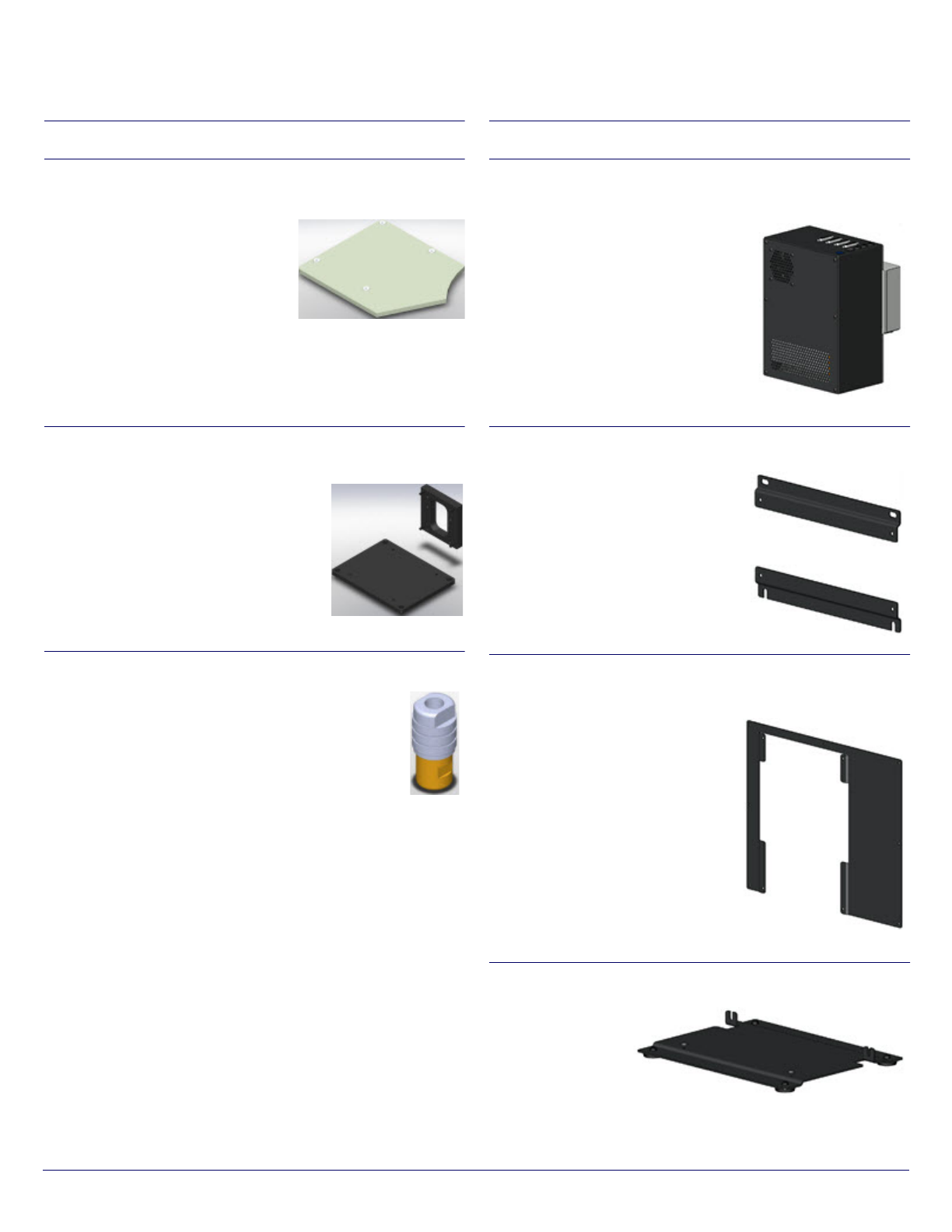

POSITIONER ACCESSORIES FOR OPEN PLATFORMS
115604 — Qu arter Ring on HF Platen for DC Probes
Features
• One quarter ring which i nstead of a
[RPP305-M-S] can be bolted down to
each of th e 4 corners of an HF platen
• All DC probes can be used with
standard arm length
• Fits all HF platens except MicroAlign
Compatibility
• PA300, PM300, PA200, PM8 + HF platen
143098 — PH510 Positioner Adapter for HF Platen and
RPP305-S Probe Arm
Features
• Mech anical adaptation of PH510 to layout
of RF platen
• Ada ptation for use of RF probe arms
RPP305-S
Compatibility
• PH510
18129 — Plug, Female, HF-3 mm, Subminiature
Features
• Fits 3 mm (0.12) male HF plug (18130) used with
DPP105
Compatibility
• DPP105
MOTORIZED POSITIONER ACCESSORIES
178-511 — MPX Controller fo r 4 Motorized Positioners
Features
• Controller box for up to 4 motorized
RPP504 or DPP5 04-B positioners
Compatibility
• CM300xi, SUMMIT200, EPS150/200
178-517 — Adapter Kit for MPX Controller on CM300xi
Features
• Used for mounting the MPX controller
on a CM300xi station
• Mounts at the rear side of the station
Compatibility
• CM300xi
178-924 — Adapter Kit for MPX Controller on
SUMMIT200
Features
• Used for mounting the MPX
controller on a SUMMIT200 station
• Mounts at the rear side of the statio n
Compatibility
• SUMMIT200
178-920 — Adapter Kit for MPX Controller on EPS
Features
• Used for mounting
the MPX controller
as a stand-alone
unit
